◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11715 - FSR AUST/NZ EURO5 EXC.SPACECAB ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#169414) — 8 parça

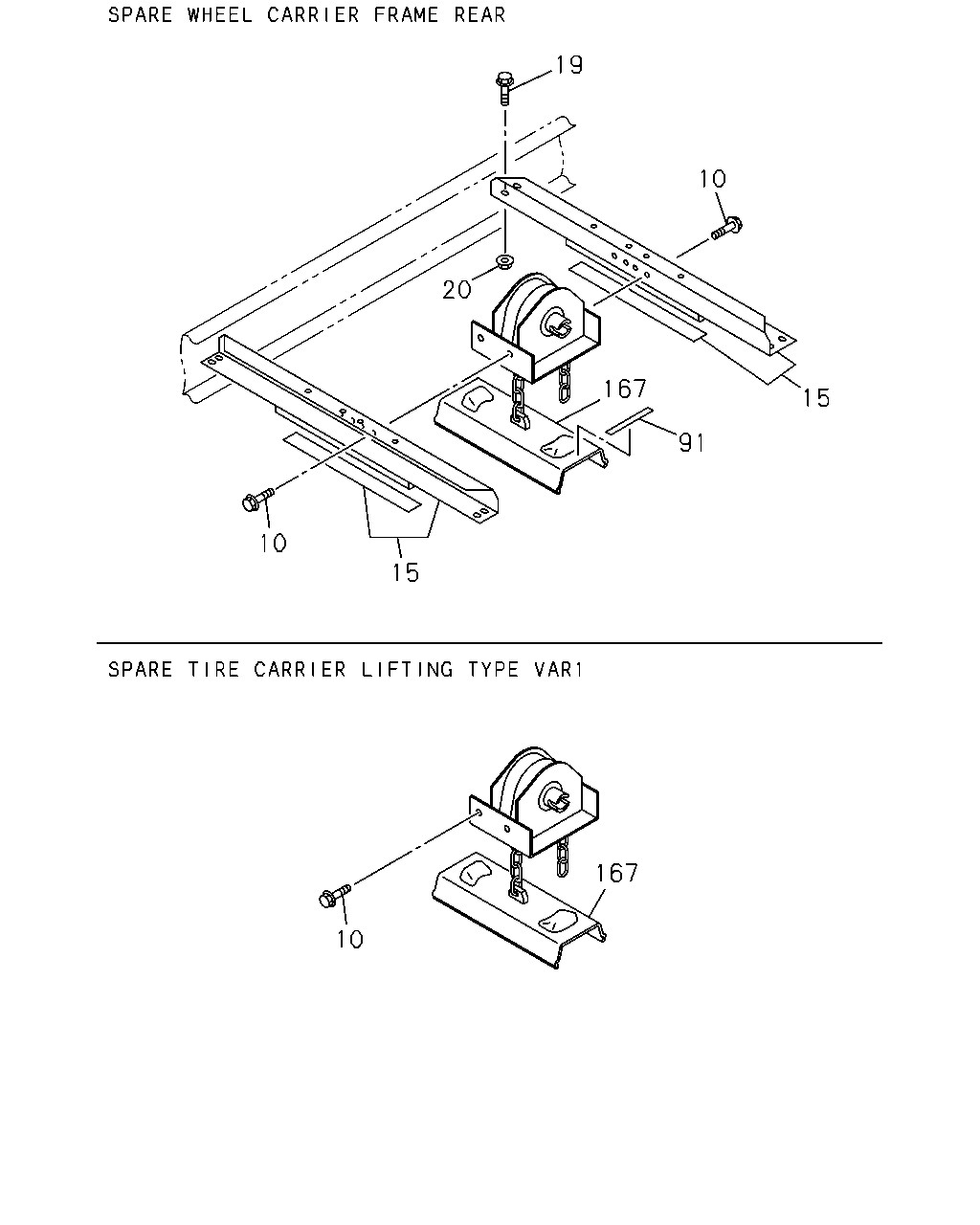

çizim 503067
19 10 15 91 167 20 15 10 10 167
BalonParca AdiParca NoAdetTipApplied Date A B
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M10X20 FLANGE 		0-28651-020-0 04 1 1511- ● ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> DISC WHEEL AL<SDM> 		8-98139-655-0 02 1 1511- ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> EXC. DISC WHEEL AL<SDM> 		1-53631-461-0 02 1 1511- ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-461-0 02 1 1511- ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE 		0-28051-025-0 08 1 1511- ● ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91180-210-0 08 1 1511- ● ●
91 PAD; TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10> DISC WHEEL AL<SDM> 		1-53639-042-0 02 1 1511- ●
167 HANGER; TIRE 8-98139-250-1 01 1 1511- ● ●
