5-01 — FRAME AND OTHER PARTS (#169410) — 103 parça

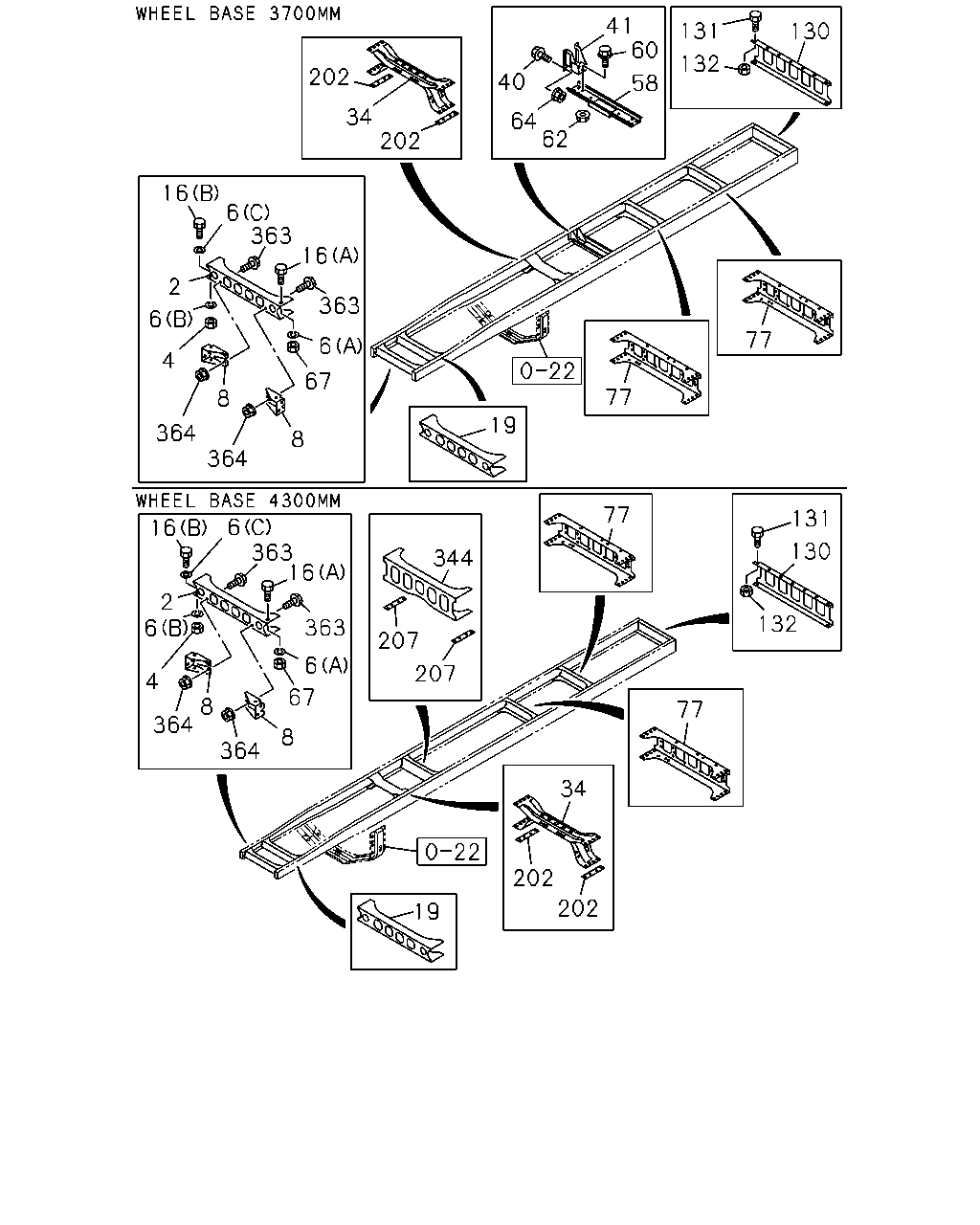

çizim 501438
202 34 202 40 62 64 41 60 58 131 132 130 11 77 19 77 131 130 132 77 34 202 202 19 364 8 364 4 8 67 6 363 16 363 6 16 2 6 364 8 67 6 363 16 363 6 16 2 6 4 364 8 207 207 344
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST
FRONT UNDER RUN PROTECTOR<EBE> 		8-97609-462-9 01 1 1511- ● ● ● ●
2 MEMBER; CROSS,1ST
EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-97615-669-3 01 1 1511- ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> M14 		0-91110-514-0 02 1 1511- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1511- ● ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) ID=14.2 		0-91510-814-0 02 1 1511- ● ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) ID=15 		8-98010-627-1 02 1 1511- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-759-2 01 1 1511- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-760-3 01 1 1511- ● ● ● ●
11 BRACKET; ENG MTG 8-97609-502-0 02 1 1511- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1511- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14X40 		0-20851-440-0 02 1 1511- ● ● ● ●
19 MEMBER; CROSS,2ND
FRONT UNDER RUN PROTECTOR<EBE> 		8-97609-463-9 01 1 1511- ● ● ● ●
19 MEMBER; CROSS,2ND
EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-97615-670-4 01 1 1511- ● ● ● ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 1511- ● ● ● ●
40 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 08 1 1511- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-973-2 01 1 1511- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-974-2 01 1 1511- ●
58 MEMBER; CENTER BRG 8-97629-975-0 01 1 1511- ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 1511- ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 1511- ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 1511- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1511- ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR 8-97609-481-4 02 1 1511- ● ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1511- ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1511- ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1511- ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 1511- ● ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1511- ● ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1511- ● ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1511- ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1511- ● ● ● ●

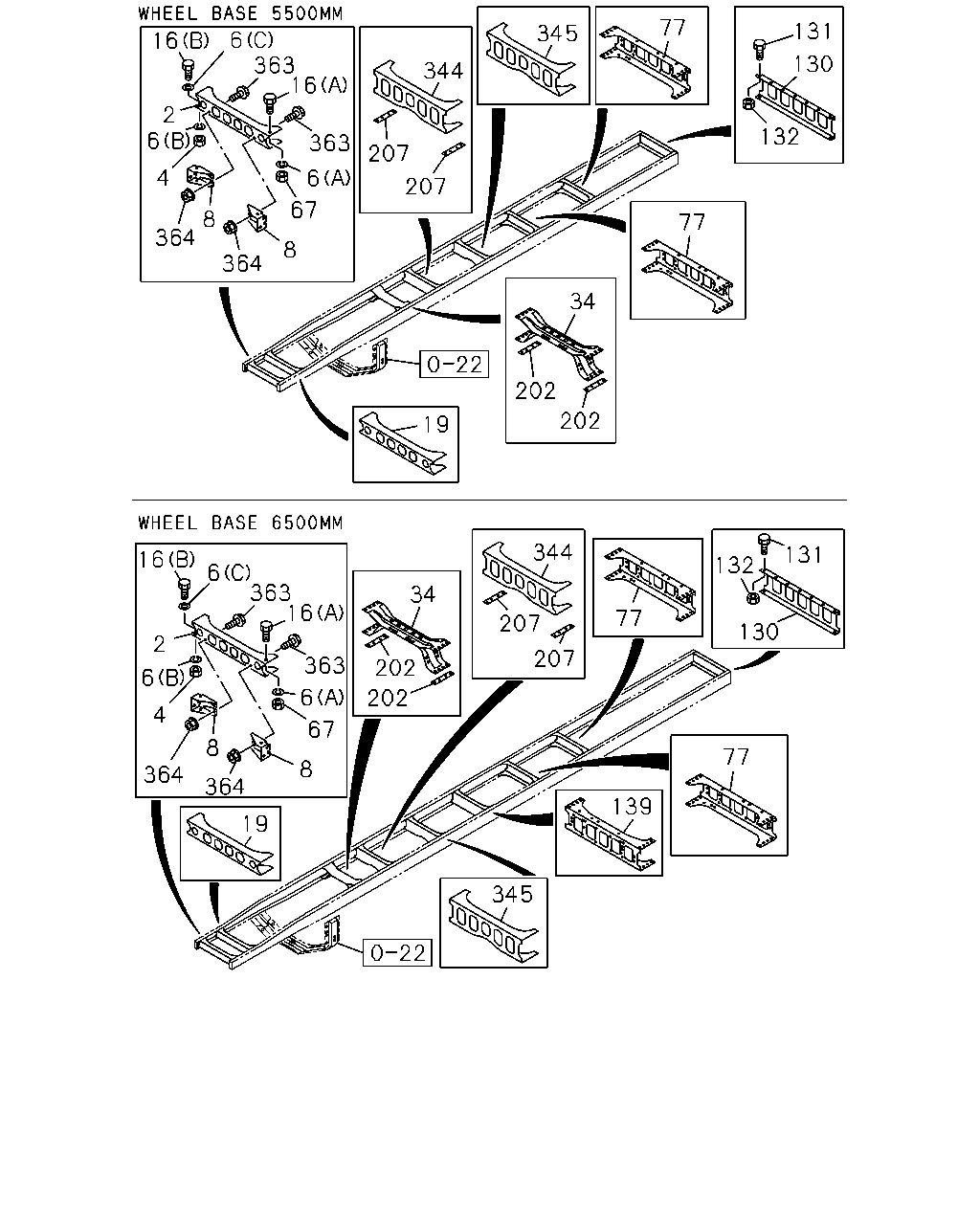

çizim 502513
6 16 363 363 16 67 8 364 364 4 6 2 8 207 344 207 345 77 131 130 132 77 34 202 202 19 344 207 207 77 132 130 131 77 139 345 19 8 4 6 16 8 363 6 16 363 6 67 8 364 364 202 34 202
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST
FRONT UNDER RUN PROTECTOR<EBE> 		8-97609-462-9 01 1 1511- ● ● ● ●
2 MEMBER; CROSS,1ST
EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-97615-669-3 01 1 1511- ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> M14 		0-91110-514-0 02 1 1511- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1511- ● ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) ID=14.2 		0-91510-814-0 02 1 1511- ● ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) ID=15 		8-98010-627-1 02 1 1511- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-759-2 01 1 1511- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-760-3 01 1 1511- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1511- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14X40 		0-20851-440-0 02 1 1511- ● ● ● ●
19 MEMBER; CROSS,2ND
FRONT UNDER RUN PROTECTOR<EBE> 		8-97609-463-9 01 1 1511- ● ● ● ●
19 MEMBER; CROSS,2ND
EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-97615-670-4 01 1 1511- ● ● ● ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 1511- ● ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1511- ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR 8-97609-481-4 02 1 1511- ● ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1511- ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1511- ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1511- ● ● ● ●
139 MEMBER; CROSS,6TH 8-97609-481-4 01 1 1511- ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 1511- ● ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1511- ● ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1511- ● ● ●
345 MEMBER; CROSS,5TH 8-97609-472-2 01 1 1511- ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 1511- ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1511- ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1511- ● ● ● ●

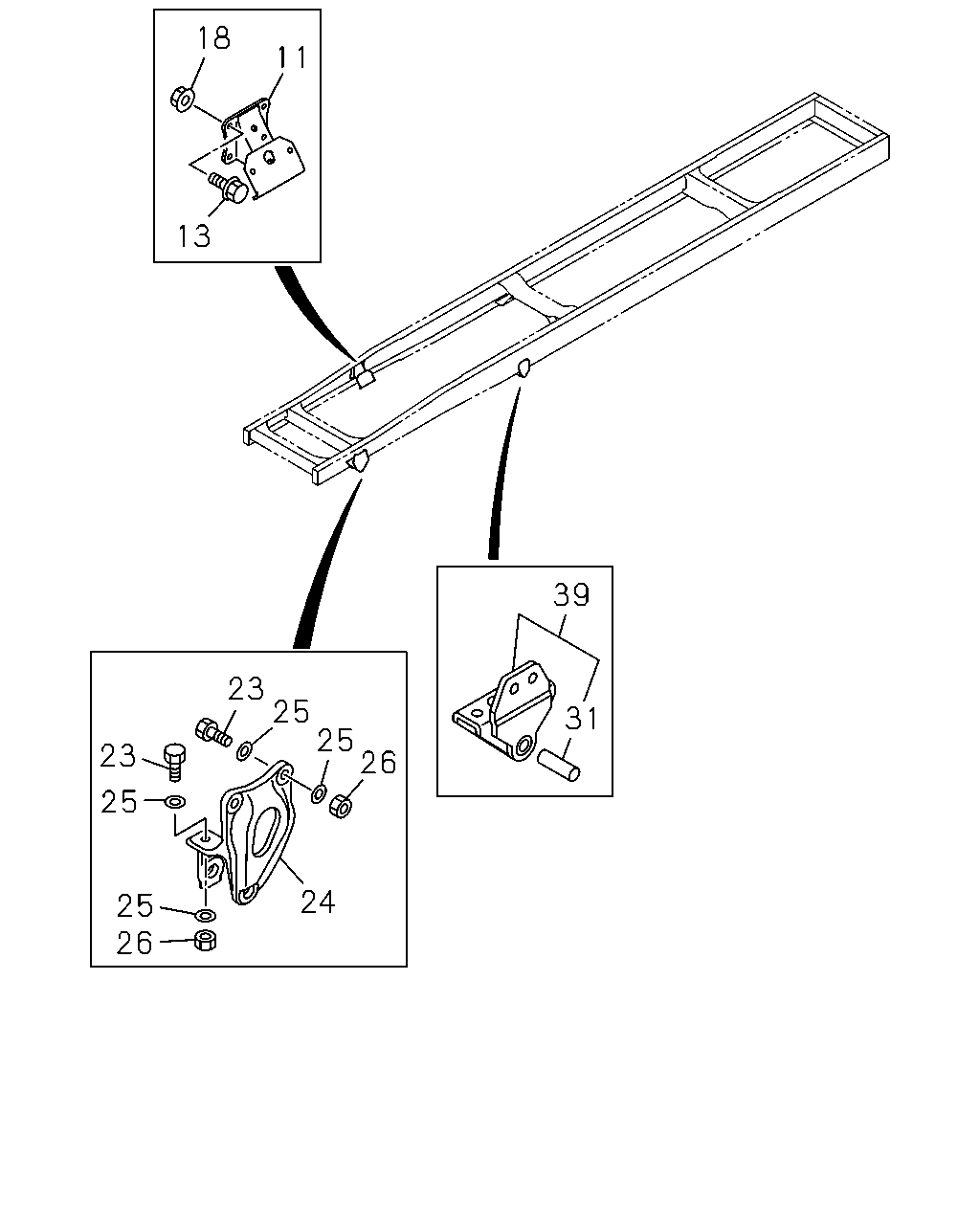

çizim 502579
18 13 11 39 31 23 25 25 26 23 25 25 26 24
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 BRACKET; ENG MTG 8-97609-502-0 02 1 1511- ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1511- ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1511- ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1511- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-983-0 01 1 1511- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-984-0 01 1 1511- ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1511- ● ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1511- ● ● ●
26 NUT; BRKT,SPR
LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 1511- ●
26 NUT; BRKT,SPR
AIR SUS(FCD***) M14 		0-91110-514-0 08 1 1511- ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1511- ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-126-2 02 1 1511- ● ● ● ●

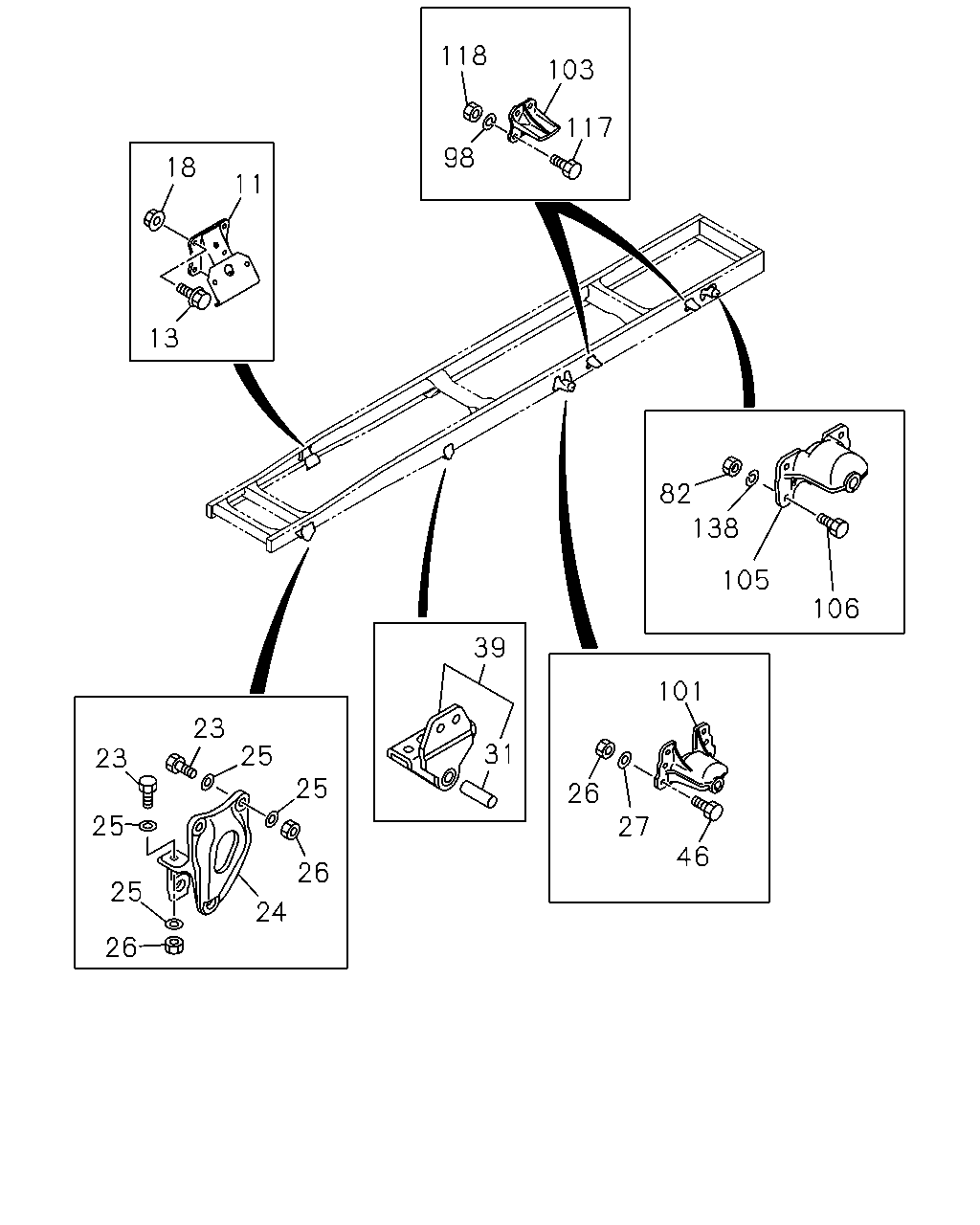

çizim 502606
118 103 117 98 18 11 13 82 105 138 106 101 46 27 26 31 39 25 26 24 26 25 25 23 23 25
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 BRACKET; ENG MTG 8-97609-502-0 02 1 1511- ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1511- ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1511- ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1511- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-983-0 01 1 1511- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-984-0 01 1 1511- ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1511- ● ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1511- ● ● ●
26 NUT; BRKT,SPR
LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 1511- ●
26 NUT; BRKT,SPR
AIR SUS(FCD***) M14 		0-91110-514-0 08 1 1511- ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 1511- ● ● ●
27 WASHER; LK,BRKT,FRT SPR
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 12 1 1511- ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1511- ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-126-2 02 1 1511- ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 1511- ● ● ●
46 BOLT; BRKT FIX
LEAF SUS(FCR***) M14X50 		0-20951-450-0 12 1 1511- ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 1511- ● ● ●
82 NUT; BRKT
LEAF SUS(FCR***) M14 		0-91110-514-0 10 1 1511- ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1511- ● ● ●
98 WASHER; LK,STOPPER
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 16 1 1511- ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1511- ● ● ●
101 BRACKET; RR SPR,FRT
LEAF SUS(FCR***) 		1-53353-090-4 02 1 1511- ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1511- ● ● ●
103 STOPPER; SUB SPR
LEAF SUS(FCR***) 		1-53356-059-1 04 1 1511- ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 1511- ● ● ●
105 BRACKET; RR SPR,RR
LEAF SUS(FCR***) 		1-53354-074-0 02 1 1511- ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 1511- ● ● ●
106 BOLT; BRKT
LEAF SUS(FCR***) M14X50 		0-20951-450-0 10 1 1511- ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1511- ● ● ●
117 BOLT; STOPPER
LEAF SUS(FCR***) M14X50 		0-20951-450-0 16 1 1511- ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1511- ● ● ●
118 NUT; STOPPER
LEAF SUS(FCR***) M14 		0-91110-514-0 16 1 1511- ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 1511- ● ● ●
138 WASHER; LK,BRKT
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 10 1 1511- ●
