◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11715 - FSR AUST/NZ EURO5 EXC.SPACECAB ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#169409) — 42 parça

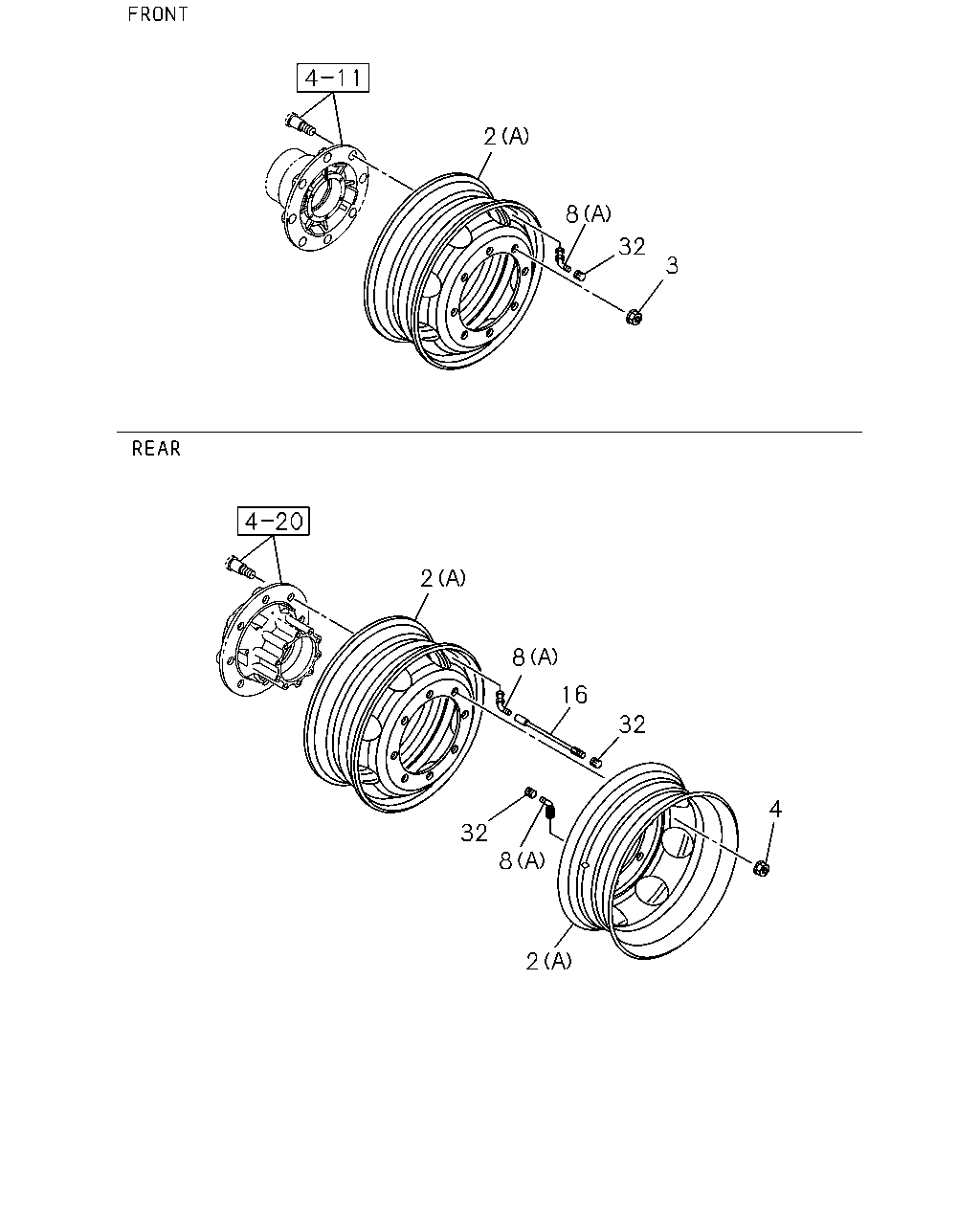

çizim 502294
2 8 32 3 2 8 16 32 4 8 32 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (A) SPARE 		8-98222-137-0 01 1 1511- ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (A) SPARE 		8-98222-137-0 01 1 1511- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		8-98222-138-0 01 1 1511- ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		8-98222-138-0 01 1 1511- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) WHEEL PAINTED LIGHT ARGENT<SKD> (A) FRONT,REAR 		8-98222-137-0 06 1 1511- ●
2 WHEEL; DISC
WHEEL PAINTED LIGHT ARGENT<SKD> (A) FRONT,REAR 		8-98222-137-0 06 1 1511- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR 		8-98222-138-0 06 1 1511- ●
2 WHEEL; DISC
DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR 		8-98222-138-0 06 1 1511- ●
2 WHEEL; DISC
WHEEL 8STUD 19.5X6.75 147-20 AL ALCOA(FJT) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		8-98252-170-0 01 1 1511- ●
2 WHEEL; DISC
WHEEL 8STUD 19.5X6.75 147-20 AL ALCOA(FJT) (B) FRONT,REAR 		8-98252-170-0 06 1 1511- ●
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-055-0 16 1 1511- ● ●
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 16 1 1511- ● ●
8 VALVE; TIRE
DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) (A) FRONT,REAR 		1-42370-048-0 06 1 1511- ●
8 VALVE; TIRE
(A) FRONT,REAR 		1-42370-048-0 06 1 1511- ●
8 VALVE; TIRE
DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42370-048-0 01 1 1511- ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42370-048-0 01 1 1511- ●
8 VALVE; TIRE
WHEEL 8STUD 19.5X6.75 147-20 AL ALCOA(FJT) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42370-044-0 01 1 1511- ●
8 VALVE; TIRE
WHEEL 8STUD 19.5X6.75 147-20 AL ALCOA(FJT) (B) FRONT,REAR 		1-42370-044-0 06 1 1511- ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=115 		8-98167-051-0 02 1 1511- ● ●
32 CAP; VALVE
DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 05 1 1511- ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 05 1 1511- ●
32 CAP; VALVE
DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 04 1 1511- ●
32 CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 04 1 1511- ●

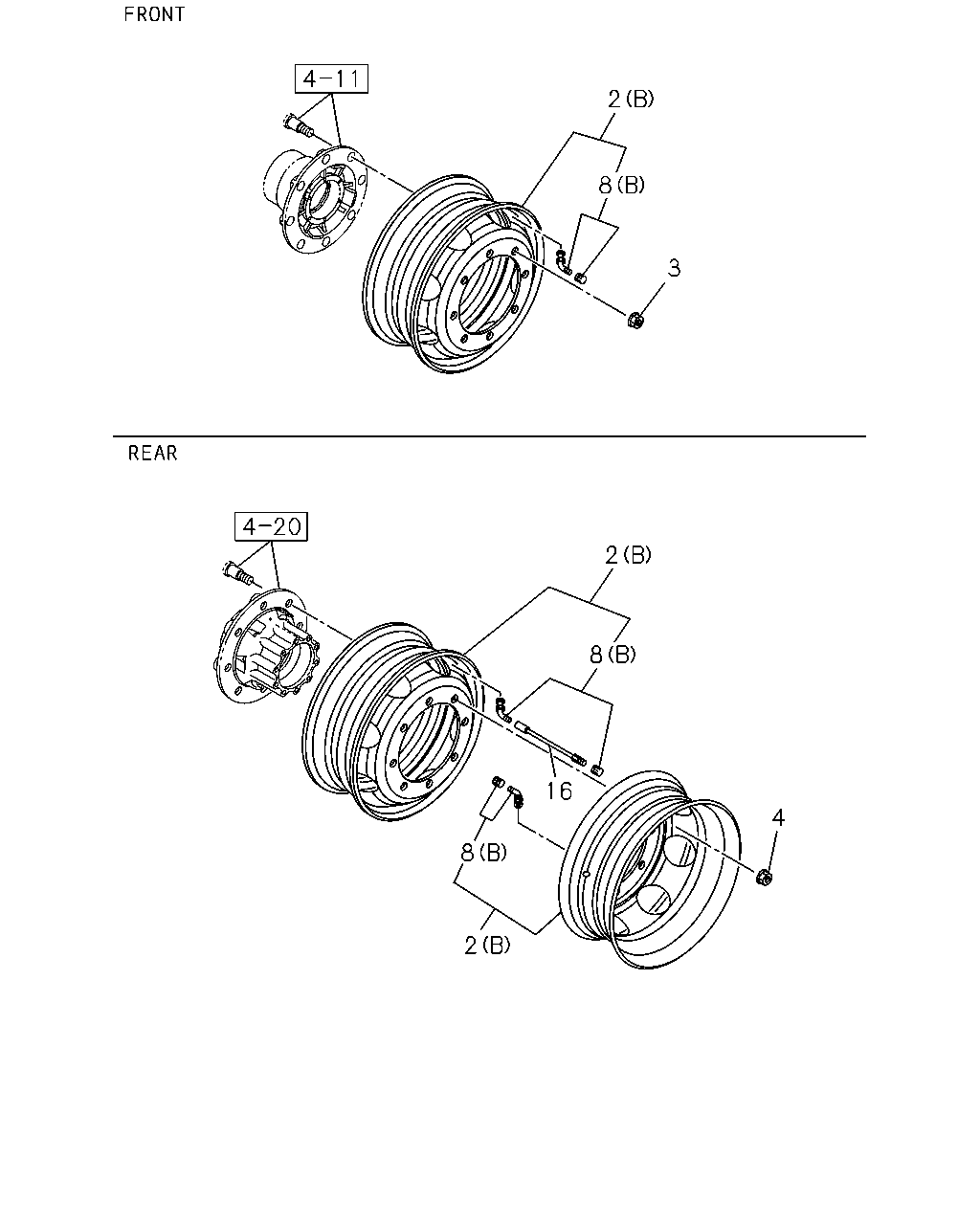

çizim 502368
2 8 3 2 8 16 8 2 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (A) SPARE 		8-98222-137-0 01 1 1511- ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (A) SPARE 		8-98222-137-0 01 1 1511- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		8-98222-138-0 01 1 1511- ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		8-98222-138-0 01 1 1511- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) WHEEL PAINTED LIGHT ARGENT<SKD> (A) FRONT,REAR 		8-98222-137-0 06 1 1511- ●
2 WHEEL; DISC
WHEEL PAINTED LIGHT ARGENT<SKD> (A) FRONT,REAR 		8-98222-137-0 06 1 1511- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR 		8-98222-138-0 06 1 1511- ●
2 WHEEL; DISC
DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR 		8-98222-138-0 06 1 1511- ●
2 WHEEL; DISC
WHEEL 8STUD 19.5X6.75 147-20 AL ALCOA(FJT) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		8-98252-170-0 01 1 1511- ●
2 WHEEL; DISC
WHEEL 8STUD 19.5X6.75 147-20 AL ALCOA(FJT) (B) FRONT,REAR 		8-98252-170-0 06 1 1511- ●
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-055-0 16 1 1511- ● ●
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 16 1 1511- ● ●
8 VALVE; TIRE
DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) (A) FRONT,REAR 		1-42370-048-0 06 1 1511- ●
8 VALVE; TIRE
(A) FRONT,REAR 		1-42370-048-0 06 1 1511- ●
8 VALVE; TIRE
DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42370-048-0 01 1 1511- ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42370-048-0 01 1 1511- ●
8 VALVE; TIRE
WHEEL 8STUD 19.5X6.75 147-20 AL ALCOA(FJT) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42370-044-0 01 1 1511- ●
8 VALVE; TIRE
WHEEL 8STUD 19.5X6.75 147-20 AL ALCOA(FJT) (B) FRONT,REAR 		1-42370-044-0 06 1 1511- ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=115 		8-98167-051-0 02 1 1511- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
