4-65 — REAR LEAF SPRING (#169404) — 60 parça

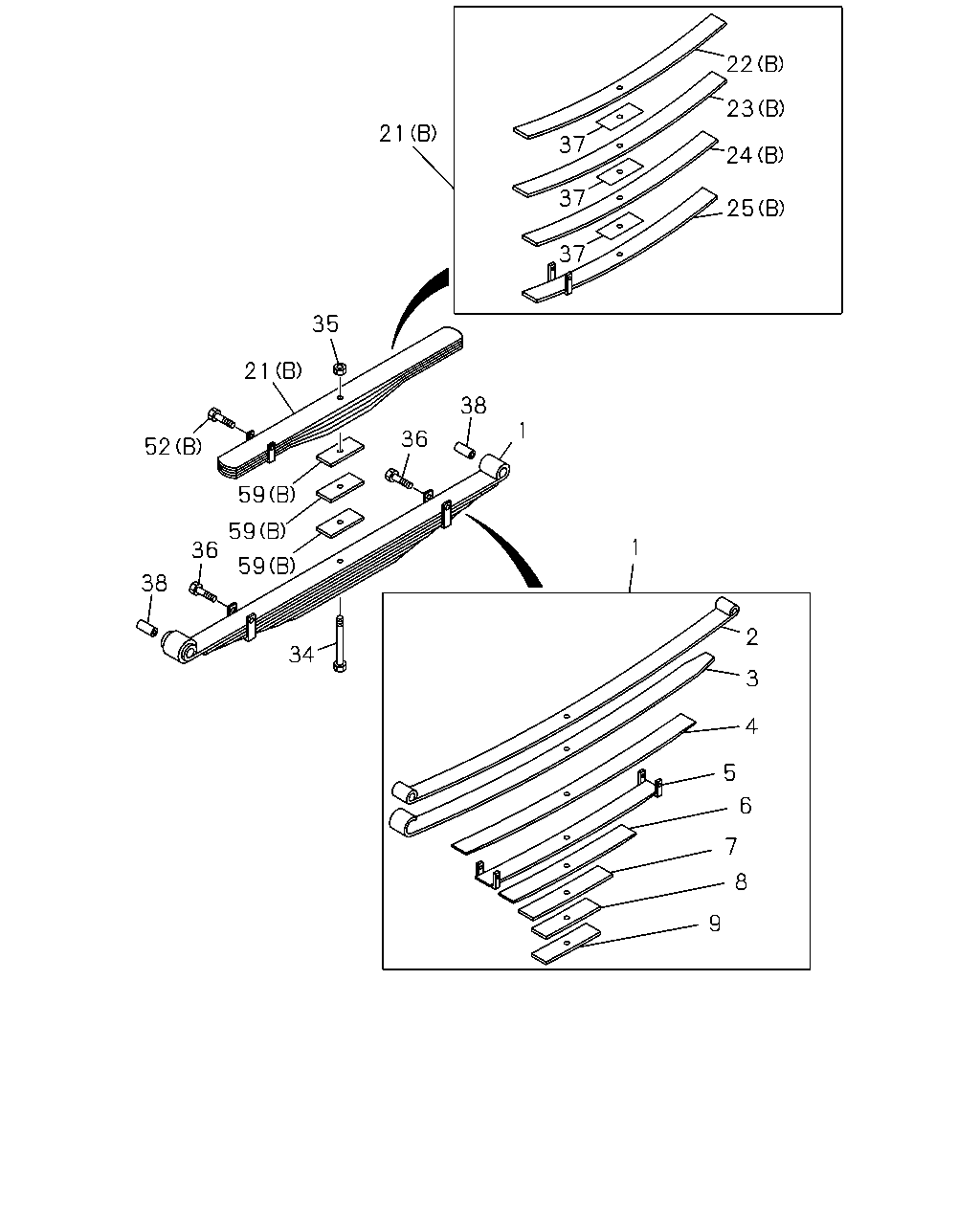

çizim 502418
25 24 23 22 37 37 37 21 35 36 38 1 1 59 59 59 36 38 52 21 34 2 3 4 5 6 7 8 9
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98017-561-0, B = 8-98064-447-0 		8-98031-287-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98017-561-0, B = 8-98064-447-0 		8-98031-288-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98017-561-0, B = 8-98064-447-0 		8-98031-289-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98017-561-0, B = 8-98064-447-0 		8-98031-290-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-98017-561-0, B = 8-98064-447-0 		8-98031-291-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-98017-561-0, B = 8-98064-447-0 		8-98031-292-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 8-98017-561-0, B = 8-98064-447-0 		8-98031-293-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: A = 8-98017-561-0, B = 8-98064-447-0 		8-98031-294-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
ASM PART: A = 8-98017-561-0, B = 8-98064-447-0 		8-98031-295-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-98017-561-0 		8-98031-296-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: B = 8-98064-447-0 		8-98083-197-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
(A) ASM PART: A = 8-98017-561-0 		8-98031-297-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
(B) ASM PART: B = 8-98064-447-0 		8-98083-193-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
(A) ASM PART: A = 8-98017-561-0 		8-98031-298-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
(B) ASM PART: B = 8-98064-447-0 		8-98083-194-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
(A) ASM PART: A = 8-98017-561-0 		8-98031-299-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
(B) ASM PART: B = 8-98064-447-0 		8-98083-195-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
(A) ASM PART: A = 8-98017-561-0 		8-98031-300-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
(B) ASM PART: B = 8-98064-447-0 		8-98083-196-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=210 ASM PART: A = 8-98017-561-0, B = 8-98064-447-0 		1-51356-344-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 8-98017-561-0, B = 8-98064-447-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M8X85 ASM PART: A = 8-98017-561-0, B = 8-98064-447-0 		1-09000-366-0 02 1 -
37 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: B = 8-98064-447-0 		1-51377-361-0 03 1 -
38 BUSHING; LEAF SPR,RR
ID=25 ASM PART: A = 8-98017-561-0, B = 8-98064-447-0 		9-51151-032-0 02 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
(A), M8X85 ASM PART: A = 8-98017-561-0 		1-09000-366-0 01 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
(B), M8X90.5 ASM PART: B = 8-98064-447-0 		8-98040-333-0 01 1 -
59 SEAT; RR SPRING,SUB
(B), T=11 ASM PART: B = 8-98064-447-0 		1-51377-199-0 03 1 -
59 SEAT; RR SPRING,SUB
(A), T=6 ASM PART: A = 8-98017-561-0 		1-51377-359-0 01 1 -

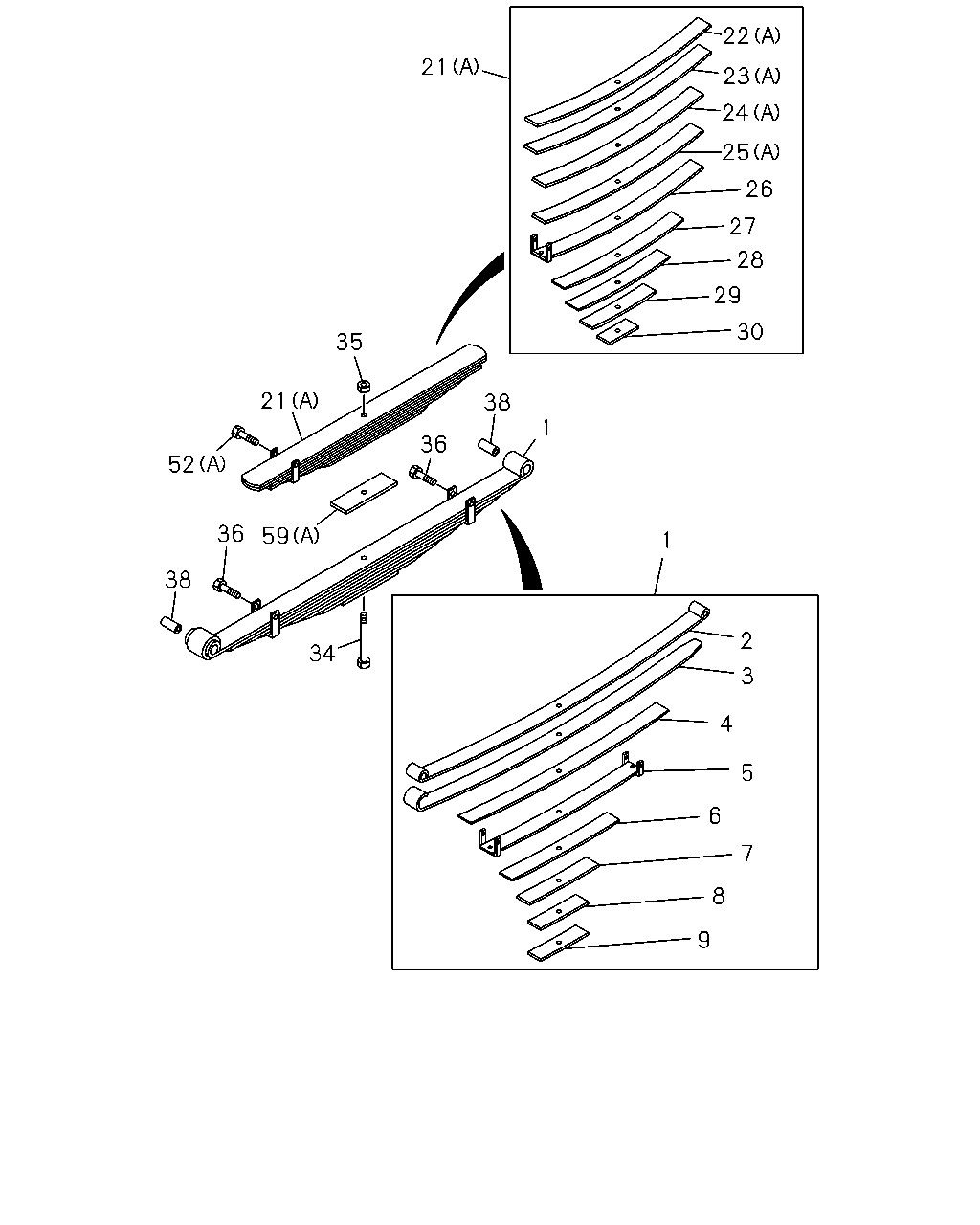

çizim 502557
22 23 24 25 26 27 28 29 30 2 3 4 5 6 7 8 9 1 1 38 36 35 21 52 36 59 38 34 21
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98017-561-0, B = 8-98064-447-0 		8-98031-287-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98017-561-0, B = 8-98064-447-0 		8-98031-288-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98017-561-0, B = 8-98064-447-0 		8-98031-289-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98017-561-0, B = 8-98064-447-0 		8-98031-290-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-98017-561-0, B = 8-98064-447-0 		8-98031-291-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-98017-561-0, B = 8-98064-447-0 		8-98031-292-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 8-98017-561-0, B = 8-98064-447-0 		8-98031-293-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: A = 8-98017-561-0, B = 8-98064-447-0 		8-98031-294-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
ASM PART: A = 8-98017-561-0, B = 8-98064-447-0 		8-98031-295-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-98017-561-0 		8-98031-296-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: B = 8-98064-447-0 		8-98083-197-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
(A) ASM PART: A = 8-98017-561-0 		8-98031-297-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
(B) ASM PART: B = 8-98064-447-0 		8-98083-193-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
(A) ASM PART: A = 8-98017-561-0 		8-98031-298-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
(B) ASM PART: B = 8-98064-447-0 		8-98083-194-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
(A) ASM PART: A = 8-98017-561-0 		8-98031-299-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
(B) ASM PART: B = 8-98064-447-0 		8-98083-195-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
(A) ASM PART: A = 8-98017-561-0 		8-98031-300-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
(B) ASM PART: B = 8-98064-447-0 		8-98083-196-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 8-98017-561-0 		8-98031-301-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: A = 8-98017-561-0 		8-98031-302-0 01 1 -
28 SPRING; LEAF,NO 7,RR SUB
ASM PART: A = 8-98017-561-0 		8-98031-303-0 01 1 -
29 SPRING; LEAF,NO 8,RR SUB
ASM PART: A = 8-98017-561-0 		8-98031-304-0 01 1 -
30 SPRING; LEAF,NO 9,RR SUB
ASM PART: A = 8-98017-561-0 		8-98031-305-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=210 ASM PART: A = 8-98017-561-0, B = 8-98064-447-0 		1-51356-344-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 8-98017-561-0, B = 8-98064-447-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M8X85 ASM PART: A = 8-98017-561-0, B = 8-98064-447-0 		1-09000-366-0 02 1 -
38 BUSHING; LEAF SPR,RR
ID=25 ASM PART: A = 8-98017-561-0, B = 8-98064-447-0 		9-51151-032-0 02 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
(A), M8X85 ASM PART: A = 8-98017-561-0 		1-09000-366-0 01 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
(B), M8X90.5 ASM PART: B = 8-98064-447-0 		8-98040-333-0 01 1 -
59 SEAT; RR SPRING,SUB
(B), T=11 ASM PART: B = 8-98064-447-0 		1-51377-199-0 03 1 -
59 SEAT; RR SPRING,SUB
(A), T=6 ASM PART: A = 8-98017-561-0 		1-51377-359-0 01 1 -
