8-40 — HEATER SYSTEM (#1694) — 71 parça

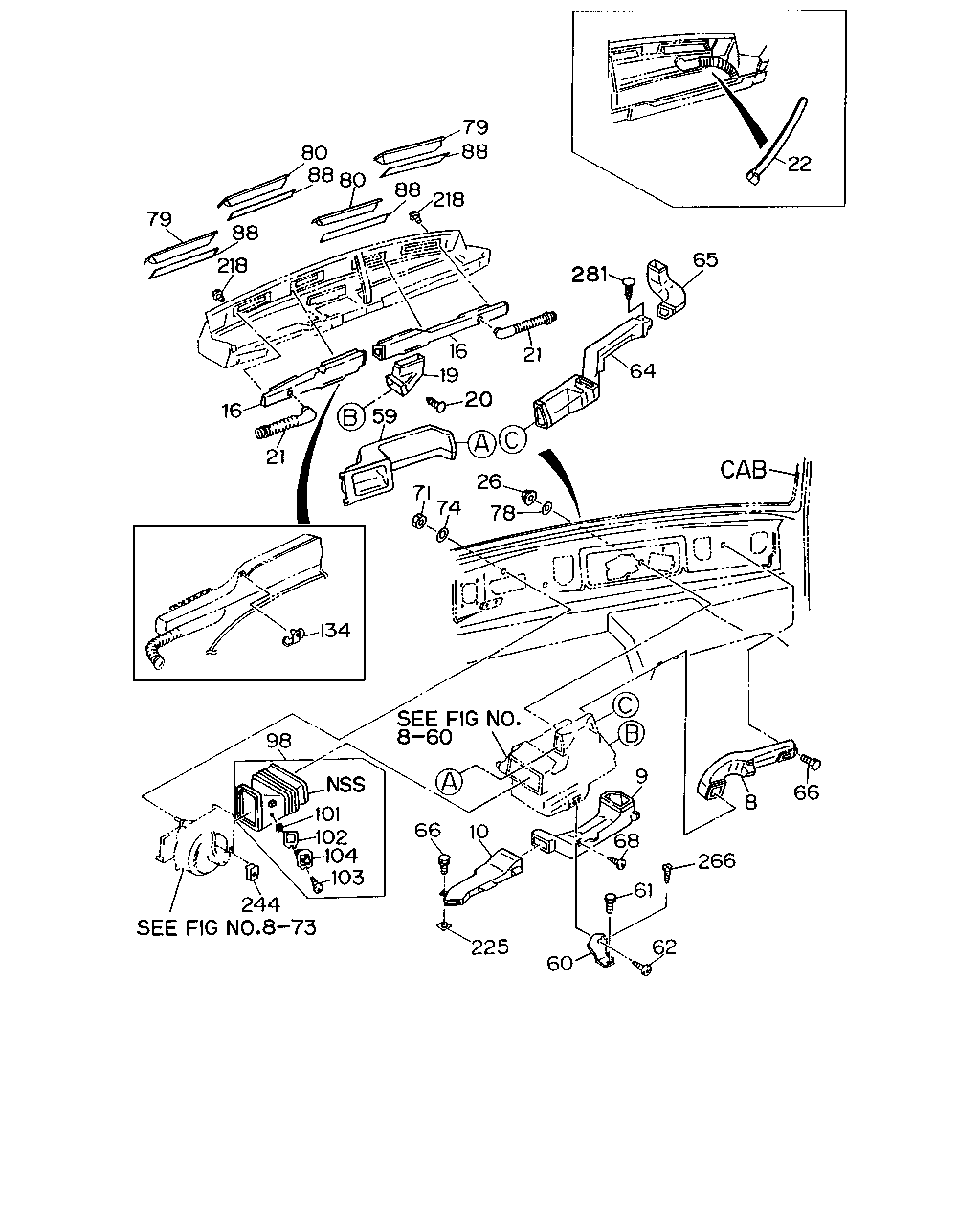

çizim 29389
80 88 80 88 218 79 88 22 79 88 218 16 21 134 59 20 19 16 21 281 65 64 71 74 26 78 98 244 101 102 104 103 225 66 10 9 68 266 8 66 61 60 62
BalonParca AdiParca NoAdetTipApplied Date A B C D E
8 DUCT; HTR AIR,DRIVER FOOT 1-83542-068-2 01 1 9207- ● ● ● ● ●
9 DUCT; HTR AIR,FOOT CENTER 1-83542-069-1 01 1 9207- ● ● ● ● ●
10 DUCT; HTR AIR,ASSIST FOOT 1-83542-070-0 01 1 9207- ● ● ● ● ●
16 DUCT ASM; DEFROSTER
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-76378-203-2 01 1 9207- ● ● ● ● ●
16 DUCT ASM; DEFROSTER
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-76378-189-3 01 1 9207- ● ● ● ● ●
19 DUCT; DEFROSTER,HTR JOINT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-76378-191-1 01 1 9207- ● ● ● ● ●
20 FASTENER; DEFROSTER DUCT,HTR JOINT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> BLACK 		8-94104-935-0 01 1 9407- ● ● ● ● ●
21 HOSE; DEFROSTER,DRIVER SIDE
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> WO/URETHANE 		1-76377-085-4 02 1 9207- ● ● ● ● ●
22 CLIP; BAND,SIDE DEFROSTER HOSE
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> L=250 		5-09707-030-1 01 1 9207- ● ● ● ● ●
26 NUT; HTR
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> M6 FLANGE 		1-09984-141-0 03 1 9207- ● ● ● ● ●
59 DUCT; VENT,ASSIST SIDE
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-76378-195-5 01 1 9207- ● ● ● ● ●
60 SUPPORT; HTR UNIT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-73998-449-4 01 1 9207- ● ● ● ● ●
61 BOLT; SUPPORT,HTR UNIT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> M6X16 W/LK&PL WASHER 		1-09980-586-0 01 1 9207- ● ● ● ● ●
62 SCREW; STAY,HTR UNIT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> M5X14 TAPPING W/PL WASHER 		0-74110-514-0 03 1 9207- ● ● ● ● ●
64 DUCT; VENT,DRIVER SIDE
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-76378-193-1 01 1 9207- ● ● ● ● ●
65 DUCT; VENT,DRIVER SIDE
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-76378-220-1 01 1 9207- ● ● ● ● ●
66 BOLT; DUCT 1-09980-538-0 03 1 9207- ● ● ● ● ●
68 SCREW; HTR DUCT
M5X14 TAPPING W/PL WASHER 		0-74110-514-0 01 1 9207- ● ● ● ● ●
71 NUT; BLOWER UNIT TO DASH
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> M6 FLANGE 		1-09984-141-0 06 1 9207-9301 ● ● ● ● ●
71 NUT; BLOWER UNIT TO DASH
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> M6 FLANGE 		1-09984-141-0 03 1 9302- ● ● ● ● ●
74 WASHER; PL,BLOWER UNIT TO DASH
OD=20 		1-09509-047-0 01 1 9207-9210 ● ● ● ● ●
74 WASHER; PL,BLOWER UNIT TO DASH
OD=20 		1-09509-047-0 02 1 9211- ● ● ● ● ●
74 WASHER; PL,BLOWER UNIT TO DASH
OD=14 		1-09509-048-0 02 1 9207- ● ● ● ● ●
78 WASHER; PL,HTR UNIT
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> OD=14 		1-09509-048-0 01 1 9207- ● ● ● ● ●
78 WASHER; PL,HTR UNIT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> OD=20 		1-09509-047-0 01 1 9207- ● ● ●
78 WASHER; PL,HTR UNIT
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> OD=20 		1-09509-047-0 01 1 9207- ● ●
78 WASHER; PL,HTR UNIT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> OD=14 		1-09509-048-0 02 1 9207- ● ● ●
78 WASHER; PL,HTR UNIT
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> OD=14 		1-09509-048-0 02 1 9207- ● ●
79 GRILLE; DEFROSTER,INST OUTSIDE 1-76368-022-0 02 1 9207- ● ● ● ● ●
80 GRILLE; DEFROSTER,INSIDE 1-76368-023-0 02 1 9207- ● ● ● ● ●
88 SEAL; DEFROSTER,GRILLE SIDE 1-76778-012-1 04 1 9207- ● ● ● ● ●
98 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-83542-066-2 01 1 9207- ● ● ● ● ●
101 NUT; RESISTOR FIX
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-83579-365-0 01 1 9207- ● ● ● ● ●
102 LINING; HTR DUCT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-83579-363-0 01 1 9207- ● ● ● ● ●
103 SCREW; TAPPING,RESISTOR FIX
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-83579-364-0 01 1 9207- ● ● ● ● ●
104 RESISTOR; HTR DUCT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-83519-028-1 01 1 9207- ● ● ● ● ●
134 CLIP; CONT CABLE
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-09987-147-0 01 1 9207- ● ● ● ● ●
218 SCREW; DEFROSTER DUCT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> M5X14 W/PL WASHER 		5-09981-050-0 04 1 9207- ● ● ● ● ●
225 SEAL; WATER
25X25 		8-94272-533-0 01 1 9207- ● ● ● ● ●
244 NUT; BLOWER BRKT,HTR
M6 FLANGE 		1-09466-001-0 02 1 9207- ● ● ● ● ●
266 PLUG; HTR HOLE
EXC. HEATER & DEFROSTER<C41> D4.7X11 		1-76378-154-0 01 1 9207- ● ● ● ● ●
266 PLUG; HTR HOLE
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> D4.7X11 		1-76378-154-0 01 1 9207- ● ● ● ● ●
281 FASTENER; VENT DUCT,DRIVER SIDE
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> BLACK 		8-94104-935-0 02 1 9407- ● ● ● ● ●

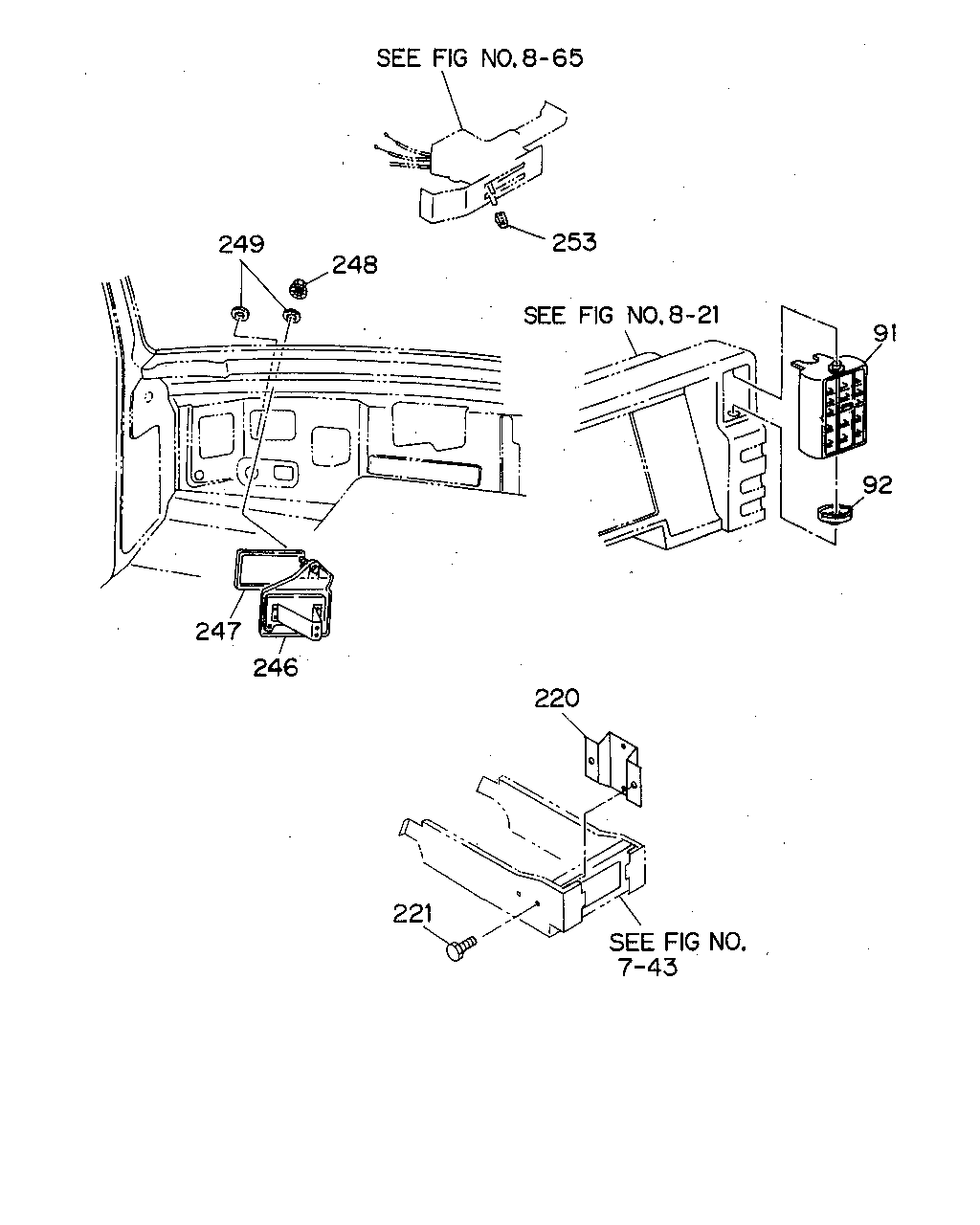

çizim 93857
249 248 247 246 253 91 92 220 221
BalonParca AdiParca NoAdetTipApplied Date A B C D E
91 GRILLE ASM; AIR OUTLET,METER CLUSTER 1-76367-050-1 02 1 9207- ● ● ● ● ●
92 BUSHING; AIR OUTLET GRILLE,METER CLUST 1-72547-048-1 02 1 9207- ● ● ● ● ●
220 BRACKET ASM; CONV
RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> DELUXE CAB<W14> 		1-73318-262-0 01 1 9207-9302 ● ● ● ● ●
221 SCREW; BRKT,CONV
RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> DELUXE CAB<W14> M5X16 		1-09981-086-0 02 1 9207-9302 ● ● ● ● ●
221 SCREW; BRKT,CONV
RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> DELUXE CAB<W14> M4X12 TAPPING 		9-07066-412-0 02 1 9207-9302 ● ● ● ● ●
246 COVER; BLOWER MOTOR
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-71997-533-3 01 1 9207- ● ● ● ● ●
247 SEAL; COVER,BLOWER MOTOR
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-71997-549-0 01 1 9207- ● ● ● ● ●
248 NUT; COVER,BLOWER MOTOR
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> M6 FLANGE 		1-09984-141-0 03 1 9207- ● ● ● ● ●
249 WASHER; PL,COVER,BLOWER MOTOR
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> OD=20 		1-09509-047-0 01 1 9207-9210 ● ● ● ● ●
249 WASHER; PL,COVER,BLOWER MOTOR
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> OD=20 		1-09509-047-0 02 1 9211- ● ● ● ● ●
249 WASHER; PL,COVER,BLOWER MOTOR
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> OD=14 		1-09509-048-0 02 1 9207-9210 ● ● ● ● ●
249 WASHER; PL,COVER,BLOWER MOTOR
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> OD=14 		1-09509-048-0 01 1 9211- ● ● ● ● ●
253 KNOB; CONT LEVER
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> 		1-82346-072-0 03 1 9207- ● ● ● ● ●
253 KNOB; CONT LEVER
VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-82346-072-0 02 1 9207- ● ● ● ● ●

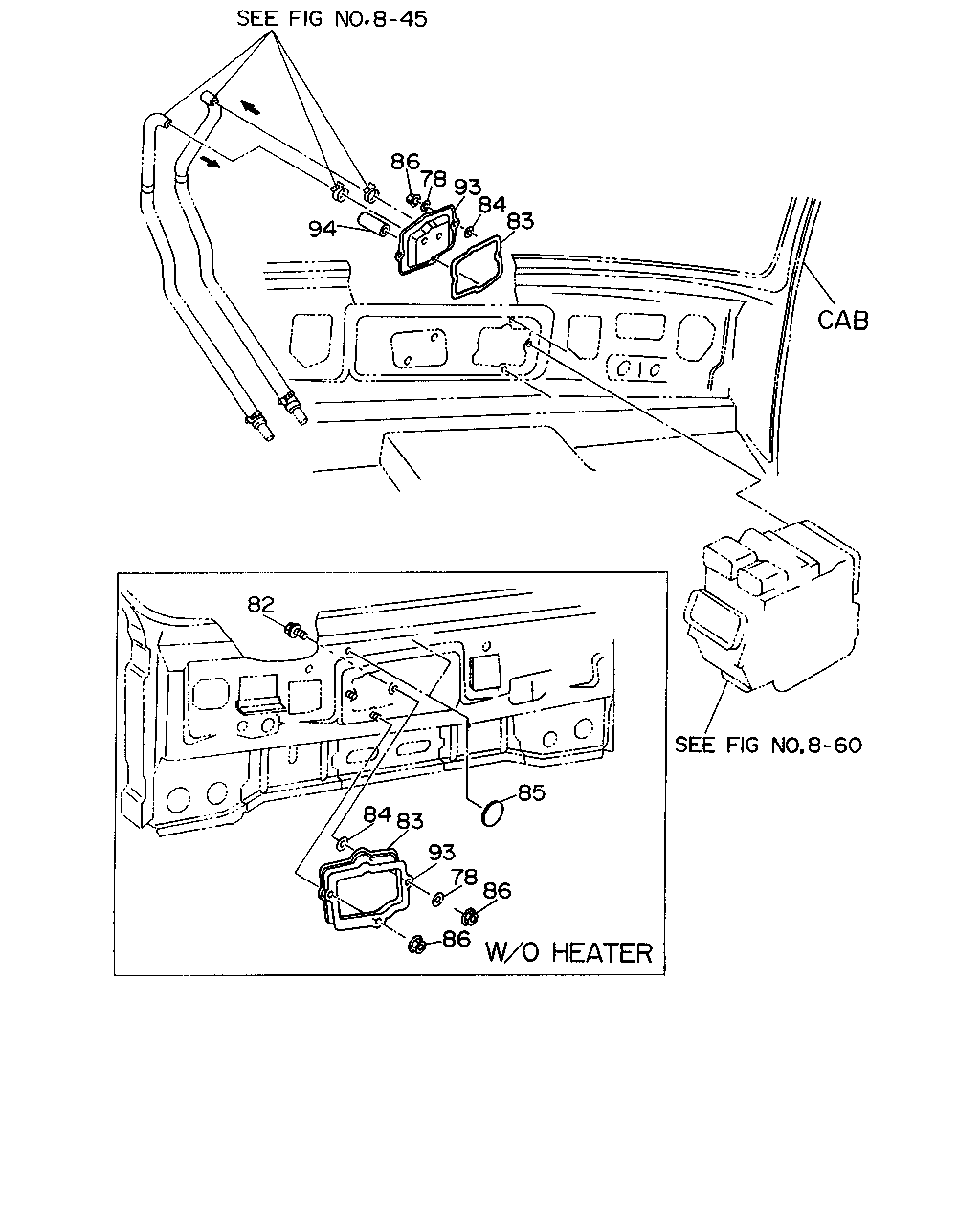

çizim 94964
94 86 78 93 84 83 82 84 83 85 93 78 86 86
BalonParca AdiParca NoAdetTipApplied Date A B C D E
78 WASHER; PL,HTR UNIT
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> OD=14 		1-09509-048-0 01 1 9207- ● ● ● ● ●
78 WASHER; PL,HTR UNIT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> OD=20 		1-09509-047-0 01 1 9207- ● ● ●
78 WASHER; PL,HTR UNIT
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> OD=20 		1-09509-047-0 01 1 9207- ● ●
78 WASHER; PL,HTR UNIT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> OD=14 		1-09509-048-0 02 1 9207- ● ● ●
78 WASHER; PL,HTR UNIT
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> OD=14 		1-09509-048-0 02 1 9207- ● ●
82 BOLT; COVER,HTR CORE
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-09980-538-0 01 1 9207- ● ● ● ● ●
83 SEAL; COVER,HTR HOLE 1-71998-222-0 01 1 9207- ● ● ● ● ●
84 SHEET; COVER,HTR CORE 1-71998-224-0 01 1 9207- ● ● ● ● ●
85 SEAL; HTR UNIT
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> OD=20 T=0.4 BLACK 		1-76798-020-0 02 1 9207- ● ● ● ● ●
86 NUT; COVER,HTR HOLE
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> M6 FLANGE 		1-09984-141-0 02 1 9207- ● ● ● ● ●
86 NUT; COVER,HTR HOLE
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> M6 FLANGE 		1-09984-141-0 03 1 9207- ● ● ● ● ●
93 COVER; HTR CORE
HEATER & DEFROSTER<C41> 		1-71998-177-1 01 1 9207- ● ● ● ● ●
93 COVER; HTR CORE
EXC. HEATER & DEFROSTER<C41> 		1-71998-180-1 01 1 9207- ● ● ● ● ●
94 CAP; HTR CORE
HEATER & DEFROSTER<C41> 		1-71998-399-0 01 1 9207- ● ● ● ● ●
