◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11715 - FSR AUST/NZ EURO5 EXC.SPACECAB ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#169398) — 53 parça

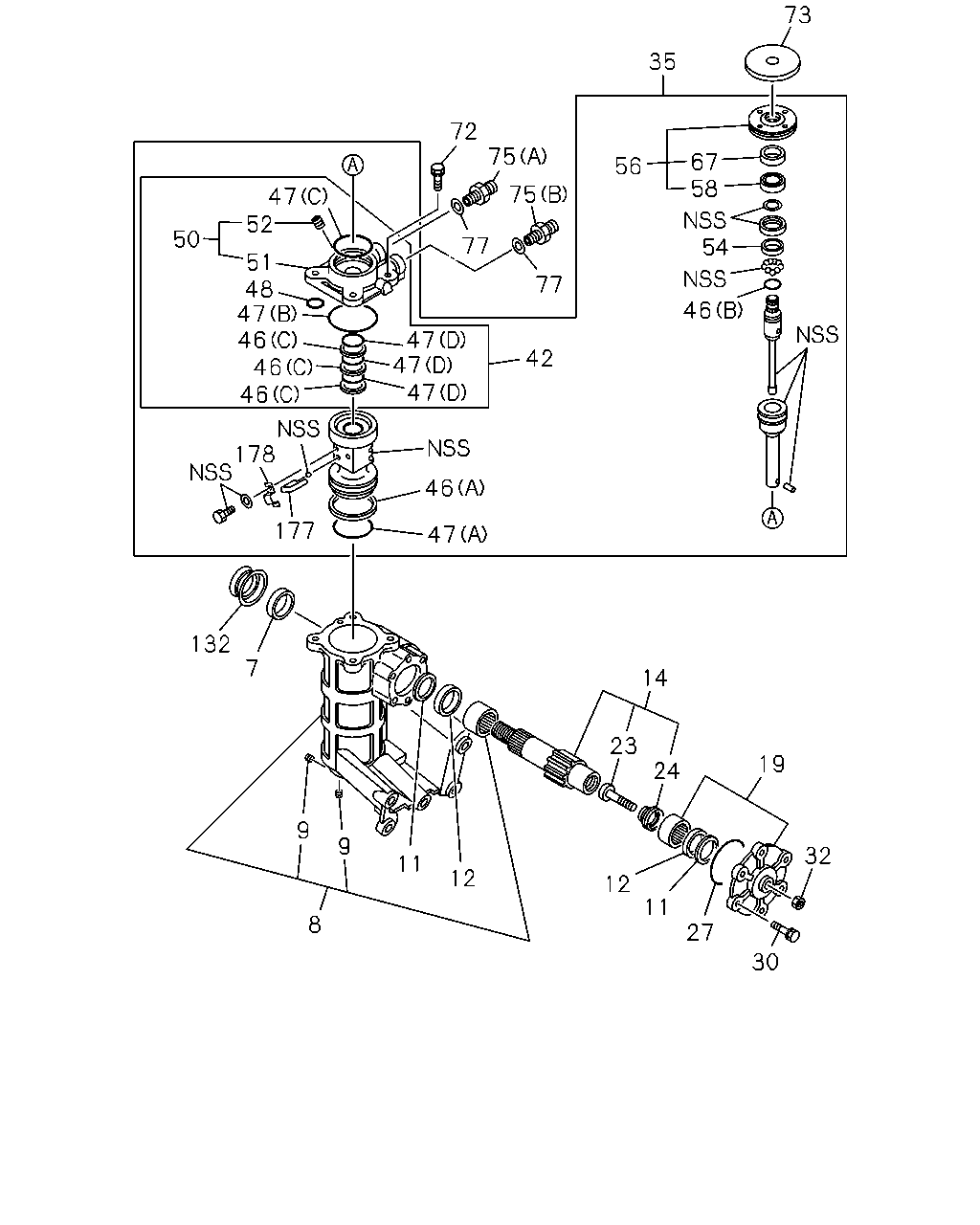

çizim 502061
47 52 50 51 48 47 46 46 46 72 75 75 77 77 47 47 47 42 35 73 178 177 46 47 56 67 58 54 46 132 7 9 9 11 8 12 14 23 24 19 32 12 11 27 30
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-102-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-952-2 		8-98159-675-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-103-0 02 1 -
12 GASKET; SHAFT,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-226-0 02 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44320-026-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-952-2 		8-98159-681-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-109-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-107-0 06 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44269-037-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-952-2 		8-98095-590-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44560-052-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-952-2 		1-44159-046-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-952-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-952-2 		1-44519-100-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-952-2 		1-44519-090-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-952-2 		1-44519-098-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-952-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-952-2 		1-44519-101-0 03 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-097-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44560-053-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44561-015-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44259-029-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44259-036-1 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-952-2 		8-98074-089-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-952-2 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-952-2 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-952-2 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44159-119-0 01 1 -
177 TUBE; BALL BRG STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44151-017-0 02 1 -
178 CLIP; BALL TUBE STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44159-034-0 01 1 -

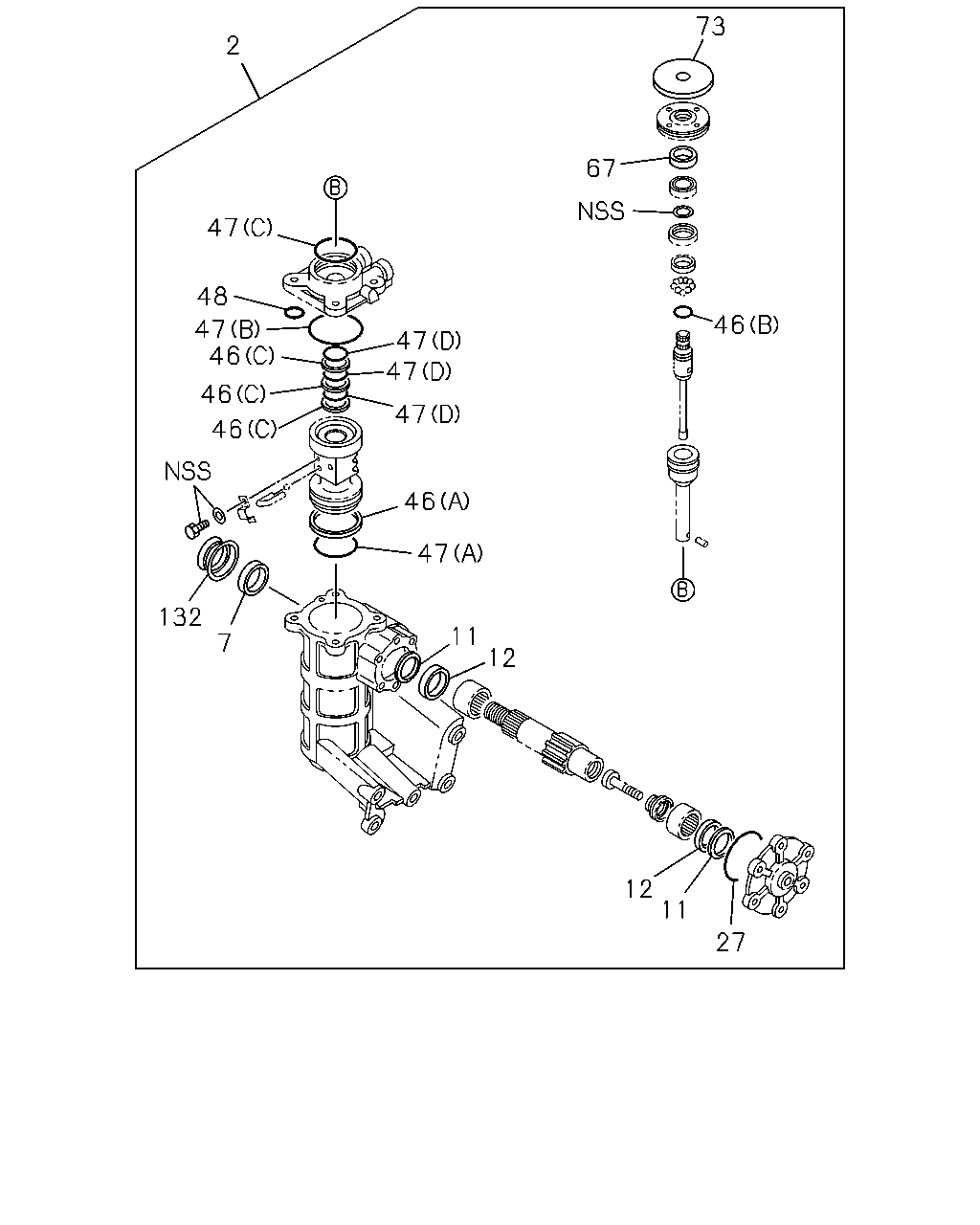

çizim 502341
73 67 46 2 47 48 46 47 46 47 46 47 47 46 47 11 12 132 7 12 11 27
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: A = 1-44000-952-2 		8-98075-903-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-102-0 01 1 -
11 RING; BACKUP,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-103-0 02 1 -
12 GASKET; SHAFT,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-226-0 02 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-109-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-952-2 		1-44159-046-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-952-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-952-2 		1-44519-100-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-952-2 		1-44519-090-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-952-2 		1-44519-098-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-952-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-952-2 		1-44519-101-0 03 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-097-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44259-036-1 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-952-2 		8-98074-089-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44159-119-0 01 1 -
