◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11715 - FSR AUST/NZ EURO5 EXC.SPACECAB ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#169397) — 11 parça

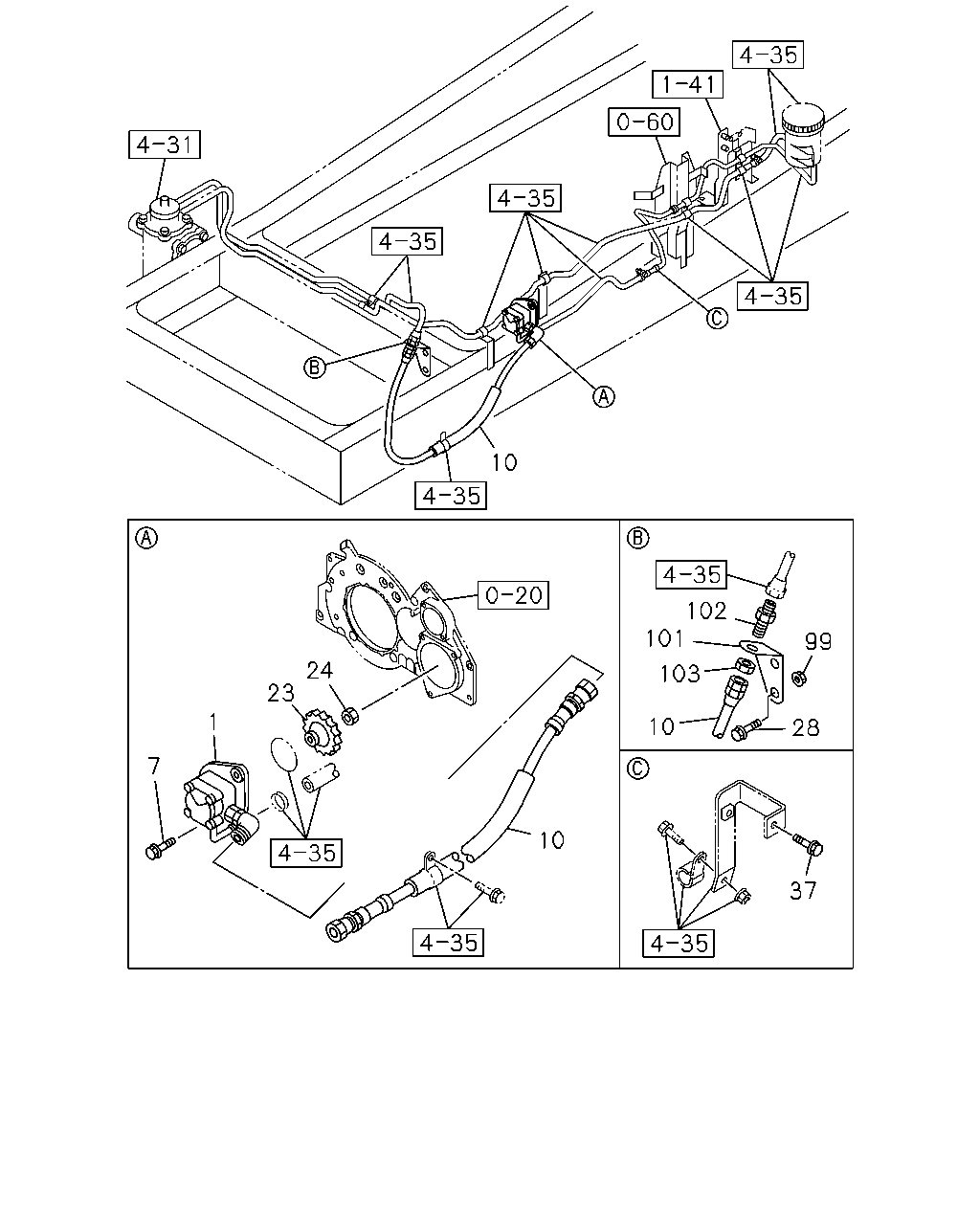

çizim 501573
7 1 23 24 102 101 103 10 28 99 37 10 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-628-1 01 1 1511- ● ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-97365-449-0 02 1 1511- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=820 		1-09365-224-0 01 1 1511- ● ●
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 1511- ● ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91180-114-0 01 1 1511- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
37 BOLT; P/S PUMP
M8X25 FLANGE 		0-28650-825-0 01 1 1511- ● ●
99 NUT; BRKT,FLEX HOSE,P/S
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
101 BRACKET; UNION 8-98050-832-0 01 1 1511- ● ●
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 1511- ● ●
103 NUT; UNION
M22 		0-91111-522-0 01 1 1511- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
