◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11715 - FSR AUST/NZ EURO5 EXC.SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#169387) — 51 parça

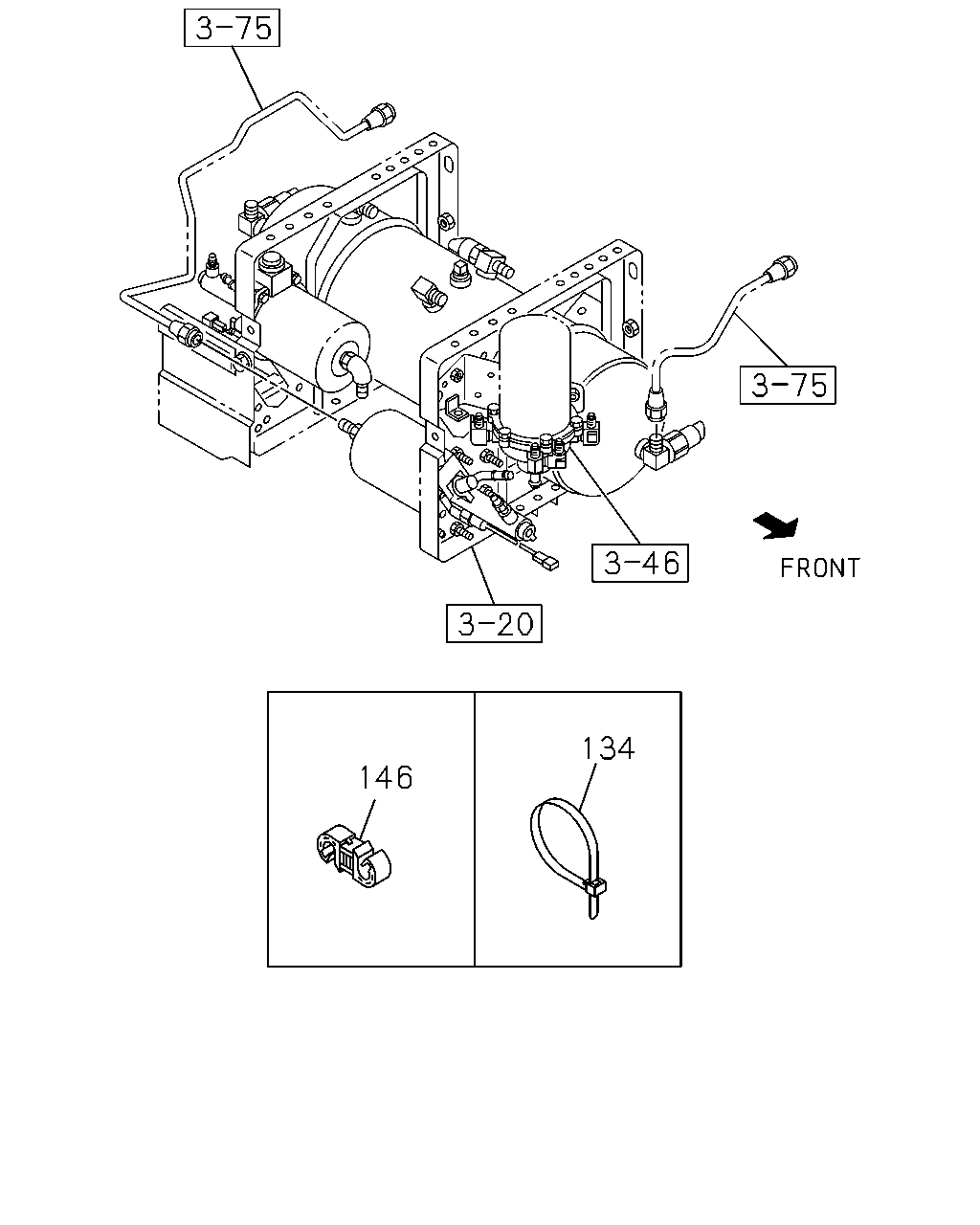

çizim 501304
146 134
BalonParca AdiParca NoAdetTipApplied Date A B
134 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1511- ● ●
146 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 04 1 1511- ● ●

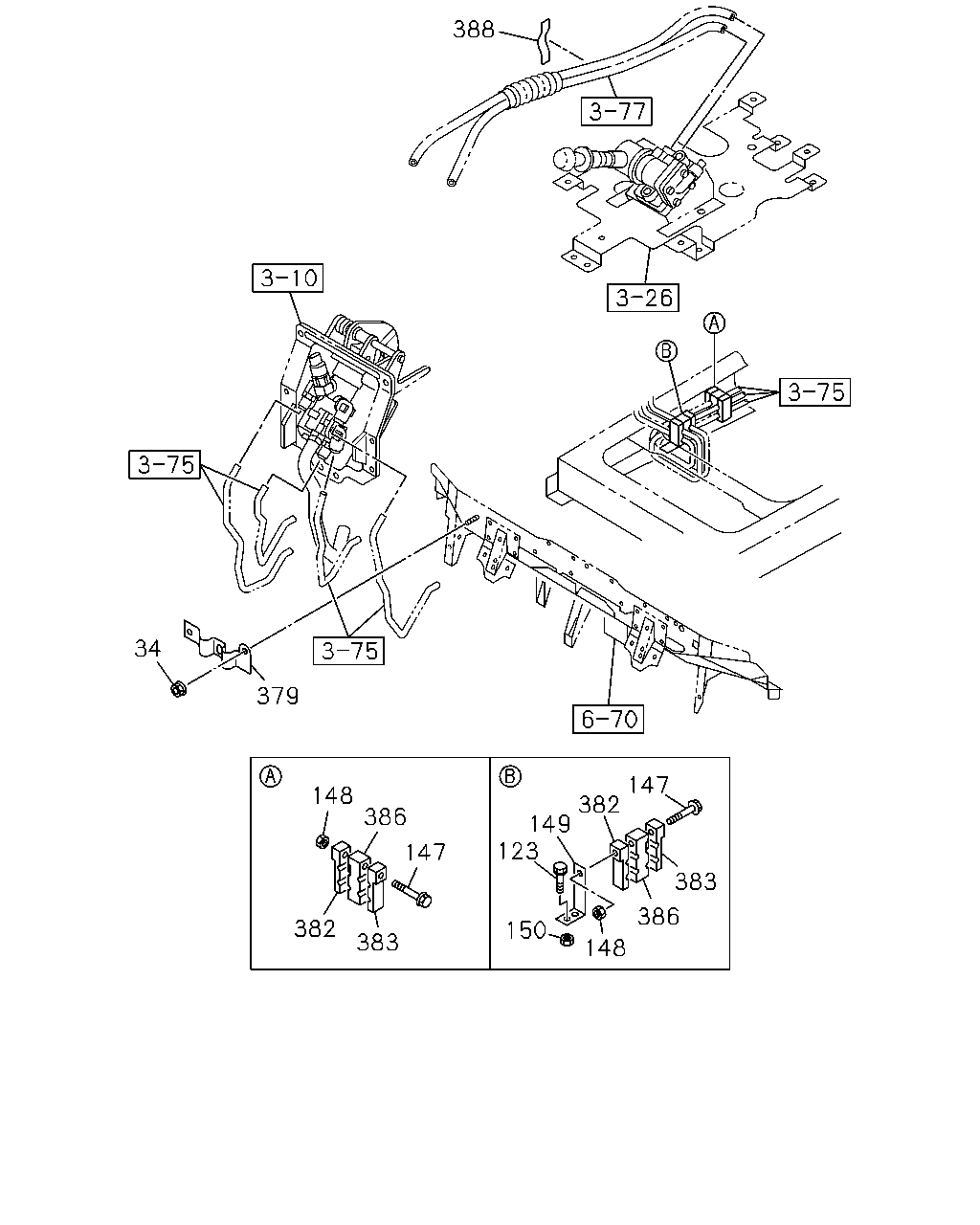

çizim 502381
388 379 34 148 386 147 383 382 123 147 382 149 150 383 386 148
BalonParca AdiParca NoAdetTipApplied Date A B
34 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 1511- ● ●
123 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
147 BOLT; PIPE CLIP
M8X70 FLANGE 		0-28050-870-0 04 1 1511- ● ●
148 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 04 1 1511- ● ●
149 BRACKET; PIPE CLIP 8-98296-534-0 01 1 1511- ● ●
150 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
379 BRACKET; NYLON TUBE 8-98044-013-0 01 1 1511- ● ●
382 CLIP; UPR
ID=10 & 10 		1-09709-241-0 04 1 1511- ● ●
383 CLIP; LWR
ID=10 & 10 		1-09709-241-0 04 1 1511- ● ●
386 CLIP; CENTER
ID=10 		1-09709-242-0 04 1 1511- ● ●
388 SEAL
100X40 		1-72498-022-1 03 1 1511- ● ●
388 SEAL
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 180X40 		1-72498-019-1 02 1 1511- ●

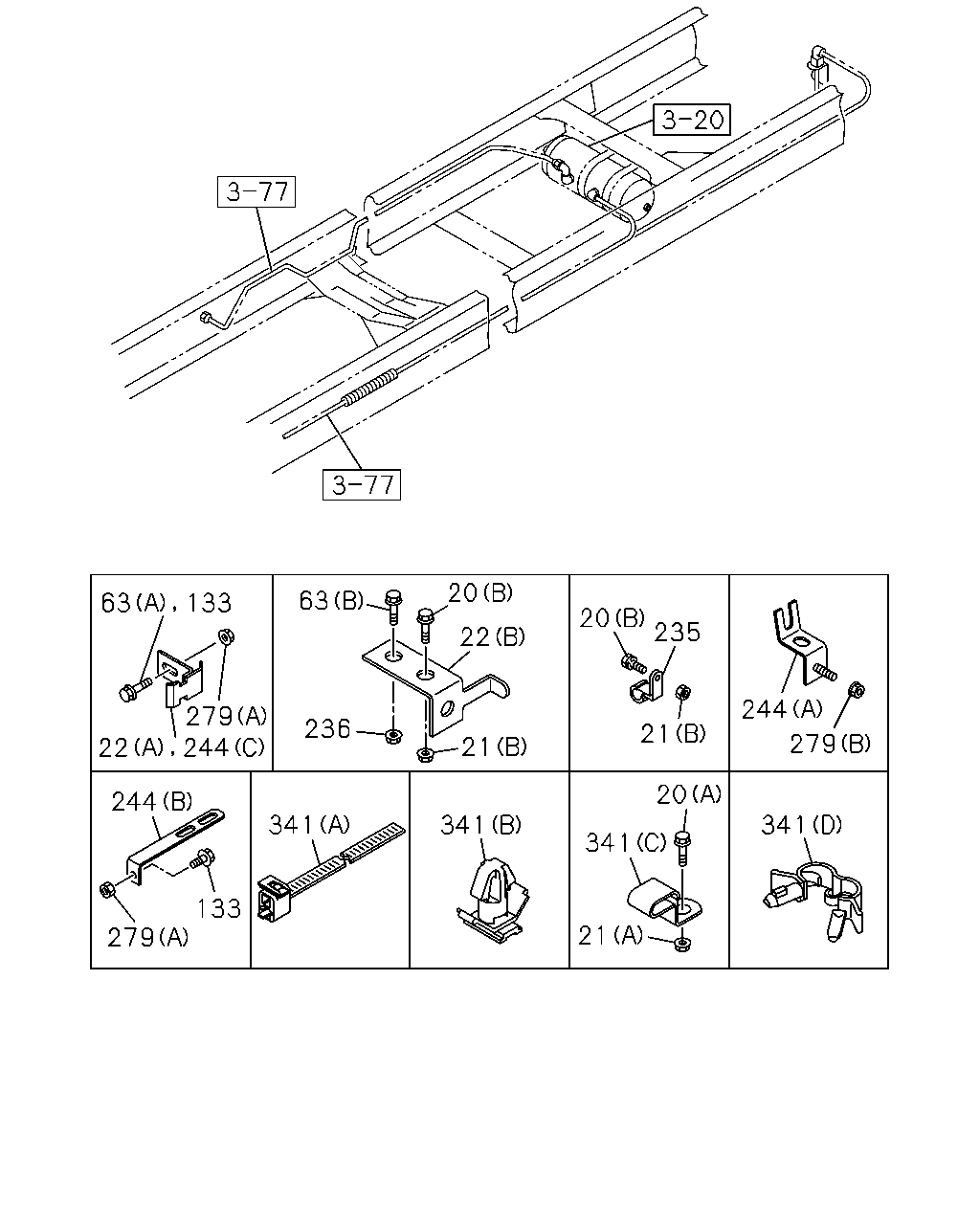

çizim 502481
63 133 22 279 236 20 22 21 63 20 235 21 244 279 20 341 341 21 341 341 244 133 279 244
BalonParca AdiParca NoAdetTipApplied Date A B
20 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 06 1 1511- ●
20 BOLT; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M8X25 FLANGE 		0-28650-825-0 06 1 1511- ●
20 BOLT; CLIP
(A) M10X30 FLANGE 		0-28651-030-0 01 1 1511- ● ●
20 BOLT; CLIP
WHEEL BASE 3700MM(37W) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ●
20 BOLT; CLIP
WHEEL BASE 4300MM(43W) (B) M8X25 FLANGE 		0-28650-825-0 04 1 1511- ●
20 BOLT; CLIP
WHEEL BASE 6500MM(65W) (B) M8X25 FLANGE 		0-28650-825-0 08 1 1511- ●
21 NUT; CLIP
(B) M8 FLANGE 		0-91180-108-0 06 1 1511- ●
21 NUT; CLIP
WHEEL BASE 5500MM(55W) (B) M8 FLANGE 		0-91180-108-0 06 1 1511- ●
21 NUT; CLIP
(A) M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
21 NUT; CLIP
WHEEL BASE 3700MM(37W) (B) M8 FLANGE 		0-91180-108-0 02 1 1511- ●
21 NUT; CLIP
WHEEL BASE 4300MM(43W) (B) M8 FLANGE 		0-91180-108-0 04 1 1511- ●
21 NUT; CLIP
WHEEL BASE 6500MM(65W) (B) M8 FLANGE 		0-91180-108-0 08 1 1511- ●
22 BRACKET; CLIP
(B) 		8-98100-216-1 01 1 1511- ●
22 BRACKET; CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (B) 		8-98100-216-1 01 1 1511- ●
22 BRACKET; CLIP
WHEEL BASE 3700MM(37W) (A) 		1-47479-693-0 01 1 1511- ●
63 BOLT; CLIP
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1511- ●
63 BOLT; CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (B) M10X30 FLANGE 		0-28651-030-0 01 1 1511- ●
63 BOLT; CLIP
WHEEL BASE 3700MM(37W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1511- ●
235 CLIP; AIR PIPE
ID=11 H=20 L=20 		8-98033-780-0 06 1 1511- ●
235 CLIP; AIR PIPE
WHEEL BASE 5500MM(55W) ID=11 H=20 L=20 		8-98033-780-0 06 1 1511- ●
235 CLIP; AIR PIPE
WHEEL BASE 3700MM(37W) ID=11 H=20 L=20 		8-98033-780-0 02 1 1511- ●
235 CLIP; AIR PIPE
WHEEL BASE 4300MM(43W) ID=11 H=20 L=20 		8-98033-780-0 04 1 1511- ●
235 CLIP; AIR PIPE
WHEEL BASE 6500MM(65W) ID=11 H=20 L=20 		8-98033-780-0 08 1 1511- ●
236 NUT; CLIP
M10 FLANGE 		0-91180-210-0 01 1 1511- ●
236 NUT; CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) M10 FLANGE 		0-91180-210-0 01 1 1511- ●
244 BRACKET; CLIP,AIR PIPE
(B) L=150 H=30 		1-47477-629-2 01 1 1511- ●
244 BRACKET; CLIP,AIR PIPE
(C) 		1-47479-693-0 01 1 1511- ●
244 BRACKET; CLIP,AIR PIPE
(A) 		8-98096-272-0 01 1 1511- ●
244 BRACKET; CLIP,AIR PIPE
WHEEL BASE 5500MM(55W) (A) 		8-98096-272-0 01 1 1511- ●
279 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1511- ●
279 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1511- ●
279 NUT; BRKT
WHEEL BASE 5500MM(55W) (B) M10 FLANGE 		0-91180-210-0 01 1 1511- ●
341 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 1511- ● ●
341 CLIP; HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 1511- ● ●
341 CLIP; HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 04 1 1511- ● ●
341 CLIP; HARNESS
(C) ID=17.5X2 L=25 		5-09700-358-0 01 1 1511- ● ●
