◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11715 - FSR AUST/NZ EURO5 EXC.SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#169385) — 44 parça

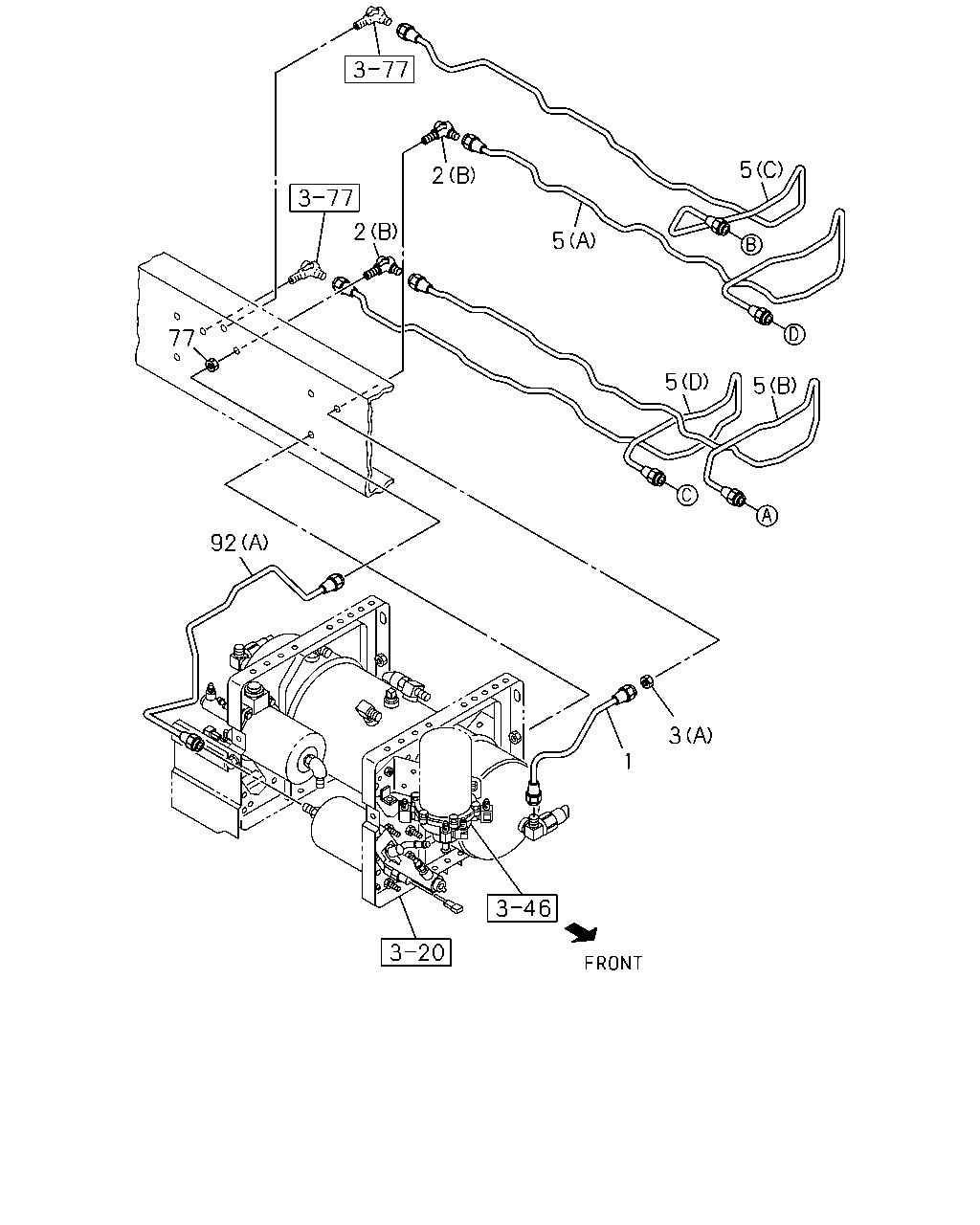

çizim 502353
92 1 3 77 2 2 5 5 5 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
L=279 		8-98213-359-0 01 1 1511- ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1511- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1511- ● ●
3 NUT; PIPE UNION
(B) M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
3 NUT; PIPE UNION
(A) M16 		0-91111-516-0 01 1 1511- ● ●
5 PIPE; AIR,UNION TO UNION
(A) L=2486 SERVICED BY L=2500 		1-47428-883-0 01 1 1511- ● ●
5 PIPE; AIR,UNION TO UNION
(B) L=2946 SERVICED BY L=3300 		1-47428-886-0 01 1 1511- ● ●
5 PIPE; AIR,UNION TO UNION
(C) L=2788 SERVICED BY L=2900 		1-47428-885-0 01 1 1511- ● ●
5 PIPE; AIR,UNION TO UNION
(D) L=2910 SERVICED BY L=3300 		1-47428-886-0 01 1 1511- ● ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1511- ● ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> (A) L=476 		8-98212-632-0 01 1 1511- ● ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
EXC. H.S.A SYSTEM<6EP> (B) L=783 SERVICED BY L=800 		1-47428-872-0 01 1 1511- ● ●

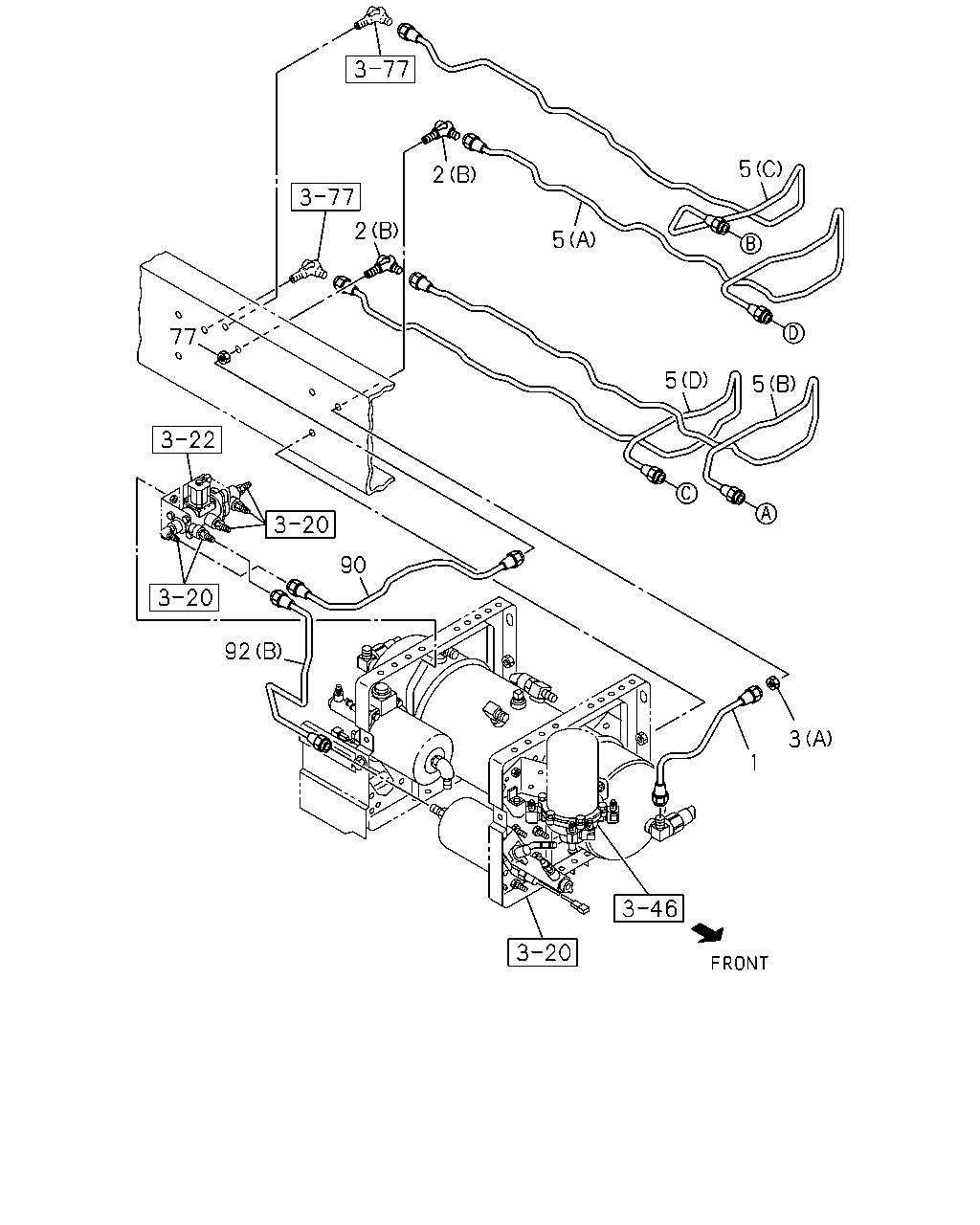

çizim 502430
2 2 5 5 5 5 3 90 92 77 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
L=279 		8-98213-359-0 01 1 1511- ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1511- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1511- ● ●
3 NUT; PIPE UNION
(B) M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
3 NUT; PIPE UNION
(A) M16 		0-91111-516-0 01 1 1511- ● ●
5 PIPE; AIR,UNION TO UNION
(A) L=2486 SERVICED BY L=2500 		1-47428-883-0 01 1 1511- ● ●
5 PIPE; AIR,UNION TO UNION
(B) L=2946 SERVICED BY L=3300 		1-47428-886-0 01 1 1511- ● ●
5 PIPE; AIR,UNION TO UNION
(C) L=2788 SERVICED BY L=2900 		1-47428-885-0 01 1 1511- ● ●
5 PIPE; AIR,UNION TO UNION
(D) L=2910 SERVICED BY L=3300 		1-47428-886-0 01 1 1511- ● ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1511- ● ●
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> L=493 		8-98077-878-0 01 1 1511- ● ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> (A) L=476 		8-98212-632-0 01 1 1511- ● ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
EXC. H.S.A SYSTEM<6EP> (B) L=783 SERVICED BY L=800 		1-47428-872-0 01 1 1511- ● ●

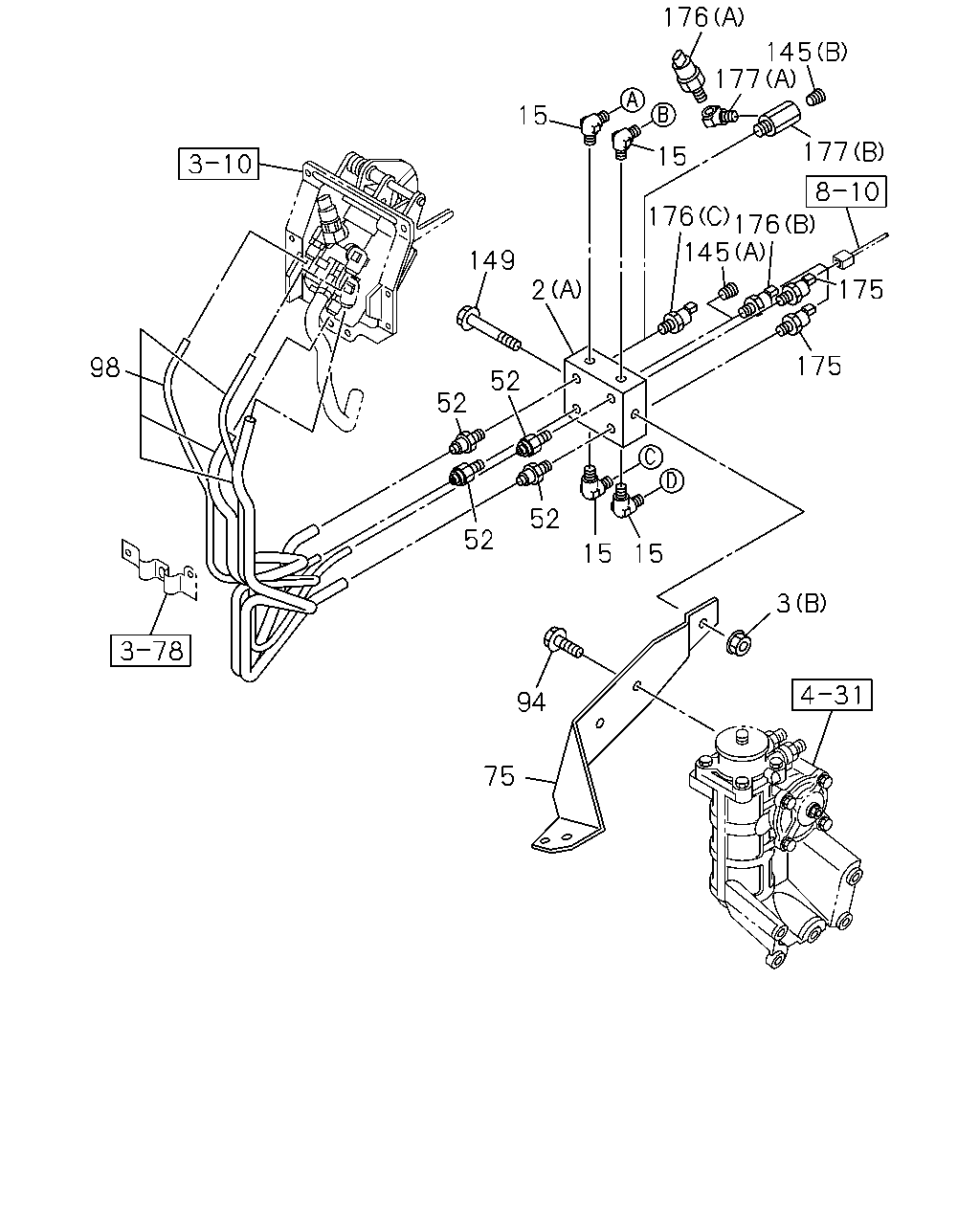

çizim 502646
52 52 52 52 176 176 176 177 177 175 175 145 2 15 15 94 3 75 98 149 15 15 145
BalonParca AdiParca NoAdetTipApplied Date A B
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1511- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1511- ● ●
3 NUT; PIPE UNION
(B) M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
3 NUT; PIPE UNION
(A) M16 		0-91111-516-0 01 1 1511- ● ●
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 1511- ● ●
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1511- ● ●
75 BRACKET; UNION 8-98257-652-0 01 1 1511- ● ●
94 BOLT; BRKT
M10X20 FLANGE 		0-28151-020-0 02 1 1511- ● ●
98 TUBE; NYLON 8-98079-179-0 01 1 1511- ● ●
145 PLUG
H.S.A SYSTEM<6EP> (B) PT1/2 		9-09204-521-0 01 1 1511- ● ●
145 PLUG
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) PT1/4 		9-99204-513-0 01 1 1511- ● ●
145 PLUG
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) PT1/4 		9-99204-513-0 01 1 1511- ● ●
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 1511- ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1511- ● ●
176 SWITCH; AIR PRESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) STAMP 2.2 		8-98010-858-0 01 1 1511- ● ●
176 SWITCH; AIR PRESS
H.S.A SYSTEM<6EP> (A) STAMP 0.7 		8-97622-710-0 01 1 1511- ● ●
176 SWITCH; AIR PRESS
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) STAMP 0.3 		8-98010-857-0 01 1 1511- ● ●
177 CONNECTOR
H.S.A SYSTEM<6EP> (A) PT1/4 2WAY 		1-09660-693-0 01 1 1511- ● ●
177 CONNECTOR
H.S.A SYSTEM<6EP> (B) 		8-98134-010-0 01 1 1511- ● ●
