3-55 — BRAKE PIPING; OIL,REAR
(#169382) — 42 parça
Tümü
A - FCD5MS
B - FCR5MS
◀

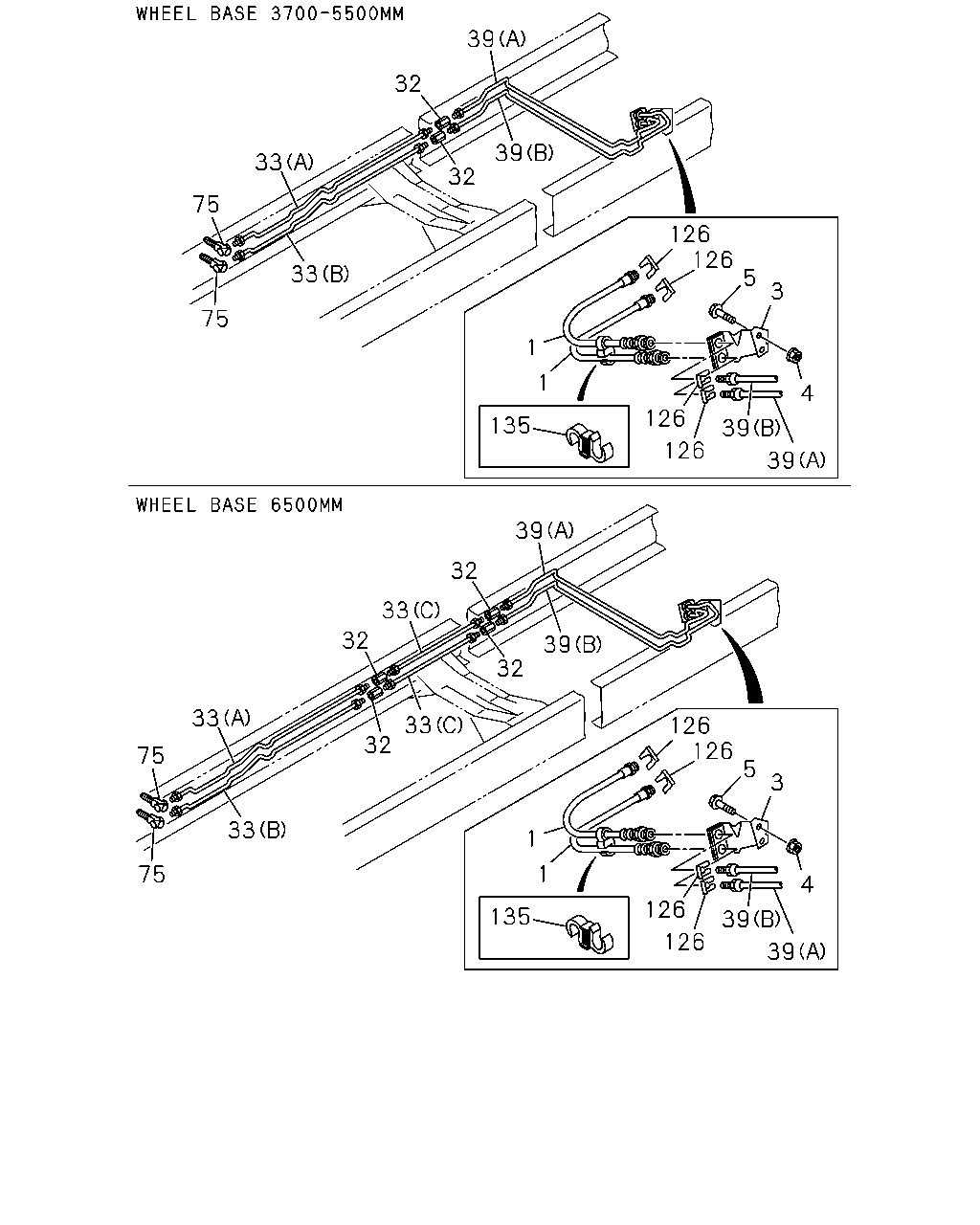

[355A] FRAME SIDE (23 parça)
[355A] REAR AXLE SIDE (5 parça)

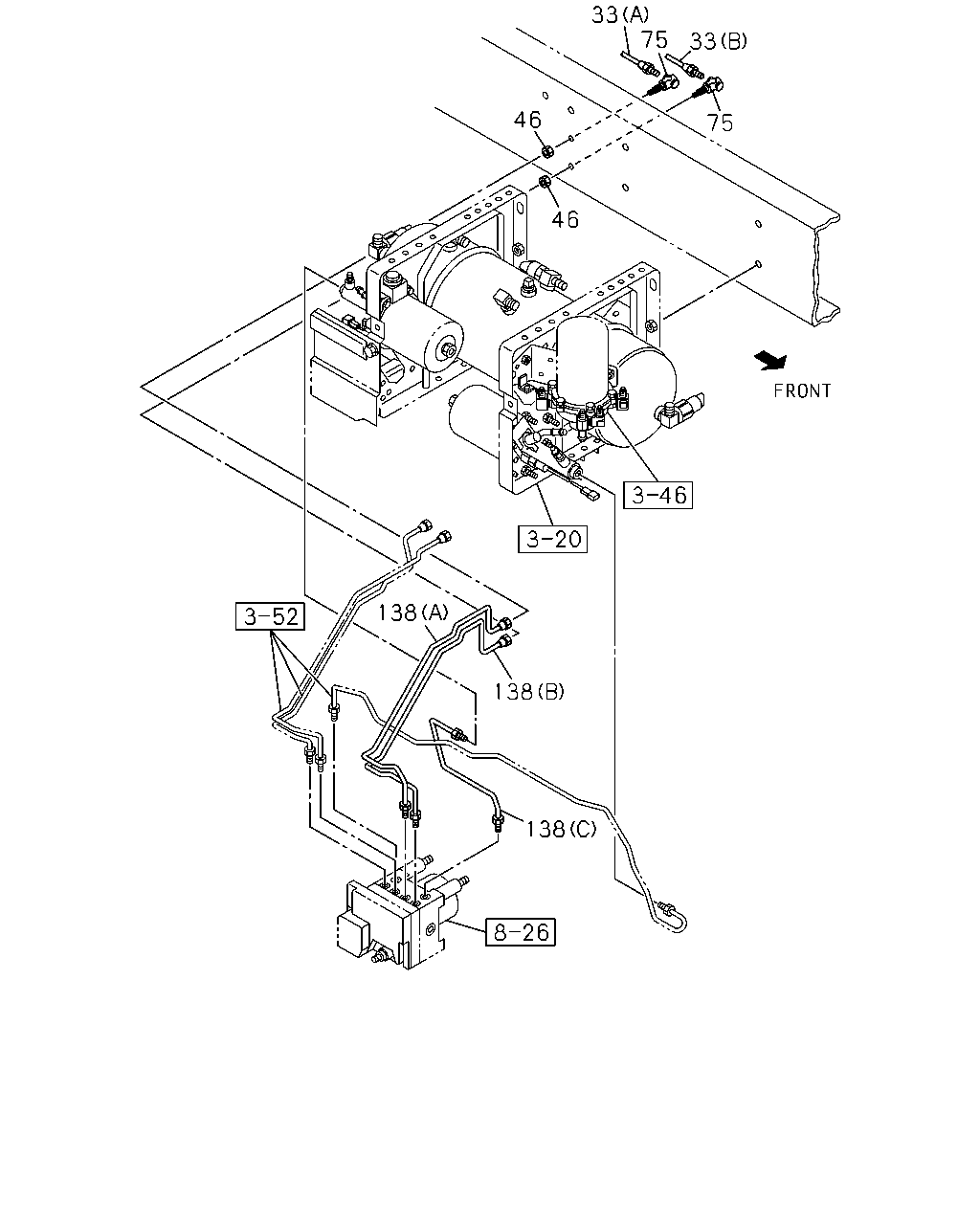

[355A] AIR TANK SIDE (14 parça)
▶
39
32
33
32
39
33
75
75
126
126
5
3
4
1
1
126
39
126
39
135
39
32
33
32
33
75
75
33
32
33
39
32
126
126
5
3
1
1
135
126
126
39
39
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HOSE; FLEX,RR BRK
L=310
8-98023-168-0
02
1
1511-
●
1
HOSE; FLEX,RR BRK
L=350
8-97138-885-0
02
1
1511-
●
3
BRACKET; FLEX HOSE,RR BRK
8-98065-999-2
01
1
1511-
●
●
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91180-108-0
02
1
1511-
●
●
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE
0-28650-830-0
02
1
1511-
●
●
32
UNION; OIL PIPE
M10 STRAIGHT
0-92107-005-0
02
1
1511-
●
●
32
UNION; OIL PIPE
WHEEL BASE 6500MM(65W) M10 STRAIGHT
0-92107-005-0
02
1
1511-
●
33
PIPE; OIL,UNION TO UNION
(A) LH LINE L=2824
8-98232-801-0
01
1
1511-
●
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) LH LINE L=2824
8-98232-801-0
01
1
1511-
●
33
PIPE; OIL,UNION TO UNION
(B) RH LINE L=2779
8-98232-802-0
01
1
1511-
●
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) RH LINE L=2779
8-98232-802-0
01
1
1511-
●
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (A) LH LINE L=1113
8-98232-793-0
01
1
1511-
●
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (B) RH LINE L=1060
8-98232-794-0
01
1
1511-
●
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (A) LH LINE L=1624
8-98232-795-0
01
1
1511-
●
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (B) RH LINE L=1579
8-98232-796-0
01
1
1511-
●
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 6500MM(65W) (C) L=994
8-98076-998-0
02
1
1511-
●
39
PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1612
8-98241-576-0
01
1
1511-
●
39
PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1676
8-98241-577-0
01
1
1511-
●
39
PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1710
8-98106-485-0
01
1
1511-
●
39
PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1772
8-98106-486-0
01
1
1511-
●
75
UNION; OIL PIPE
M10X2 ELBOW
8-98018-438-0
02
1
1511-
●
●
126
CLIP; FLEX HOSE
8-97360-054-0
04
1
1511-
●
●
135
CLIP; FLEX HOSE
ID=10 & 10
1-09709-277-1
01
1
1511-
●
●
126
1
1
13
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HOSE; FLEX,RR BRK
L=310
8-98023-168-0
02
1
1511-
●
1
HOSE; FLEX,RR BRK
L=350
8-97138-885-0
02
1
1511-
●
13
PIPE; BRK,RR AXLE
(B)
8-98207-113-0
01
1
1511-
●
●
13
PIPE; BRK,RR AXLE
(A)
8-98207-114-0
01
1
1511-
●
●
126
CLIP; FLEX HOSE
8-97360-054-0
04
1
1511-
●
●
33
33
75
75
46
46
138
138
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
33
PIPE; OIL,UNION TO UNION
(A) LH LINE L=2824
8-98232-801-0
01
1
1511-
●
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) LH LINE L=2824
8-98232-801-0
01
1
1511-
●
33
PIPE; OIL,UNION TO UNION
(B) RH LINE L=2779
8-98232-802-0
01
1
1511-
●
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) RH LINE L=2779
8-98232-802-0
01
1
1511-
●
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (A) LH LINE L=1113
8-98232-793-0
01
1
1511-
●
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (B) RH LINE L=1060
8-98232-794-0
01
1
1511-
●
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (A) LH LINE L=1624
8-98232-795-0
01
1
1511-
●
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (B) RH LINE L=1579
8-98232-796-0
01
1
1511-
●
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 6500MM(65W) (C) L=994
8-98076-998-0
02
1
1511-
●
46
NUT; UNION,OIL PIPE
M10 H=8
1-09400-029-0
02
1
1511-
●
●
75
UNION; OIL PIPE
M10X2 ELBOW
8-98018-438-0
02
1
1511-
●
●
138
PIPE; HYDRAULIC UNIT
(A) L=657
8-98012-129-0
01
1
1511-
●
●
138
PIPE; HYDRAULIC UNIT
(B) L=703
8-98012-146-0
01
1
1511-
●
●
138
PIPE; HYDRAULIC UNIT
(C) L=296
8-98066-107-0
01
1
1511-
●
●
