3-52 — BRAKE PIPING; OIL,FRONT (#169381) — 16 parça

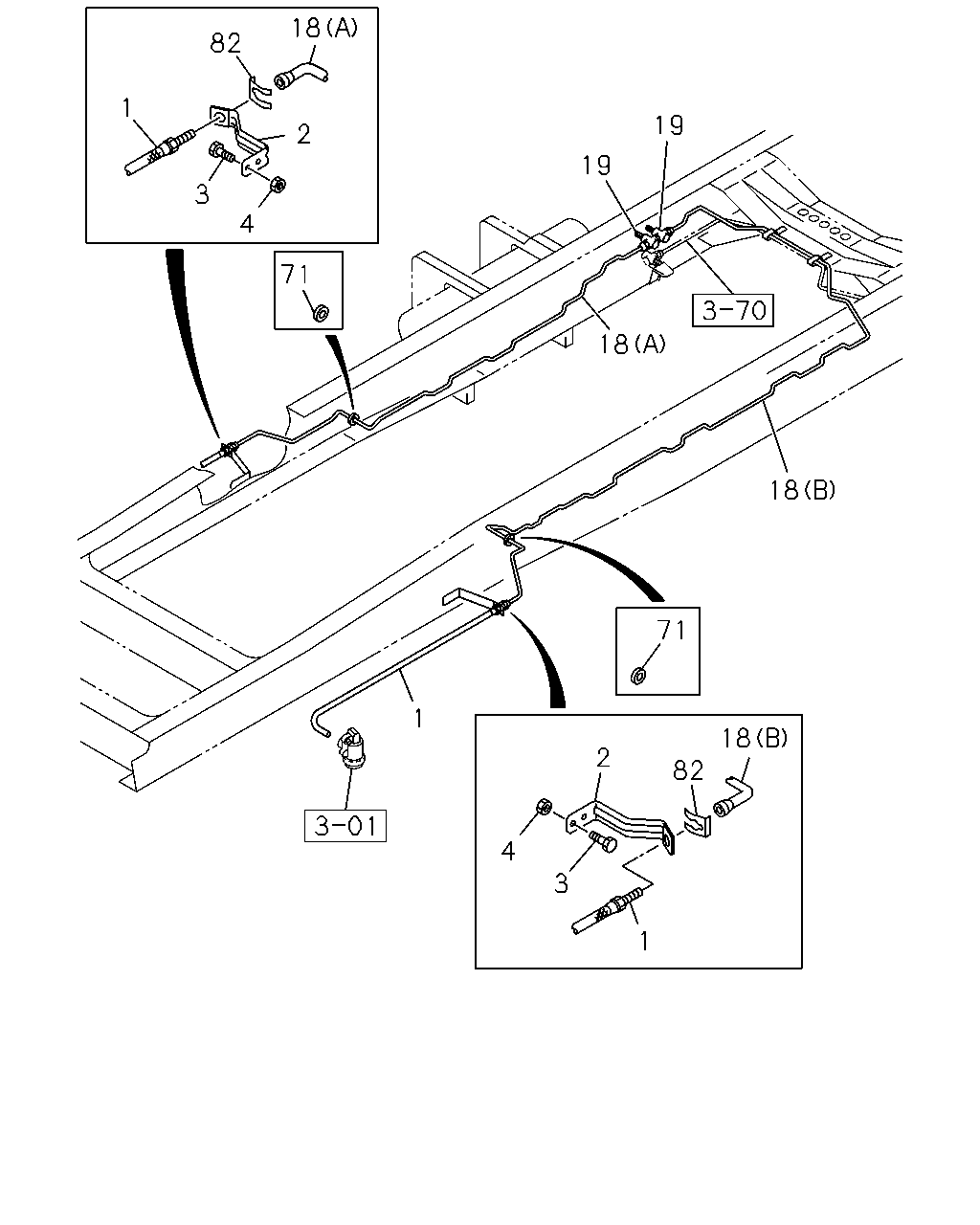

çizim 502099

1 3 4 2 82 18 71 19 19 18 18 71 1 4 2 3 1 82 18

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	HOSE; FLEX,FRT BRK L=330	8-98024-433-0	02	1	1511-	●	●
	2	BRACKET; FLEX HOSE,FRT BRK	8-98012-343-1	02	1	1511-	●	●
	3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	1511-	●	●
	4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	1511-	●	●
	18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=3244	8-98328-106-0	01	1	1511-	●	●
	18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=2001	8-98240-242-0	01	1	1511-	●	●
	19	UNION; OIL PIPE M10X2 ELBOW	8-98018-438-0	02	1	1511-	●	●
	71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1511-	●	●
	82	PLATE; FLEX HOSE	8-97360-054-0	02	1	1511-	●	●

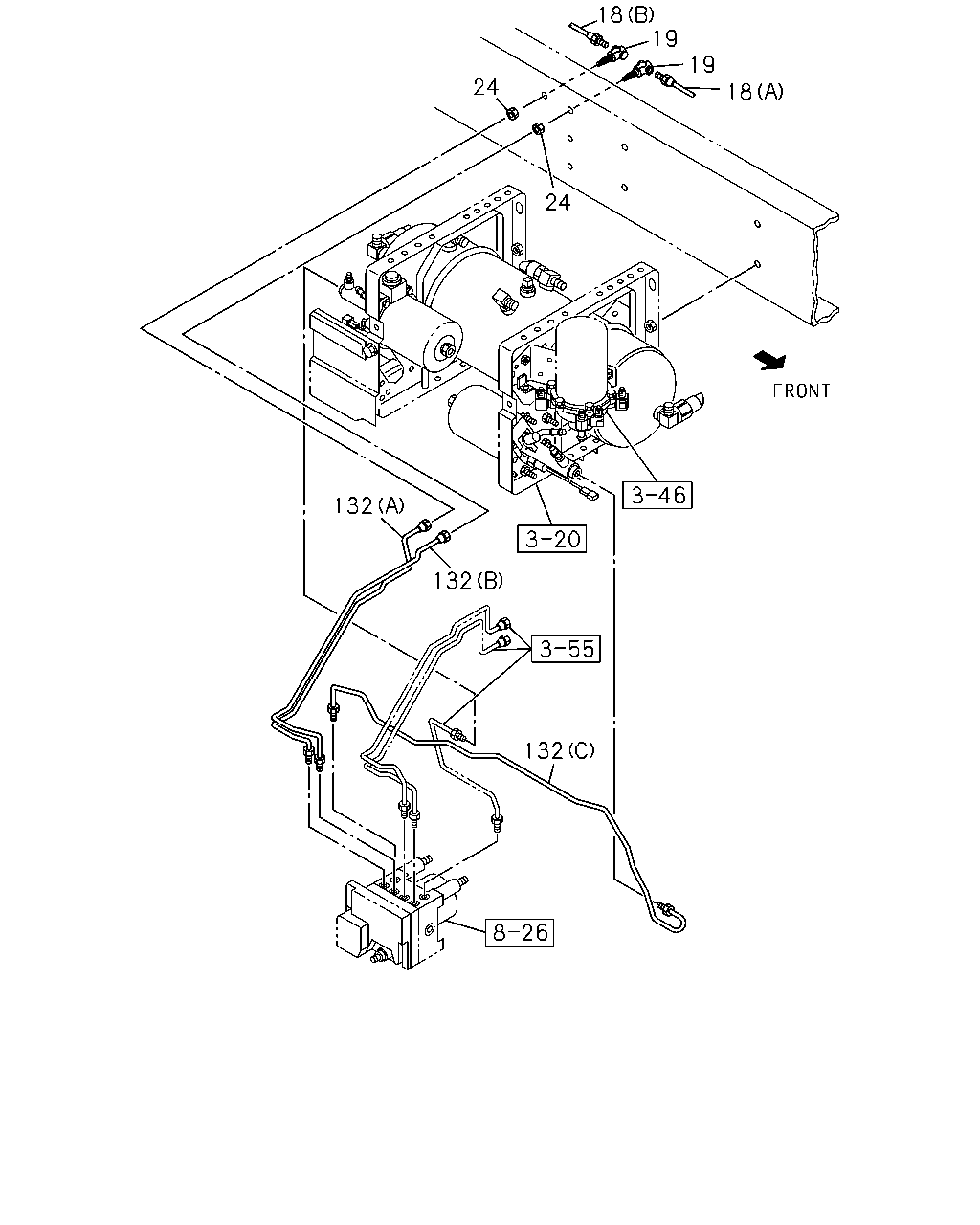

çizim 502200

18 19 19 18 132 132 132 24 24

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=3244	8-98328-106-0	01	1	1511-	●	●
	18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=2001	8-98240-242-0	01	1	1511-	●	●
	19	UNION; OIL PIPE M10X2 ELBOW	8-98018-438-0	02	1	1511-	●	●
	24	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	02	1	1511-	●	●
	132	PIPE; OIL,BRK,HYD UNIT (A) L=625	8-98116-095-0	01	1	1511-	●	●
	132	PIPE; OIL,BRK,HYD UNIT (B) L=661	8-98213-363-0	01	1	1511-	●	●
	132	PIPE; OIL,BRK,HYD UNIT (C) L=948	8-98213-849-0	01	1	1511-	●	●
