Sayfa 3-22 - Isuzu EPC

188 204

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	188	REPAIR KIT; HSA VLV H.S.A SYSTEM<6EP>	1-85576-469-1	01	1	1511-	●	●
	204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	1511-	●	●

259

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	259	REPAIR KIT; VALVE THROTTLE CONTROL SYSTEM(6XH)	1-85576-381-0	01	1	1511-	●	●

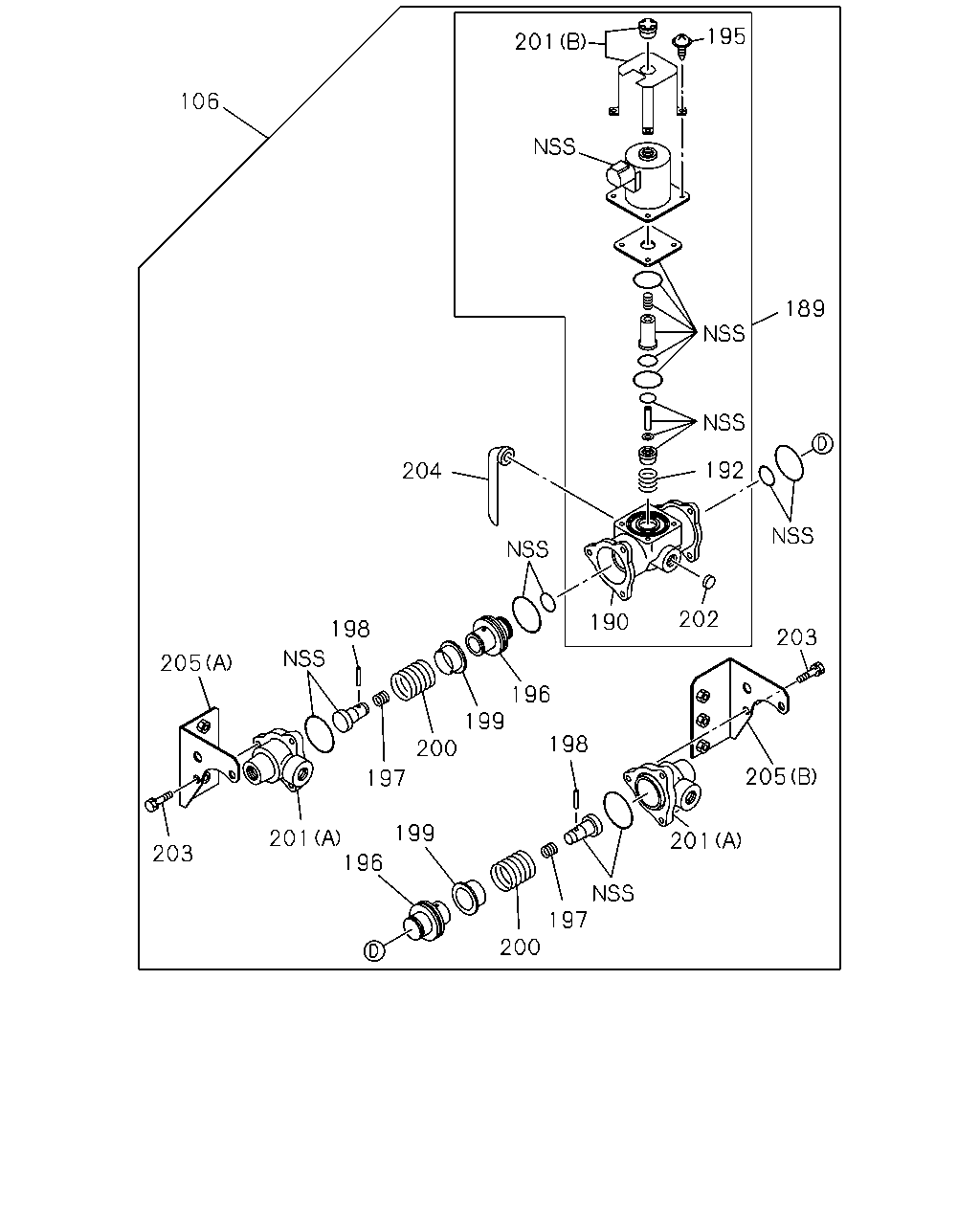

106 201 195 189 192 202 190 204 198 205 203 201 197 196 200 196 199 199 198 203 205 201 197 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-147-1	01	1	1511-	●	●
189	VALVE ASM; SOLENOID,HSA VLV H.S.A SYSTEM<6EP>	1-46366-253-0	01	1	1511-	●	●
190	BODY; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-192-0	01	1	1511-	●	●
192	SPRING; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-181-0	01	1	1511-	●	●
195	SCREW; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-191-0	04	1	1511-	●	●
196	PISTON; HSA VLV H.S.A SYSTEM<6EP>	1-46366-251-0	02	1	1511-	●	●
197	SPRING; INNER,HSA VLV H.S.A SYSTEM<6EP>	1-46366-161-0	02	1	1511-	●	●
198	PIN; STRAIGHT,HSA VLV H.S.A SYSTEM<6EP>	1-46366-122-0	02	1	1511-	●	●
199	RETAINER; HSA VLV H.S.A SYSTEM<6EP>	1-46366-121-0	02	1	1511-	●	●
200	SPRING; OUTER,HSA VLV H.S.A SYSTEM<6EP>	1-46366-120-0	02	1	1511-	●	●
201	COVER; HSA VLV H.S.A SYSTEM<6EP> (A)	1-46366-118-1	02	1	1511-	●	●
201	COVER; HSA VLV H.S.A SYSTEM<6EP> (B)	1-46366-241-0	01	1	1511-	●	●
202	FILTER; HSA VLV H.S.A SYSTEM<6EP>	1-46366-117-1	02	1	1511-	●	●
203	SCREW; HSA VLV H.S.A SYSTEM<6EP>	1-46366-116-1	06	1	1511-	●	●
204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	1511-	●	●
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (A)	1-46366-149-0	01	1	1511-	●	●
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (B)	1-46366-150-0	01	1	1511-	●	●

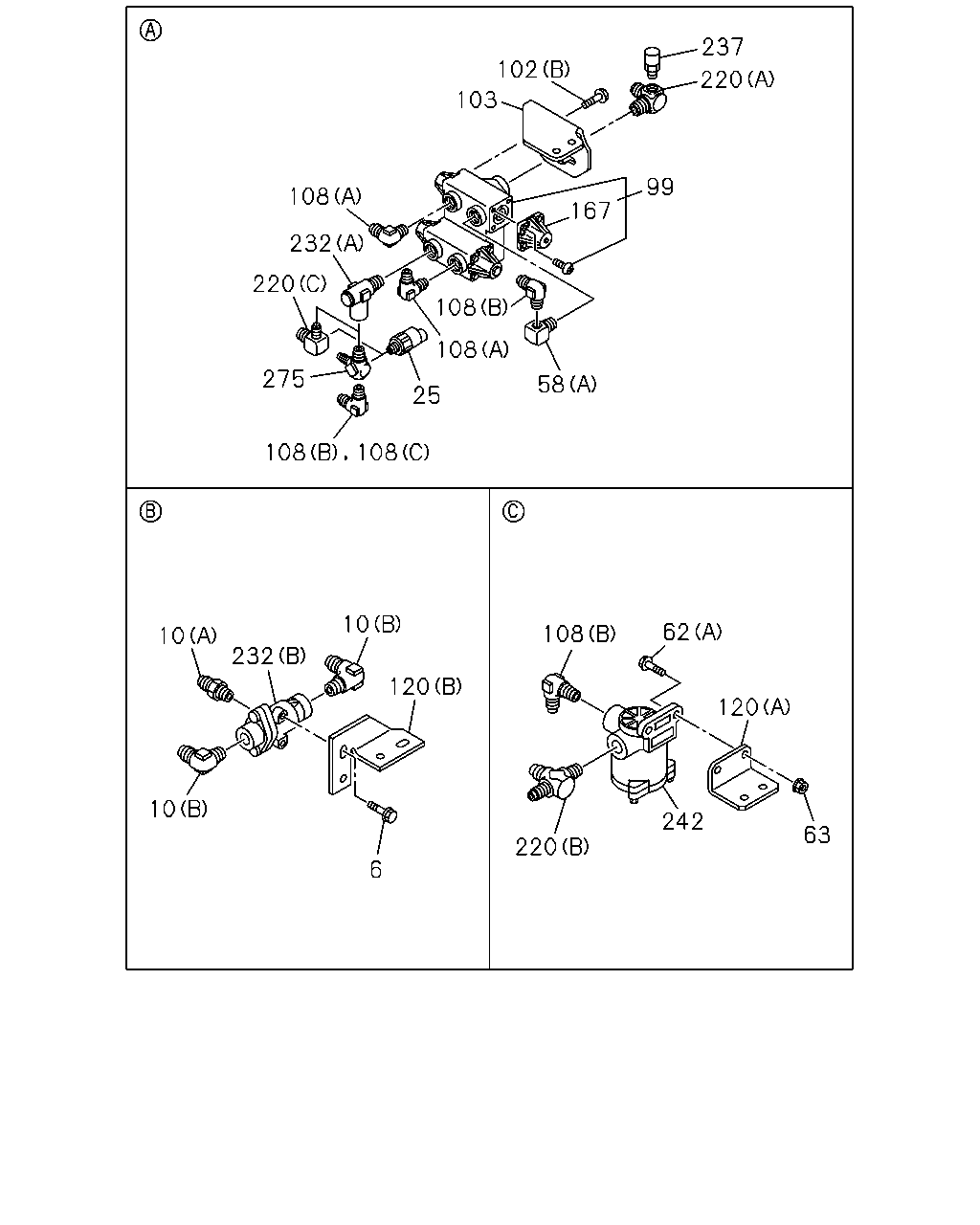

237 102 103 220 108 232 220 275 108 108 25 108 108 167 58 99 10 120 232 10 10 6 108 62 120 220 242 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	BOLT; VLV THROTTLE CONTROL SYSTEM(6XH) M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
10	CONNECTOR THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1511-	●	●
10	CONNECTOR THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1511-	●	●
25	SWITCH; PRESSURE EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5	8-97609-249-0	01	1	1511-	●	●
25	SWITCH; PRESSURE H.S.A SYSTEM<6EP> STAMP 5.5	8-97609-249-0	01	1	1511-	●	●
58	ADAPTER EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1511-	●	●
58	ADAPTER H.S.A SYSTEM<6EP> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1511-	●	●
58	ADAPTER (B)	1-09661-815-0	02	1	1511-	●	●
62	BOLT; BRKT FIX THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE	0-28650-825-0	02	1	1511-	●	●
62	BOLT; BRKT FIX THROTTLE CONTROL SYSTEM(6XH) (A) M8X30 FLANGE	0-28650-830-0	02	1	1511-	●	●
63	NUT; BRKT FIX THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
99	VALVE; PROTECTION EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH)	1-48110-294-3	01	1	1511-	●	●
99	VALVE; PROTECTION H.S.A SYSTEM<6EP>	1-48110-294-3	01	1	1511-	●	●
102	BOLT; PROTECTION VALVE EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
102	BOLT; PROTECTION VALVE H.S.A SYSTEM<6EP> (B) M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
102	BOLT; PROTECTION VALVE (A) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
103	BRACKET; PROTECTION VALVE EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH)	8-98221-293-0	01	1	1511-	●	●
103	BRACKET; PROTECTION VALVE H.S.A SYSTEM<6EP>	8-98221-293-0	01	1	1511-	●	●
108	CONNECTOR; ELBOW EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1511-	●	●
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1511-	●	●
108	CONNECTOR; ELBOW THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW	0-92134-310-0	03	1	1511-	●	●
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1511-	●	●
108	CONNECTOR; ELBOW EXC. THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1511-	●	●
120	BRACKET; VLV THROTTLE CONTROL SYSTEM(6XH) (A)	1-48316-012-0	01	1	1511-	●	●
120	BRACKET; VLV THROTTLE CONTROL SYSTEM(6XH) (B)	8-98050-131-0	01	1	1511-	●	●
167	COVER; VALVE EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH)	1-48119-625-0	04	1	1511-	●	●
167	COVER; VALVE H.S.A SYSTEM<6EP>	1-48119-625-0	04	1	1511-	●	●
220	CONNECTOR; 3WAY EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1511-	●	●
220	CONNECTOR; 3WAY H.S.A SYSTEM<6EP> (A) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1511-	●	●
220	CONNECTOR; 3WAY THROTTLE CONTROL SYSTEM(6XH) (B) PT1/4 & M12 & M16 3WAY	1-09656-331-1	01	1	1511-	●	●
220	CONNECTOR; 3WAY EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (C) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1511-	●	●
232	VALVE; CHECK EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1511-	●	●
232	VALVE; CHECK H.S.A SYSTEM<6EP> (A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1511-	●	●
232	VALVE; CHECK THROTTLE CONTROL SYSTEM(6XH) (B)	1-48410-531-1	01	1	1511-	●	●
237	VALVE; SAFETY	1-48320-012-2	01	1	1511-	●	●
242	VALVE; REGULATION THROTTLE CONTROL SYSTEM(6XH)	1-48410-723-0	01	1	1511-	●	●
275	CONNECTOR; 4WAY H.S.A SYSTEM<6EP>	8-98035-011-0	01	1	1511-	●	●

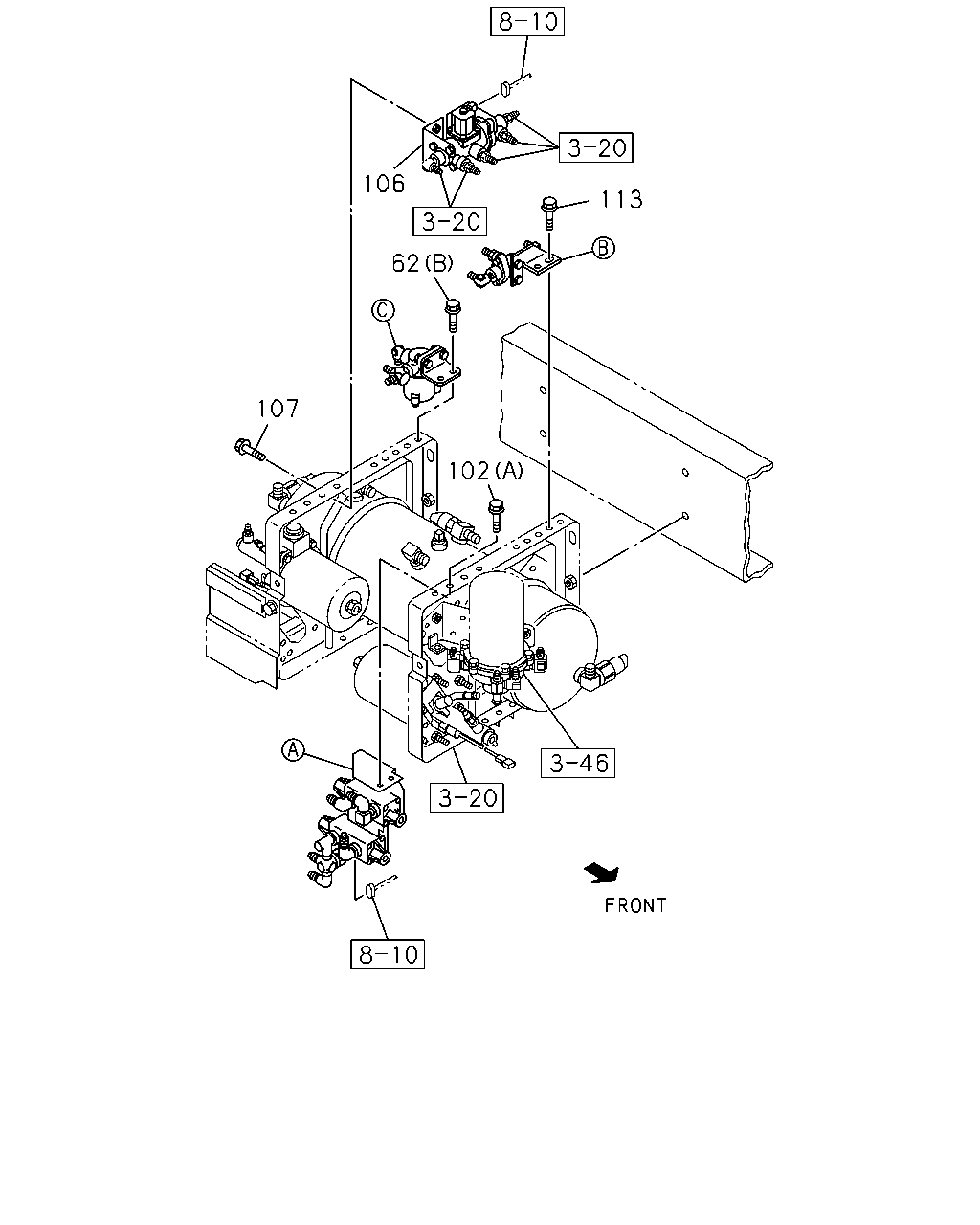

113 106 107 102 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	BOLT; BRKT FIX THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE	0-28650-825-0	02	1	1511-	●	●
62	BOLT; BRKT FIX THROTTLE CONTROL SYSTEM(6XH) (A) M8X30 FLANGE	0-28650-830-0	02	1	1511-	●	●
102	BOLT; PROTECTION VALVE EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
102	BOLT; PROTECTION VALVE H.S.A SYSTEM<6EP> (B) M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
102	BOLT; PROTECTION VALVE (A) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-147-1	01	1	1511-	●	●
107	BOLT; VLV H.S.A SYSTEM<6EP> M8X20 FLANGE	0-28650-820-0	03	1	1511-	●	●
113	BOLT; VLV THROTTLE CONTROL SYSTEM(6XH) M8X25 FLANGE	0-28650-825-0	02	1	1511-	●	●

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	241	REPAIR KIT; PROTECTION VALVE EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH)	1-85576-451-2	01	1	1511-	●	●
	241	REPAIR KIT; PROTECTION VALVE H.S.A SYSTEM<6EP>	1-85576-451-2	01	1	1511-	●	●

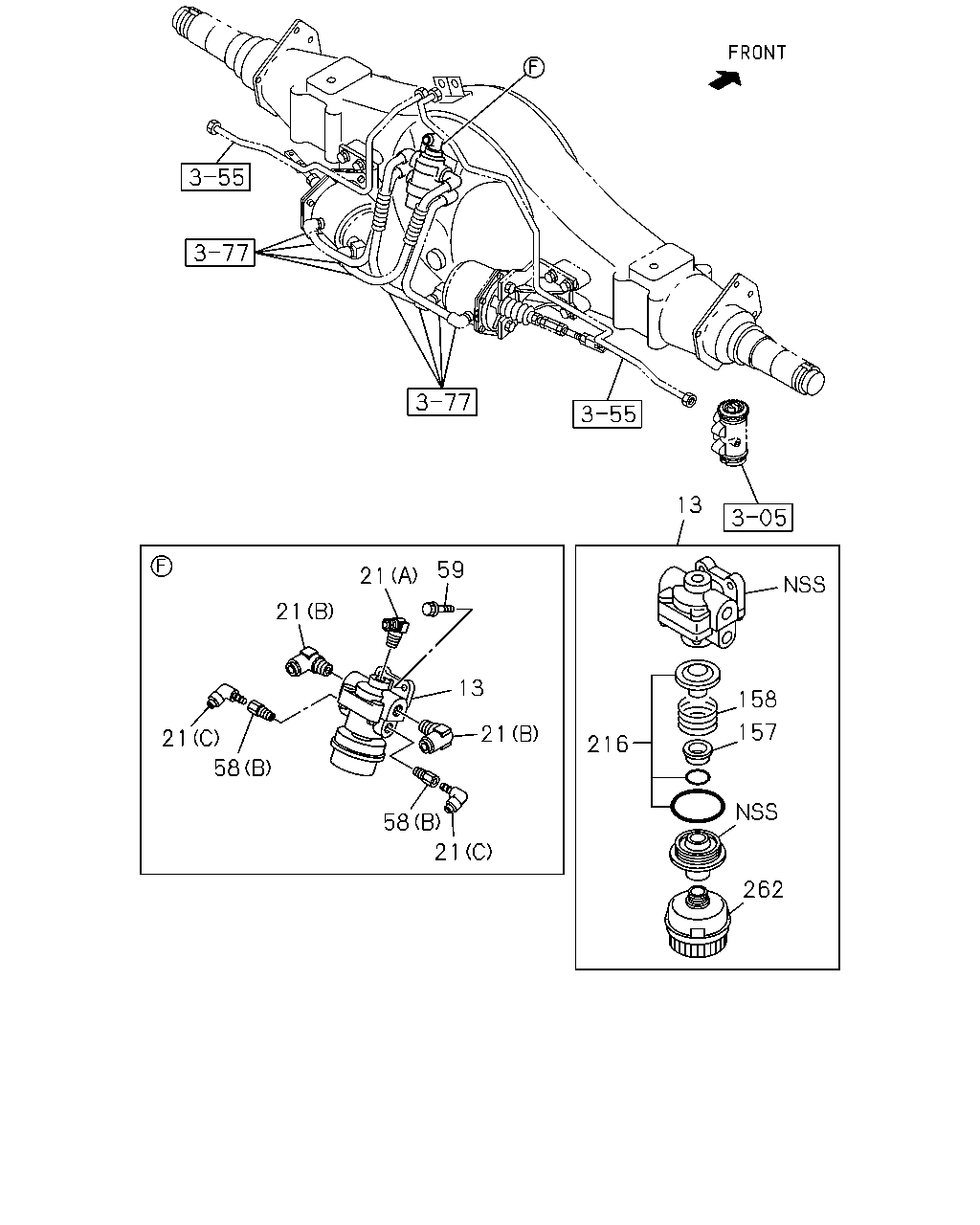

13 59 21 21 21 58 13 21 58 21 158 216 157 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	VALVE ASM; QUICK RELEASE	1-48410-781-2	01	1	1511-	●	●
21	CONNECTOR; QUICK RELEASE VLV (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1511-	●	●
21	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1511-	●	●
21	CONNECTOR; QUICK RELEASE VLV (C)	1-09661-816-0	02	1	1511-	●	●
58	ADAPTER EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1511-	●	●
58	ADAPTER H.S.A SYSTEM<6EP> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1511-	●	●
58	ADAPTER (B)	1-09661-815-0	02	1	1511-	●	●
59	BOLT; RELEASE VALVE FIX M8X20 FLANGE	0-28050-820-0	02	1	1511-	●	●
157	RETAINER; VALVE	1-48419-036-0	01	1	1511-	●	●
158	SPRING; VALVE	9-48419-003-0	01	1	1511-	●	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85579-062-0	01	1	1511-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1511-	●	●
