◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11715 - FSR AUST/NZ EURO5 EXC.SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#169369) — 91 parça

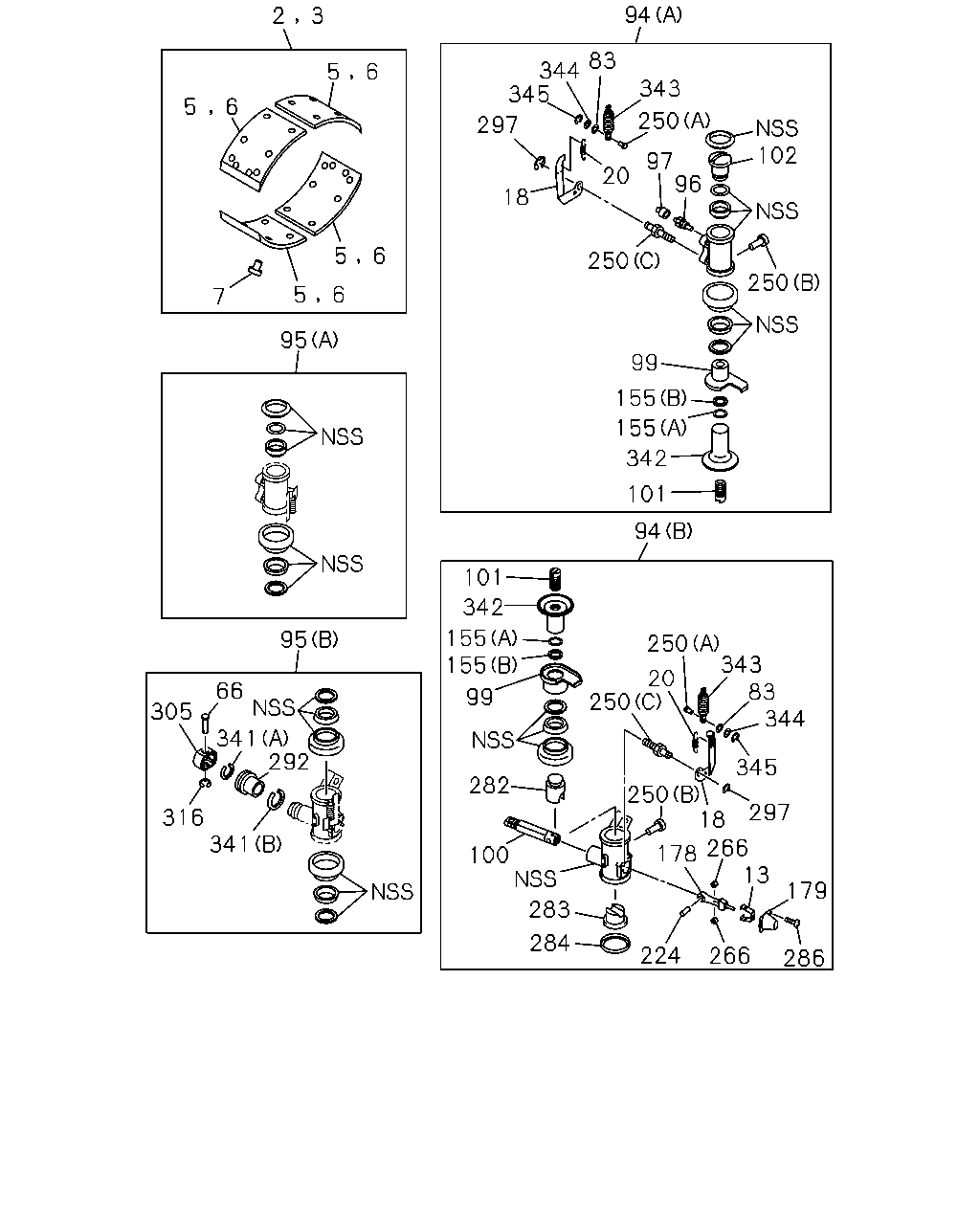

çizim 501248
2 3 5 6 6 5 7 5 5 6 6 95 94 83 344 345 297 18 343 250 97 20 96 102 250 250 99 155 155 342 101 94 95 66 305 341 292 316 341 101 342 155 155 99 282 100 283 284 250 250 20 343 83 344 345 297 250 18 266 13 179 178 286 266 224
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINING SET; RR BRK,STANDARD 1-88310-839-0 02 1 1511- ● ●
3 LINING SET; RR BRK,OVER SIZE 1-88310-840-0 02 1 1511- ● ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-161-0 08 1 1511- ● ●
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-162-0 08 1 1511- ● ●
7 RIVET; LINING,RR BRK 1-09732-029-0 96 1 1511- ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47619-139-0 02 1 1511- ● ●
18 LEVER; AUTO ADJ 1-47629-164-0 02 1 1511- ● ●
18 LEVER; AUTO ADJ 1-47629-165-0 02 1 1511- ● ●
20 SPRING; ADJ LEVER 1-09583-345-0 04 1 1511- ● ●
66 PIN; JAW JOINT 1-09744-128-0 02 1 1511- ● ●
83 WASHER; PL 1-47619-108-0 04 1 1511- ● ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-184-0 01 1 1511- ● ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-185-0 01 1 1511- ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		8-98289-367-0 01 1 1511- ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		8-98289-368-0 01 1 1511- ● ●
95 CUP SET; RR WHEEL CYL
(A) 		1-87830-933-0 02 1 1511- ● ●
95 CUP SET; RR WHEEL CYL
(B) 		1-87831-246-1 02 1 1511- ● ●
96 SCREW; BLEEDER,RR BRK 8-98050-477-0 02 1 1511- ● ●
97 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 02 1 1511- ● ●
99 PISTON; RR WHEEL CYL
FORWARD 		1-47624-349-0 01 1 1511- ● ●
99 PISTON; RR WHEEL CYL
FORWARD 		1-47624-350-0 01 1 1511- ● ●
99 PISTON; RR WHEEL CYL
BACKWARD 		1-47624-351-0 01 1 1511- ● ●
99 PISTON; RR WHEEL CYL
BACKWARD 		1-47624-352-0 01 1 1511- ● ●
100 ROD; PUSH,RR WHEEL CYL 8-98290-467-0 02 1 1511- ● ●
101 SCREW; ADJ,RR WHEEL CYL 1-47622-053-0 02 1 1511- ● ●
101 SCREW; ADJ,RR WHEEL CYL 1-47622-054-0 02 1 1511- ● ●
102 PISTON; REAR WHEEL CYL 1-47624-333-0 02 1 1511- ● ●
155 WASHER; PL,WHEEL CYL
(A) 		1-47629-150-0 04 1 1511- ● ●
155 WASHER; PL,WHEEL CYL
(B) 		1-47629-151-0 04 1 1511- ● ●
178 WEDGE; RR WHEEL CYL 1-47619-168-0 02 1 1511- ● ●
179 COVER; WEDGE,RR WHEEL CYL 1-47619-141-0 02 1 1511- ● ●
224 PIN; ROD 1-47619-130-0 02 1 1511- ● ●
250 PIN; RETAINING
(A) 		1-47619-106-0 04 1 1511- ● ●
250 PIN; RETAINING
(B) 		1-47629-112-0 04 1 1511- ● ●
250 PIN; RETAINING
(C) 		1-47629-262-0 04 1 1511- ● ●
266 ROLLER; WEDGE 1-47619-138-0 04 1 1511- ● ●
282 PLUNGER; INNER 1-47629-255-0 02 1 1511- ● ●
283 PLUNGER; OUTER 1-47629-256-0 01 1 1511- ● ●
283 PLUNGER; OUTER 1-47629-257-0 01 1 1511- ● ●
284 BOOT; PISTON 1-47616-093-0 02 1 1511- ● ●
286 SCREW; COVER 1-47619-132-0 06 1 1511- ● ●
292 BOOT; ROD 1-47616-107-0 02 1 1511- ● ●
297 RING; SNAP 1-47629-263-0 04 1 1511- ● ●
305 GUIDE; SLACK ADJ 1-46346-023-0 02 1 1511- ● ●
316 RING; SNAP
ID=9 		0-91805-509-0 02 1 1511- ● ●
341 SPRING; ASSIST,BOOT
(A) 		1-47619-175-0 02 1 1511- ● ●
341 SPRING; ASSIST,BOOT
(B) 		1-47619-176-0 02 1 1511- ● ●
342 GEAR; WHEEL CYL 1-47629-158-0 02 1 1511- ● ●
342 GEAR; WHEEL CYL 1-47629-159-0 02 1 1511- ● ●
343 SPRING; WHEEL CYL 1-47629-141-0 04 1 1511- ● ●
344 WASHER; WAVE 1-47619-107-0 04 1 1511- ● ●
345 RETAINER; LEVER 1-47619-109-0 04 1 1511- ● ●

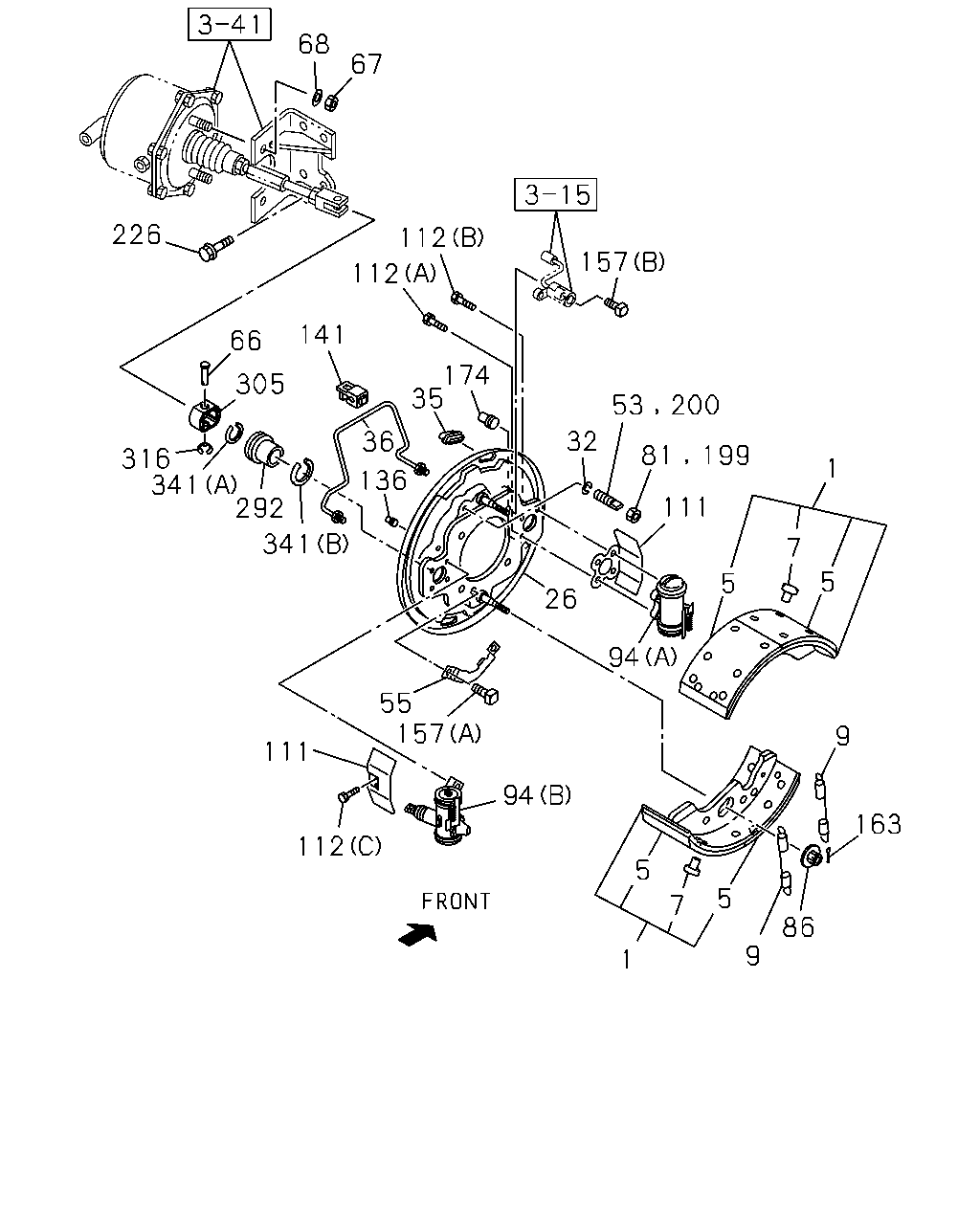

çizim 502189
163 86 9 5 7 5 1 9 94 26 111 81 32 53 200 199 1 5 7 5 341 292 341 316 141 305 66 35 136 174 112 112 157 226 68 67 112 111 157 55 94 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR 1-47170-466-0 04 1 1511- ● ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-161-0 08 1 1511- ● ●
7 RIVET; LINING,RR BRK 1-09732-029-0 96 1 1511- ● ●
9 SPRING; RETURN,BRK SHOE 1-09583-346-0 04 1 1511- ● ●
26 PLATE; BACK,RR BRK 1-47150-642-0 01 1 1511- ● ●
26 PLATE; BACK,RR BRK 1-47150-643-0 01 1 1511- ● ●
32 WASHER; LK 1-09985-346-0 04 1 1511- ● ●
35 GROMMET; CHECK HOLE 1-09333-033-0 04 1 1511- ● ●
36 PIPE; OIL,RR BRK 1-49167-875-0 01 1 1511- ● ●
36 PIPE; OIL,RR BRK 1-49167-876-0 01 1 1511- ● ●
53 BOLT; LOCK PLATE 1-47162-050-0 02 1 1511- ● ●
55 PLATE; LK,RR WHEEL CYL 1-47139-169-0 02 1 1511- ● ●
66 PIN; JAW JOINT 1-09744-128-0 02 1 1511- ● ●
67 NUT; POWER CHAMBER FIX
M16 		0-91110-516-0 04 1 1511- ● ●
68 WASHER; LK,CHAMBER
ID=16.2 		0-91510-816-0 04 1 1511- ● ●
81 NUT 1-09400-167-0 02 1 1511- ● ●
86 NUT; FLANGE 1-09440-102-0 04 1 1511- ● ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-184-0 01 1 1511- ● ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-185-0 01 1 1511- ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		8-98289-367-0 01 1 1511- ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		8-98289-368-0 01 1 1511- ● ●
111 COVER; WHEEL CYL 1-47159-233-0 04 1 1511- ● ●
112 BOLT; WHEEL CYL SETTING
(A) 		1-47159-231-0 08 1 1511- ● ●
112 BOLT; WHEEL CYL SETTING
(B) 		1-47159-232-0 06 1 1511- ● ●
112 BOLT; WHEEL CYL SETTING
(C) M6X10 FLANGE 		8-94134-103-0 08 1 1511- ● ●
136 GROMMET 9-09956-640-0 04 1 1511- ● ●
141 PROTECTOR; RR BRK PIPE 1-47143-008-0 02 1 1511- ● ●
157 BOLT; RR BRK SET
(A) 		1-09060-021-0 12 1 1511- ● ●
157 BOLT; RR BRK SET
(B) 		1-09060-022-0 04 1 1511- ● ●
163 PIN; SPLIT,SHOE HOLD 1-09740-098-0 04 1 1511- ● ●
174 COVER; CYL,RR WHEEL CYL 1-47154-008-0 04 1 1511- ● ●
199 NUT 1-09400-167-0 02 1 1511- ● ●
200 BOLT 1-47162-050-0 02 1 1511- ● ●
226 BOLT; BRKT
M14X35 FLANGE 		0-28651-435-0 08 1 1511- ● ●
292 BOOT; ROD 1-47616-107-0 02 1 1511- ● ●
305 GUIDE; SLACK ADJ 1-46346-023-0 02 1 1511- ● ●
316 RING; SNAP
ID=9 		0-91805-509-0 02 1 1511- ● ●
341 SPRING; ASSIST,BOOT
(A) 		1-47619-175-0 02 1 1511- ● ●
341 SPRING; ASSIST,BOOT
(B) 		1-47619-176-0 02 1 1511- ● ●
