Sayfa 2-53 - Isuzu EPC

2-53 — TRANSMISSION OIL COOLER SYSTEM (#169363) — 126 parça

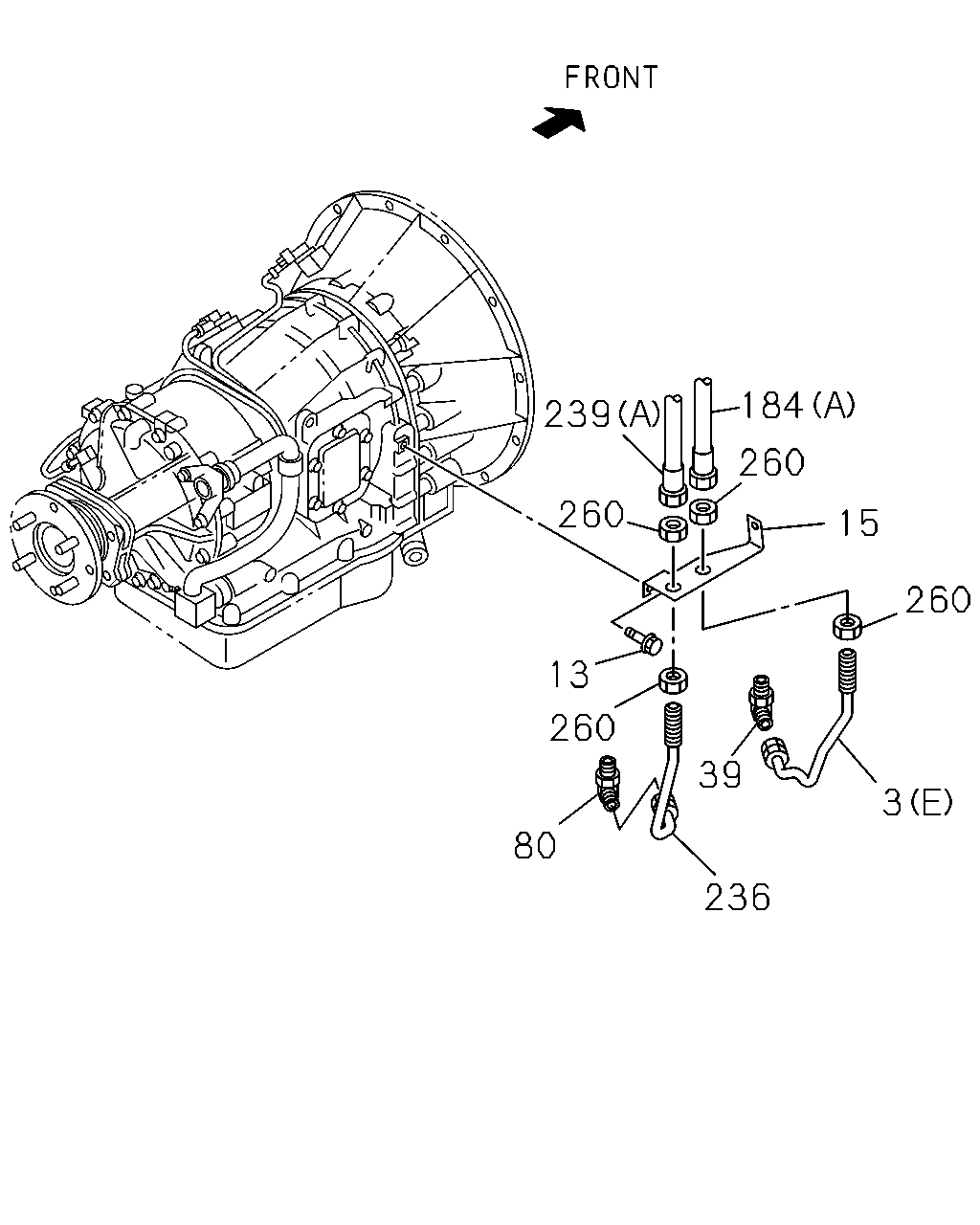

3 260 15 184 260 39 236 80 260 13 260 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (E)	8-98158-383-1	01	1	1511-	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1511-	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1511-	●	●
3	PIPE; OIL,A/T TO OIL COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98260-622-1	01	1	1511-	●	●
3	PIPE; OIL,A/T TO OIL COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98260-624-0	01	1	1511-	●	●
13	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) M8X20 FLANGE	8-98105-048-0	01	1	1511-	●	●
15	BRACKET; ATF PIPE LCT2500 A/T ALLISON(Y5W)	8-98075-836-0	01	1	1511-	●	●
39	CONNECTOR; FLEX HOSE,A/T LCT2500 A/T ALLISON(Y5W)	1-09661-766-1	01	1	1511-	●	●
80	UNION; FLEX HOSE LCT2500 A/T ALLISON(Y5W)	1-09661-766-1	01	1	1511-	●	●
184	HOSE; FLEX,PIPE TO COOLER A/T<X9D> (A)	8-98010-582-2	01	1	1511-	●	●
184	HOSE; FLEX,PIPE TO COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98080-165-0	01	1	1511-	●	●
236	PIPE; OIL,OIL COOLER TO A/T LCT2500 A/T ALLISON(Y5W)	8-98158-384-1	01	1	1511-	●	●
239	HOSE; FLEX,COOLER TO PIPE A/T<X9D> (B)	8-98010-583-2	01	1	1511-	●	●
239	HOSE; FLEX,COOLER TO PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98097-594-0	01	1	1511-	●	●
260	NUT LCT2500 A/T ALLISON(Y5W) M30	1-09400-166-0	04	1	1511-	●	●

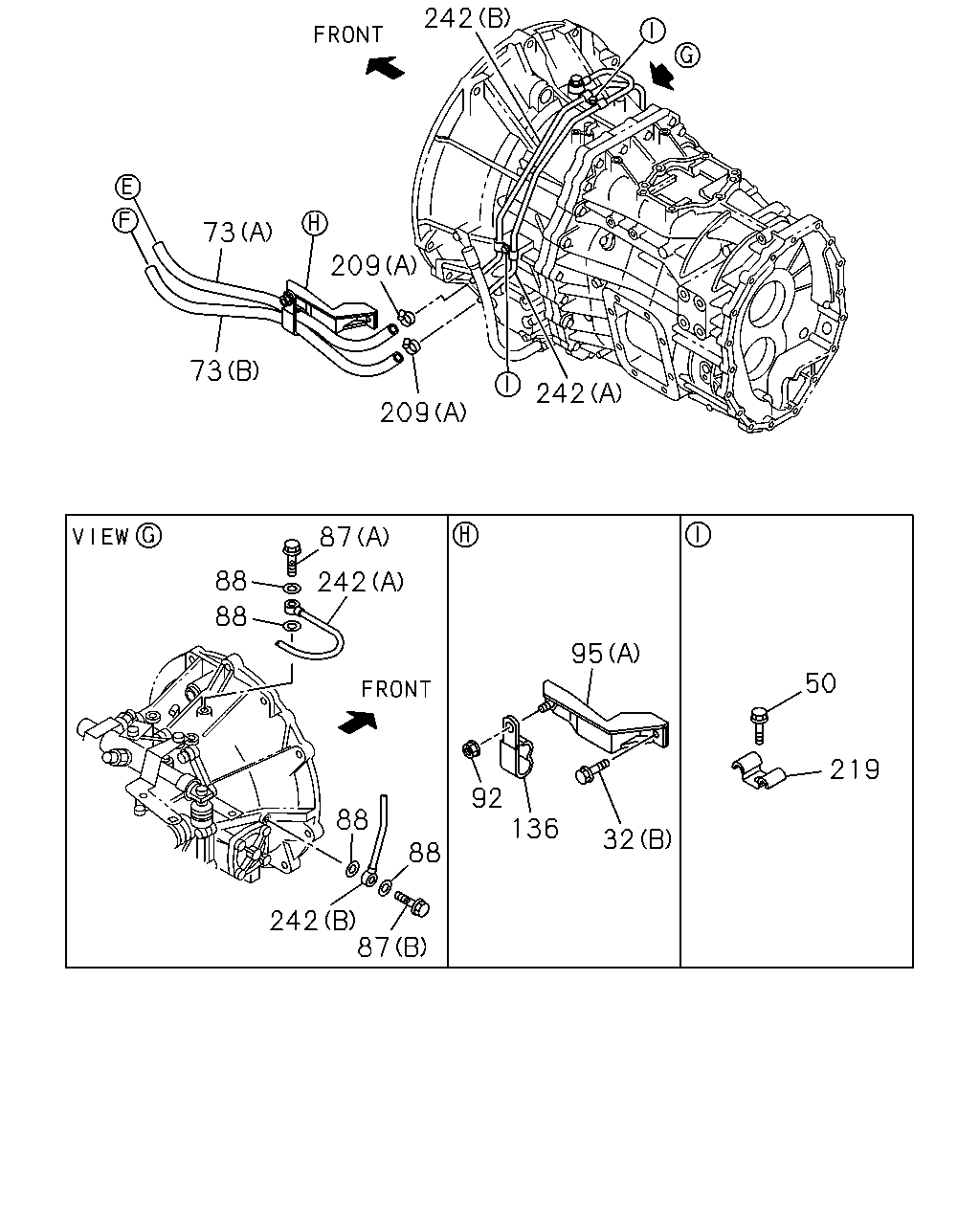

242 209 242 209 73 73 87 242 88 88 95 50 219 32 136 92 88 88 242 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1511-	●	●
50	BOLT; CLIP MZW6P M/T(RSZ) EXC. 15" CLUTCH(RE9) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=480	8-98081-845-0	01	1	1511-	●	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=500	8-98081-853-0	01	1	1511-	●	●
87	BOLT; EYE MZW6P M/T(RSZ) EXC. 15" CLUTCH(RE9) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	1511-	●	●
87	BOLT; EYE MZW6P M/T(RSZ) EXC. 15" CLUTCH(RE9) (A) M14X35.5 FLANGE	8-98060-612-0	01	1	1511-	●	●
88	GASKET; EYE BOLT MZW6P M/T(RSZ) EXC. 15" CLUTCH(RE9) ID=14.2 OD=20.0	9-09571-414-0	04	1	1511-	●	●
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1511-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) L=50	1-47475-299-2	02	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=68.5	1-47475-591-0	01	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) L=115 B=25	1-47476-758-0	01	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98245-750-0	01	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98245-751-0	01	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98245-752-0	01	1	1511-	●	●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-148-0	01	1	1511-	●	●
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	1511-	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1511-	●	●
219	CLIP; ATF PIPE MZW6P M/T(RSZ) EXC. 15" CLUTCH(RE9) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1511-	●	●
242	PIPE; COOLER MZW6P M/T(RSZ) EXC. 15" CLUTCH(RE9) (A)	8-98303-637-0	01	1	1511-	●	●
242	PIPE; COOLER MZW6P M/T(RSZ) EXC. 15" CLUTCH(RE9) (B)	8-98303-638-0	01	1	1511-	●	●
242	PIPE; COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98260-619-1	01	1	1511-	●	●
242	PIPE; COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98260-620-0	01	1	1511-	●	●
242	PIPE; COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98269-403-0	01	1	1511-	●	●
242	PIPE; COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98269-404-0	01	1	1511-	●	●

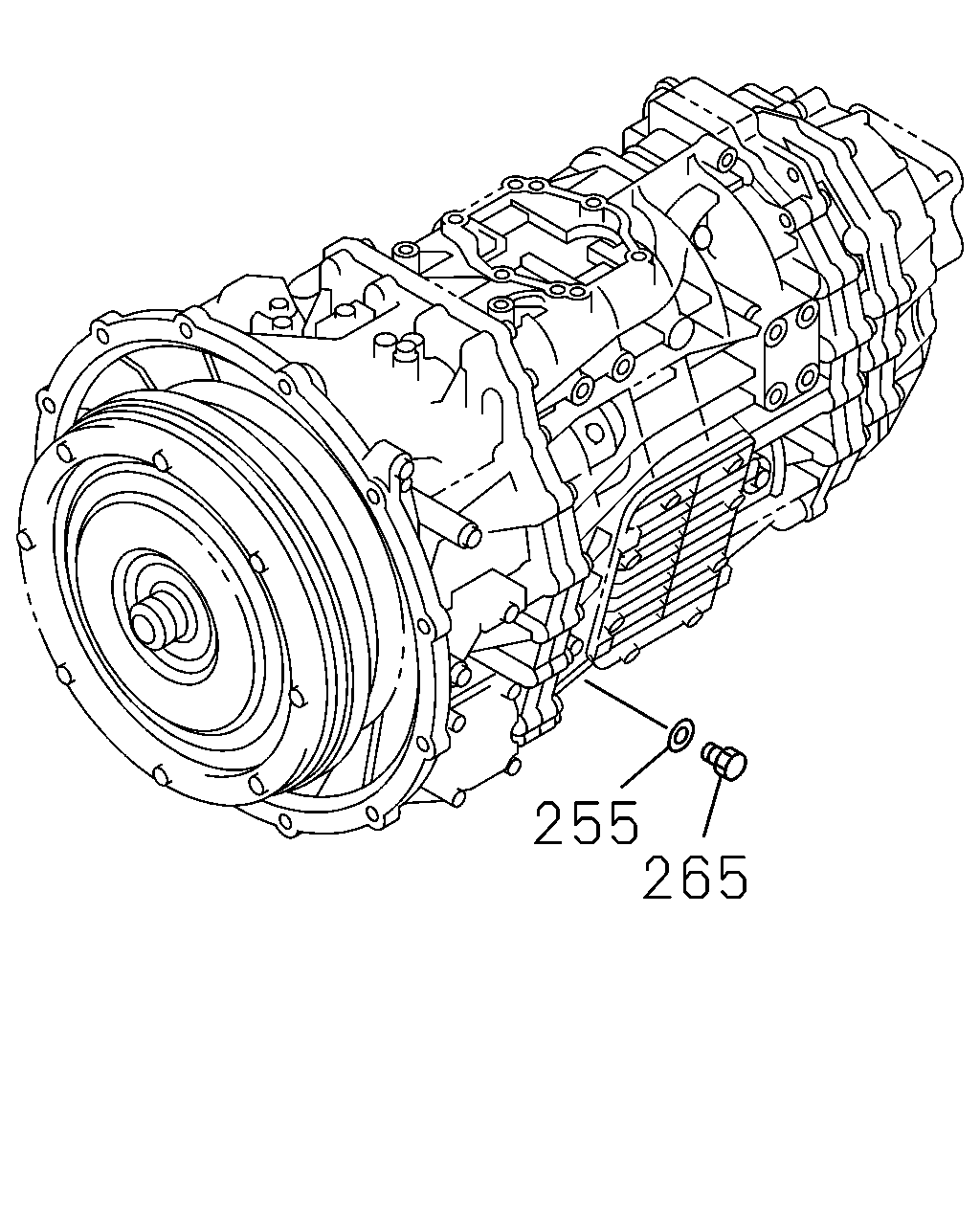

265 255

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	255	GASKET; SENSOR MZW6P M/T(RSZ) ID=12.2	9-09571-412-0	01	1	1511-	●	●
	265	PLUG; HOLE MZW6P M/T(RSZ) M12X9	0-92002-412-0	01	1	1511-	●	●

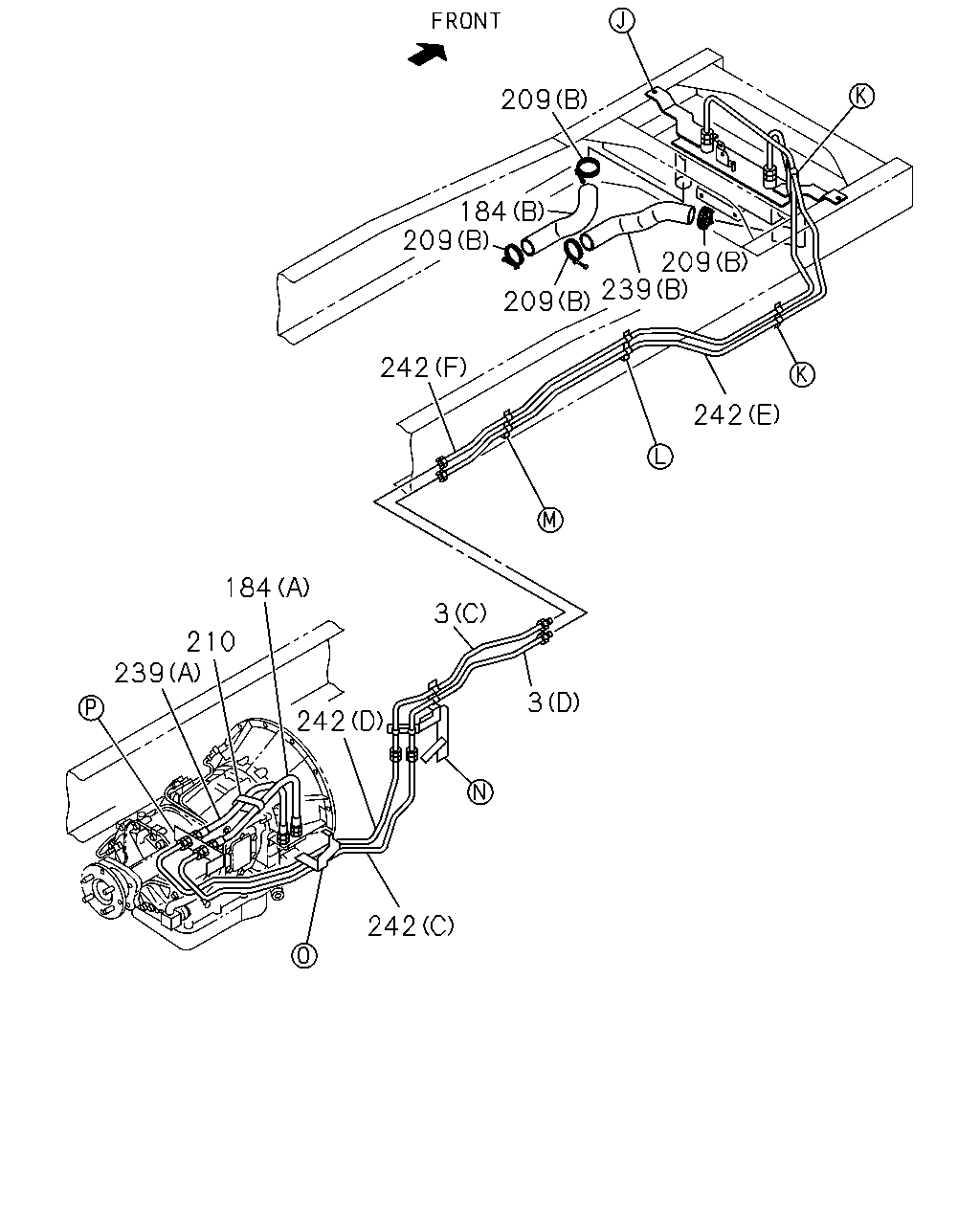

242 3 3 242 242 210 184 239 242 209 184 209 209 239 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (E)	8-98158-383-1	01	1	1511-	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1511-	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1511-	●	●
3	PIPE; OIL,A/T TO OIL COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98260-622-1	01	1	1511-	●	●
3	PIPE; OIL,A/T TO OIL COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98260-624-0	01	1	1511-	●	●
184	HOSE; FLEX,PIPE TO COOLER A/T<X9D> (A)	8-98010-582-2	01	1	1511-	●	●
184	HOSE; FLEX,PIPE TO COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98080-165-0	01	1	1511-	●	●
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	1511-	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1511-	●	●
210	BAND; FLEX HOSE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=175	1-09707-178-0	01	1	1511-	●	●
239	HOSE; FLEX,COOLER TO PIPE A/T<X9D> (B)	8-98010-583-2	01	1	1511-	●	●
239	HOSE; FLEX,COOLER TO PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98097-594-0	01	1	1511-	●	●
242	PIPE; COOLER MZW6P M/T(RSZ) EXC. 15" CLUTCH(RE9) (A)	8-98303-637-0	01	1	1511-	●	●
242	PIPE; COOLER MZW6P M/T(RSZ) EXC. 15" CLUTCH(RE9) (B)	8-98303-638-0	01	1	1511-	●	●
242	PIPE; COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98260-619-1	01	1	1511-	●	●
242	PIPE; COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98260-620-0	01	1	1511-	●	●
242	PIPE; COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98269-403-0	01	1	1511-	●	●
242	PIPE; COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98269-404-0	01	1	1511-	●	●

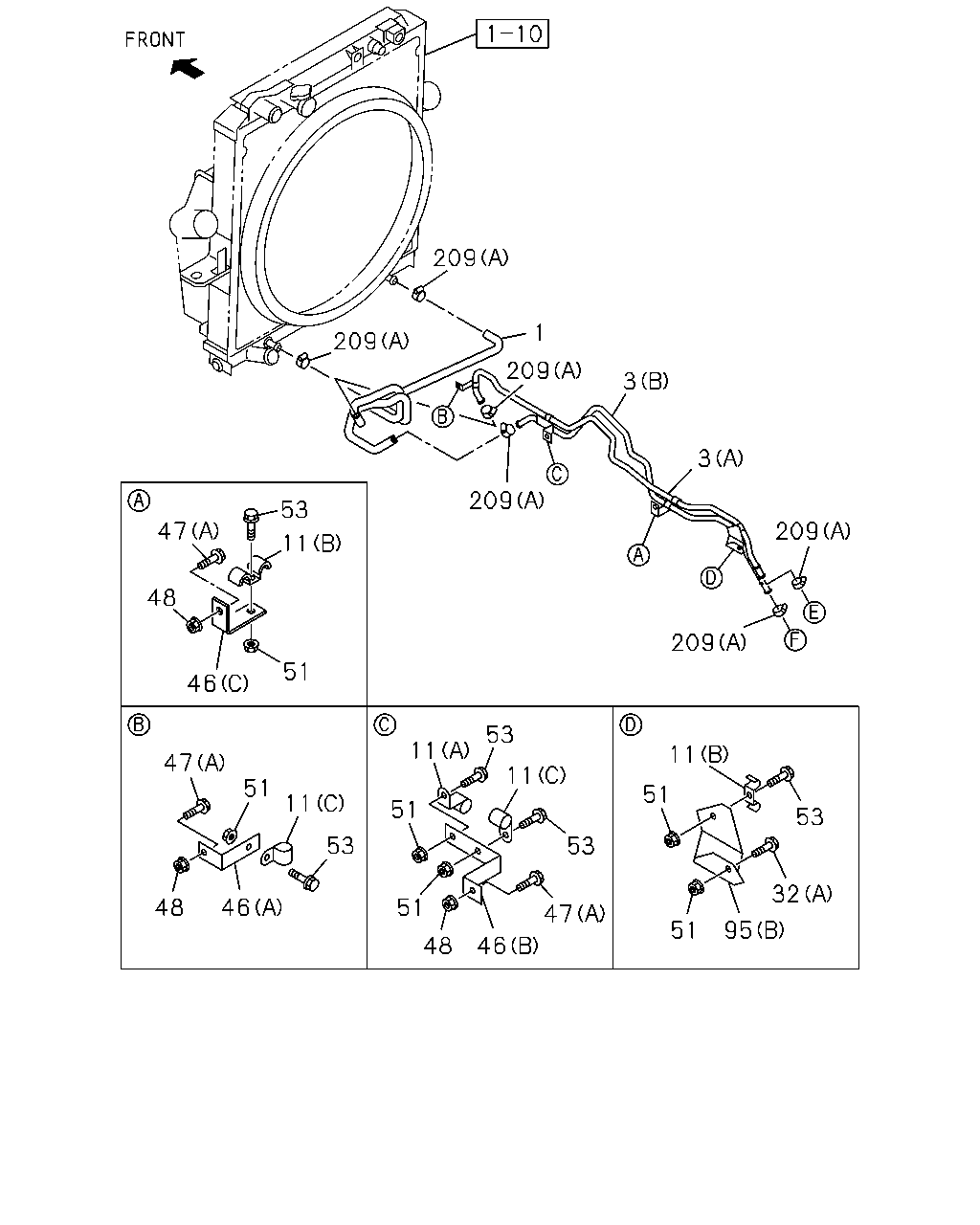

209 209 209 1 3 3 209 209 209 53 47 11 48 46 51 47 51 11 53 46 48 11 11 53 47 51 51 48 46 11 51 51 95 53 32 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98079-911-1	01	1	1511-	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (E)	8-98158-383-1	01	1	1511-	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1511-	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1511-	●	●
3	PIPE; OIL,A/T TO OIL COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98260-622-1	01	1	1511-	●	●
3	PIPE; OIL,A/T TO OIL COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98260-624-0	01	1	1511-	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	1511-	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1511-	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	1511-	●	●
11	CLIP; PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=19 & 19 L=32.5 & 32.5	1-09701-034-1	02	1	1511-	●	●
11	CLIP; PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) ID=19 & 19	1-09701-324-0	05	1	1511-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1511-	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-47471-051-0	01	1	1511-	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98050-824-0	01	1	1511-	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98080-171-0	01	1	1511-	●	●
47	BOLT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	03	1	1511-	●	●
47	BOLT; BRKT TO FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X25 FLANGE	0-28650-825-0	06	1	1511-	●	●
47	BOLT; BRKT TO FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M10X30 FLANGE	0-28651-030-0	03	1	1511-	●	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
48	NUT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
51	NUT; CLIP TO BRKT EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	0-91180-108-0	05	1	1511-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	05	1	1511-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE	0-28050-820-0	06	1	1511-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1511-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) L=50	1-47475-299-2	02	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=68.5	1-47475-591-0	01	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) L=115 B=25	1-47476-758-0	01	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98245-750-0	01	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98245-751-0	01	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98245-752-0	01	1	1511-	●	●
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	1511-	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1511-	●	●

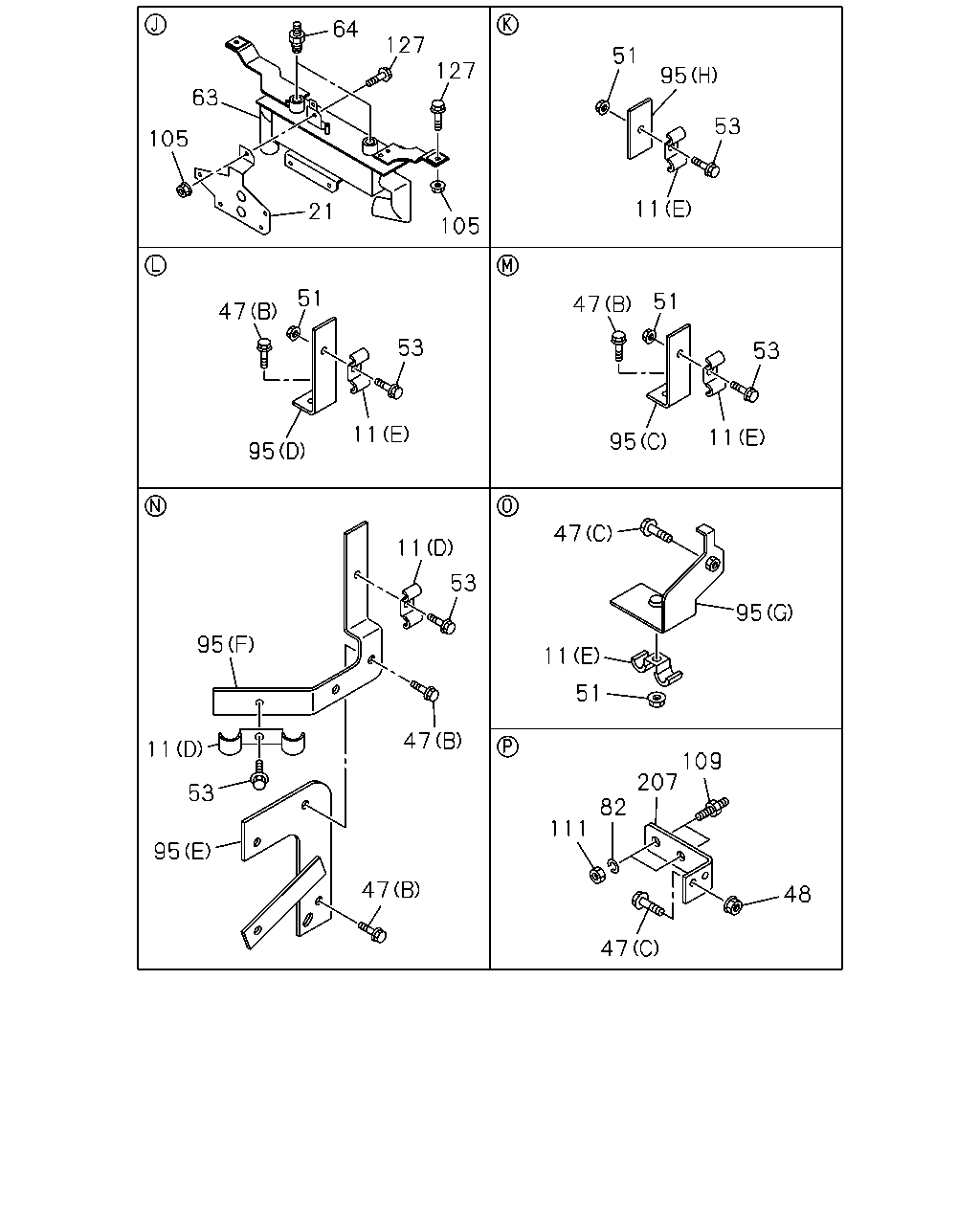

48 47 111 207 82 109 95 51 11 47 95 47 51 53 11 11 51 53 127 127 64 63 105 21 105 47 51 53 11 95 95 11 53 95 47 47 11 53 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	1511-	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1511-	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	1511-	●	●
11	CLIP; PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=19 & 19 L=32.5 & 32.5	1-09701-034-1	02	1	1511-	●	●
11	CLIP; PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) ID=19 & 19	1-09701-324-0	05	1	1511-	●	●
21	BRACKET; COOLER A/T<X9D>	8-98087-647-1	01	1	1511-	●	●
47	BOLT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	03	1	1511-	●	●
47	BOLT; BRKT TO FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X25 FLANGE	0-28650-825-0	06	1	1511-	●	●
47	BOLT; BRKT TO FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M10X30 FLANGE	0-28651-030-0	03	1	1511-	●	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
48	NUT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
51	NUT; CLIP TO BRKT EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	0-91180-108-0	05	1	1511-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	05	1	1511-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE	0-28050-820-0	06	1	1511-	●	●
63	COOLER; OIL A/T<X9D>	8-98233-275-0	01	1	1511-	●	●
64	CONNECTOR; OIL COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09660-210-0	02	1	1511-	●	●
82	WASHER; LK,UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=30.5	9-09150-530-0	02	1	1511-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1511-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) L=50	1-47475-299-2	02	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=68.5	1-47475-591-0	01	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) L=115 B=25	1-47476-758-0	01	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98245-750-0	01	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98245-751-0	01	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98245-752-0	01	1	1511-	●	●
105	NUT; OIL COOLER A/T<X9D> M8 FLANGE	0-91180-108-0	07	1	1511-	●	●
109	UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M30 & M30 STRAIGHT	1-09664-191-0	02	1	1511-	●	●
111	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M30	9-09840-252-1	02	1	1511-	●	●
127	BOLT; COOLER A/T<X9D> M8X30 FLANGE	0-28650-830-0	07	1	1511-	●	●
207	BRACKET; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98240-233-0	01	1	1511-	●	●
