◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11715 - FSR AUST/NZ EURO5 EXC.SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07A - CLUTCH BOOSTER; MINIPACK ▶
2-07A — CLUTCH BOOSTER; MINIPACK (#169347) — 50 parça

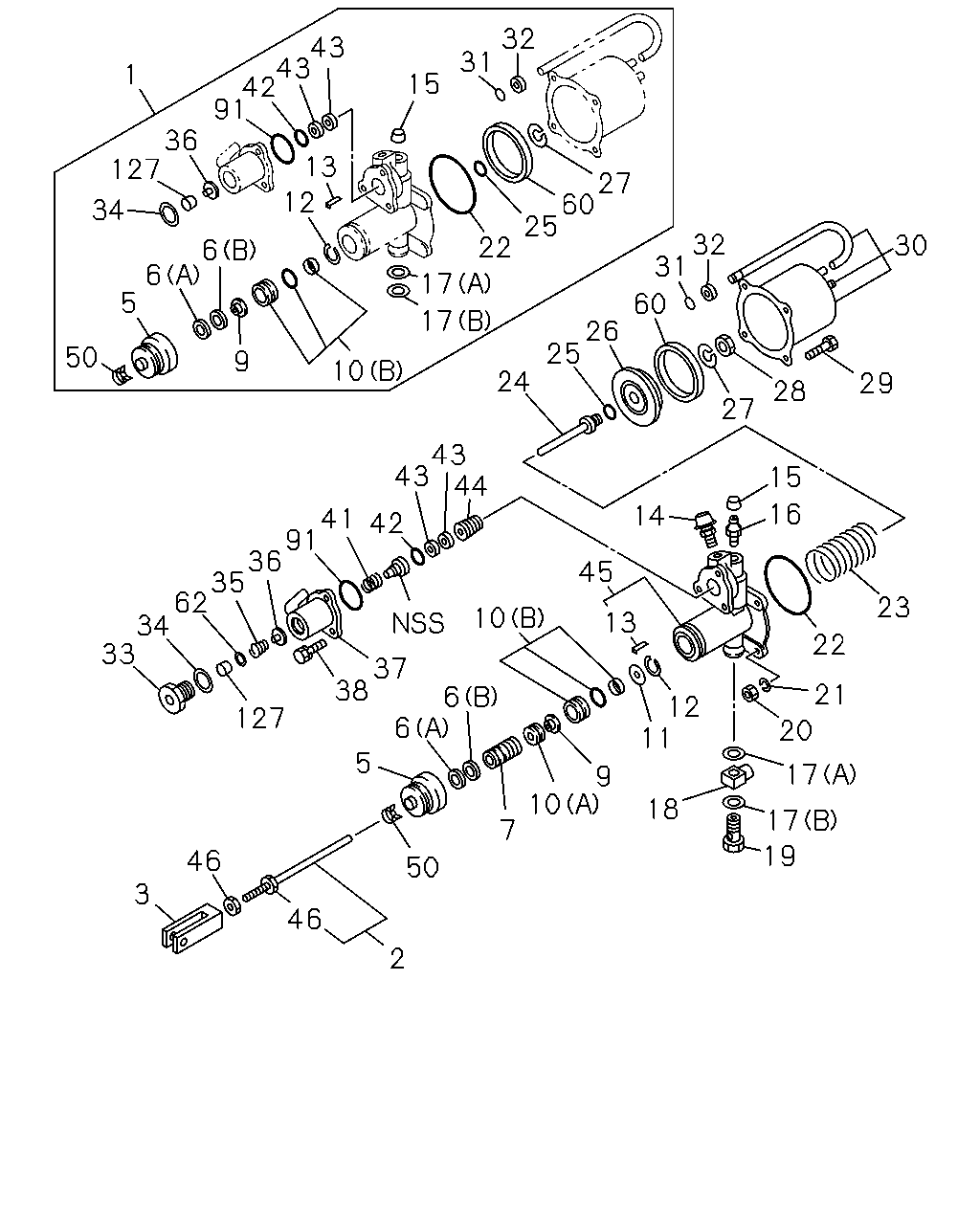

çizim 501732
46 2 46 3 50 7 10 9 18 19 17 17 20 21 22 23 12 11 6 6 5 127 38 37 10 13 45 14 16 15 33 44 43 43 42 41 91 36 35 62 34 24 25 26 27 28 29 30 32 31 60 27 60 25 22 17 17 10 9 6 6 5 50 34 127 36 91 42 43 43 1 12 13 15 31 32
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-603-0 01 1 1511-
2 ROD; PUSH,CLU BOOSTER
15" CLUTCH(RE9) 		1-31824-240-0 01 1 1511-
3 CLEVIS; PUSH ROD,CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-186-1 01 1 1511-
5 GUARD; PISTON,CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-503-0 01 1 1511-
6 GASKET; PISTON CUP,CLU BOOSTER
15" CLUTCH(RE9) (B) 		1-31829-498-0 01 1 1511-
6 GASKET; PISTON CUP,CLU BOOSTER
15" CLUTCH(RE9) (A) 		1-31829-499-0 01 1 1511-
7 PISTON; CLU BOOSTER
15" CLUTCH(RE9) 		1-31821-047-0 01 1 1511-
9 GASKET; PISTON CUP,CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-003-0 01 1 1511-
10 RETAINER; PISTON,CLU BOOSTER
15" CLUTCH(RE9) (B) 		1-31829-107-0 01 1 1511-
10 RETAINER; PISTON,CLU BOOSTER
15" CLUTCH(RE9) (A) 		1-31829-108-0 01 1 1511-
11 WASHER; PISTON,CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-105-0 01 1 1511-
12 RING; RET,CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-142-0 01 1 1511-
13 PIN; SPR
15" CLUTCH(RE9) 		1-31829-109-0 01 1 1511-
14 COVER; EXH,CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-564-0 01 1 1511-
15 PROTECTOR; END PLATE,CLU BOOSTER
15" CLUTCH(RE9) 		9-83335-044-0 01 1 1511-
16 PLUG; END PLATE,CLU BOOSTER
15" CLUTCH(RE9) 		9-83331-704-0 01 1 1511-
17 GASKET; CONN,CLU BOOSTER
15" CLUTCH(RE9) (A) 		9-09920-267-0 01 1 1511-
17 GASKET; CONN,CLU BOOSTER
15" CLUTCH(RE9) (B) 		9-09920-268-0 01 1 1511-
18 CONNECTOR; END PLATE,CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-248-0 01 1 1511-
19 BOLT; EYE,END PLATE,CLU BOOSTER
15" CLUTCH(RE9) 		9-83315-047-0 01 1 1511-
20 NUT; END PLATE TO SHELL,CLU BOOSTER
15" CLUTCH(RE9) M10 		9-09111-410-0 04 1 1511-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
15" CLUTCH(RE9) ID=10.2 		9-09150-510-0 04 1 1511-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER
15" CLUTCH(RE9) 		1-09623-322-0 01 1 1511-
23 SPRING; SHELL,CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-358-0 01 1 1511-
24 ROD; PUSH,CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-112-0 01 1 1511-
25 GASKET; PUSH ROD,CLU BOOSTER
15" CLUTCH(RE9) 		1-09623-321-0 01 1 1511-
26 PISTON; SHELL,CLU BOOSTER
15" CLUTCH(RE9) 		1-31821-084-0 01 1 1511-
27 SPRING; CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-111-0 01 1 1511-
28 NUT; PUSH ROD,CLU BOOSTER
15" CLUTCH(RE9) 		9-88510-365-0 01 1 1511-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER
15" CLUTCH(RE9) 		9-83315-099-0 04 1 1511-
30 SHELL; CYL,CLU BOOSTER
15" CLUTCH(RE9) 		1-31811-124-0 01 1 1511-
31 GASKET; SHELL,CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-279-0 01 1 1511-
32 BUSHING; SHELL,CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-280-0 01 1 1511-
33 CONNECTOR; UPR,VLV,CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-214-0 01 1 1511-
34 GASKET; CONN,CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-053-0 01 1 1511-
35 SPRING; POPPET VLV,CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-537-0 01 1 1511-
36 VALVE; POPPET,CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-536-0 01 1 1511-
37 BODY; UPR,VLV,CLU BOOSTER
15" CLUTCH(RE9) 		1-31811-147-0 01 1 1511-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE
15" CLUTCH(RE9) 		9-83315-113-0 03 1 1511-
41 SPRING; DIAPH,CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-420-0 01 1 1511-
42 GASKET; FITTING,CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-143-0 01 1 1511-
43 GASKET; UPR VLV,CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-060-0 02 1 1511-
44 PISTON; UPR VLV,CLU BOOSTER
15" CLUTCH(RE9) 		1-31821-087-0 01 1 1511-
45 PLATE; END,CLU BOOSTER
15" CLUTCH(RE9) 		1-31811-143-0 01 1 1511-
46 NUT; PUSH ROD,CLU BOOSTER
15" CLUTCH(RE9) M10 		9-09111-410-0 02 1 1511-
50 CLAMP; PISTON GUARD,CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-504-0 01 1 1511-
60 GASKET; SHELL,CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-544-0 01 1 1511-
62 RETAINER; POPPET
15" CLUTCH(RE9) 		1-31829-489-0 01 1 1511-
91 GASKET; CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-103-0 01 1 1511-
127 FILTER; POPPET
15" CLUTCH(RE9) 		1-31829-495-0 01 1 1511-
