◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11715 - FSR AUST/NZ EURO5 EXC.SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#169346) — 24 parça

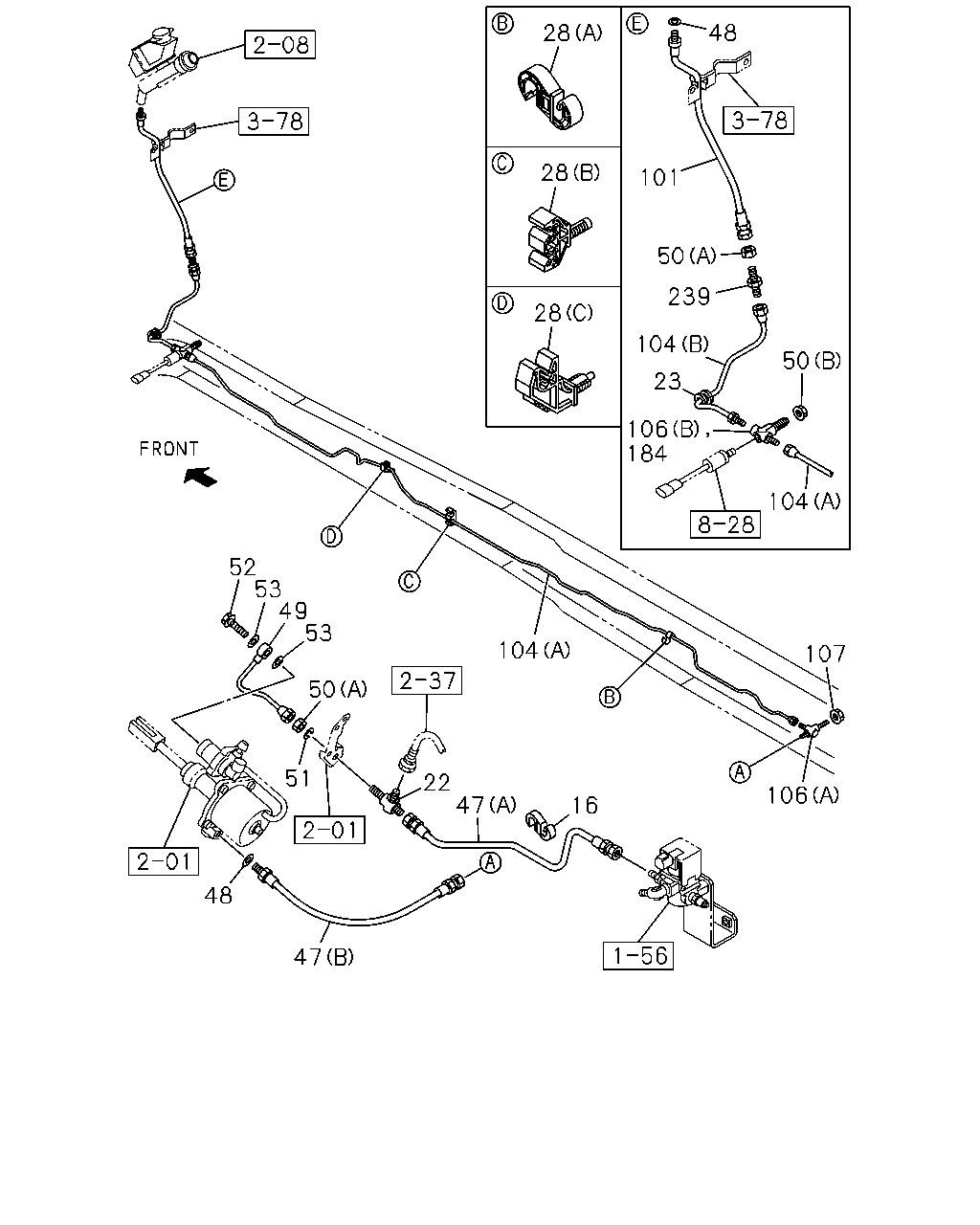

çizim 500802
28 28 28 106 184 104 23 239 50 101 48 52 53 49 53 50 51 48 47 47 22 16 104 107 106 50 104
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 & 12 		1-09709-278-1 02 1 1511- ● ●
22 UNION; CLU PIPE
MZW6P M/T(RSZ) 15" CLUTCH(RE9) M12 3WAY 		0-92138-706-0 01 1 1511- ● ●
23 GROMMET; CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1511- ● ●
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=6.35 		1-09701-247-1 01 1 1511- ● ●
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=6.35 & 10.0 		1-09709-274-1 03 1 1511- ● ●
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98012-254-1 01 1 1511- ● ●
47 HOSE; FLEX,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=540 		1-09363-612-1 01 1 1511- ● ●
47 HOSE; FLEX,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=470 		8-98072-353-0 01 1 1511- ● ●
48 GASKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1511- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
MZW6P M/T(RSZ) 15" CLUTCH(RE9) L=239 		1-49117-401-0 01 1 1511- ● ●
50 NUT; UNION
MZW6P M/T(RSZ) 15" CLUTCH(RE9) (A) M12 		9-09840-280-0 01 1 1511- ● ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 		9-09840-280-0 01 1 1511- ● ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 		0-91111-512-0 01 1 1511- ● ●
51 WASHER; LK
MZW6P M/T(RSZ) 15" CLUTCH(RE9) ID=12.2 		0-91510-812-0 01 1 1511- ● ●
52 BOLT; EYE,AIR PIPE
MZW6P M/T(RSZ) 15" CLUTCH(RE9) M14X27 FLANGE 		1-09675-086-0 01 1 1511- ● ●
53 GASKET; JOINT BOLT
MZW6P M/T(RSZ) 15" CLUTCH(RE9) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1511- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=500 		8-98072-350-0 01 1 1511- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=336 		8-98067-058-0 01 1 1511- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=2695 		8-98078-148-2 01 1 1511- ● ●
106 UNION; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 2WAY 		1-09654-059-2 01 1 1511- ● ●
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 3WAY 		8-98051-113-0 01 1 1511- ● ●
107 NUT; UNION,OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 		0-91111-512-0 01 1 1511- ● ●
184 UNION; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98150-865-0 01 1 1511- ● ●
239 UNION; CLU HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 L=66.5 		0-92113-306-0 01 1 1511- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
