◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11715 - FSR AUST/NZ EURO5 EXC.SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#169345) — 21 parça

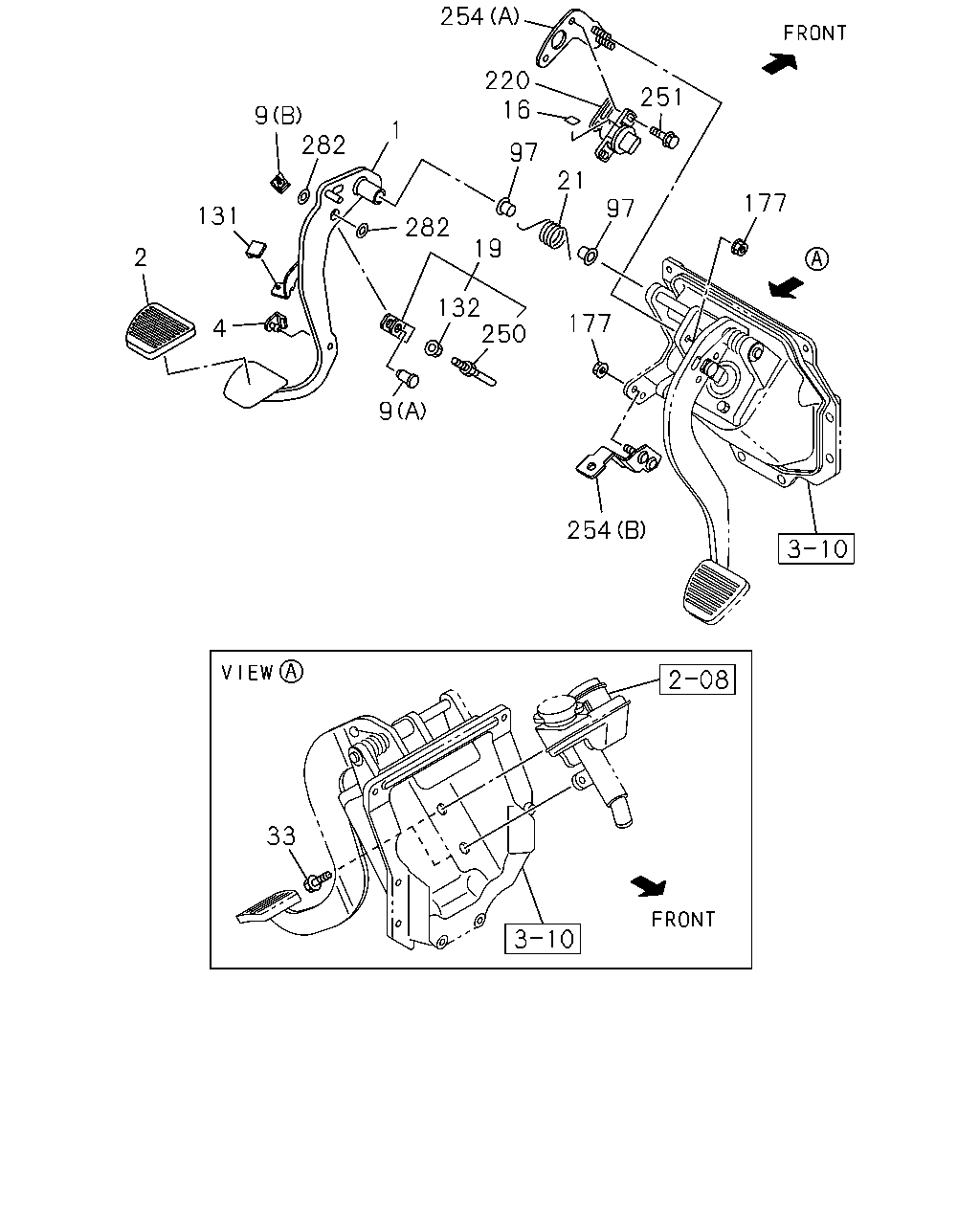

çizim 500805
254 220 16 97 282 282 9 1 19 132 250 177 97 21 251 177 254 9 4 131 2 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU
EXC. H.S.A SYSTEM<6EP> 		8-97613-941-1 01 1 1511- ● ●
1 PEDAL; CLU
H.S.A SYSTEM<6EP> 		8-98021-375-1 01 1 1511- ● ●
2 COVER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98056-865-0 01 1 1511- ● ●
4 STOPPER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98079-251-0 01 1 1511- ● ●
9 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98007-161-0 01 1 1511- ● ●
9 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98147-657-0 01 1 1511- ● ●
16 SEAL; CLU PEDAL
H.S.A SYSTEM<6EP> 30X30 		8-98142-344-0 01 1 1511- ● ●
19 ROD ASM; PUSH,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-406-1 01 1 1511- ● ●
21 SPRING; RETURN,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-560-0 01 1 1511- ● ●
33 BOLT; CLU M/CYL TO BRKT
MZW6P M/T(RSZ) 15" CLUTCH(RE9) M12X20 FLANGE 		0-28051-220-0 02 1 1511- ● ●
97 BUSHING; CLU PEDAL SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94238-596-0 02 1 1511- ● ●
131 STOPPER; CLU SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97302-305-0 01 1 1511- ● ●
132 NUT; LK,PUSH ROD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
177 NUT; BRKT
EXC. H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
177 NUT; BRKT
H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 04 1 1511- ● ●
220 SENSOR; CLUTCH
H.S.A SYSTEM<6EP> 		1-80250-014-0 01 1 1511- ● ●
250 ROD; PUSH,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97615-589-0 01 1 1511- ● ●
251 BOLT; SENSOR
H.S.A SYSTEM<6EP> M6X16 		0-52000-616-0 02 1 1511- ● ●
254 BRACKET; CLU SENSOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98021-377-1 01 1 1511- ● ●
254 BRACKET; CLU SENSOR
H.S.A SYSTEM<6EP> (A) 		8-98021-376-1 01 1 1511- ● ●
282 SPACER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98070-329-0 02 1 1511- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
