2-01A — CLUTCH (#169344) — 68 parça

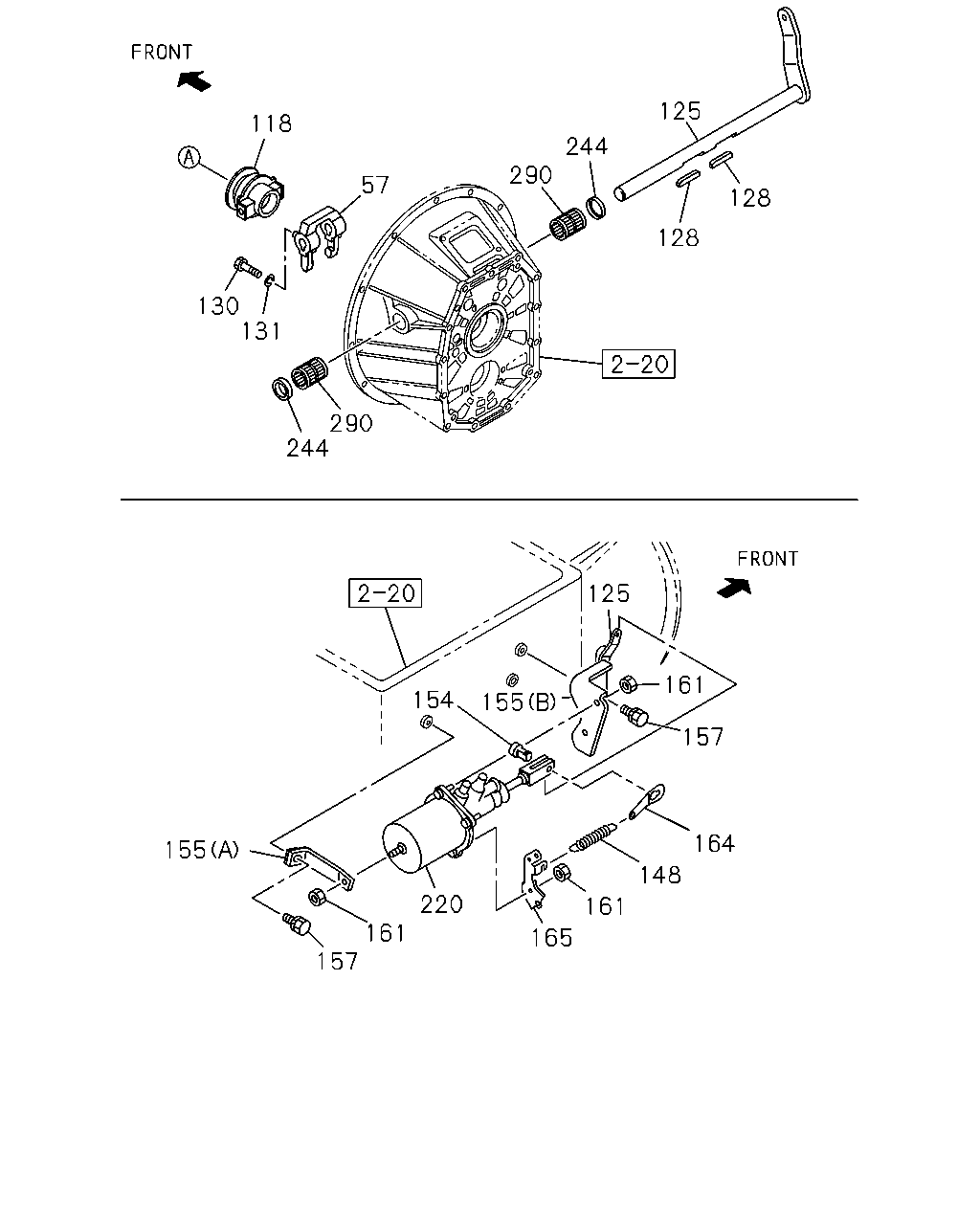

çizim 500801
125 128 128 244 290 57 118 130 290 244 154 155 161 157 164 148 161 165 220 161 157 155 131 125
BalonParca AdiParca NoAdetTipApplied Date
57 FORK; SHIFT,CLU
15" CLUTCH(RE9) 		1-31341-048-2 01 1 1511-
118 BEARING; CLU RELEASE
15" CLUTCH(RE9) 		1-31310-026-0 01 1 1511-
118 BEARING; CLU RELEASE
15" CLUTCH(RE9) BEST VALUE PARTS 		1-87610-109-0 01 1 1511-
125 SHAFT; CLU
15" CLUTCH(RE9) 		1-31342-335-0 01 1 1511-
128 KEY; FEATHER,CLU SHAFT
15" CLUTCH(RE9) 		9-09867-008-0 02 1 1511-
130 SCREW; SHIFT FORK
15" CLUTCH(RE9) M8X14 		0-61200-814-0 01 1 1511-
131 WASHER; LK,SHIFT FORK
15" CLUTCH(RE9) ID=8.2 		0-91510-508-0 01 1 1511-
148 SPRING; CLU RETURN
15" CLUTCH(RE9) L=135 		1-09583-305-0 01 1 1511-
154 PIN; JAW JOINT
15" CLUTCH(RE9) 		1-31424-009-0 01 1 1511-
155 BRACKET; MINIPACK
15" CLUTCH(RE9) (A) 		1-31429-475-1 01 1 1511-
155 BRACKET; MINIPACK
15" CLUTCH(RE9) (B) 		1-31429-478-0 01 1 1511-
157 BOLT; BRKT
15" CLUTCH(RE9) M10X25 FLANGE 		0-28751-025-0 03 1 1511-
161 NUT; BRKT
15" CLUTCH(RE9) M10 FLANGE 		0-91180-210-0 05 1 1511-
164 EYE; SPRING
15" CLUTCH(RE9) 		1-31426-041-0 01 1 1511-
165 BRACKET; SPR EYE,MINIPACK,FLEX TUBE
15" CLUTCH(RE9) 		1-47477-789-0 01 1 1511-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 15" CLUTCH(RE9) 		1-31800-511-2 01 1 1511-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 15" CLUTCH(RE9) BEST VALUE PARTS 		1-87610-089-0 01 1 1511-
244 SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) 		1-09625-002-0 02 1 1511-
290 BEARING; NEEDLE
15" CLUTCH(RE9) NTN 		1-09811-002-1 02 1 1511-

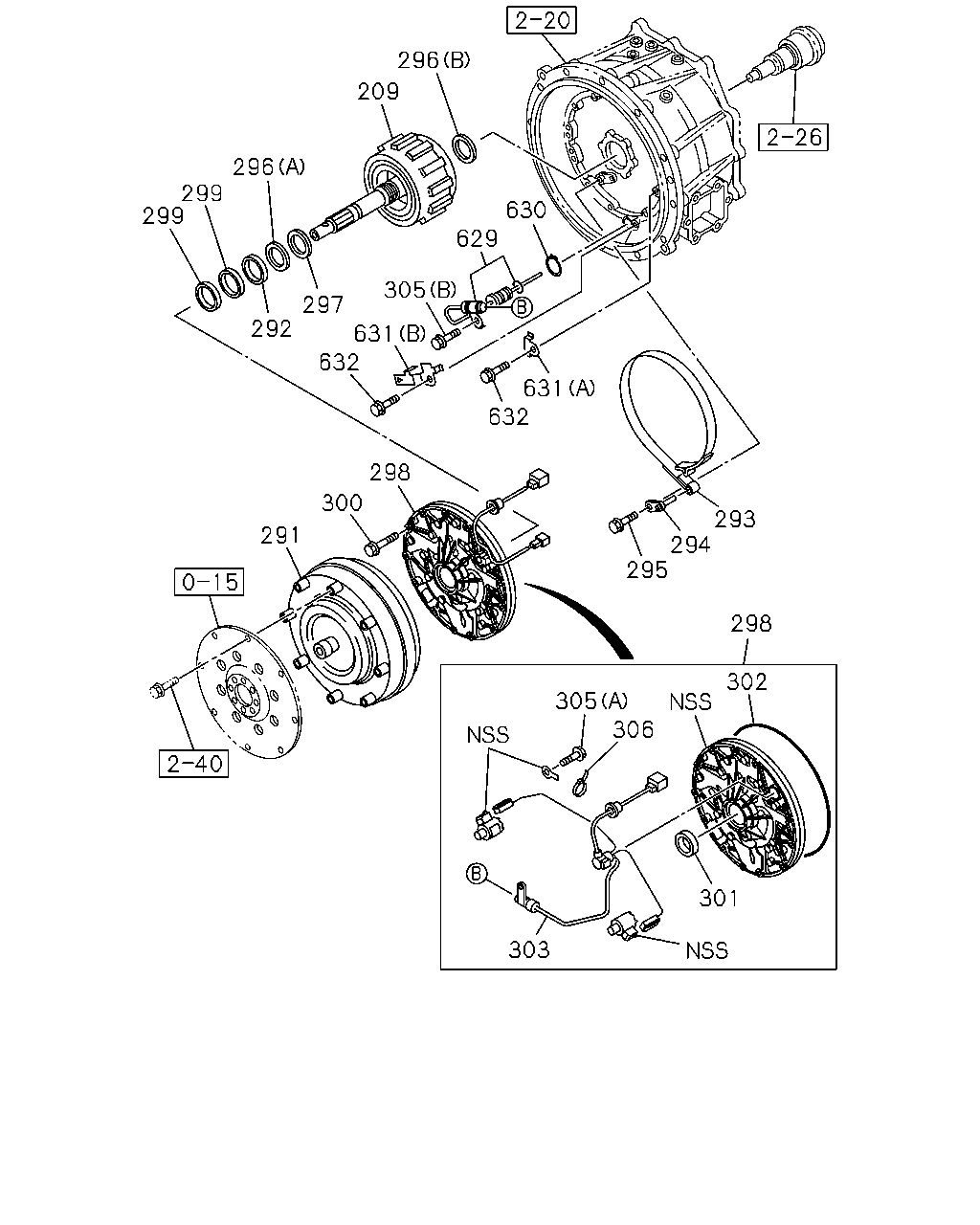

çizim 500804
296 209 296 299 299 292 297 632 631 305 629 630 631 632 298 300 291 295 294 293 298 302 306 305 301 303
BalonParca AdiParca NoAdetTipApplied Date
209 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98275-315-0 01 1 1511-
291 COUPLING; FLUID
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98248-560-1 01 1 1511-
292 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-329-0 01 1 1511-
293 BAND; BRAKE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97254-651-0 01 1 1511-
294 PIN; ANCHOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-703-0 01 1 1511-
295 BOLT; ANCHOR PIN
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 01 1 1511-
296 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97255-688-0 01 1 1511-
296 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97255-689-0 01 1 1511-
297 WASHER; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97300-070-0 01 1 1511-
298 PUMP ASM; OIL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98107-925-2 01 1 1511-
299 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-330-0 02 1 1511-
300 BOLT; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X45 FLANGE 		0-28050-845-0 11 1 1511-
301 SEAL; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97289-811-0 01 1 1511-
302 RING; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-188-0 01 1 1511-
303 HARNESS ASM; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-613-1 01 1 1511-
305 BOLT; BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X12 FLANGE 		0-28050-612-0 01 1 1511-
305 BOLT; BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X16 FLANGE 		0-28650-616-0 01 1 1511-
306 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER(8GF) L=100 		8-94279-939-0 02 1 1511-
629 SENSOR; OIL TEMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98021-895-0 01 1 1511-
630 RING; SNAP
TRANSMISSION CONTROL-SMOOTHER(8GF) ID=17.5 		9-09180-019-0 01 1 1511-
631 PLATE; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98021-285-0 02 1 1511-
631 PLATE; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98023-254-0 01 1 1511-
632 BOLT; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 03 1 1511-

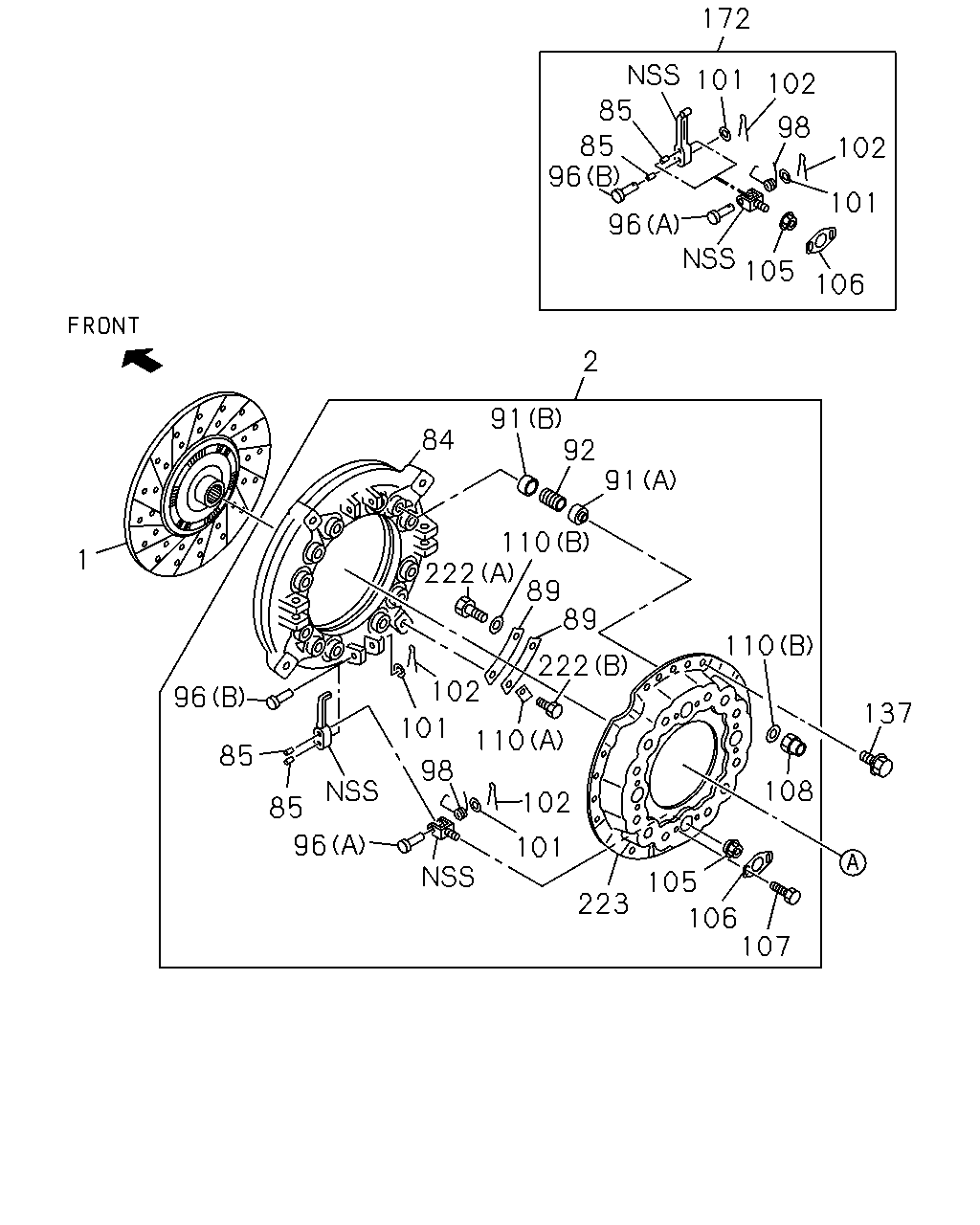

çizim 501045
172 102 102 101 106 105 96 96 85 85 101 98 2 91 84 110 91 92 89 222 89 110 137 108 106 107 105 223 101 102 110 101 102 222 98 1 96 85 85 96
BalonParca AdiParca NoAdetTipApplied Date
1 DISC; CLUTCH
15" CLUTCH(RE9) 15" 		1-31240-851-2 01 1 1511-
1 DISC; CLUTCH
15" CLUTCH(RE9) BEST VALUE PARTS 		1-87610-119-0 01 1 1511-
2 PLATE ASM; PRESSURE,CLU
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31220-374-2 01 1 1511-
2 PLATE ASM; PRESSURE,CLU
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		1-87610-120-0 01 1 1511-
84 PLATE; PRESSURE
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 15" 		1-31221-100-0 01 1 1511-
85 BUSHING; RELEASE LEVER
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		9-31239-116-0 08 1 1511-
89 PLATE; STRAP
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31229-050-0 16 1 1511-
91 SEAT; SPR
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=37 H=25 		1-31219-012-0 12 1 1511-
91 SEAT; SPR
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=37 H=15 		1-31219-013-0 12 1 1511-
92 SPRING; CLU
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31214-086-0 12 1 1511-
96 PIN; RELEASE LEVER
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=49.0 		1-31232-005-0 04 1 1511-
96 PIN; RELEASE LEVER
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=57.0 		1-31232-014-0 04 1 1511-
98 SPRING; RETURN
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31233-003-0 04 1 1511-
101 WASHER; RELEASE LEVER
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31239-058-0 08 1 1511-
102 PIN; SPLIT,RELEASE LEVER
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=2.7 L=22 		9-08103-022-0 08 1 1511-
105 NUT; SUPPORT
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31235-014-0 04 1 1511-
106 PLATE; LK,LEVER SUPPORT
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31239-019-0 04 1 1511-
107 BOLT; LK PLATE
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31239-061-0 08 1 1511-
108 NUT; STRAP
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09449-036-0 04 1 1511-
110 WASHER; SPECIAL,STRAP
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) T=1.2 		1-31229-009-0 04 1 1511-
110 WASHER; SPECIAL,STRAP
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) T=3.2 		8-97374-512-0 08 1 1511-
137 BOLT; CLU COVER
15" CLUTCH(RE9) M10X20 FLANGE 		0-28151-020-0 12 1 1511-
172 LEVER KIT; RELEASE,CLU
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-87831-170-1 01 1 1511-
222 BOLT; STRAP
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M10X23.2 		1-09040-042-0 04 1 1511-
222 BOLT; STRAP
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 1511-
223 COVER; CLU
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31211-019-1 01 1 1511-
