Sayfa 1-41 - Isuzu EPC

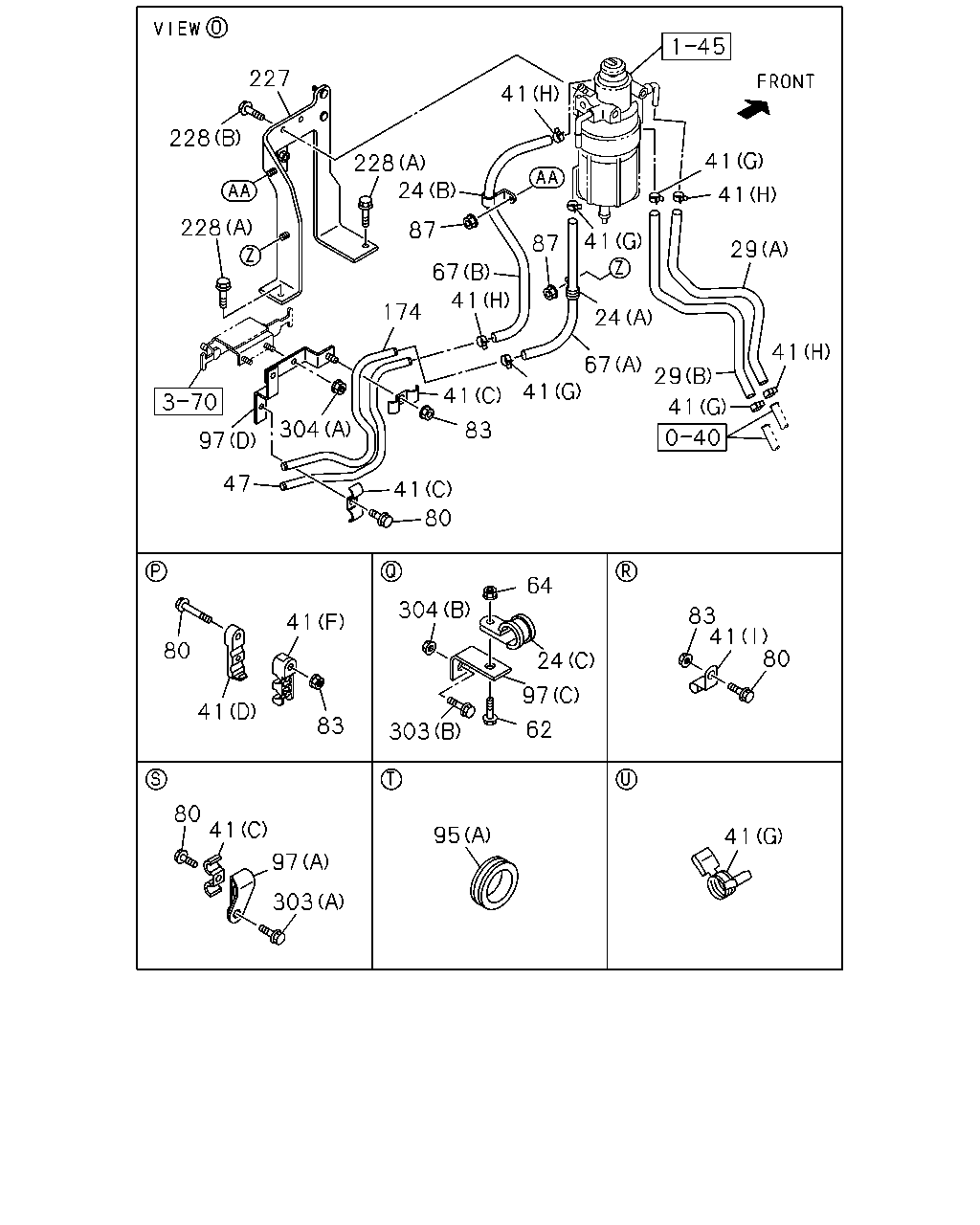

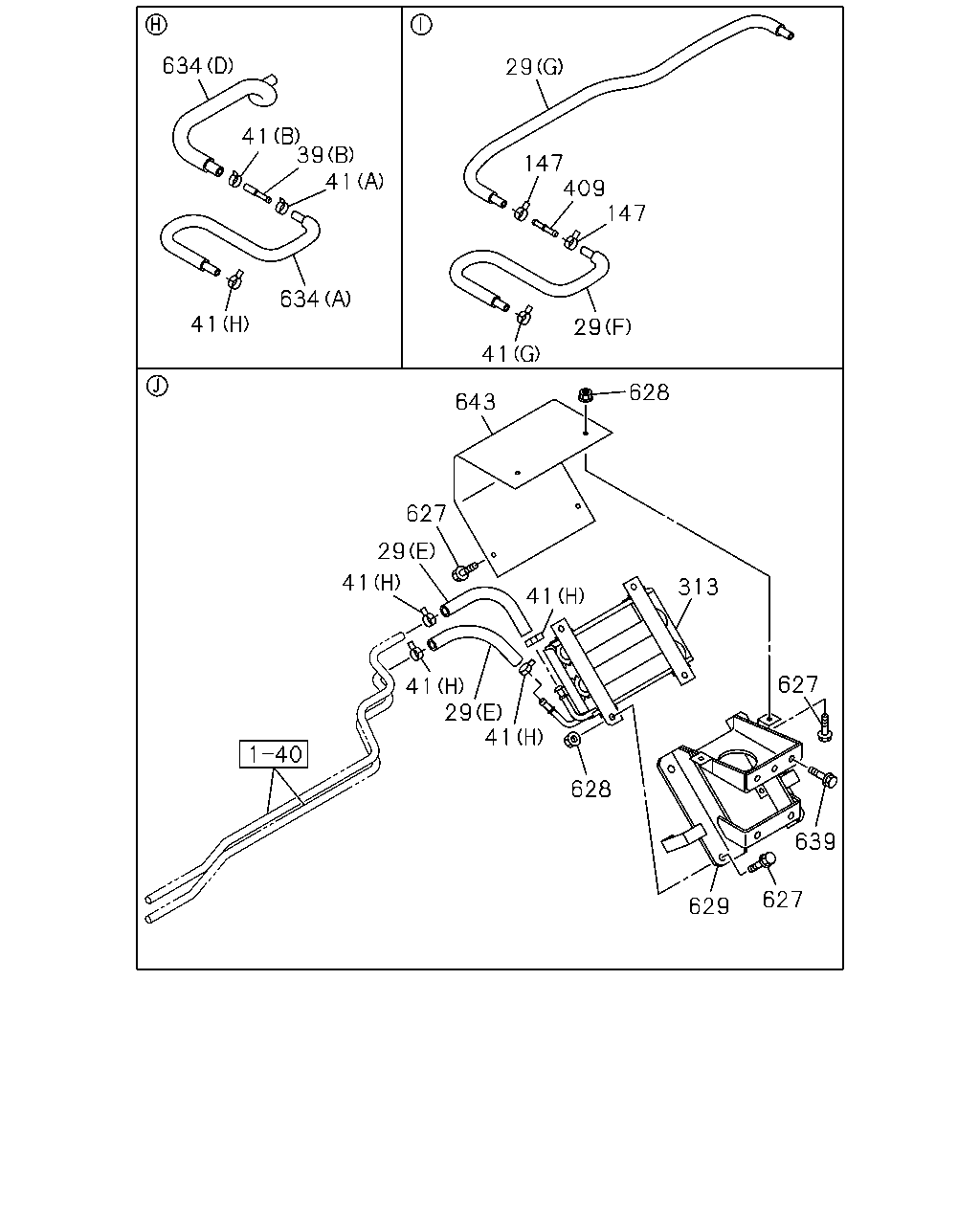

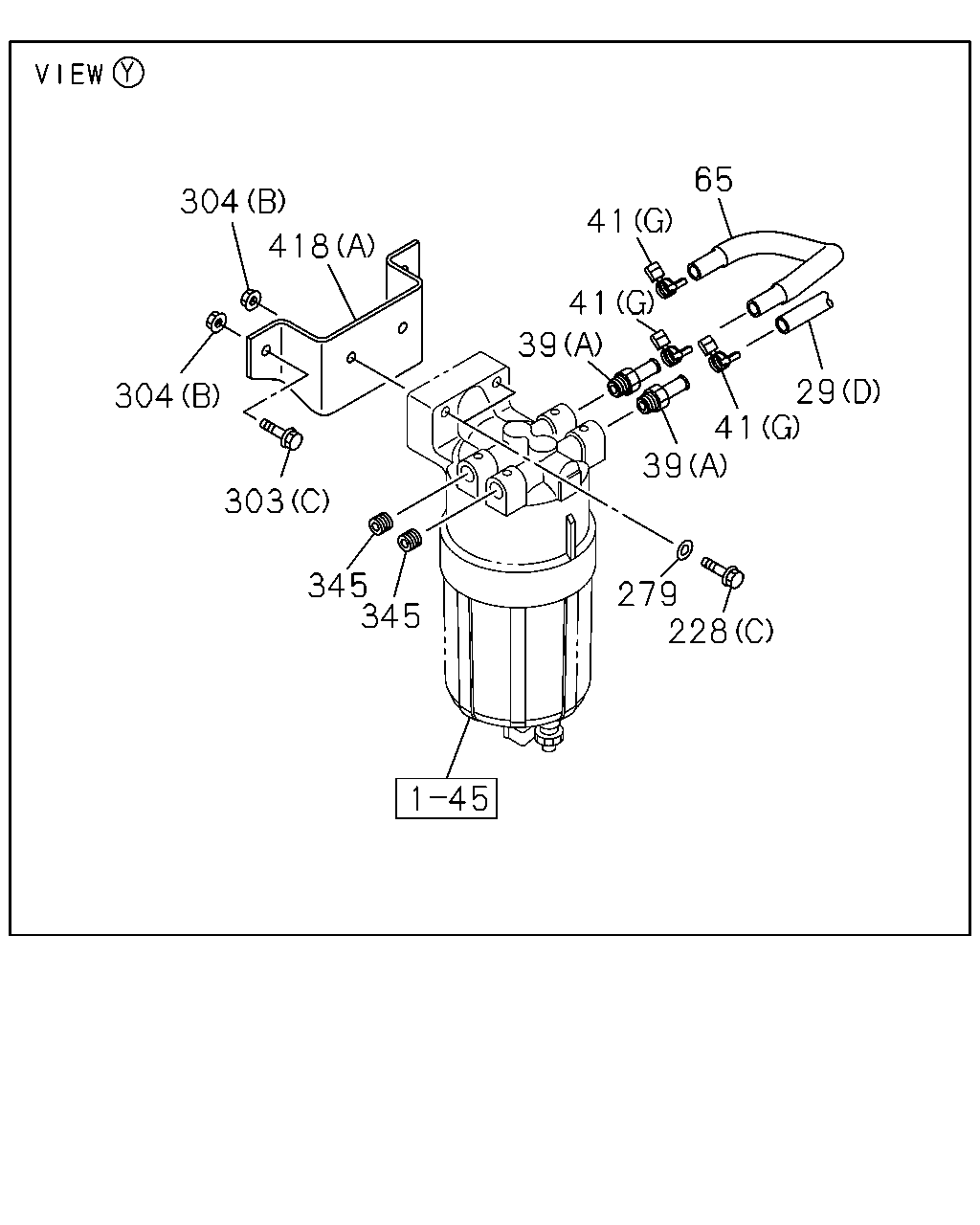

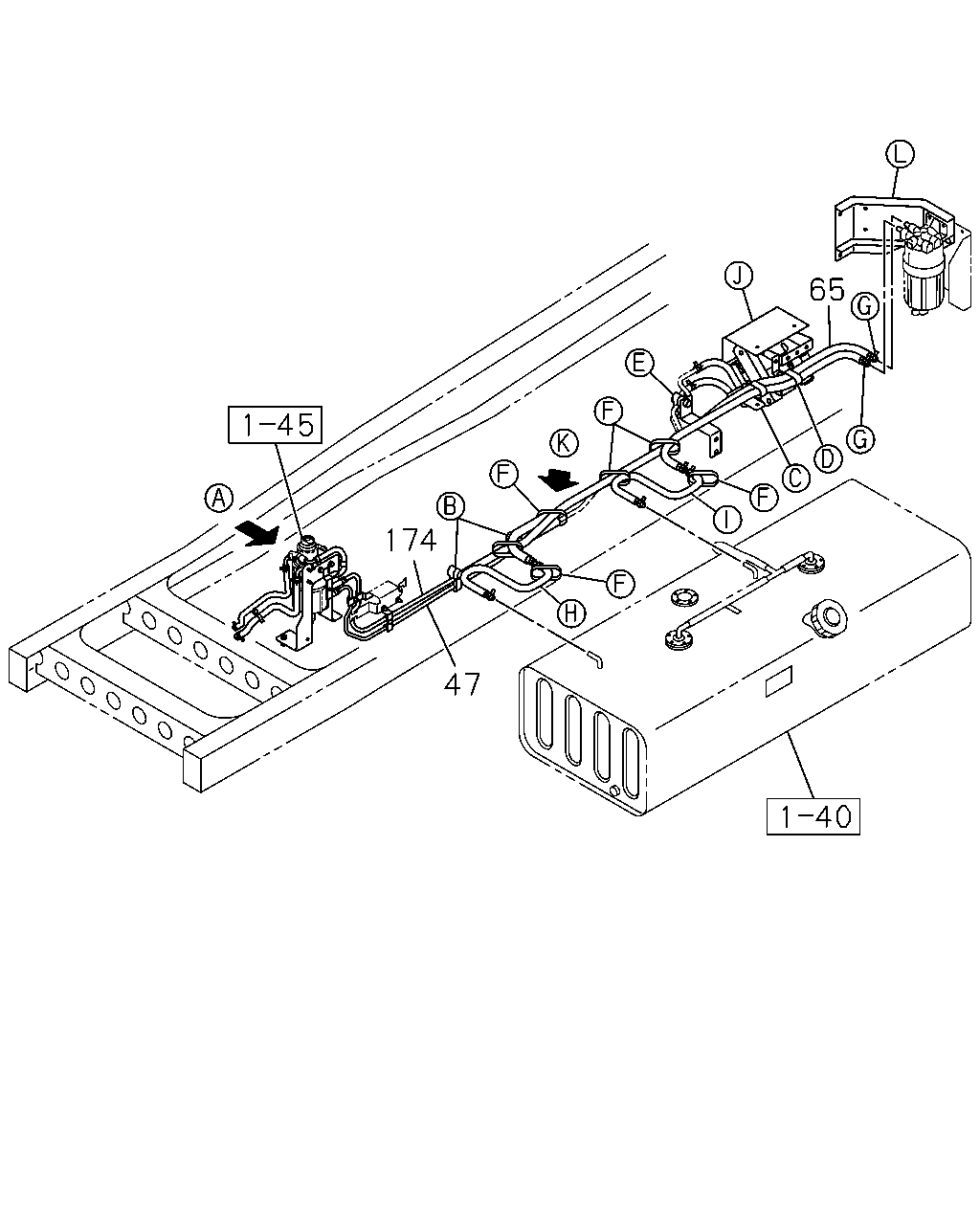

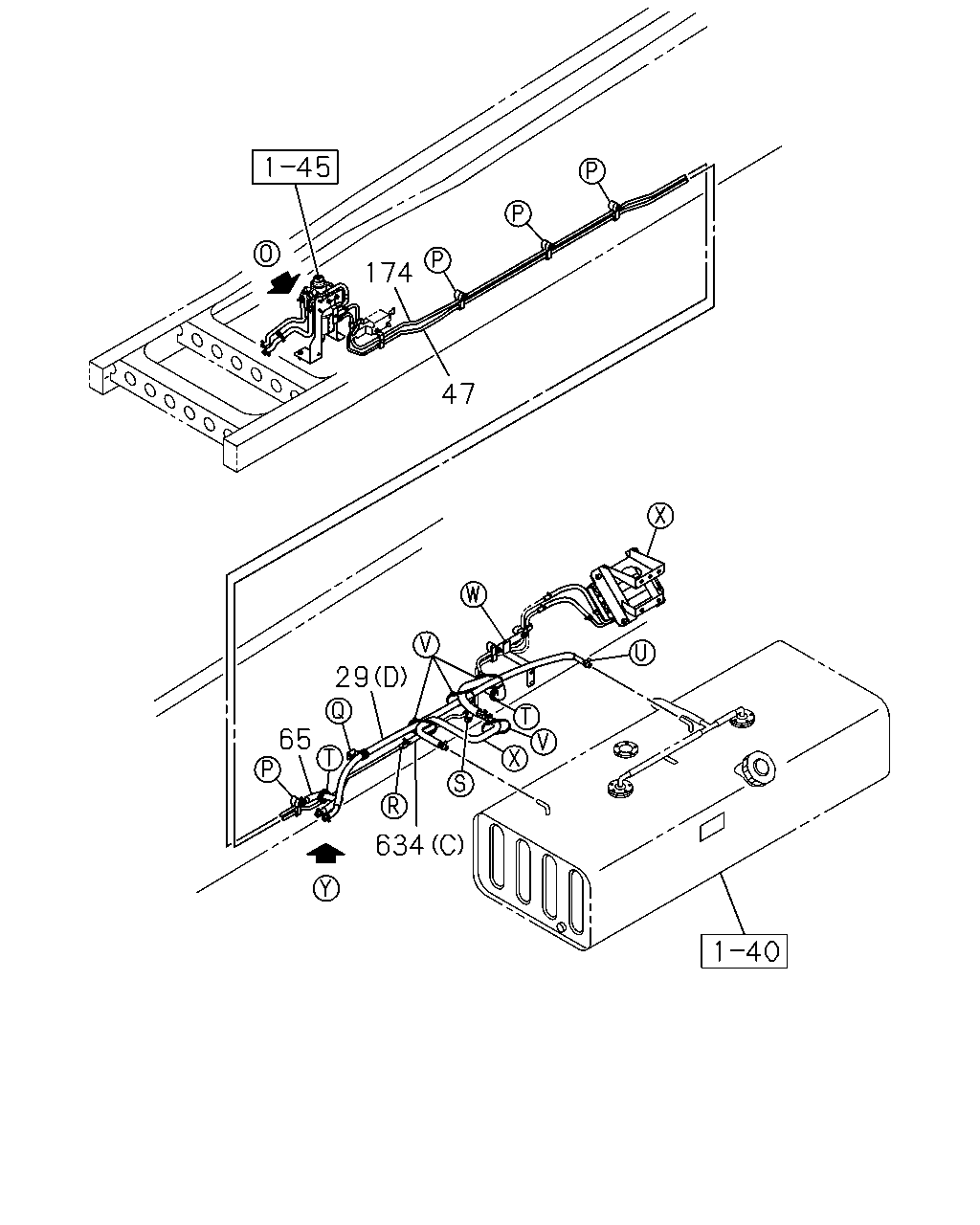

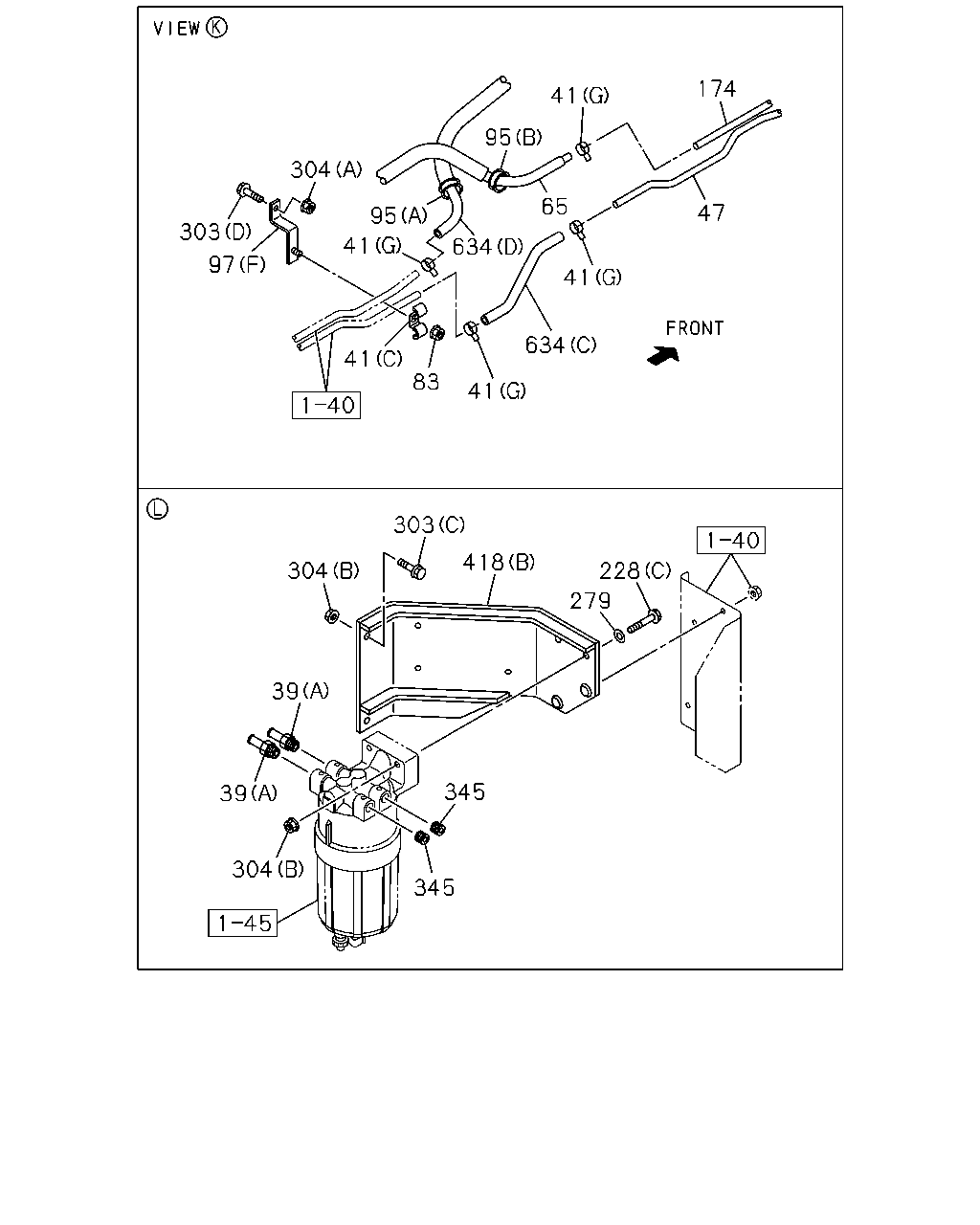

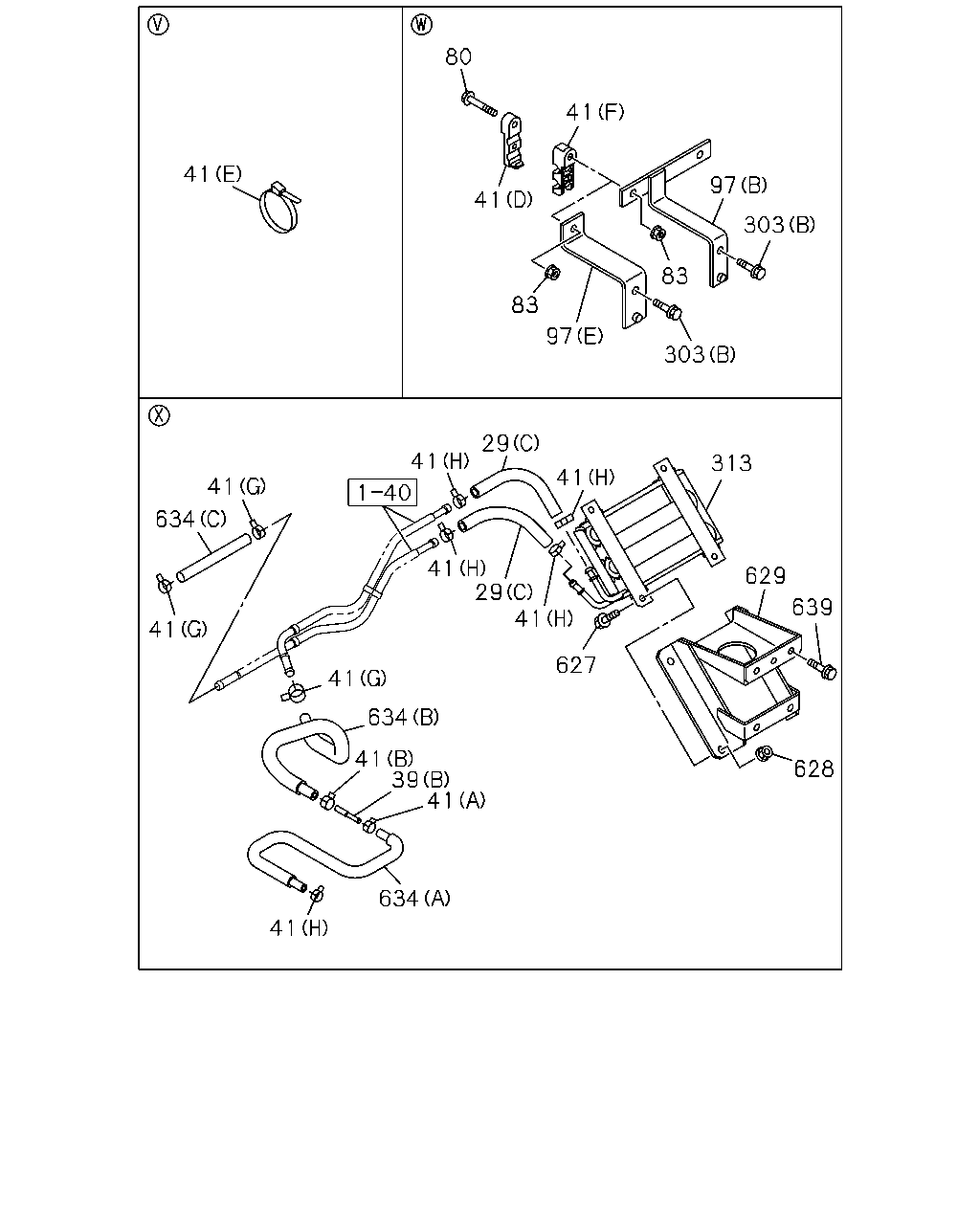

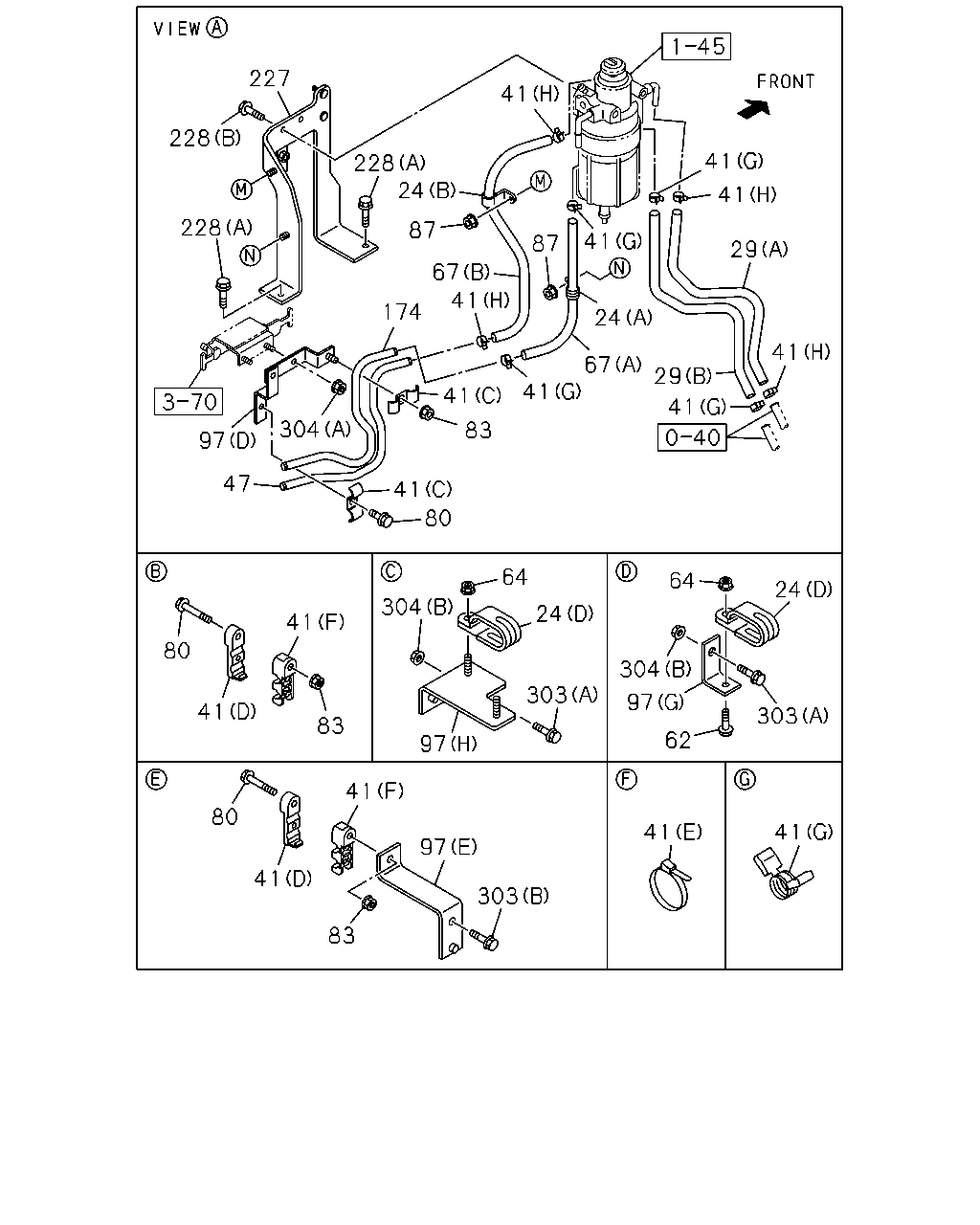

1-41 — FUEL PIPING; CHASSIS (#169339) — 519 parça

41 41 303 24 64 304 97 62 303 97 303 97 41 83 41 80 41 41 83 80 304 64 24 80 41 47 97 304 174 41 41 41 83 67 29 41 41 29 24 41 87 67 87 24 228 41 41 41 227 228 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (C) ID=21 L=24	8-98019-191-0	01	1	1511-	●
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (C) ID=21 L=24	8-98019-191-0	01	1	1511-		●
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1511-	●	●
24	CLIP; FUEL HOSE (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1511-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (D) ID=24X2 L=25	1-09700-710-0	02	1	1511-		●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (E) L=180 SERVICED BY L=3000	0-01558-300-0	02	1	1511-		●
29	HOSE; FUEL (D)	8-98306-418-2	01	1	1511-	●
29	HOSE; FUEL WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D)	8-98306-418-2	01	1	1511-		●
29	HOSE; FUEL (A)	8-98078-197-1	01	1	1511-	●	●
29	HOSE; FUEL (B)	8-98156-579-0	01	1	1511-	●	●
29	HOSE; FUEL (C) L=210 SERVICED BY L=3000	0-01558-300-0	02	1	1511-	●
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (C) L=210 SERVICED BY L=3000	0-01558-300-0	02	1	1511-		●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (G)	8-98312-322-1	01	1	1511-		●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (F)	8-98312-409-0	01	1	1511-		●
29	HOSE; FUEL WHEEL BASE 4300MM(43W) (D)	8-98306-416-2	01	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	04	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (E) L=250	5-09707-030-1	04	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	04	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	04	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (I) ID=11 H=20 L=25	1-09700-848-0	01	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (I) ID=11 H=20 L=25	1-09700-848-0	01	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=10 & 10	1-09709-241-0	05	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D) ID=10 & 10	1-09709-241-0	05	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=10 & 10	1-09709-243-0	05	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (F) ID=10 & 10	1-09709-243-0	05	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (E) L=250	5-09707-030-1	06	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=15.5	8-94221-519-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=16	8-94238-568-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=16	8-94238-568-0	09	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (H) ID=13	8-94238-571-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (H) ID=13	8-94238-571-0	07	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=16	8-97329-628-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (D) ID=10 & 10	1-09709-241-0	03	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (F) ID=10 & 10	1-09709-243-0	03	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (I) ID=11 H=20 L=25	1-09700-848-0	02	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (D) ID=10 & 10	1-09709-241-0	04	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (F) ID=10 & 10	1-09709-243-0	04	1	1511-		●
47	PIPE; FUEL,RETURN L=2316	8-98306-356-0	01	1	1511-	●
47	PIPE; FUEL,RETURN WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=2316	8-98306-356-0	01	1	1511-		●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) L=980	8-98306-338-0	01	1	1511-		●
47	PIPE; FUEL,RETURN WHEEL BASE 4300MM(43W) L=1903	8-98306-355-0	01	1	1511-		●
62	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1511-	●
64	NUT; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	01	1	1511-		●
64	NUT; CLIP WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	02	1	1511-		●
67	HOSE; FUEL,DELIVERY (B) L=440 SERVICED BY L=3000	0-01558-300-0	01	1	1511-	●	●
67	HOSE; FUEL,DELIVERY (A) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE	0-28050-850-0	05	1	1511-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X50 FLANGE	0-28050-850-0	05	1	1511-		●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	03	1	1511-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X20 FLANGE	0-28650-820-0	03	1	1511-		●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28650-825-0	01	1	1511-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE	0-28650-825-0	01	1	1511-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) M8X20 FLANGE	0-28650-820-0	01	1	1511-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X50 FLANGE	0-28050-850-0	03	1	1511-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W) M8X50 FLANGE	0-28050-850-0	04	1	1511-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W) M8X25 FLANGE	0-28650-825-0	02	1	1511-		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	07	1	1511-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	07	1	1511-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	05	1	1511-		●
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
97	BRACKET; CLIP (A)	8-98117-691-0	02	1	1511-	●
97	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A)	8-98117-691-0	02	1	1511-		●
97	BRACKET; CLIP (E)	8-98304-248-0	01	1	1511-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (E)	8-98304-248-0	01	1	1511-		●
97	BRACKET; CLIP (C) L=55	1-47476-177-0	01	1	1511-	●
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (C) L=55	1-47476-177-0	01	1	1511-		●
97	BRACKET; CLIP (D)	8-98077-896-0	01	1	1511-	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	1-47477-669-1	01	1	1511-		●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (G)	1-47477-694-0	01	1	1511-		●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (H)	8-98306-383-0	01	1	1511-		●
97	BRACKET; CLIP WHEEL BASE 4300MM(43W) (B)	8-98239-701-0	01	1	1511-		●
174	PIPE; FUEL,FEED,FRT	8-98179-133-0	01	1	1511-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	8-98179-133-0	01	1	1511-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W)	8-98170-447-0	01	1	1511-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4300MM(43W)	8-98178-520-0	01	1	1511-		●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	1511-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1511-	●	●
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	1511-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
303	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	03	1	1511-	●
303	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M10X30 FLANGE	0-28651-030-0	03	1	1511-		●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (A) M10X30 FLANGE	0-28651-030-0	02	1	1511-		●
303	BOLT; BRKT (B) M10X25 FLANGE	0-28051-025-0	01	1	1511-	●
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (B) M10X25 FLANGE	0-28051-025-0	01	1	1511-		●
303	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	02	1	1511-	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (D) M8X30 FLANGE	0-28650-830-0	01	1	1511-		●
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1511-		●
304	NUT; BRKT WHEEL BASE 3700MM(37W) (A) M8 FLANGE	0-91180-108-0	03	1	1511-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1511-	●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (A) M8 FLANGE	0-91180-108-0	02	1	1511-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1511-	●	●

174 47 29 65 634

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (E) L=180 SERVICED BY L=3000	0-01558-300-0	02	1	1511-		●
29	HOSE; FUEL (D)	8-98306-418-2	01	1	1511-	●
29	HOSE; FUEL WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D)	8-98306-418-2	01	1	1511-		●
29	HOSE; FUEL (A)	8-98078-197-1	01	1	1511-	●	●
29	HOSE; FUEL (B)	8-98156-579-0	01	1	1511-	●	●
29	HOSE; FUEL (C) L=210 SERVICED BY L=3000	0-01558-300-0	02	1	1511-	●
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (C) L=210 SERVICED BY L=3000	0-01558-300-0	02	1	1511-		●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (G)	8-98312-322-1	01	1	1511-		●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (F)	8-98312-409-0	01	1	1511-		●
29	HOSE; FUEL WHEEL BASE 4300MM(43W) (D)	8-98306-416-2	01	1	1511-		●
47	PIPE; FUEL,RETURN L=2316	8-98306-356-0	01	1	1511-	●
47	PIPE; FUEL,RETURN WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=2316	8-98306-356-0	01	1	1511-		●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) L=980	8-98306-338-0	01	1	1511-		●
47	PIPE; FUEL,RETURN WHEEL BASE 4300MM(43W) L=1903	8-98306-355-0	01	1	1511-		●
65	HOSE; FUEL,DELIVERY PIPE	8-98306-419-1	01	1	1511-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	8-98306-419-1	01	1	1511-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W)	8-98306-413-2	01	1	1511-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W)	8-98306-417-1	01	1	1511-		●
174	PIPE; FUEL,FEED,FRT	8-98179-133-0	01	1	1511-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	8-98179-133-0	01	1	1511-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W)	8-98170-447-0	01	1	1511-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4300MM(43W)	8-98178-520-0	01	1	1511-		●
634	HOSE; RUBBER RETURN (C) L=210 SERVICED BY L=3000	0-01859-300-0	01	1	1511-	●	●
634	HOSE; RUBBER RETURN (B)	8-98319-644-1	01	1	1511-	●
634	HOSE; RUBBER RETURN WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-98319-644-1	01	1	1511-		●
634	HOSE; RUBBER RETURN (A)	8-98312-408-0	01	1	1511-	●	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) (D)	8-98319-639-1	01	1	1511-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4300MM(43W) (B)	8-98319-643-1	01	1	1511-		●

304 418 41 65 41 41 29 39 39 279 228 345 345 303 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (E) L=180 SERVICED BY L=3000	0-01558-300-0	02	1	1511-		●
29	HOSE; FUEL (D)	8-98306-418-2	01	1	1511-	●
29	HOSE; FUEL WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D)	8-98306-418-2	01	1	1511-		●
29	HOSE; FUEL (A)	8-98078-197-1	01	1	1511-	●	●
29	HOSE; FUEL (B)	8-98156-579-0	01	1	1511-	●	●
29	HOSE; FUEL (C) L=210 SERVICED BY L=3000	0-01558-300-0	02	1	1511-	●
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (C) L=210 SERVICED BY L=3000	0-01558-300-0	02	1	1511-		●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (G)	8-98312-322-1	01	1	1511-		●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (F)	8-98312-409-0	01	1	1511-		●
29	HOSE; FUEL WHEEL BASE 4300MM(43W) (D)	8-98306-416-2	01	1	1511-		●
39	PIPE; FUEL (B)	8-98009-438-1	01	1	1511-	●	●
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	04	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (E) L=250	5-09707-030-1	04	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	04	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	04	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (I) ID=11 H=20 L=25	1-09700-848-0	01	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (I) ID=11 H=20 L=25	1-09700-848-0	01	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=10 & 10	1-09709-241-0	05	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D) ID=10 & 10	1-09709-241-0	05	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=10 & 10	1-09709-243-0	05	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (F) ID=10 & 10	1-09709-243-0	05	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (E) L=250	5-09707-030-1	06	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=15.5	8-94221-519-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=16	8-94238-568-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=16	8-94238-568-0	09	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (H) ID=13	8-94238-571-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (H) ID=13	8-94238-571-0	07	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=16	8-97329-628-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (D) ID=10 & 10	1-09709-241-0	03	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (F) ID=10 & 10	1-09709-243-0	03	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (I) ID=11 H=20 L=25	1-09700-848-0	02	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (D) ID=10 & 10	1-09709-241-0	04	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (F) ID=10 & 10	1-09709-243-0	04	1	1511-		●
65	HOSE; FUEL,DELIVERY PIPE	8-98306-419-1	01	1	1511-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	8-98306-419-1	01	1	1511-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W)	8-98306-413-2	01	1	1511-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W)	8-98306-417-1	01	1	1511-		●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1511-	●	●
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	1511-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1511-	●	●
303	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	03	1	1511-	●
303	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M10X30 FLANGE	0-28651-030-0	03	1	1511-		●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (A) M10X30 FLANGE	0-28651-030-0	02	1	1511-		●
303	BOLT; BRKT (B) M10X25 FLANGE	0-28051-025-0	01	1	1511-	●
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (B) M10X25 FLANGE	0-28051-025-0	01	1	1511-		●
303	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	02	1	1511-	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (D) M8X30 FLANGE	0-28650-830-0	01	1	1511-		●
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1511-		●
304	NUT; BRKT WHEEL BASE 3700MM(37W) (A) M8 FLANGE	0-91180-108-0	03	1	1511-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1511-	●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (A) M8 FLANGE	0-91180-108-0	02	1	1511-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1511-	●	●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1511-	●	●
418	BRACKET; PRE FUEL FILTER (A)	8-98114-787-0	01	1	1511-	●
418	BRACKET; PRE FUEL FILTER WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (A)	8-98114-787-0	01	1	1511-		●
418	BRACKET; PRE FUEL FILTER WHEEL BASE 3700MM(37W) (B)	8-98306-550-0	01	1	1511-		●

304 303 97 41 83 41 634 41 65 47 174 41 95 95 41 634 303 304 39 39 304 345 345 418 279 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	PIPE; FUEL (B)	8-98009-438-1	01	1	1511-	●	●
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	04	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (E) L=250	5-09707-030-1	04	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	04	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	04	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (I) ID=11 H=20 L=25	1-09700-848-0	01	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (I) ID=11 H=20 L=25	1-09700-848-0	01	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=10 & 10	1-09709-241-0	05	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D) ID=10 & 10	1-09709-241-0	05	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=10 & 10	1-09709-243-0	05	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (F) ID=10 & 10	1-09709-243-0	05	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (E) L=250	5-09707-030-1	06	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=15.5	8-94221-519-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=16	8-94238-568-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=16	8-94238-568-0	09	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (H) ID=13	8-94238-571-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (H) ID=13	8-94238-571-0	07	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=16	8-97329-628-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (D) ID=10 & 10	1-09709-241-0	03	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (F) ID=10 & 10	1-09709-243-0	03	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (I) ID=11 H=20 L=25	1-09700-848-0	02	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (D) ID=10 & 10	1-09709-241-0	04	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (F) ID=10 & 10	1-09709-243-0	04	1	1511-		●
47	PIPE; FUEL,RETURN L=2316	8-98306-356-0	01	1	1511-	●
47	PIPE; FUEL,RETURN WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=2316	8-98306-356-0	01	1	1511-		●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) L=980	8-98306-338-0	01	1	1511-		●
47	PIPE; FUEL,RETURN WHEEL BASE 4300MM(43W) L=1903	8-98306-355-0	01	1	1511-		●
65	HOSE; FUEL,DELIVERY PIPE	8-98306-419-1	01	1	1511-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	8-98306-419-1	01	1	1511-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W)	8-98306-413-2	01	1	1511-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W)	8-98306-417-1	01	1	1511-		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	07	1	1511-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	07	1	1511-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	05	1	1511-		●
95	BUSHING; PIPE,FUEL TANK (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1511-	●
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1511-		●
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	1511-		●
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1511-		●
97	BRACKET; CLIP (A)	8-98117-691-0	02	1	1511-	●
97	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A)	8-98117-691-0	02	1	1511-		●
97	BRACKET; CLIP (E)	8-98304-248-0	01	1	1511-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (E)	8-98304-248-0	01	1	1511-		●
97	BRACKET; CLIP (C) L=55	1-47476-177-0	01	1	1511-	●
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (C) L=55	1-47476-177-0	01	1	1511-		●
97	BRACKET; CLIP (D)	8-98077-896-0	01	1	1511-	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	1-47477-669-1	01	1	1511-		●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (G)	1-47477-694-0	01	1	1511-		●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (H)	8-98306-383-0	01	1	1511-		●
97	BRACKET; CLIP WHEEL BASE 4300MM(43W) (B)	8-98239-701-0	01	1	1511-		●
174	PIPE; FUEL,FEED,FRT	8-98179-133-0	01	1	1511-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	8-98179-133-0	01	1	1511-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W)	8-98170-447-0	01	1	1511-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4300MM(43W)	8-98178-520-0	01	1	1511-		●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1511-	●	●
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	1511-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1511-	●	●
303	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	03	1	1511-	●
303	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M10X30 FLANGE	0-28651-030-0	03	1	1511-		●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (A) M10X30 FLANGE	0-28651-030-0	02	1	1511-		●
303	BOLT; BRKT (B) M10X25 FLANGE	0-28051-025-0	01	1	1511-	●
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (B) M10X25 FLANGE	0-28051-025-0	01	1	1511-		●
303	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	02	1	1511-	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (D) M8X30 FLANGE	0-28650-830-0	01	1	1511-		●
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1511-		●
304	NUT; BRKT WHEEL BASE 3700MM(37W) (A) M8 FLANGE	0-91180-108-0	03	1	1511-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1511-	●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (A) M8 FLANGE	0-91180-108-0	02	1	1511-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1511-	●	●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1511-	●	●
418	BRACKET; PRE FUEL FILTER (A)	8-98114-787-0	01	1	1511-	●
418	BRACKET; PRE FUEL FILTER WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (A)	8-98114-787-0	01	1	1511-		●
418	BRACKET; PRE FUEL FILTER WHEEL BASE 3700MM(37W) (B)	8-98306-550-0	01	1	1511-		●
634	HOSE; RUBBER RETURN (C) L=210 SERVICED BY L=3000	0-01859-300-0	01	1	1511-	●	●
634	HOSE; RUBBER RETURN (B)	8-98319-644-1	01	1	1511-	●
634	HOSE; RUBBER RETURN WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-98319-644-1	01	1	1511-		●
634	HOSE; RUBBER RETURN (A)	8-98312-408-0	01	1	1511-	●	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) (D)	8-98319-639-1	01	1	1511-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4300MM(43W) (B)	8-98319-643-1	01	1	1511-		●

41 80 41 41 83 97 83 303 303 97 313 629 639 628 627 41 29 41 41 29 41 41 634 41 41 634 41 39 41 634 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (E) L=180 SERVICED BY L=3000	0-01558-300-0	02	1	1511-		●
29	HOSE; FUEL (D)	8-98306-418-2	01	1	1511-	●
29	HOSE; FUEL WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D)	8-98306-418-2	01	1	1511-		●
29	HOSE; FUEL (A)	8-98078-197-1	01	1	1511-	●	●
29	HOSE; FUEL (B)	8-98156-579-0	01	1	1511-	●	●
29	HOSE; FUEL (C) L=210 SERVICED BY L=3000	0-01558-300-0	02	1	1511-	●
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (C) L=210 SERVICED BY L=3000	0-01558-300-0	02	1	1511-		●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (G)	8-98312-322-1	01	1	1511-		●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (F)	8-98312-409-0	01	1	1511-		●
29	HOSE; FUEL WHEEL BASE 4300MM(43W) (D)	8-98306-416-2	01	1	1511-		●
39	PIPE; FUEL (B)	8-98009-438-1	01	1	1511-	●	●
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	04	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (E) L=250	5-09707-030-1	04	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	04	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	04	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (I) ID=11 H=20 L=25	1-09700-848-0	01	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (I) ID=11 H=20 L=25	1-09700-848-0	01	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=10 & 10	1-09709-241-0	05	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D) ID=10 & 10	1-09709-241-0	05	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=10 & 10	1-09709-243-0	05	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (F) ID=10 & 10	1-09709-243-0	05	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (E) L=250	5-09707-030-1	06	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=15.5	8-94221-519-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=16	8-94238-568-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=16	8-94238-568-0	09	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (H) ID=13	8-94238-571-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (H) ID=13	8-94238-571-0	07	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=16	8-97329-628-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (D) ID=10 & 10	1-09709-241-0	03	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (F) ID=10 & 10	1-09709-243-0	03	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (I) ID=11 H=20 L=25	1-09700-848-0	02	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (D) ID=10 & 10	1-09709-241-0	04	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (F) ID=10 & 10	1-09709-243-0	04	1	1511-		●
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE	0-28050-850-0	05	1	1511-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X50 FLANGE	0-28050-850-0	05	1	1511-		●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	03	1	1511-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X20 FLANGE	0-28650-820-0	03	1	1511-		●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28650-825-0	01	1	1511-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE	0-28650-825-0	01	1	1511-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) M8X20 FLANGE	0-28650-820-0	01	1	1511-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X50 FLANGE	0-28050-850-0	03	1	1511-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W) M8X50 FLANGE	0-28050-850-0	04	1	1511-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W) M8X25 FLANGE	0-28650-825-0	02	1	1511-		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	07	1	1511-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	07	1	1511-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	05	1	1511-		●
97	BRACKET; CLIP (A)	8-98117-691-0	02	1	1511-	●
97	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A)	8-98117-691-0	02	1	1511-		●
97	BRACKET; CLIP (E)	8-98304-248-0	01	1	1511-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (E)	8-98304-248-0	01	1	1511-		●
97	BRACKET; CLIP (C) L=55	1-47476-177-0	01	1	1511-	●
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (C) L=55	1-47476-177-0	01	1	1511-		●
97	BRACKET; CLIP (D)	8-98077-896-0	01	1	1511-	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	1-47477-669-1	01	1	1511-		●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (G)	1-47477-694-0	01	1	1511-		●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (H)	8-98306-383-0	01	1	1511-		●
97	BRACKET; CLIP WHEEL BASE 4300MM(43W) (B)	8-98239-701-0	01	1	1511-		●
303	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	03	1	1511-	●
303	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M10X30 FLANGE	0-28651-030-0	03	1	1511-		●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (A) M10X30 FLANGE	0-28651-030-0	02	1	1511-		●
303	BOLT; BRKT (B) M10X25 FLANGE	0-28051-025-0	01	1	1511-	●
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (B) M10X25 FLANGE	0-28051-025-0	01	1	1511-		●
303	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	02	1	1511-	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (D) M8X30 FLANGE	0-28650-830-0	01	1	1511-		●
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1511-		●
313	COOLER ASM; FUEL	8-98227-679-1	01	1	1511-	●	●
627	BOLT; FUEL CLR M6X25 FLANGE	0-28650-625-0	04	1	1511-	●	●
627	BOLT; FUEL CLR WHEEL BASE 3700MM(37W),WHEEL BASE 6500MM(65W) M6X25 FLANGE	0-28650-625-0	04	1	1511-		●
628	NUT; FUEL CLR M6 FLANGE	0-91180-106-0	04	1	1511-	●	●
628	NUT; FUEL CLR WHEEL BASE 3700MM(37W),WHEEL BASE 6500MM(65W) M6 FLANGE	0-91180-106-0	04	1	1511-		●
629	BRACKET; FUEL CLR	8-98224-320-1	01	1	1511-	●
629	BRACKET; FUEL CLR WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W)	8-98224-320-1	01	1	1511-		●
629	BRACKET; FUEL CLR WHEEL BASE 3700MM(37W),WHEEL BASE 6500MM(65W)	8-98306-633-0	01	1	1511-		●
634	HOSE; RUBBER RETURN (C) L=210 SERVICED BY L=3000	0-01859-300-0	01	1	1511-	●	●
634	HOSE; RUBBER RETURN (B)	8-98319-644-1	01	1	1511-	●
634	HOSE; RUBBER RETURN WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-98319-644-1	01	1	1511-		●
634	HOSE; RUBBER RETURN (A)	8-98312-408-0	01	1	1511-	●	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) (D)	8-98319-639-1	01	1	1511-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4300MM(43W) (B)	8-98319-643-1	01	1	1511-		●
639	BOLT; BRKT,FUEL CLR M10X35 FLANGE	0-28651-035-0	04	1	1511-	●	●

634 41 39 41 634 41 29 147 409 147 29 41 643 628 627 29 41 41 313 628 41 29 41 629 627 639 627

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (E) L=180 SERVICED BY L=3000	0-01558-300-0	02	1	1511-		●
29	HOSE; FUEL (D)	8-98306-418-2	01	1	1511-	●
29	HOSE; FUEL WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D)	8-98306-418-2	01	1	1511-		●
29	HOSE; FUEL (A)	8-98078-197-1	01	1	1511-	●	●
29	HOSE; FUEL (B)	8-98156-579-0	01	1	1511-	●	●
29	HOSE; FUEL (C) L=210 SERVICED BY L=3000	0-01558-300-0	02	1	1511-	●
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (C) L=210 SERVICED BY L=3000	0-01558-300-0	02	1	1511-		●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (G)	8-98312-322-1	01	1	1511-		●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (F)	8-98312-409-0	01	1	1511-		●
29	HOSE; FUEL WHEEL BASE 4300MM(43W) (D)	8-98306-416-2	01	1	1511-		●
39	PIPE; FUEL (B)	8-98009-438-1	01	1	1511-	●	●
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	04	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (E) L=250	5-09707-030-1	04	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	04	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	04	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (I) ID=11 H=20 L=25	1-09700-848-0	01	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (I) ID=11 H=20 L=25	1-09700-848-0	01	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=10 & 10	1-09709-241-0	05	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D) ID=10 & 10	1-09709-241-0	05	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=10 & 10	1-09709-243-0	05	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (F) ID=10 & 10	1-09709-243-0	05	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (E) L=250	5-09707-030-1	06	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=15.5	8-94221-519-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=16	8-94238-568-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=16	8-94238-568-0	09	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (H) ID=13	8-94238-571-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (H) ID=13	8-94238-571-0	07	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=16	8-97329-628-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (D) ID=10 & 10	1-09709-241-0	03	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (F) ID=10 & 10	1-09709-243-0	03	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (I) ID=11 H=20 L=25	1-09700-848-0	02	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (D) ID=10 & 10	1-09709-241-0	04	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (F) ID=10 & 10	1-09709-243-0	04	1	1511-		●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 3700MM(37W) ID=16	8-98008-098-0	02	1	1511-		●
313	COOLER ASM; FUEL	8-98227-679-1	01	1	1511-	●	●
409	JOINT; PIPE WHEEL BASE 3700MM(37W)	8-97353-668-0	01	1	1511-		●
627	BOLT; FUEL CLR M6X25 FLANGE	0-28650-625-0	04	1	1511-	●	●
627	BOLT; FUEL CLR WHEEL BASE 3700MM(37W),WHEEL BASE 6500MM(65W) M6X25 FLANGE	0-28650-625-0	04	1	1511-		●
628	NUT; FUEL CLR M6 FLANGE	0-91180-106-0	04	1	1511-	●	●
628	NUT; FUEL CLR WHEEL BASE 3700MM(37W),WHEEL BASE 6500MM(65W) M6 FLANGE	0-91180-106-0	04	1	1511-		●
629	BRACKET; FUEL CLR	8-98224-320-1	01	1	1511-	●
629	BRACKET; FUEL CLR WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W)	8-98224-320-1	01	1	1511-		●
629	BRACKET; FUEL CLR WHEEL BASE 3700MM(37W),WHEEL BASE 6500MM(65W)	8-98306-633-0	01	1	1511-		●
634	HOSE; RUBBER RETURN (C) L=210 SERVICED BY L=3000	0-01859-300-0	01	1	1511-	●	●
634	HOSE; RUBBER RETURN (B)	8-98319-644-1	01	1	1511-	●
634	HOSE; RUBBER RETURN WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-98319-644-1	01	1	1511-		●
634	HOSE; RUBBER RETURN (A)	8-98312-408-0	01	1	1511-	●	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) (D)	8-98319-639-1	01	1	1511-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4300MM(43W) (B)	8-98319-643-1	01	1	1511-		●
639	BOLT; BRKT,FUEL CLR M10X35 FLANGE	0-28651-035-0	04	1	1511-	●	●
643	COVER; FUEL COOLER WHEEL BASE 3700MM(37W),WHEEL BASE 6500MM(65W)	8-98306-623-0	01	1	1511-		●

174 65 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	PIPE; FUEL,RETURN L=2316	8-98306-356-0	01	1	1511-	●
47	PIPE; FUEL,RETURN WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=2316	8-98306-356-0	01	1	1511-		●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) L=980	8-98306-338-0	01	1	1511-		●
47	PIPE; FUEL,RETURN WHEEL BASE 4300MM(43W) L=1903	8-98306-355-0	01	1	1511-		●
65	HOSE; FUEL,DELIVERY PIPE	8-98306-419-1	01	1	1511-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	8-98306-419-1	01	1	1511-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W)	8-98306-413-2	01	1	1511-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W)	8-98306-417-1	01	1	1511-		●
174	PIPE; FUEL,FEED,FRT	8-98179-133-0	01	1	1511-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	8-98179-133-0	01	1	1511-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W)	8-98170-447-0	01	1	1511-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4300MM(43W)	8-98178-520-0	01	1	1511-		●

41 41 29 41 29 41 67 24 41 87 41 228 87 24 67 41 41 41 174 83 41 80 304 97 47 228 228 227 83 41 80 41 95 80 41 97 303 83 41 41 80 304 64 24 97 62 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (C) ID=21 L=24	8-98019-191-0	01	1	1511-	●
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (C) ID=21 L=24	8-98019-191-0	01	1	1511-		●
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1511-	●	●
24	CLIP; FUEL HOSE (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1511-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (D) ID=24X2 L=25	1-09700-710-0	02	1	1511-		●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (E) L=180 SERVICED BY L=3000	0-01558-300-0	02	1	1511-		●
29	HOSE; FUEL (D)	8-98306-418-2	01	1	1511-	●
29	HOSE; FUEL WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D)	8-98306-418-2	01	1	1511-		●
29	HOSE; FUEL (A)	8-98078-197-1	01	1	1511-	●	●
29	HOSE; FUEL (B)	8-98156-579-0	01	1	1511-	●	●
29	HOSE; FUEL (C) L=210 SERVICED BY L=3000	0-01558-300-0	02	1	1511-	●
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (C) L=210 SERVICED BY L=3000	0-01558-300-0	02	1	1511-		●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (G)	8-98312-322-1	01	1	1511-		●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (F)	8-98312-409-0	01	1	1511-		●
29	HOSE; FUEL WHEEL BASE 4300MM(43W) (D)	8-98306-416-2	01	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	04	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (E) L=250	5-09707-030-1	04	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	04	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	04	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (I) ID=11 H=20 L=25	1-09700-848-0	01	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (I) ID=11 H=20 L=25	1-09700-848-0	01	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=10 & 10	1-09709-241-0	05	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D) ID=10 & 10	1-09709-241-0	05	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=10 & 10	1-09709-243-0	05	1	1511-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (F) ID=10 & 10	1-09709-243-0	05	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (E) L=250	5-09707-030-1	06	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=15.5	8-94221-519-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=16	8-94238-568-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=16	8-94238-568-0	09	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (H) ID=13	8-94238-571-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (H) ID=13	8-94238-571-0	07	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=16	8-97329-628-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (D) ID=10 & 10	1-09709-241-0	03	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (F) ID=10 & 10	1-09709-243-0	03	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (I) ID=11 H=20 L=25	1-09700-848-0	02	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (D) ID=10 & 10	1-09709-241-0	04	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (F) ID=10 & 10	1-09709-243-0	04	1	1511-		●
47	PIPE; FUEL,RETURN L=2316	8-98306-356-0	01	1	1511-	●
47	PIPE; FUEL,RETURN WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=2316	8-98306-356-0	01	1	1511-		●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) L=980	8-98306-338-0	01	1	1511-		●
47	PIPE; FUEL,RETURN WHEEL BASE 4300MM(43W) L=1903	8-98306-355-0	01	1	1511-		●
62	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1511-	●
64	NUT; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	01	1	1511-		●
64	NUT; CLIP WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	02	1	1511-		●
67	HOSE; FUEL,DELIVERY (B) L=440 SERVICED BY L=3000	0-01558-300-0	01	1	1511-	●	●
67	HOSE; FUEL,DELIVERY (A) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE	0-28050-850-0	05	1	1511-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X50 FLANGE	0-28050-850-0	05	1	1511-		●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	03	1	1511-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X20 FLANGE	0-28650-820-0	03	1	1511-		●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28650-825-0	01	1	1511-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE	0-28650-825-0	01	1	1511-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) M8X20 FLANGE	0-28650-820-0	01	1	1511-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X50 FLANGE	0-28050-850-0	03	1	1511-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W) M8X50 FLANGE	0-28050-850-0	04	1	1511-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W) M8X25 FLANGE	0-28650-825-0	02	1	1511-		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	07	1	1511-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	07	1	1511-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	05	1	1511-		●
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
95	BUSHING; PIPE,FUEL TANK (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1511-	●
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1511-		●
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	1511-		●
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1511-		●
97	BRACKET; CLIP (A)	8-98117-691-0	02	1	1511-	●
97	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A)	8-98117-691-0	02	1	1511-		●
97	BRACKET; CLIP (E)	8-98304-248-0	01	1	1511-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (E)	8-98304-248-0	01	1	1511-		●
97	BRACKET; CLIP (C) L=55	1-47476-177-0	01	1	1511-	●
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (C) L=55	1-47476-177-0	01	1	1511-		●
97	BRACKET; CLIP (D)	8-98077-896-0	01	1	1511-	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	1-47477-669-1	01	1	1511-		●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (G)	1-47477-694-0	01	1	1511-		●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (H)	8-98306-383-0	01	1	1511-		●
97	BRACKET; CLIP WHEEL BASE 4300MM(43W) (B)	8-98239-701-0	01	1	1511-		●
174	PIPE; FUEL,FEED,FRT	8-98179-133-0	01	1	1511-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	8-98179-133-0	01	1	1511-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W)	8-98170-447-0	01	1	1511-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4300MM(43W)	8-98178-520-0	01	1	1511-		●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	1511-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1511-	●	●
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	1511-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
303	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	03	1	1511-	●
303	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M10X30 FLANGE	0-28651-030-0	03	1	1511-		●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (A) M10X30 FLANGE	0-28651-030-0	02	1	1511-		●
303	BOLT; BRKT (B) M10X25 FLANGE	0-28051-025-0	01	1	1511-	●
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (B) M10X25 FLANGE	0-28051-025-0	01	1	1511-		●
303	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	02	1	1511-	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (D) M8X30 FLANGE	0-28650-830-0	01	1	1511-		●
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1511-		●
304	NUT; BRKT WHEEL BASE 3700MM(37W) (A) M8 FLANGE	0-91180-108-0	03	1	1511-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1511-	●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (A) M8 FLANGE	0-91180-108-0	02	1	1511-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1511-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
