0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#169329) — 31 parça

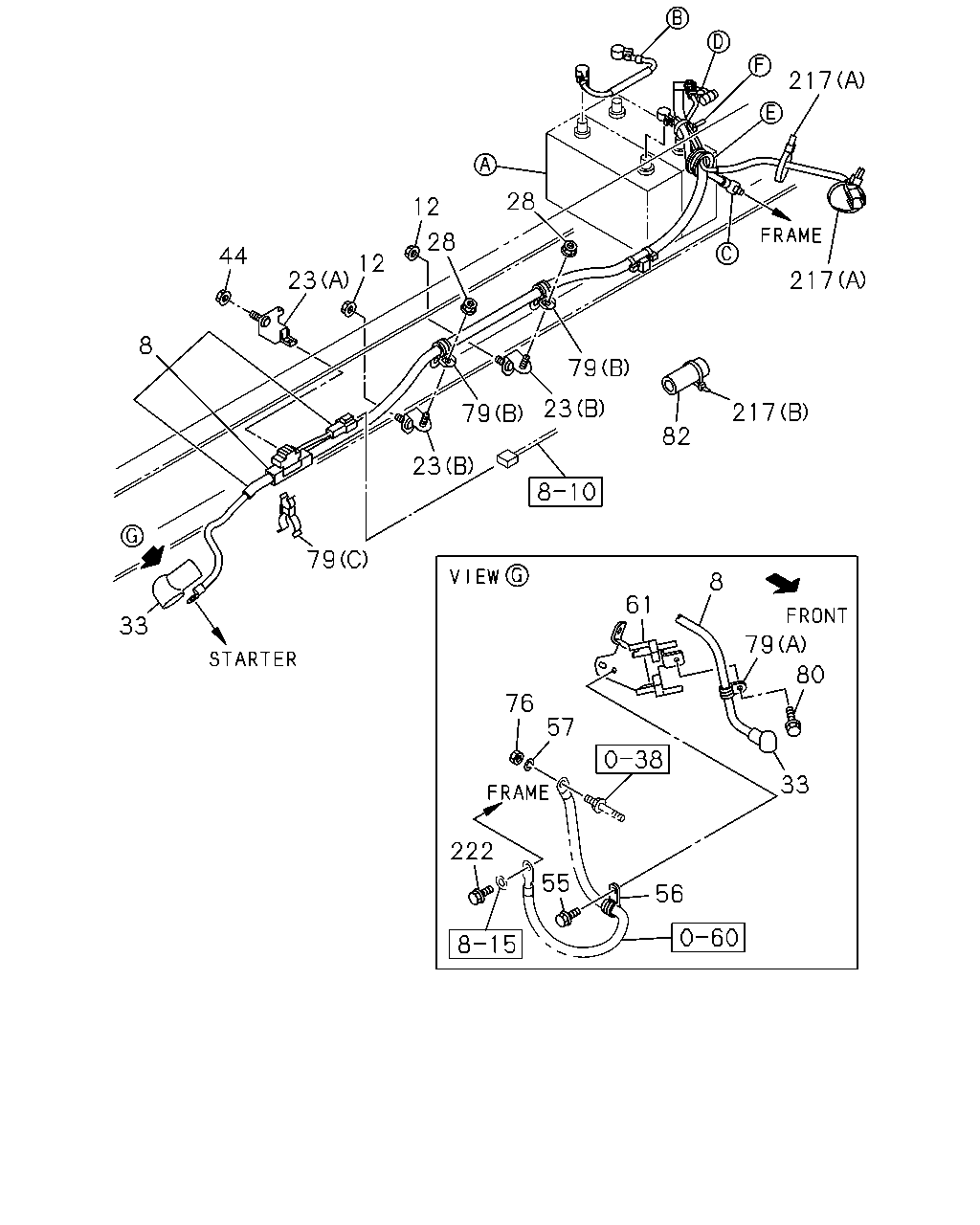

217 217 217 82 23 79 79 23 79 33 8 44 23 12 12 28 28 8 61 76 57 222 55 56 33 80 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98304-455-0	01	1	1511-	●	●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA>	8-98304-456-0	01	1	1511-	●	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
23	BRACKET; CABLE CLIP TO FRAME (B)	8-98051-381-2	02	1	1511-	●	●
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98147-440-0	01	1	1511-	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
33	CAP; INSULATOR	1-82699-431-0	01	1	1511-	●	●
44	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1511-	●	●
55	BOLT; CLIP,BATTERY CABLE M8X16 FLANGE	0-28050-816-0	01	1	1511-	●	●
56	CLIP; BATTERY CABLE ID=16 L=28	1-09700-872-0	01	1	1511-	●	●
57	WASHER; PL,BATTERY CABLE ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	1511-	●	●
61	BRACKET; BATTERY CABLE	8-98051-379-1	01	1	1511-	●	●
76	NUT; BATTERY CABLE M10 FLANGE	0-91180-210-0	01	1	1511-	●	●
79	CLIP; BATTERY CABLE (A) ID=15 L=28	1-09701-216-0	01	1	1511-	●	●
79	CLIP; BATTERY CABLE (C) ID=25 & 11	8-97068-799-0	01	1	1511-	●	●
79	CLIP; BATTERY CABLE (B) ID=21 L=24	8-98019-191-0	02	1	1511-	●	●
80	BOLT; BATTERY CABLE CLIP M8X16 FLANGE	0-28050-816-0	01	1	1511-	●	●
82	PROTECTOR; HEAT,BATTERY CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=6 OD=10 L=70	1-09376-512-0	01	1	1511-	●	●
217	CLIP; BAND,CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=250	5-09707-030-1	01	1	1511-	●	●
217	CLIP; BAND,CABLE (A) L=350	1-09707-183-0	02	1	1511-	●	●
222	BOLT; EARTH CABLE M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1511-	●	●

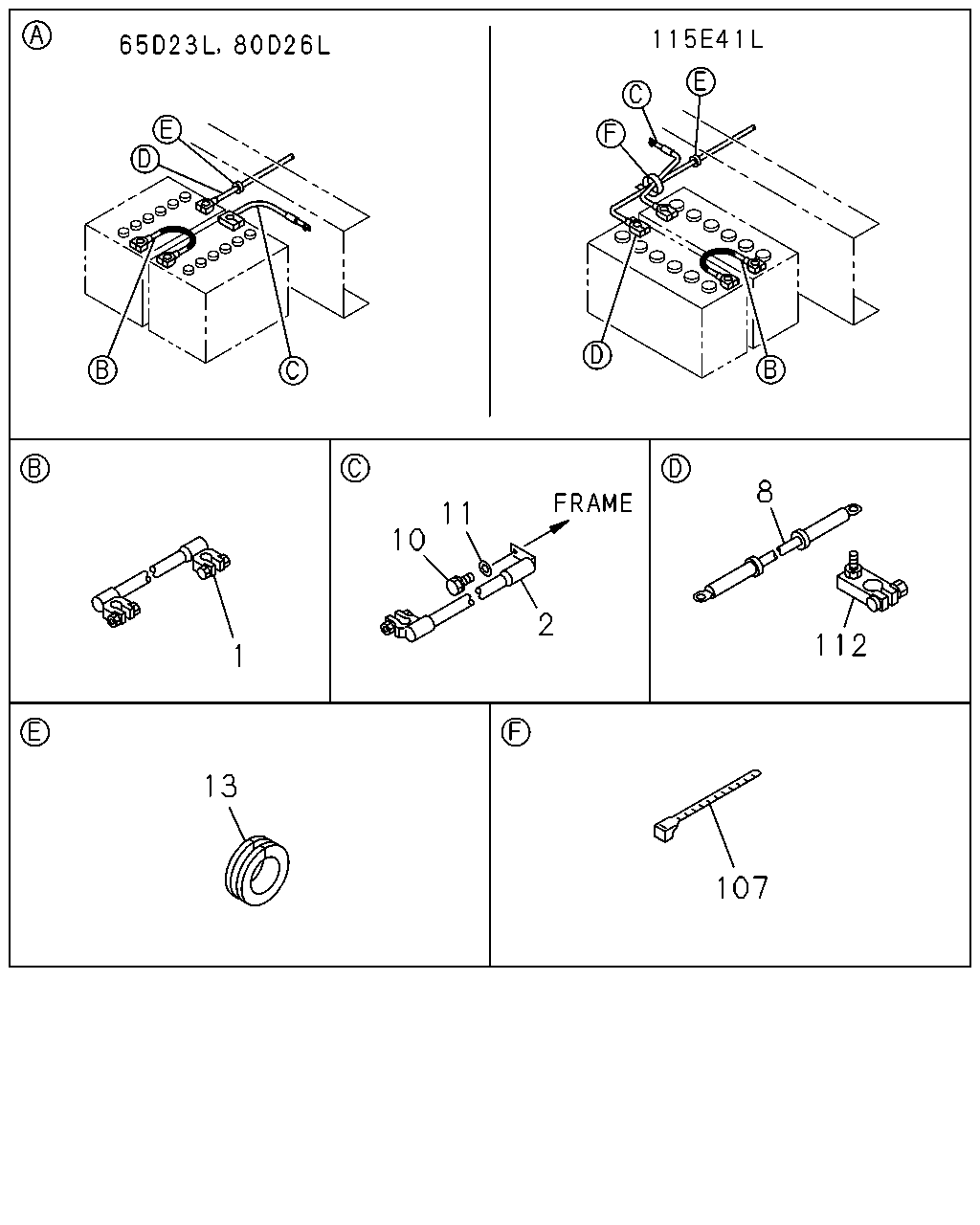

1 10 11 2 8 112 107 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY L=280	8-98025-412-3	01	1	1511-	●	●
2	CABLE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=250	8-97619-729-2	01	1	1511-	●	●
2	CABLE; BATTERY BATTERY 115E41L<8MA> L=400	8-97619-733-1	01	1	1511-	●	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98304-455-0	01	1	1511-	●	●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA>	8-98304-456-0	01	1	1511-	●	●
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1511-	●	●
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1511-	●	●
13	GROMMET; BATTERY CABLE ID=28 OD=35 T=17	9-09956-256-2	01	1	1511-	●	●
107	CLIP; BAND L=140	5-09707-031-1	01	1	1511-	●	●
112	TERMINAL; BATTERY <+>	8-98290-356-0	01	1	1511-	●	●
