Isuzu WW
▶
TRUCKS
▶
FVR
▶
11409 - FVR(RHD)EURO1
▶
2 - Clutch, Transmission, Trans Axle
▶
2-05 - CLUTCH PIPING
▶

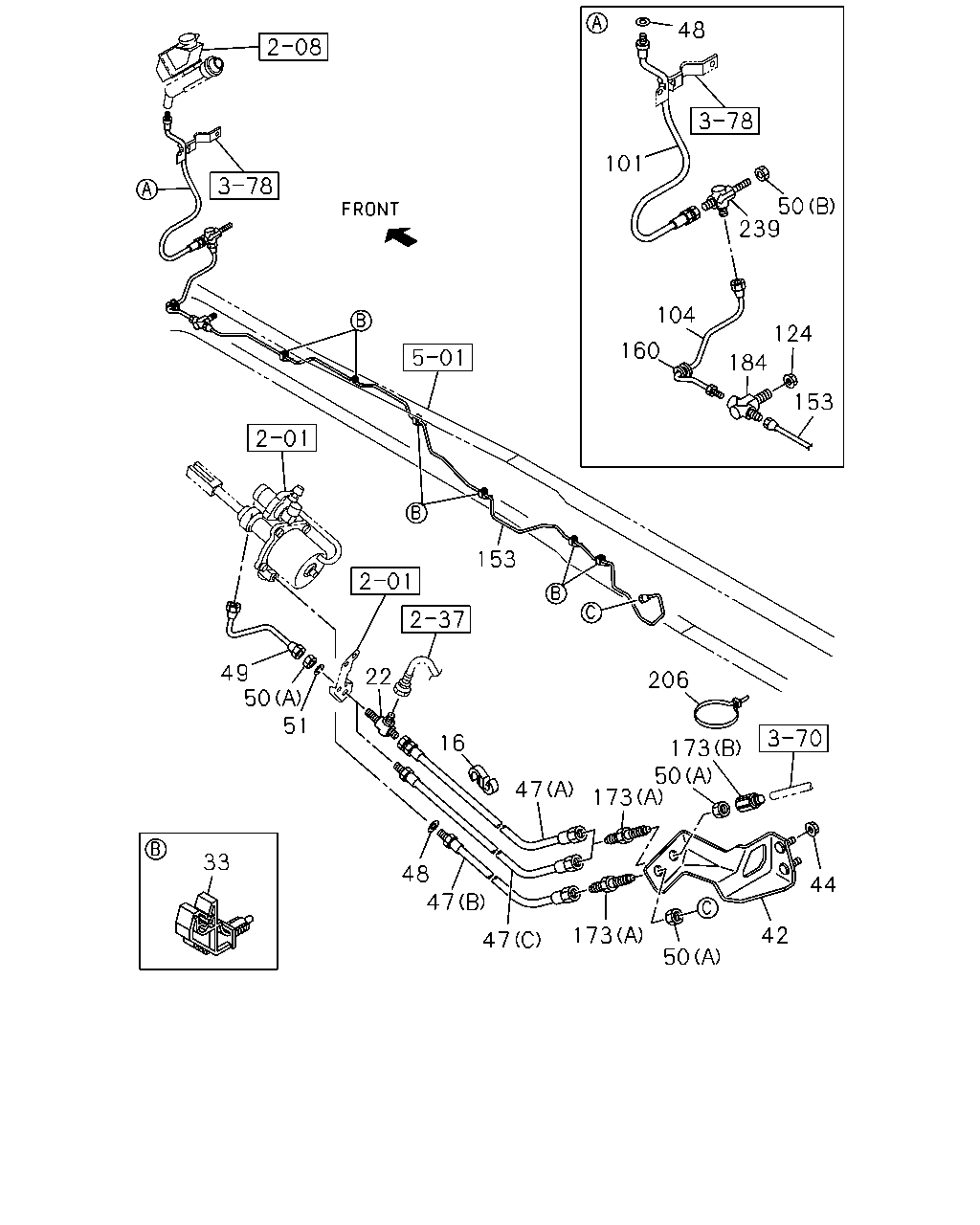

2-05 — CLUTCH PIPING
(#16932) — 24 parça
48
101
50
239
104
124
160
184
153
153
22
49
50
51
206
16
173
50
47
173
33
48
44
47
42
173
47
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
CLIP; FLEX HOSE
ID=10 & 12
1-09709-278-1
01
1
1110-
22
UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY
0-92138-706-0
01
1
1110-
33
CLIP; OIL PIPE
ID=6.35
1-09701-247-1
03
1
1110-
42
BRACKET; FLEX HOSE,CLU CONT
1-47477-360-0
01
1
1110-
44
NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE
0-91180-108-0
02
1
1110-
47
HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> (A) L=310
1-09363-713-0
01
1
1110-
47
HOSE; FLEX,CLU CONT
(B) L=340
8-98072-354-0
01
1
1110-
47
HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=370
1-09363-621-0
01
1
1110-
48
GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0
9-09571-410-0
02
1
1110-
49
PIPE; AIR,FLEX HOSE TO CLU BOOSTER
14" CLUTCH(WF6) L=204
1-49117-400-0
01
1
1110-
50
NUT; UNION
(A) M12
9-09840-280-0
02
1
1110-
50
NUT; UNION
(B) M12
0-91111-512-0
01
1
1110-
50
NUT; UNION
(A) M12
9-09840-280-0
01
1
1110-
51
WASHER; LK
ID=12.2
0-91510-812-0
01
1
1110-
101
HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440
8-98072-346-0
01
1
1110-
104
PIPE; OIL,FLEX HOSE TO CONNECTOR
L=554
8-98114-452-0
01
1
1110-
124
NUT; PIPE UNION
M12
0-91111-512-0
01
1
1110-
153
PIPE ASM; CLU,UNION TO FLEX
L=2847 SERVICED BY L=2900
1-47428-744-0
01
1
1110-
160
GROMMET; OIL PIPE
ID=28 OD=35 T=17
9-09956-256-2
01
1
1110-
173
CONNECTOR
(A) M12 L=66.5
0-92113-306-0
02
1
1110-
173
CONNECTOR
(B) DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1110-
184
UNION; FLEX HOSE
8-98150-865-0
01
1
1110-
206
CLIP; TUBE
L=350
1-09707-183-0
02
1
1110-
239
UNION; CLU HOSE
M12 2WAY
1-09654-059-2
01
1
1110-
