0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#169308) — 79 parça

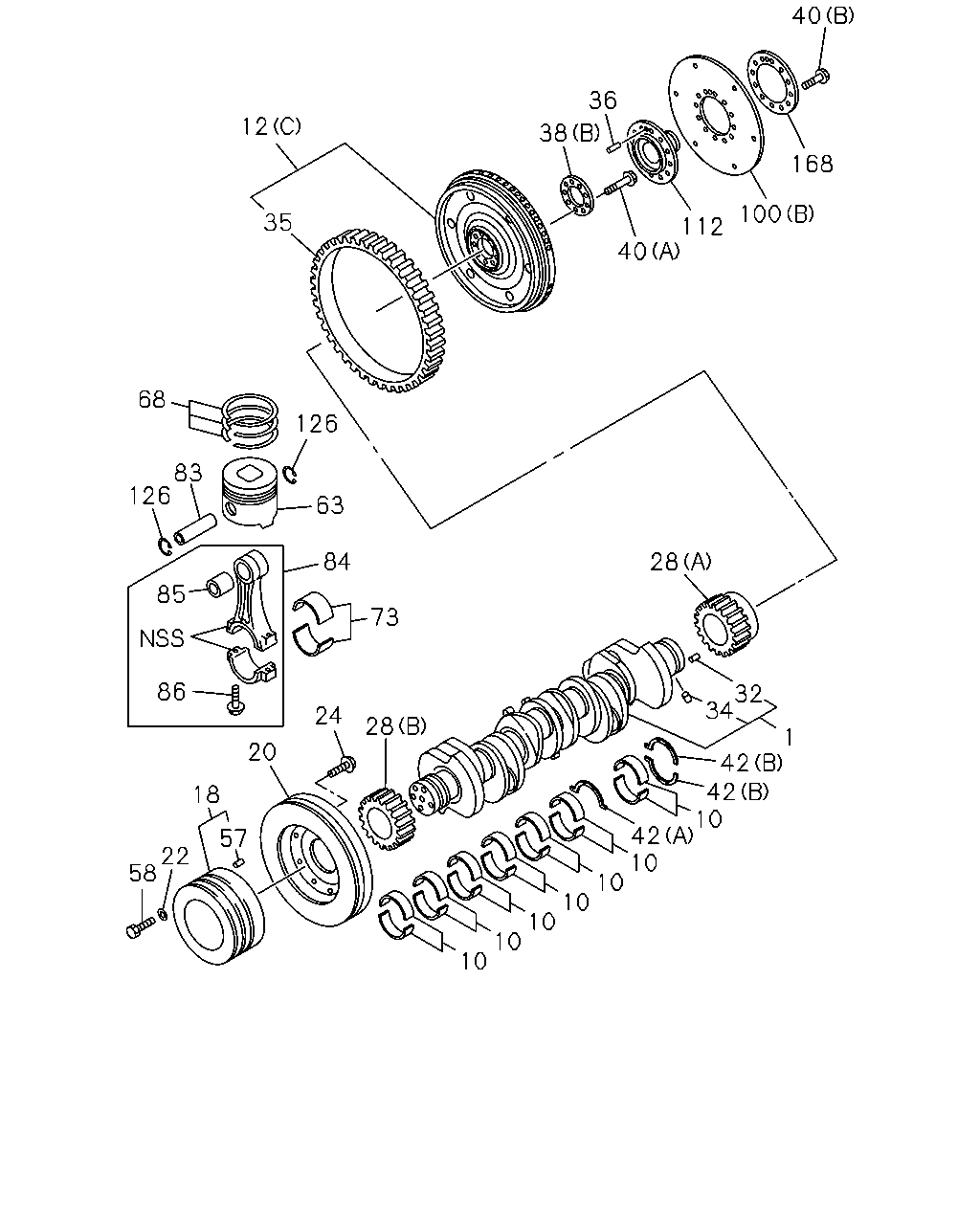

28 32 34 1 42 42 10 42 10 10 10 10 10 10 24 28 20 18 57 22 58 86 85 126 83 68 126 63 84 73 12 35 38 36 40 112 100 168 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CRANKSHAFT	8-97603-004-0	01	1	1511-
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	1511-
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	1511-
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	1511-
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-97602-463-2	01	1	1511-
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97604-545-2	01	1	1511-
12	FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97610-681-1	01	1	1511-
18	PULLEY; CR/SHF 3-GROOVE	8-97606-944-0	01	1	1511-
20	DAMPER; CR/SHF	8-97613-696-1	01	1	1511-
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	1511-
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	1511-
28	GEAR; CR/SHF (A) Z=42	8-94392-255-1	01	1	1511-
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	1511-
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	1511-
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1511-
35	GEAR; RING Z=140	8-94396-784-1	01	1	1511-
36	PIN; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=10 L=22	9-08151-022-0	02	1	1511-
36	PIN; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=6 L=24	9-09878-532-0	01	1	1511-
38	WASHER; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=55 OD=110	8-94397-496-1	01	1	1511-
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120	8-98176-500-0	01	1	1511-
40	BOLT; FLYWHEEL (A) M16X62	8-94393-070-2	08	1	1511-
40	BOLT; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12X30	8-11505-501-0	12	1	1511-
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1511-
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1511-
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	1511-
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	1511-
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98215-307-0	06	1	1511-
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	06	1	1511-
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	1511-
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	1511-
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	06	1	1511-
84	ROD ASM; CONN	8-98018-425-3	06	1	1511-
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	1511-
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1511-
100	PLATE; FLEX TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98148-782-1	01	1	1511-
100	PLATE; FLEX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97500-320-0	01	1	1511-
112	ADAPTER; FLEX PLATE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97500-319-0	01	1	1511-
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	12	1	1511-
168	PLATE; WEAR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=119 OD=177	8-29538-157-0	01	1	1511-

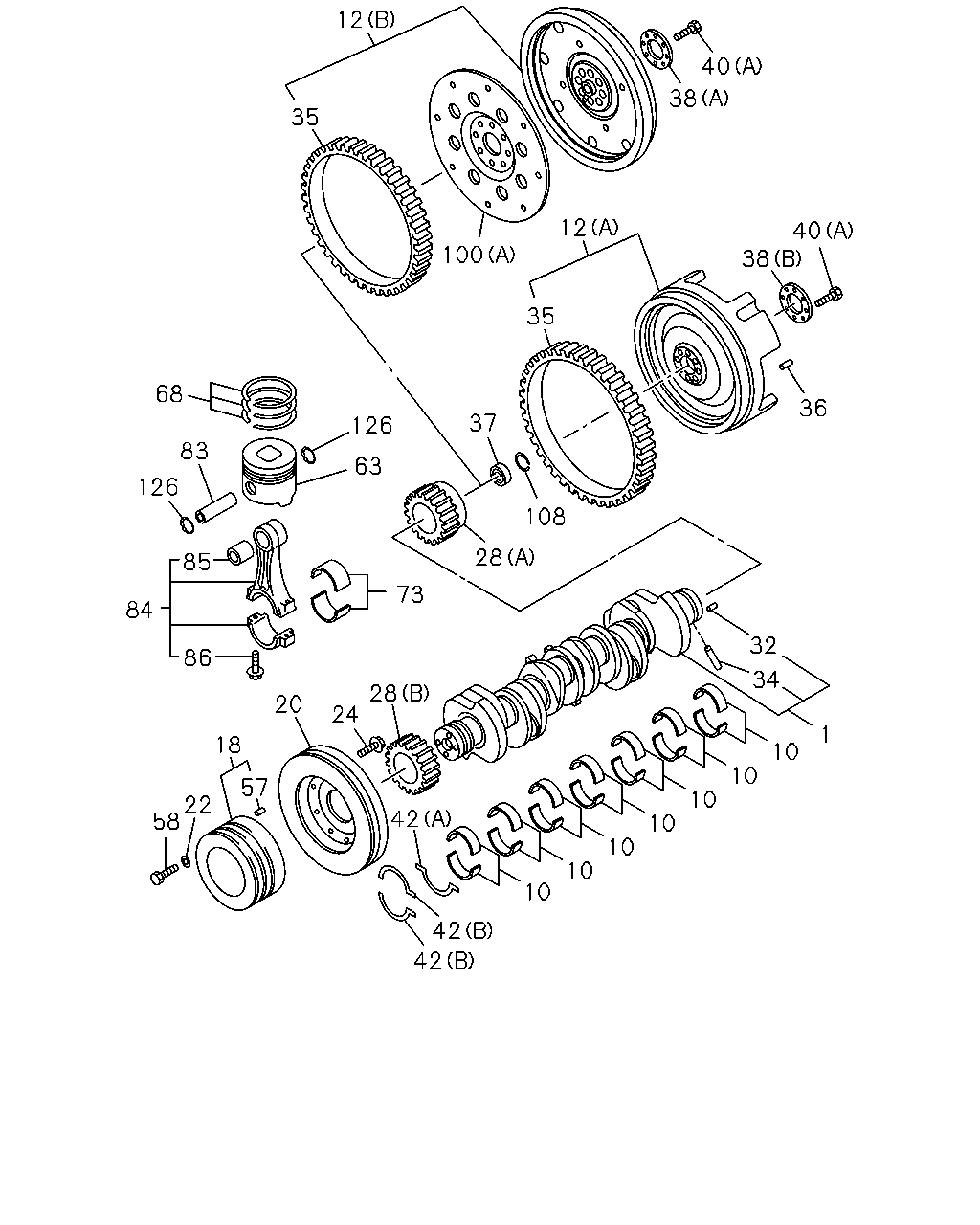

12 35 40 38 12 100 35 37 108 28 126 63 68 83 126 85 84 86 58 22 18 20 24 28 57 42 42 42 10 10 10 10 10 10 10 1 34 32 36 40 38 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CRANKSHAFT	8-97603-004-0	01	1	1511-
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	1511-
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	1511-
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	1511-
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-97602-463-2	01	1	1511-
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97604-545-2	01	1	1511-
12	FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97610-681-1	01	1	1511-
18	PULLEY; CR/SHF 3-GROOVE	8-97606-944-0	01	1	1511-
20	DAMPER; CR/SHF	8-97613-696-1	01	1	1511-
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	1511-
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	1511-
28	GEAR; CR/SHF (A) Z=42	8-94392-255-1	01	1	1511-
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	1511-
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	1511-
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1511-
35	GEAR; RING Z=140	8-94396-784-1	01	1	1511-
36	PIN; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=10 L=22	9-08151-022-0	02	1	1511-
36	PIN; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=6 L=24	9-09878-532-0	01	1	1511-
37	BEARING; PILOT,TOP GEAR SHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-94392-288-0	01	1	1511-
37	BEARING; PILOT,TOP GEAR SHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	1-87610-157-0	01	1	1511-
38	WASHER; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=55 OD=110	8-94397-496-1	01	1	1511-
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120	8-98176-500-0	01	1	1511-
40	BOLT; FLYWHEEL (A) M16X62	8-94393-070-2	08	1	1511-
40	BOLT; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12X30	8-11505-501-0	12	1	1511-
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1511-
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1511-
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	1511-
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	1511-
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98215-307-0	06	1	1511-
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	06	1	1511-
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	1511-
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	1511-
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	06	1	1511-
84	ROD ASM; CONN	8-98018-425-3	06	1	1511-
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	1511-
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1511-
100	PLATE; FLEX TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98148-782-1	01	1	1511-
100	PLATE; FLEX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97500-320-0	01	1	1511-
108	RING; SNAP,BRG SET TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=59.2	9-09180-155-0	01	1	1511-
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	12	1	1511-
