◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11715 - FSR AUST/NZ EURO5 EXC.SPACECAB ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#169306) — 22 parça

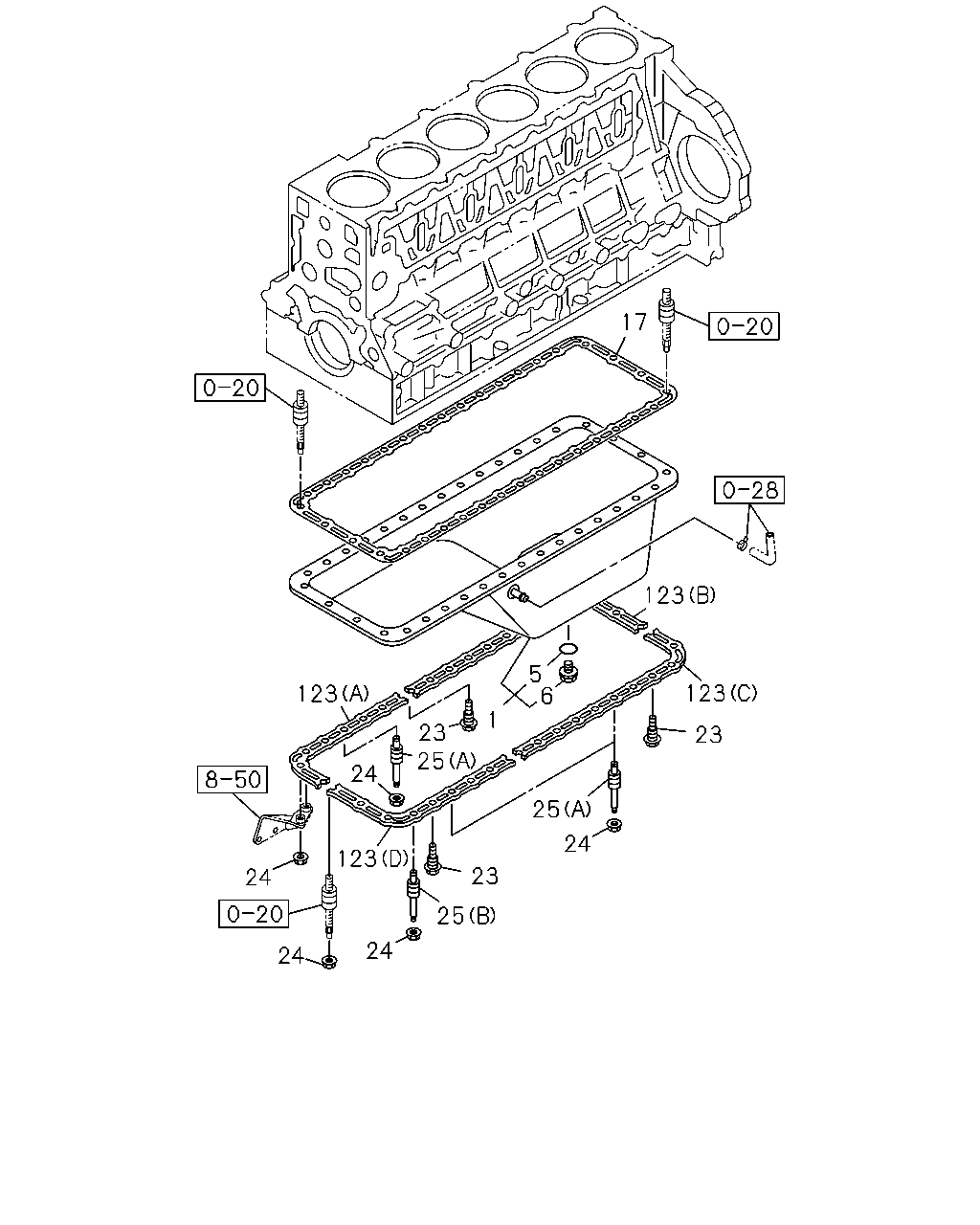

çizim 500171
17 123 5 6 1 23 25 24 123 24 24 123 24 23 25 25 24 23 123
BalonParca AdiParca NoAdetTipApplied Date
1 PAN ASM; OIL 8-97603-410-2 01 1 1511-
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 1511-
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 1511-
17 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94390-617-1 01 1 1511-
23 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97087-634-0 23 1 1511-
24 NUT; OIL PAN
M8 FLANGE 		0-91180-108-0 11 1 1511-
25 STUD; OIL PAN
(A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 03 1 1511-
25 STUD; OIL PAN
(B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 01 1 1511-
123 RUBBER; SEAL OIL
(A) 		8-94391-755-0 01 1 1511-
123 RUBBER; SEAL OIL
(B) 		8-94391-757-0 01 1 1511-
123 RUBBER; SEAL OIL
(C) 		8-94391-758-0 01 1 1511-
123 RUBBER; SEAL OIL
(D) 		8-94392-548-0 01 1 1511-
çizim 500180
49 10 193 192 193 10 8 9 9 8 2
BalonParca AdiParca NoAdetTipApplied Date
2 GAUGE; OIL LEVEL 8-98239-284-0 01 1 1511-
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-98063-554-0 01 1 1511-
8 TUBE; GUIDE,OIL LEVEL GAUGE
TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97618-220-1 01 1 1511-
8 TUBE; GUIDE,OIL LEVEL GAUGE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98098-761-0 01 1 1511-
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 1511-
10 BOLT; GUIDE TUBE
(A) M10X35 FLANGE 		0-28151-035-0 01 1 1511-
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1511-
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91180-108-0 01 1 1511-
192 HOSE; GUIDE TUBE
L=310 		8-98092-068-0 01 1 1511-
193 CLIP; HOSE,GUIDE TUBE
ID=17 		1-09707-158-0 02 1 1511-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
