9-01 — TOOLS (#169300) — 30 parça

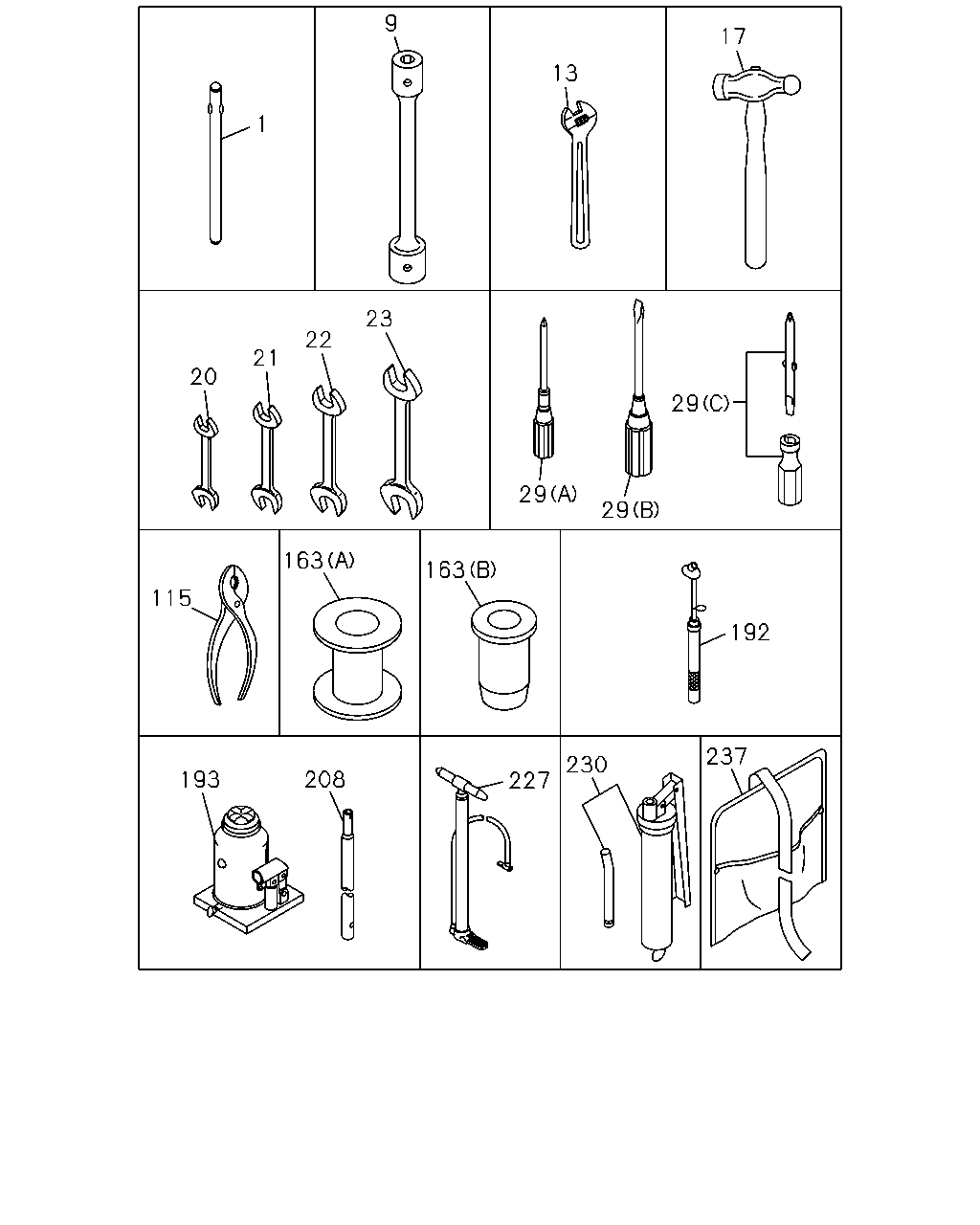

çizim 503594
1 20 21 22 23 115 163 193 208 13 17 29 29 29 192 163 227 237 230 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HANDLE; SPARE TIRE CARRIER
L=280 		8-98181-251-0 01 1 1511- ● ● ●
9 WRENCH; WHEEL PIN
B=41X21 L=440 		1-85113-015-1 01 1 1511- ● ● ●
13 WRENCH; MONKEY
L=255 		8-98270-303-0 01 1 1511- ● ● ●
17 HAMMER 9-85121-406-0 01 1 1511- ● ● ●
20 WRENCH; 10X12
10X12 		0-95902-510-0 01 1 1511- ● ● ●
21 WRENCH; 14X17
14X17 		0-95902-514-0 01 1 1511- ● ● ●
22 WRENCH; 19X22
19X22 		0-95902-519-0 01 1 1511- ● ● ●
23 WRENCH; 24X27
24X27 		0-95902-524-0 01 1 1511- ● ● ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 1511- ● ● ●
29 DRIVER; SCREW
(B) <-> L=275 		8-98061-105-0 01 1 1511- ● ● ●
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 1511- ● ● ●
115 PLIER 8-98282-845-0 01 1 1511- ● ● ●
163 TOOL; SETTING
MZW6P M/T(RSZ) (B) L=195 		1-85221-162-1 01 1 1511- ● ● ●
163 TOOL; SETTING
MZW6P M/T(RSZ) (A) L=150 		1-85221-163-0 01 1 1511- ● ● ●
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 1511- ● ● ●
193 JACK ASM
7TON 		1-85510-005-2 01 1 1511- ● ● ●
208 HANDLE; JACK
L=580 		8-98181-249-0 01 1 1511- ● ● ●
227 PUMP ASM; TIRE 9-85521-132-0 01 1 1511- ● ● ●
230 PUMP; GREASE 1-85556-007-5 01 1 1511- ● ● ●
237 BAG; TOOL 8-97130-902-1 01 1 1511- ● ● ●

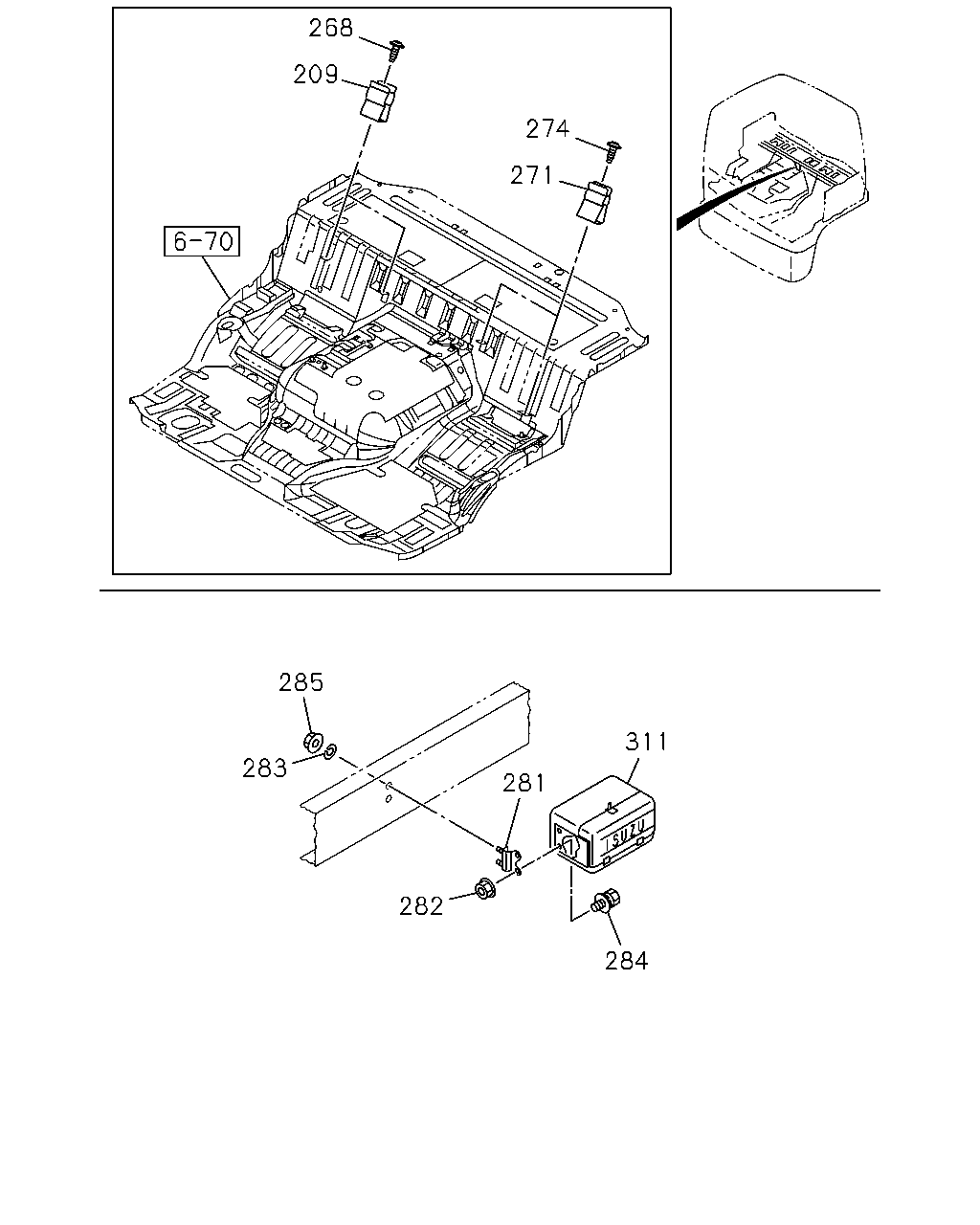

çizim 503626
268 209 274 271 282 311 281 284 285 283
BalonParca AdiParca NoAdetTipApplied Date A B C
209 CLIP; JACK HANDLE 8-98053-799-0 02 1 1511- ● ● ●
268 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1511- ● ● ●
271 CLIP; TIRE HANGER 8-98053-800-0 02 1 1511- ● ● ●
274 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1511- ● ● ●
281 BRACKET; TOOL BOX
KEY LOCK TOOL<RC5> 		1-53459-665-2 02 1 1511- ●
282 NUT; BRKT
KEY LOCK TOOL<RC5> M10 FLANGE 		0-91180-210-0 04 1 1511- ●
283 WASHER; LK,BRKT
KEY LOCK TOOL<RC5> ID=10.2 		0-91510-510-0 04 1 1511- ●
284 BOLT; TOOL BOX
KEY LOCK TOOL<RC5> M10X20 FLANGE 		0-28651-020-0 04 1 1511- ●
285 NUT; TOOL BOX
KEY LOCK TOOL<RC5> M10 FLANGE 		0-91180-210-0 04 1 1511- ●
311 BOX ASM; TOOL
KEY LOCK TOOL<RC5> 		1-85561-006-3 01 1 1511- ●
