8-28 — CHASSIS ELECTRICAL (#1693) — 136 parça

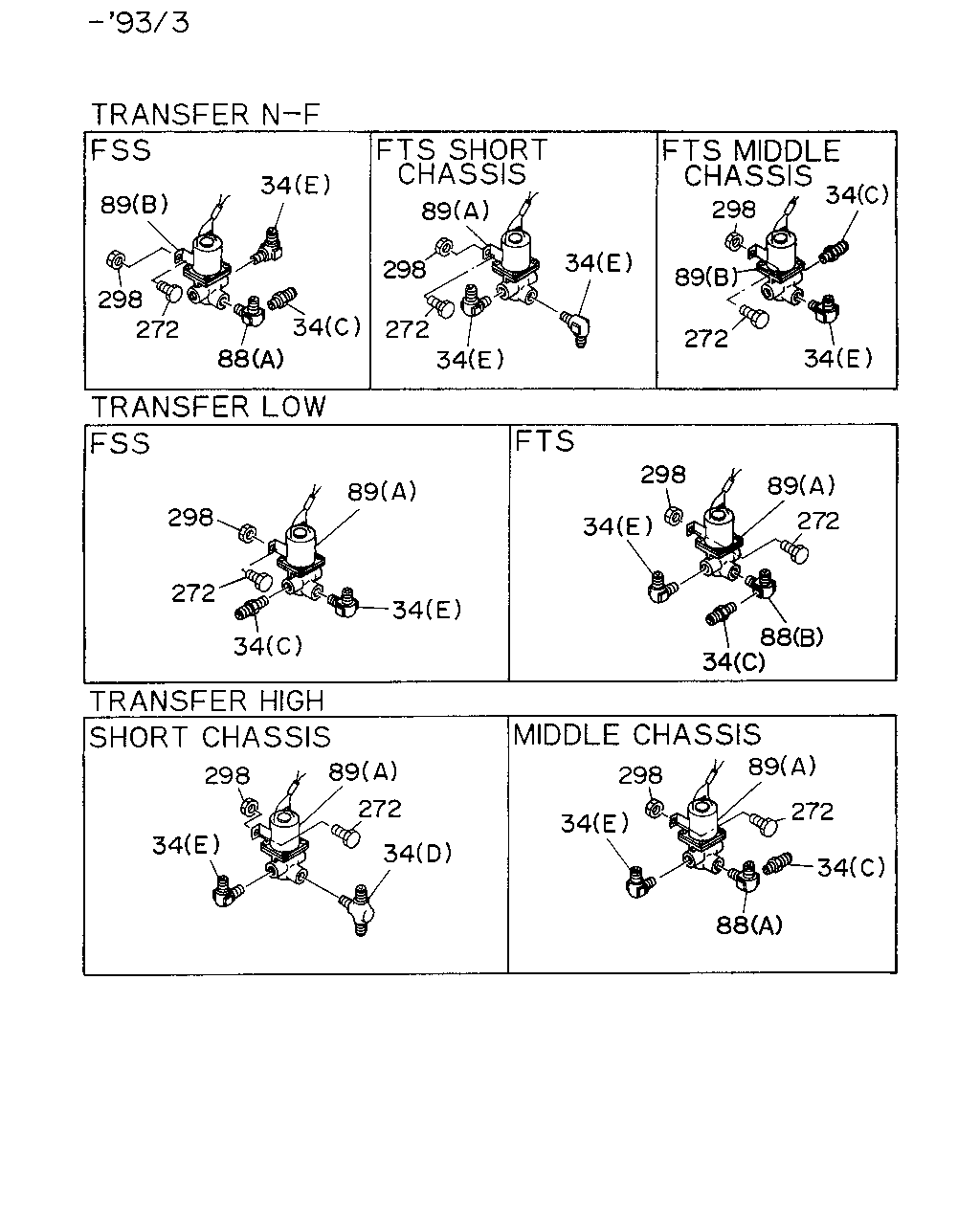

89 298 272 88 34 34 89 298 272 34 34 298 34 89 272 34 298 272 34 34 89 34 298 89 272 88 34 298 34 89 272 34 34 298 89 272 34 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9207-9303	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9207-9303	●	●		●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9207-9303		●
34	CONNECTOR; MAG VLV,INL PORT (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9304-	●	●
34	CONNECTOR; MAG VLV,INL PORT (E) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9207-9302	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (E) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9207-9302	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (E) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9207-9302	●	●		●	●
34	CONNECTOR; MAG VLV,INL PORT (G) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9304-	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9207-	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-137-0	01	1	9207-9302	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9303-	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (D) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	9207-9303	●		●
34	CONNECTOR; MAG VLV,INL PORT (H) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	9304-	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (E) PT1/4 & M12 ELBOW	1-09650-117-1	02	1	9207-9302			●
34	CONNECTOR; MAG VLV,INL PORT (E) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9303-9303			●
34	CONNECTOR; MAG VLV,INL PORT (I) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9304-	●	●
34	CONNECTOR; MAG VLV,INL PORT (J) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9304-			●	●	●
34	CONNECTOR; MAG VLV,INL PORT (K) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	9304-			●	●	●
88	CONNECTOR; MAG VLV (A) PT1/4 & M12 ELBOW	1-09656-168-1	01	1	9207-9302	●	●		●	●
88	CONNECTOR; MAG VLV (A) PT1/4 & M12 ELBOW	1-09656-168-1	01	1	9207-9302		●
88	CONNECTOR; MAG VLV (A) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9303-9303	●	●		●	●
88	CONNECTOR; MAG VLV (A) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9303-9303		●
88	CONNECTOR; MAG VLV (A) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9304-	●	●
88	CONNECTOR; MAG VLV (B) PT1/4 & M12 ELBOW	1-09656-485-1	01	1	9207-9302			●	●	●
88	CONNECTOR; MAG VLV (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9303-			●	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-158-0	01	1	9207-9303	●	●	●	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-158-0	01	1	9207-9303	●	●	●	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-158-0	01	1	9207-9303			●
89	VALVE; MAG,DIFF LOCK (C)	1-82563-158-0	01	1	9304-	●	●	●	●	●
89	VALVE; MAG,DIFF LOCK (C)	1-82563-158-0	01	1	9304-	●	●
89	VALVE; MAG,DIFF LOCK (B)	1-82563-222-0	01	1	9207-9303	●	●		●	●
89	VALVE; MAG,DIFF LOCK (D)	1-82563-222-0	01	1	9304-	●	●
89	VALVE; MAG,DIFF LOCK (E)	1-82563-158-0	02	1	9304-			●	●	●
272	BOLT; MAG VLV M8X25 FLANGE	0-28080-825-0	06	1	9207-	●	●	●	●	●
298	NUT; MAG VLV M8	9-09110-408-0	06	1	9207-	●	●	●	●	●

89 34 34 89 34 34 89 34 34 34 89 34 89 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9207-9303	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9207-9303	●	●		●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9207-9303		●
34	CONNECTOR; MAG VLV,INL PORT (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9304-	●	●
34	CONNECTOR; MAG VLV,INL PORT (E) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9207-9302	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (E) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9207-9302	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (E) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9207-9302	●	●		●	●
34	CONNECTOR; MAG VLV,INL PORT (G) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9304-	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9207-	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-137-0	01	1	9207-9302	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9303-	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (D) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	9207-9303	●		●
34	CONNECTOR; MAG VLV,INL PORT (H) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	9304-	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (E) PT1/4 & M12 ELBOW	1-09650-117-1	02	1	9207-9302			●
34	CONNECTOR; MAG VLV,INL PORT (E) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9303-9303			●
34	CONNECTOR; MAG VLV,INL PORT (I) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9304-	●	●
34	CONNECTOR; MAG VLV,INL PORT (J) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9304-			●	●	●
34	CONNECTOR; MAG VLV,INL PORT (K) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	9304-			●	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-158-0	01	1	9207-9303	●	●	●	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-158-0	01	1	9207-9303	●	●	●	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-158-0	01	1	9207-9303			●
89	VALVE; MAG,DIFF LOCK (C)	1-82563-158-0	01	1	9304-	●	●	●	●	●
89	VALVE; MAG,DIFF LOCK (C)	1-82563-158-0	01	1	9304-	●	●
89	VALVE; MAG,DIFF LOCK (B)	1-82563-222-0	01	1	9207-9303	●	●		●	●
89	VALVE; MAG,DIFF LOCK (D)	1-82563-222-0	01	1	9304-	●	●
89	VALVE; MAG,DIFF LOCK (E)	1-82563-158-0	02	1	9304-			●	●	●

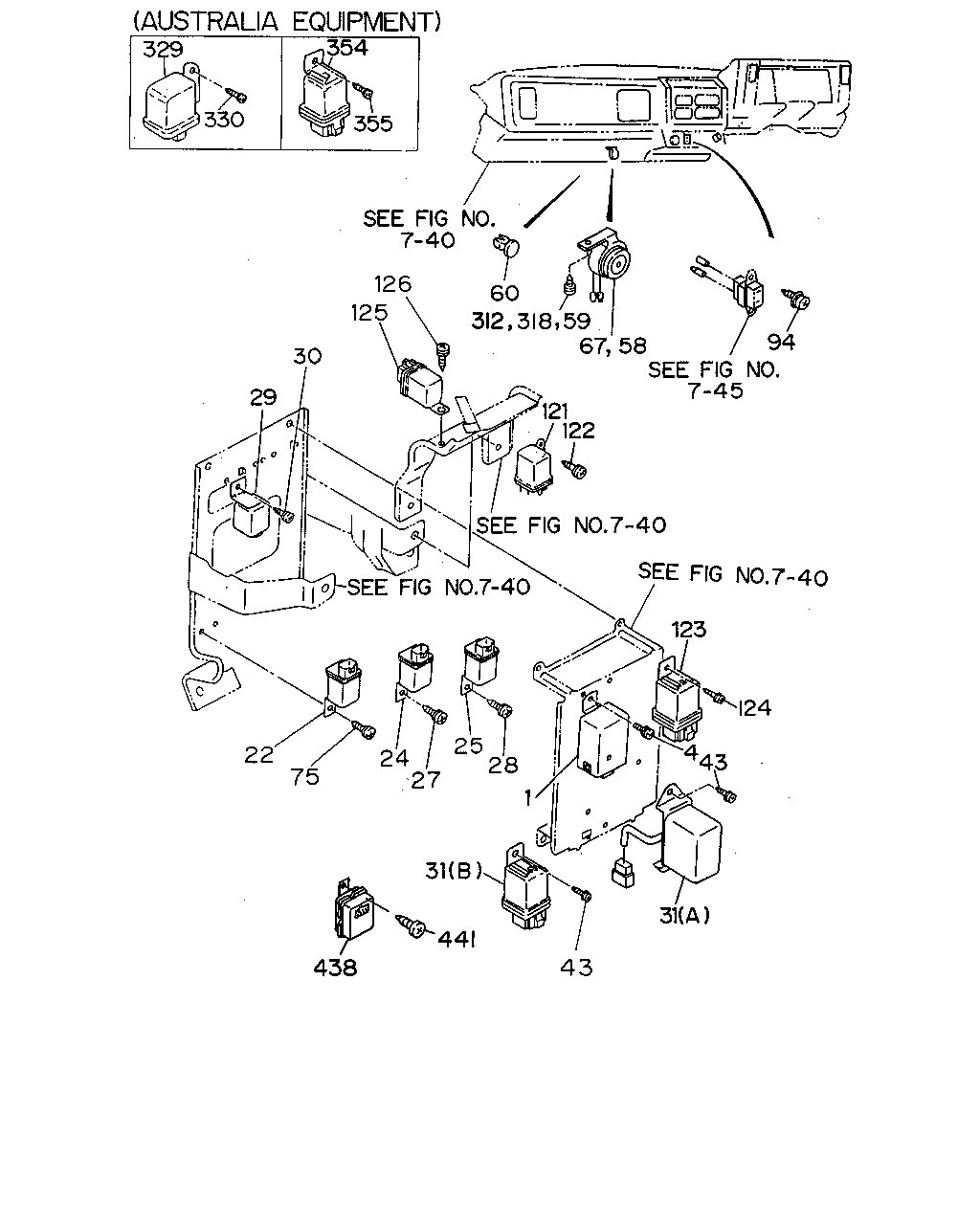

329 330 354 355 126 125 30 29 22 75 24 27 25 28 60 312 318 59 67 58 94 121 122 123 124 4 43 31 43 31 1 441 438

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	UNIT; FLASHER EXC. BUMPER W/HEADLAMPS<SLB>	1-83470-034-1	01	1	9207-	●	●	●	●	●
1	UNIT; FLASHER BUMPER W/HEADLAMPS<SLB>	1-83470-033-1	01	1	9207-		●
1	UNIT; FLASHER BUMPER W/HEADLAMPS<SLB>	1-83470-032-0	01	1	9207-				●	●
4	SCREW; FLASHER UNIT M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9207-	●	●	●	●	●
22	RELAY; STOP LAMP 24V	1-82550-176-0	01	1	9207-	●	●	●	●	●
24	RELAY; LIGHTING 24V	1-82550-176-0	02	1	9207-	●	●	●	●	●
25	RELAY; TAIL LAMP 24V	1-82550-176-0	01	1	9207-	●	●	●	●	●
27	SCREW; SET,LIGHTING RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9207-	●	●	●	●	●
28	SCREW; SET,TAIL LAMP RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9207-	●	●	●	●	●
29	RELAY; HORN	1-83420-001-0	01	1	9207-	●	●	●	●	●
30	SCREW; HORN RELAY TO DASH SIDE M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9207-	●	●	●	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V	1-82550-187-1	01	1	9207-	●	●	●	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (B) 24V 12.5A JIDECO	1-82550-197-0	01	1	9207-	●	●	●	●	●
43	SCREW; PTO RELAY PTO CONTROL<SV6> M5X14 TAPPING W/PL WASHER	0-74100-514-0	03	1	9207-	●	●	●	●	●
58	BUZZER; AIR PRESSURE WARNING	1-83460-022-0	01	1	9207-	●	●	●	●	●
59	SCREW; BUZZER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9207-9501	●	●	●	●	●
59	SCREW; BUZZER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9507-	●	●	●	●	●
60	GROMMET; SCREW,BUZZER D=7X7 L=7.5	5-09983-007-0	01	1	9207-9501	●	●	●	●	●
60	GROMMET; SCREW,BUZZER ENGINE OVERRUN BUZZER<SK4> D=7X7 L=7.5	5-09983-007-0	01	1	9207-9501			●	●	●
60	GROMMET; SCREW,BUZZER ENGINE OVERRUN BUZZER<SK4> D=7X7 L=7.5	5-09983-007-0	01	1	9502-9506			●	●	●
60	GROMMET; SCREW,BUZZER D=7X7 L=7.5	5-09983-007-0	01	1	9507-	●	●	●	●	●
60	GROMMET; SCREW,BUZZER ENGINE OVERRUN BUZZER<SK4> D=7X7 L=7.5	5-09983-007-0	01	1	9507-			●	●	●
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4>	1-83460-032-0	01	1	9207-			●	●	●
75	SCREW; STOP LAMP RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9207-	●	●	●	●	●
94	SCREW; CONSENT TO BLIND PNL M5X14 W/PL WASHER	5-09981-050-0	02	1	9207-	●	●	●	●	●
121	RELAY; PARKING BRK REAR WHEEL PARKING(B3A)	1-82550-070-0	01	1	9207-9403		●	●	●	●
121	RELAY; PARKING BRK REAR WHEEL PARKING(B3A)	1-82550-285-0	01	1	9404-		●	●	●	●
122	SCREW; PARKING BRK RELAY REAR WHEEL PARKING(B3A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9207-		●	●	●	●
123	RELAY; HTR 24V	1-82550-176-0	01	1	9207-	●	●	●	●	●
124	SCREW; SET,HTR RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9207-	●	●	●	●	●
125	RELAY; STROKE,BRAKE LINING WARNING	5-82550-046-0	01	1	9207-	●	●	●	●	●
126	SCREW; STROKE RELAY,BRAKE LINING WARNI M6X16 W/LK&PL WASHER	1-09981-141-0	01	1	9207-	●	●	●	●	●
312	BOLT; BUZZER M6X14 W/LK&PL WASHER	8-94279-142-0	01	1	9309-9506	●	●	●	●	●
318	SCREW; BUZZER ENGINE OVERRUN BUZZER<SK4> M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9207-			●	●	●
329	RELAY; BACK LAMP AUSTRALIA EQUIPMENT(RR3)	1-82550-070-0	01	1	9207-9403		●		●	●
329	RELAY; BACK LAMP AUSTRALIA EQUIPMENT(RR3)	1-82550-285-0	01	1	9404-		●		●	●
330	SCREW; BACK LAMP RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9207-	●	●	●	●	●
354	RELAY; BRAKE FLUID CHECK AUSTRALIA EQUIPMENT(RR3) 24V	1-82550-176-0	01	1	9207-		●		●	●
355	SCREW; RELAY AUSTRALIA EQUIPMENT(RR3) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9207-		●		●	●
438	UNIT; SPD CONTROL	1-82550-251-0	01	1	9207-	●	●	●	●	●
441	SCREW; CONT UNIT M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9210-	●	●	●	●	●

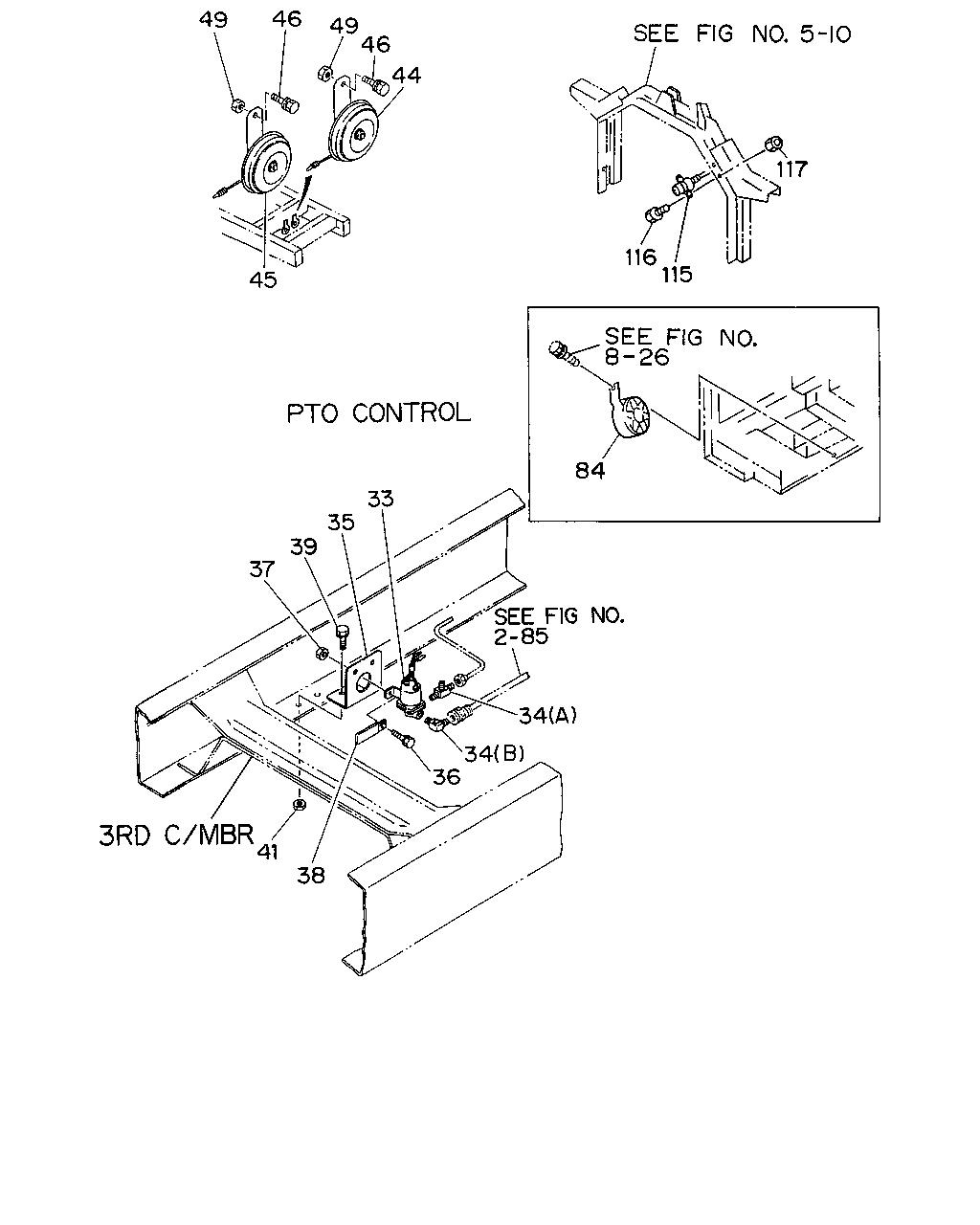

49 46 49 46 44 116 115 117 84 33 35 39 37 41 38 36 34 34 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	1-82563-154-0	01	1	9207-	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9207-9303	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9207-9303	●	●		●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9207-9303		●
34	CONNECTOR; MAG VLV,INL PORT (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9304-	●	●
34	CONNECTOR; MAG VLV,INL PORT (E) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9207-9302	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (E) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9207-9302	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (E) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9207-9302	●	●		●	●
34	CONNECTOR; MAG VLV,INL PORT (G) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9304-	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9207-	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-137-0	01	1	9207-9302	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9303-	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (D) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	9207-9303	●		●
34	CONNECTOR; MAG VLV,INL PORT (H) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	9304-	●	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (E) PT1/4 & M12 ELBOW	1-09650-117-1	02	1	9207-9302			●
34	CONNECTOR; MAG VLV,INL PORT (E) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9303-9303			●
34	CONNECTOR; MAG VLV,INL PORT (I) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9304-	●	●
34	CONNECTOR; MAG VLV,INL PORT (J) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9304-			●	●	●
34	CONNECTOR; MAG VLV,INL PORT (K) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	9304-			●	●	●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	1-82569-077-1	01	1	9207-	●	●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	1-82569-067-0	01	1	9207-			●	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X25 W/LK WASHER	0-50040-825-0	02	1	9207-	●	●	●	●	●
37	NUT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8	9-09110-408-0	02	1	9207-	●	●	●	●	●
38	CLIP; MAG VLV HARNESS PTO CONTROL<SV6> L=63	1-09700-418-1	01	1	9207-	●	●	●	●	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X30 FLANGE	0-28080-830-0	02	1	9207-	●	●	●	●	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8	9-09110-408-0	02	1	9207-	●	●	●	●	●
44	HORN; HIGH NOTE	1-83410-053-1	01	1	9207-	●	●	●	●	●
45	HORN; LOW NOTE	1-83410-054-1	01	1	9207-	●	●	●	●	●
46	BOLT; HORN TO BODY M8X22 FLANGE	0-28080-822-0	02	1	9207-	●	●	●	●	●
49	NUT; HORN TO BODY M8 FLANGE	5-09440-005-0	02	1	9207-	●	●	●	●	●
84	BUZZER; POWER CAB TILT	1-83460-033-3	01	1	9207-					●
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-046-0	01	1	9207-					●
116	BOLT; RELAY FIX M8X20 FLANGE	0-28080-820-0	02	1	9207-					●
117	NUT; RELAY FIX M8	9-09110-408-0	02	1	9207-					●
