Sayfa 8-60 - Isuzu EPC

8-60 — HEATER UNIT; FRONT (#169293) — 148 parça

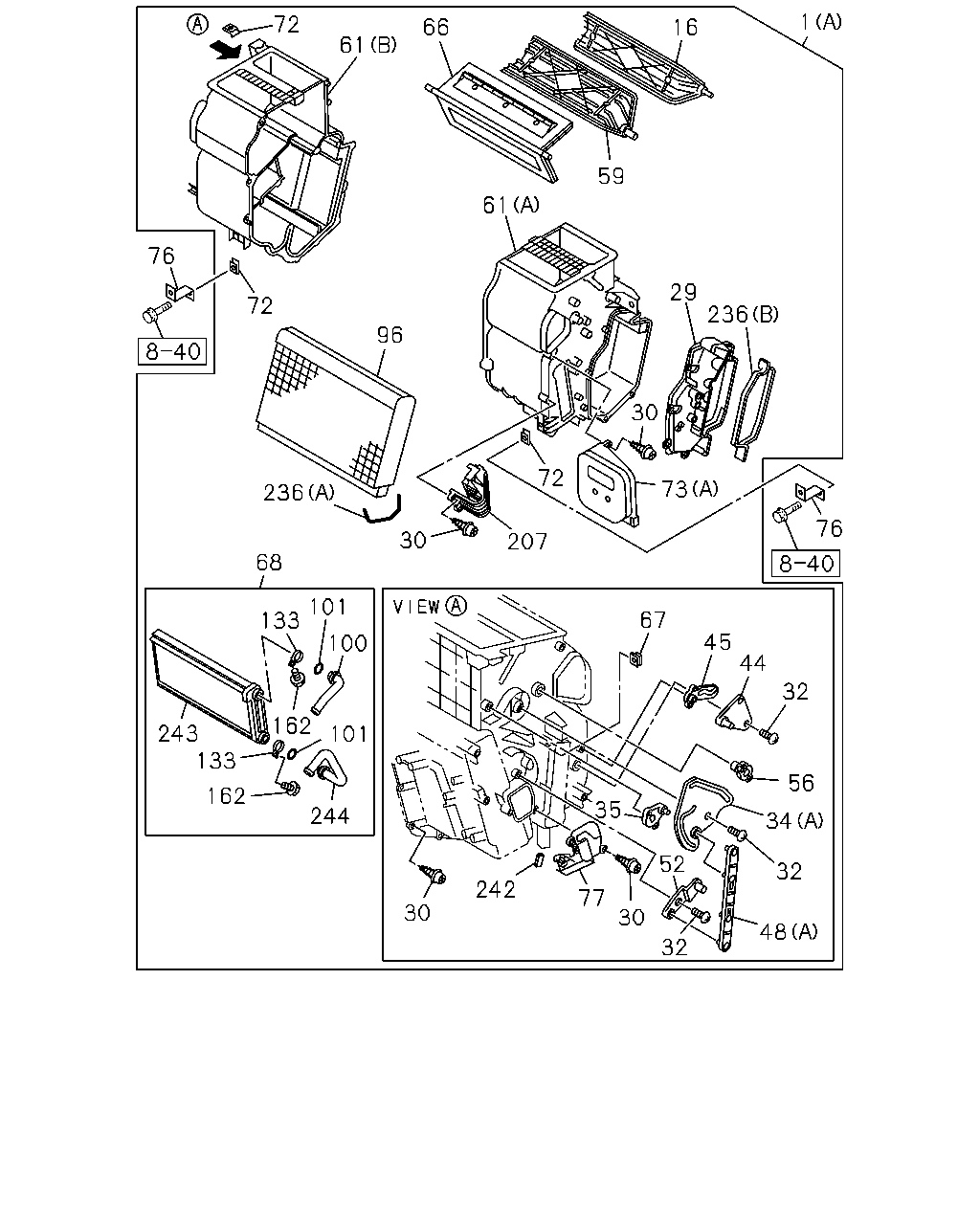

32 48 32 34 56 32 44 45 67 30 52 35 242 30 244 101 162 133 243 162 100 101 133 68 236 30 207 72 73 76 30 236 29 59 61 96 72 76 72 66 61 16 1 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HEATER UNIT FULLAUTO AIR CONDITIONER(C68) (C)	8-98021-973-4	01	1	1511-	●	●
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98021-972-4	01	1	1511-	●	●	●
1	HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98062-756-1	01	1	1511-	●	●	●
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-387-0	01	1	1511-	●	●	●
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1511-	●	●	●
30	SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING	8-97957-708-0	31	1	1511-	●	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	27	1	1511-	●	●	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	25	1	1511-	●	●	●
32	SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16	8-98047-416-0	01	1	1511-	●	●
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16	8-98047-416-0	03	1	1511-	●	●	●
34	LEVER; SHUTTER,HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-467-0	01	1	1511-	●	●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-389-0	01	1	1511-	●	●	●
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-392-0	01	1	1511-	●	●	●
44	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-394-0	01	1	1511-	●	●	●
45	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-395-0	01	1	1511-	●	●	●
48	LEVER; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-468-0	01	1	1511-	●	●
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-391-0	01	1	1511-	●	●	●
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-390-0	01	1	1511-	●	●	●
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-393-0	01	1	1511-	●	●	●
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-386-0	01	1	1511-	●	●	●
61	CASE; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (C)	8-98047-465-0	01	1	1511-	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-375-0	01	1	1511-	●	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	1511-	●	●	●
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-385-0	01	1	1511-	●	●	●
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-417-0	02	1	1511-	●	●	●
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-380-0	01	1	1511-	●	●	●
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6	8-98047-428-0	03	1	1511-	●	●	●
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98074-118-0	01	1	1511-	●	●	●
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41) (A)	8-98072-542-0	01	1	1511-	●	●	●
76	BRACKET; HTR UNIT	8-98009-742-1	02	1	1511-	●	●	●
77	COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-414-0	01	1	1511-	●	●	●
96	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1511-	●	●	●
100	PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-528-0	01	1	1511-	●	●	●
101	GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-531-0	02	1	1511-	●	●	●
133	CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-530-0	02	1	1511-	●	●	●
162	SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-529-0	02	1	1511-	●	●	●
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1511-	●	●	●
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-420-0	01	1	1511-	●	●	●
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-421-0	01	1	1511-	●	●	●
242	GASKET; CASE HEATER & DEFROSTER(C41)	8-98048-816-0	01	1	1511-	●	●	●
243	CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-508-0	01	1	1511-	●	●	●
244	PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-510-0	01	1	1511-	●	●	●

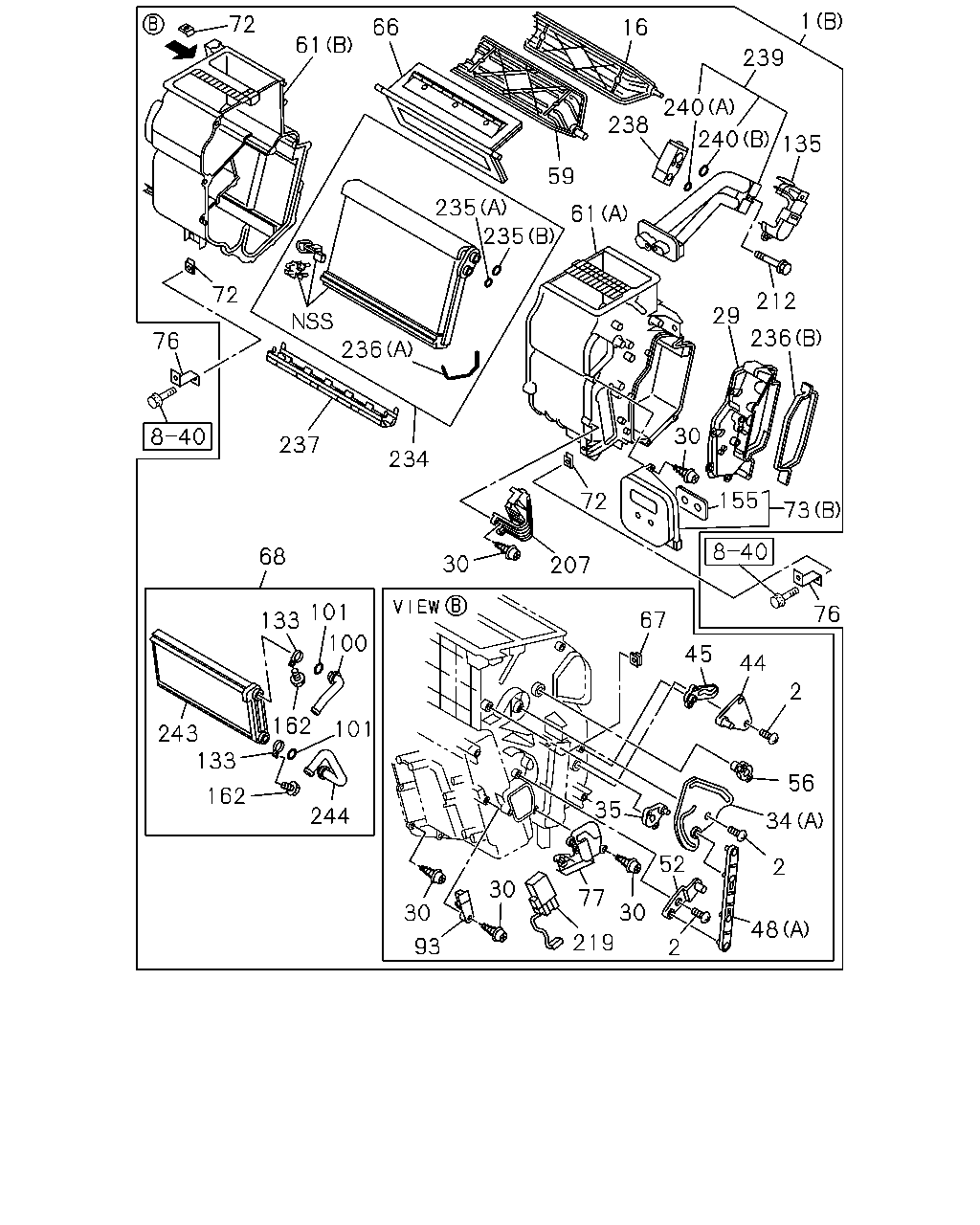

72 61 66 16 1 239 240 238 240 59 235 135 61 235 212 29 236 236 72 76 237 234 72 30 155 73 207 30 68 67 45 101 133 100 243 162 101 133 162 244 44 2 56 34 35 52 2 30 30 77 30 93 76 48 219 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HEATER UNIT FULLAUTO AIR CONDITIONER(C68) (C)	8-98021-973-4	01	1	1511-	●	●
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98021-972-4	01	1	1511-	●	●	●
1	HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98062-756-1	01	1	1511-	●	●	●
2	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-98047-416-0	03	1	1511-	●	●	●
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-387-0	01	1	1511-	●	●	●
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1511-	●	●	●
30	SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING	8-97957-708-0	31	1	1511-	●	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	27	1	1511-	●	●	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	25	1	1511-	●	●	●
34	LEVER; SHUTTER,HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-467-0	01	1	1511-	●	●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-389-0	01	1	1511-	●	●	●
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-392-0	01	1	1511-	●	●	●
44	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-394-0	01	1	1511-	●	●	●
45	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-395-0	01	1	1511-	●	●	●
48	LEVER; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-468-0	01	1	1511-	●	●
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-391-0	01	1	1511-	●	●	●
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-390-0	01	1	1511-	●	●	●
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-393-0	01	1	1511-	●	●	●
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-386-0	01	1	1511-	●	●	●
61	CASE; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (C)	8-98047-465-0	01	1	1511-	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-375-0	01	1	1511-	●	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	1511-	●	●	●
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-385-0	01	1	1511-	●	●	●
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-417-0	02	1	1511-	●	●	●
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-380-0	01	1	1511-	●	●	●
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6	8-98047-428-0	03	1	1511-	●	●	●
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98074-118-0	01	1	1511-	●	●	●
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41) (A)	8-98072-542-0	01	1	1511-	●	●	●
76	BRACKET; HTR UNIT	8-98009-742-1	02	1	1511-	●	●	●
77	COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-414-0	01	1	1511-	●	●	●
93	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-427-0	01	1	1511-	●	●	●
100	PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-528-0	01	1	1511-	●	●	●
101	GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-531-0	02	1	1511-	●	●	●
133	CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-530-0	02	1	1511-	●	●	●
135	COVER; HTR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-384-0	01	1	1511-	●	●	●
155	GROMMET; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-431-0	01	1	1511-	●	●	●
162	SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-529-0	02	1	1511-	●	●	●
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1511-	●	●	●
212	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X61	8-98047-415-0	02	1	1511-	●	●	●
219	AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-429-0	01	1	1511-	●	●	●
234	EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-116-1	01	1	1511-	●	●	●
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=11.7	8-97095-907-0	01	1	1511-	●	●	●
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=14.5	8-97095-908-0	01	1	1511-	●	●	●
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-420-0	01	1	1511-	●	●	●
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-421-0	01	1	1511-	●	●	●
237	INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-382-0	01	1	1511-	●	●	●
238	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-383-0	01	1	1511-	●	●	●
239	TUBE ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-115-0	01	1	1511-	●	●	●
240	GASKET; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=7.4	8-97095-906-0	01	1	1511-	●	●	●
240	GASKET; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=14.5	8-97095-908-0	01	1	1511-	●	●	●
243	CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-508-0	01	1	1511-	●	●	●
244	PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-510-0	01	1	1511-	●	●	●

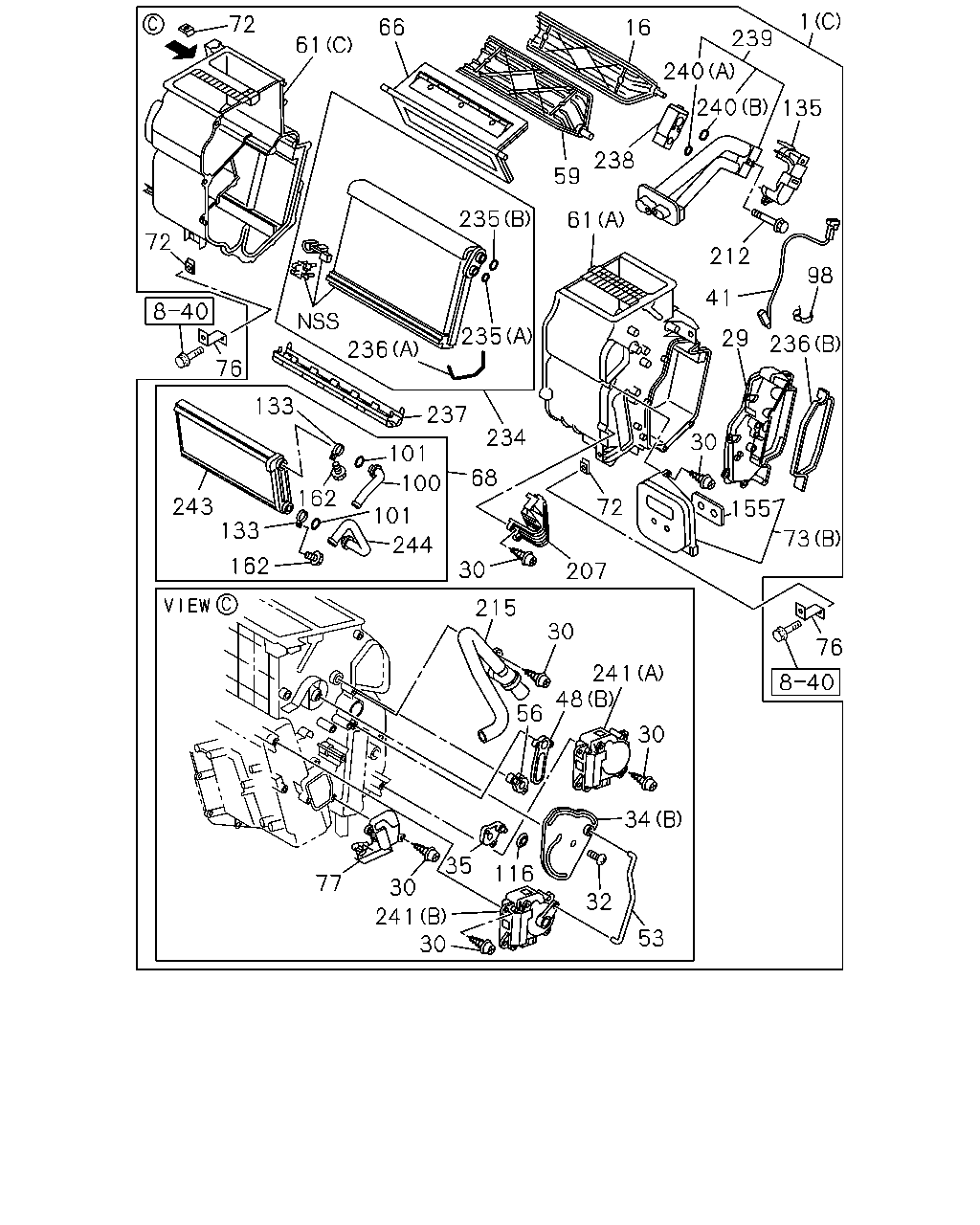

135 212 236 29 41 98 73 155 76 72 207 30 48 30 34 32 53 30 30 241 35 116 77 56 215 30 68 234 241 162 133 243 162 100 101 101 244 133 236 237 235 76 30 240 240 239 1 16 238 61 59 66 61 72 72 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HEATER UNIT FULLAUTO AIR CONDITIONER(C68) (C)	8-98021-973-4	01	1	1511-	●	●
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98021-972-4	01	1	1511-	●	●	●
1	HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98062-756-1	01	1	1511-	●	●	●
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-387-0	01	1	1511-	●	●	●
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1511-	●	●	●
30	SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING	8-97957-708-0	31	1	1511-	●	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	27	1	1511-	●	●	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	25	1	1511-	●	●	●
32	SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16	8-98047-416-0	01	1	1511-	●	●
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16	8-98047-416-0	03	1	1511-	●	●	●
34	LEVER; SHUTTER,HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-467-0	01	1	1511-	●	●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-389-0	01	1	1511-	●	●	●
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-392-0	01	1	1511-	●	●	●
41	THERMOSTAT; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-475-0	01	1	1511-	●	●
48	LEVER; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-468-0	01	1	1511-	●	●
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-391-0	01	1	1511-	●	●	●
53	ROD; SHUTTER LEVER FULLAUTO AIR CONDITIONER(C68)	8-98047-469-0	01	1	1511-	●	●
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-393-0	01	1	1511-	●	●	●
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-386-0	01	1	1511-	●	●	●
61	CASE; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (C)	8-98047-465-0	01	1	1511-	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-375-0	01	1	1511-	●	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	1511-	●	●	●
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-385-0	01	1	1511-	●	●	●
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-380-0	01	1	1511-	●	●	●
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6	8-98047-428-0	03	1	1511-	●	●	●
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98074-118-0	01	1	1511-	●	●	●
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41) (A)	8-98072-542-0	01	1	1511-	●	●	●
76	BRACKET; HTR UNIT	8-98009-742-1	02	1	1511-	●	●	●
77	COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-414-0	01	1	1511-	●	●	●
98	CLIP; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-477-0	01	1	1511-	●	●
100	PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-528-0	01	1	1511-	●	●	●
101	GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-531-0	02	1	1511-	●	●	●
116	BUSHING; LEVER FULLAUTO AIR CONDITIONER(C68)	8-98045-897-0	01	1	1511-	●	●
133	CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-530-0	02	1	1511-	●	●	●
135	COVER; HTR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-384-0	01	1	1511-	●	●	●
155	GROMMET; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-431-0	01	1	1511-	●	●	●
162	SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-529-0	02	1	1511-	●	●	●
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1511-	●	●	●
212	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X61	8-98047-415-0	02	1	1511-	●	●	●
215	DUCT ASM; SUB FULLAUTO AIR CONDITIONER(C68)	8-98047-476-0	01	1	1511-	●	●
234	EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-116-1	01	1	1511-	●	●	●
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=11.7	8-97095-907-0	01	1	1511-	●	●	●
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=14.5	8-97095-908-0	01	1	1511-	●	●	●
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-420-0	01	1	1511-	●	●	●
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-421-0	01	1	1511-	●	●	●
237	INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-382-0	01	1	1511-	●	●	●
238	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-383-0	01	1	1511-	●	●	●
239	TUBE ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-115-0	01	1	1511-	●	●	●
240	GASKET; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=7.4	8-97095-906-0	01	1	1511-	●	●	●
240	GASKET; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=14.5	8-97095-908-0	01	1	1511-	●	●	●
241	MOTOR ASM; SERVO FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-473-0	01	1	1511-	●	●
241	MOTOR ASM; SERVO FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-474-0	01	1	1511-	●	●
243	CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-508-0	01	1	1511-	●	●	●
244	PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-510-0	01	1	1511-	●	●	●
