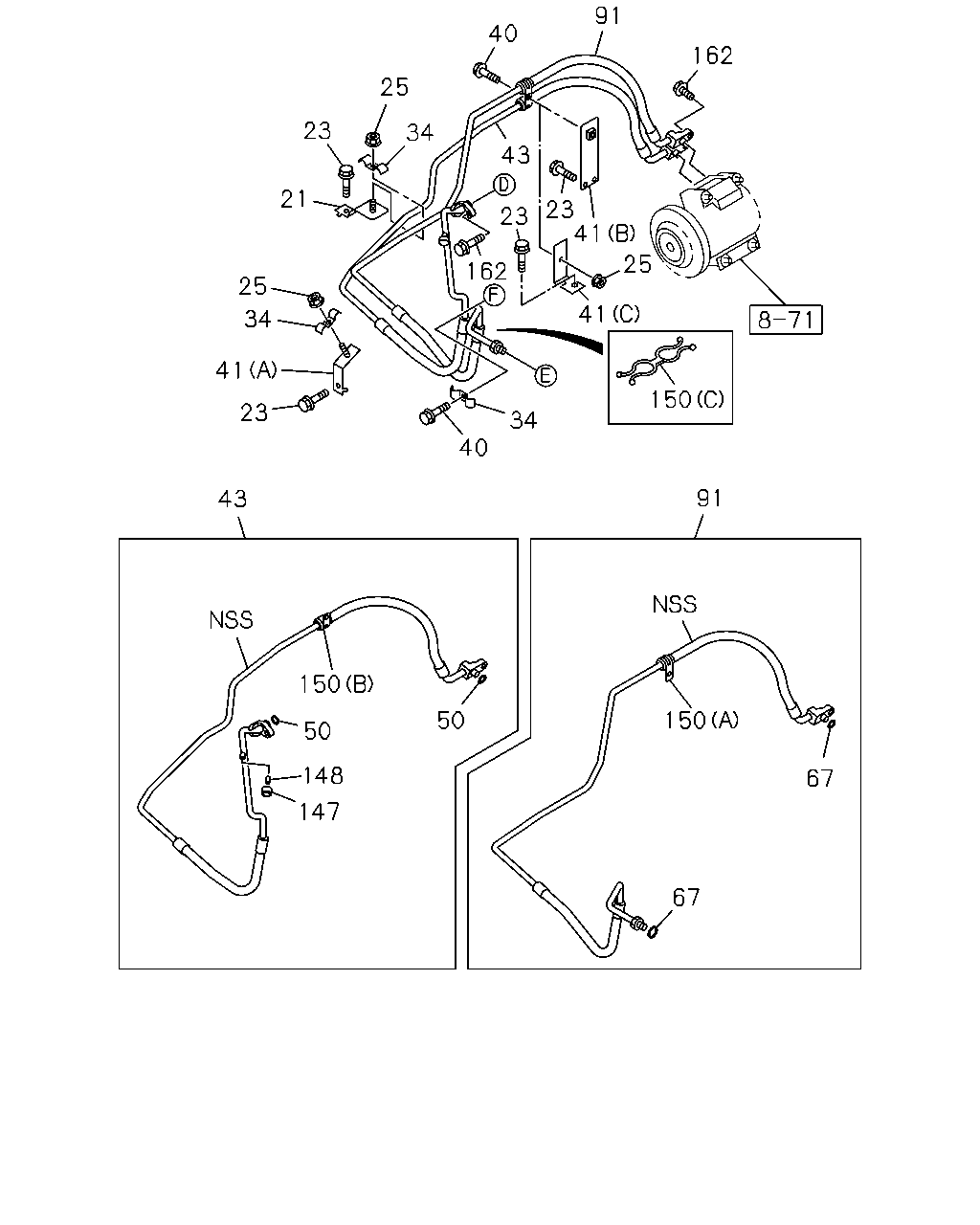

8-52 — PIPING; AIR CONDITIONING (#169292) — 49 parça

158 116 156 33 33 27 27 202 158 116 174 27 158 116 12 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98041-328-0	01	1	1511-	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=9 H=20 L=20	0-95207-308-0	01	1	1511-	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=16 H=24 L=20	0-95207-315-0	01	1	1511-	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	1511-	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X16 FLANGE	0-28650-616-0	02	1	1511-	●	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=7.4	8-97095-906-0	02	1	1511-	●	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=11.7	8-97095-907-0	01	1	1511-	●	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98151-702-0	01	1	1511-	●	●	●
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X25 FLANGE	0-28050-625-0	03	1	1511-	●	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) CAP MARK H	8-97095-911-0	01	1	1511-	●	●	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98041-330-0	01	1	1511-	●	●	●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-83564-391-0	01	1	1511-	●	●	●

67 67 150 50 150 50 148 147 43 23 41 34 25 21 23 25 34 40 43 23 162 34 40 25 41 23 162 91 91 41 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98010-187-0	01	1	1511-	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 FLANGE	0-28650-825-0	03	1	1511-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 FLANGE	0-28650-825-0	01	1	1511-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	01	1	1511-			●
23	BOLT; BRKT A/T<X9D> EXC. HEATER & DEFROSTER(C41) M8X25 FLANGE	0-28650-825-0	01	1	1511-			●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) MANUAL TRANSMISSION<X9C> M8X25 FLANGE	0-28650-825-0	02	1	1511-			●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8 FLANGE	0-91180-108-0	01	1	1511-	●	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) A/T<X9D> M8 FLANGE	0-91180-108-0	01	1	1511-			●
25	NUT; BRKT MANUAL TRANSMISSION<X9C> EXC. HEATER & DEFROSTER(C41) M8 FLANGE	0-91180-108-0	02	1	1511-			●
34	CLIP; COOLER PIPE EXC. HEATER & DEFROSTER(C41)	8-98043-673-0	03	1	1511-	●	●	●
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 FLANGE	0-28650-825-0	02	1	1511-	●	●	●
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98032-049-0	01	1	1511-	●	●
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98010-188-1	01	1	1511-	●	●	●
41	BRACKET; PIPE CLIP MANUAL TRANSMISSION<X9C> EXC. HEATER & DEFROSTER(C41) (C)	8-98151-192-0	01	1	1511-			●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98076-319-0	01	1	1511-	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) MANUAL TRANSMISSION<X9C>	8-98076-319-0	01	1	1511-			●
43	HOSE; FLEX,A/C,EVAP TO CMPR A/T<X9D> EXC. HEATER & DEFROSTER(C41)	8-98308-370-0	01	1	1511-			●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=14.5	8-97095-908-0	02	1	1511-	●	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) MANUAL TRANSMISSION<X9C> ID=14.5	8-97095-908-0	02	1	1511-			●
50	GASKET; FLEX HOSE,A/C A/T<X9D> EXC. HEATER & DEFROSTER(C41) ID=14.5	8-97095-908-0	02	1	1511-			●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=11.7	8-97095-907-0	02	1	1511-	●	●	●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98076-320-0	01	1	1511-	●	●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60) MANUAL TRANSMISSION<X9C>	8-98076-320-0	01	1	1511-			●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60) A/T<X9D>	8-98308-369-0	01	1	1511-			●
147	CAP; FLEX HOSE A/T<X9D> EXC. HEATER & DEFROSTER(C41) CAP MARK L	8-97095-910-0	01	1	1511-			●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) CAP MARK L	1-83539-331-0	01	1	1511-	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) MANUAL TRANSMISSION<X9C> CAP MARK L	1-83539-331-0	01	1	1511-			●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97095-909-0	01	1	1511-	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) MANUAL TRANSMISSION<X9C>	8-97095-909-0	01	1	1511-			●
148	VALVE; FLEX HOSE A/T<X9D> EXC. HEATER & DEFROSTER(C41)	8-97095-909-0	01	1	1511-			●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	1-83574-249-0	01	1	1511-	●	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	1-83574-264-0	01	1	1511-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) MANUAL TRANSMISSION<X9C> (B)	1-83574-264-0	01	1	1511-			●
150	CLIP; HOSE A/T<X9D> EXC. HEATER & DEFROSTER(C41) (B)	1-83574-264-0	01	1	1511-			●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-94423-042-0	01	1	1511-	●	●	●
162	BOLT; FLEX HOSE EXC. HEATER & DEFROSTER(C41) M6X25 FLANGE	0-28050-625-0	03	1	1511-	●	●	●
