◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11714 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#169288) — 56 parça
çizim 501754
531
BalonParca AdiParca NoAdetTipApplied Date A B C
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1511- ● ● ●

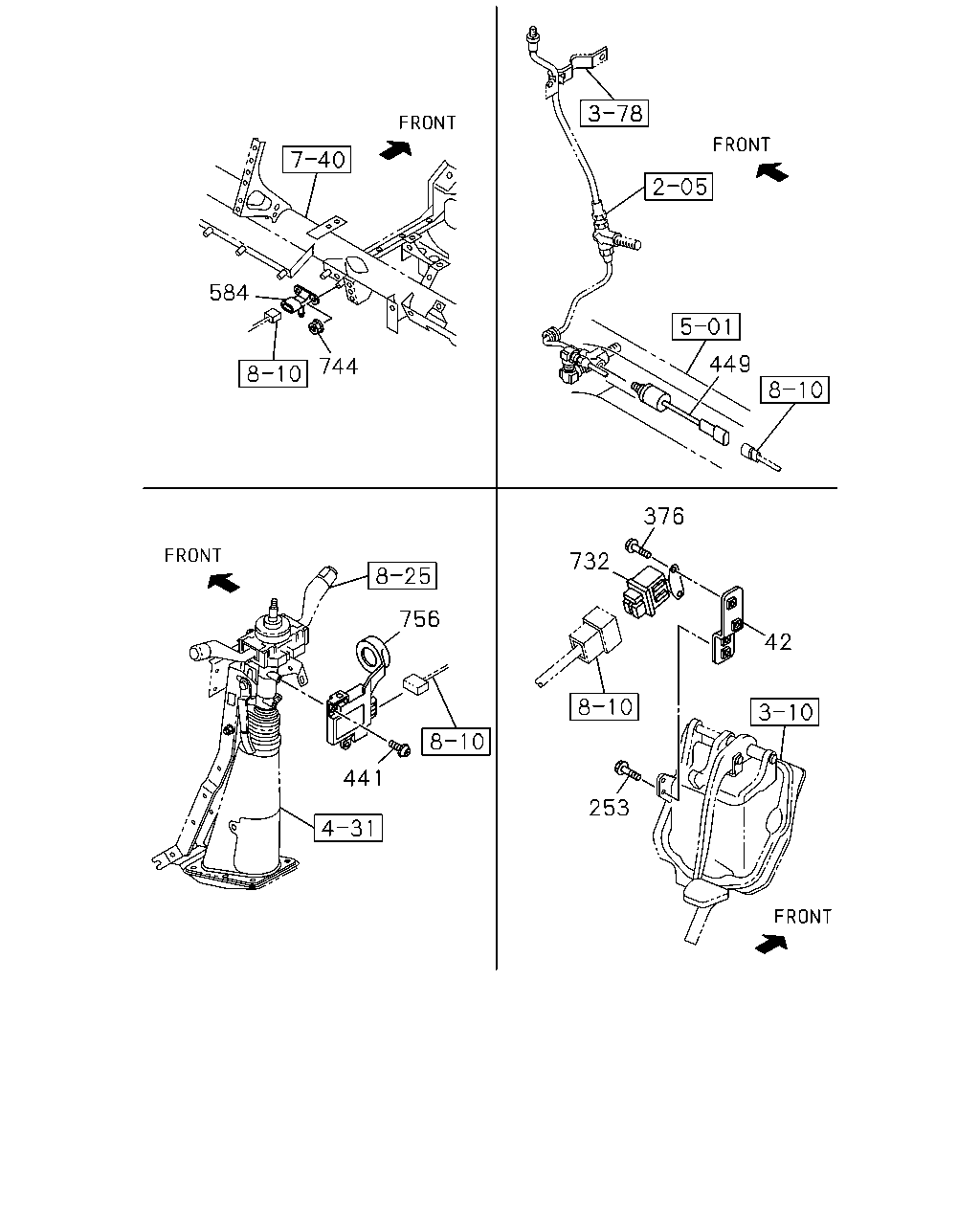

çizim 503092
584 744 449 376 42 253 441 756 732
BalonParca AdiParca NoAdetTipApplied Date A B C
42 BRACKET; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-051-2 01 1 1511- ●
253 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE 		0-28050-816-0 02 1 1511- ●
376 BOLT; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1511- ●
441 SCREW; CONT UNIT
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 1511- ● ● ●
449 SWITCH; OIL PRESS,CLUTCH
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> ASSISTOR SHIFT CONTROL<WX8> 		1-82410-143-1 01 1 1511- ● ● ●
584 SENSOR; PRESSURE 8-98020-514-0 01 1 1511- ● ● ●
732 RELAY; EDS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-82550-337-1 01 1 1511- ●
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 1511- ● ● ●
756 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1511- ● ● ●

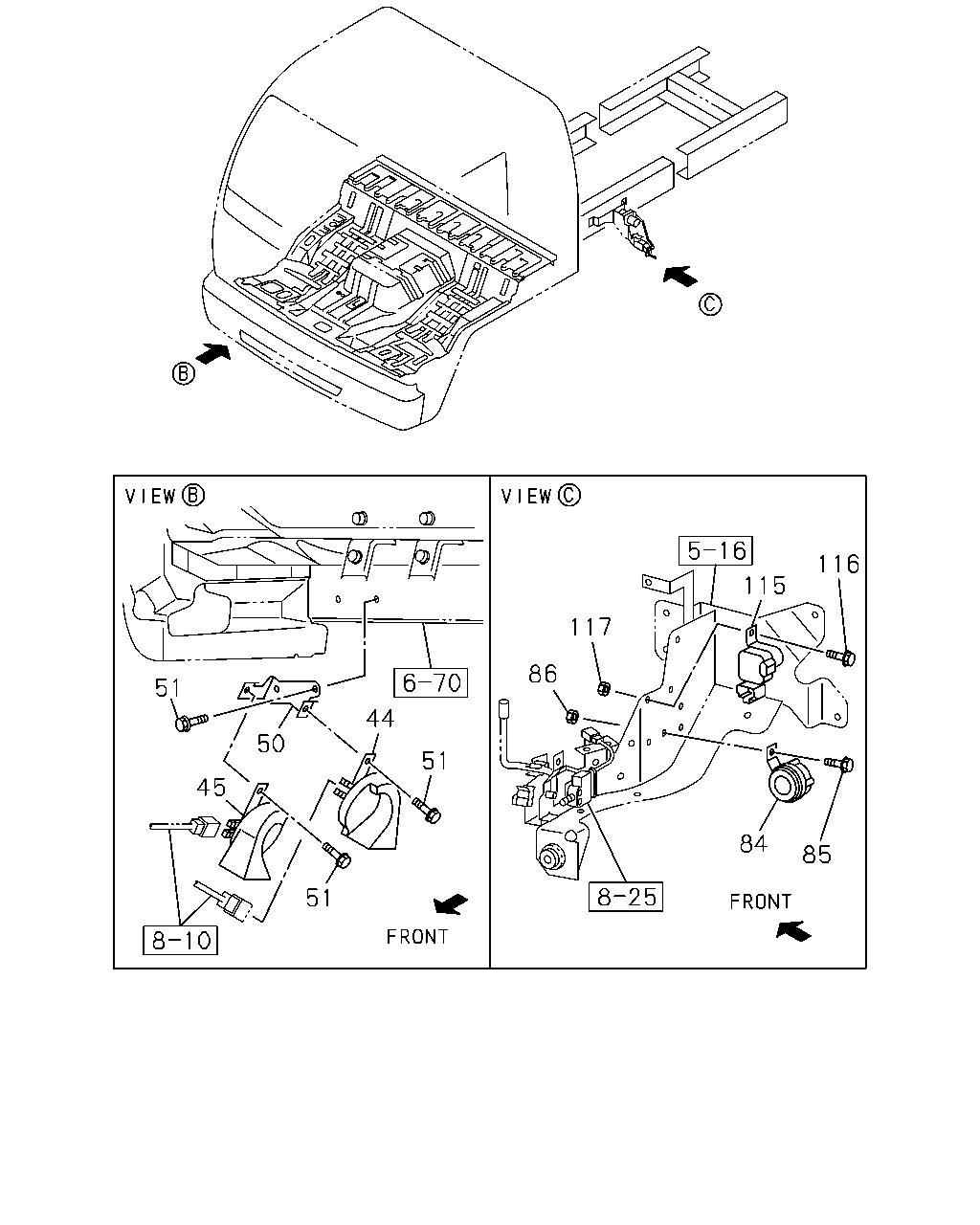

çizim 503219
117 115 84 85 116 86 51 44 50 45 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C
44 HORN; HIGH NOTE 8-97611-677-2 01 1 1511- ● ● ●
45 HORN; LOW NOTE 8-97611-676-2 01 1 1511- ● ● ●
50 BRACKET; HORN 8-97613-300-2 01 1 1511- ● ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 04 1 1511- ● ● ●
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 1511- ●
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 1511- ●
86 NUT; BUZZER
M8 FLANGE 		0-91180-108-0 01 1 1511- ●
115 RELAY; POWER CAB TILT UNIT
24V NIKKO 		8-98005-631-1 01 1 1511- ●
116 BOLT; RELAY FIX
M8X20 FLANGE 		0-28650-820-0 02 1 1511- ●
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 1511- ●

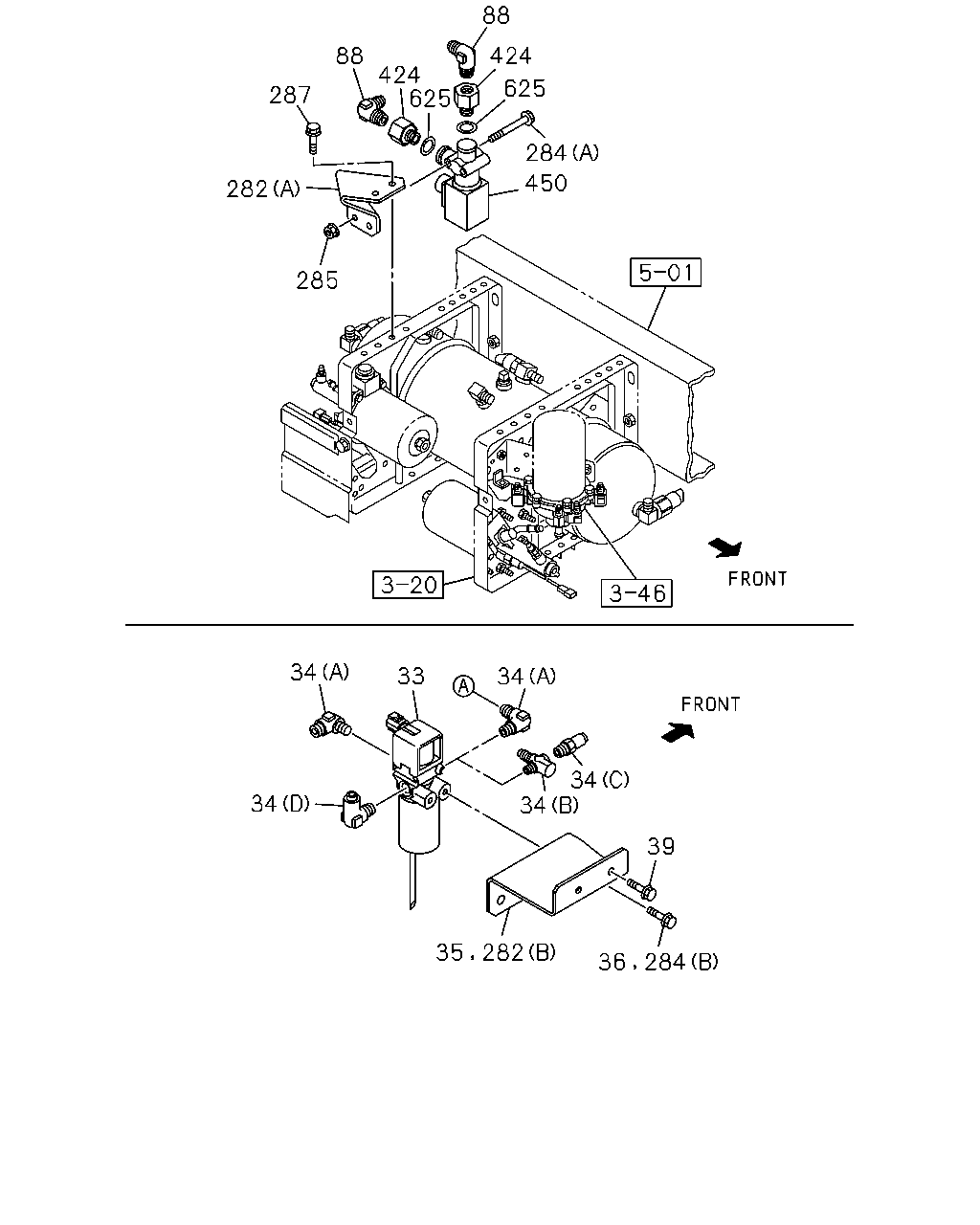

çizim 503278
282 287 88 88 625 284 424 625 424 285 450 34 33 34 34 34 34 39 36 284 282 35
BalonParca AdiParca NoAdetTipApplied Date A B C
33 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82563-871-2 01 1 1511- ● ● ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1511- ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1511- ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1511- ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1511- ● ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1511- ● ● ●
35 BRACKET; MAG VLV,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98034-702-0 01 1 1511- ● ●
36 BOLT; MAG VLV,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE 		0-28651-030-0 02 1 1511- ● ● ●
88 CONNECTOR; MAG VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 1511- ● ●
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		8-98034-702-0 01 1 1511- ●
282 BRACKET; MAG VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98049-845-1 01 1 1511- ● ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1511- ●
284 BOLT; MAG VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) M8X60 FLANGE 		0-28050-860-0 02 1 1511- ● ●
285 NUT; MAG VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
287 BOLT; BRKT FIX
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
424 ADAPTER
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) M16 & PT3/8 STRAIGHT 		1-09661-044-0 02 1 1511- ● ●
450 VALVE; MAG
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) 		1-82564-278-0 01 1 1511- ● ●
625 GASKET; CONNECTOR
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) ID=16.2 OD=24 		9-09571-416-0 02 1 1511- ● ●

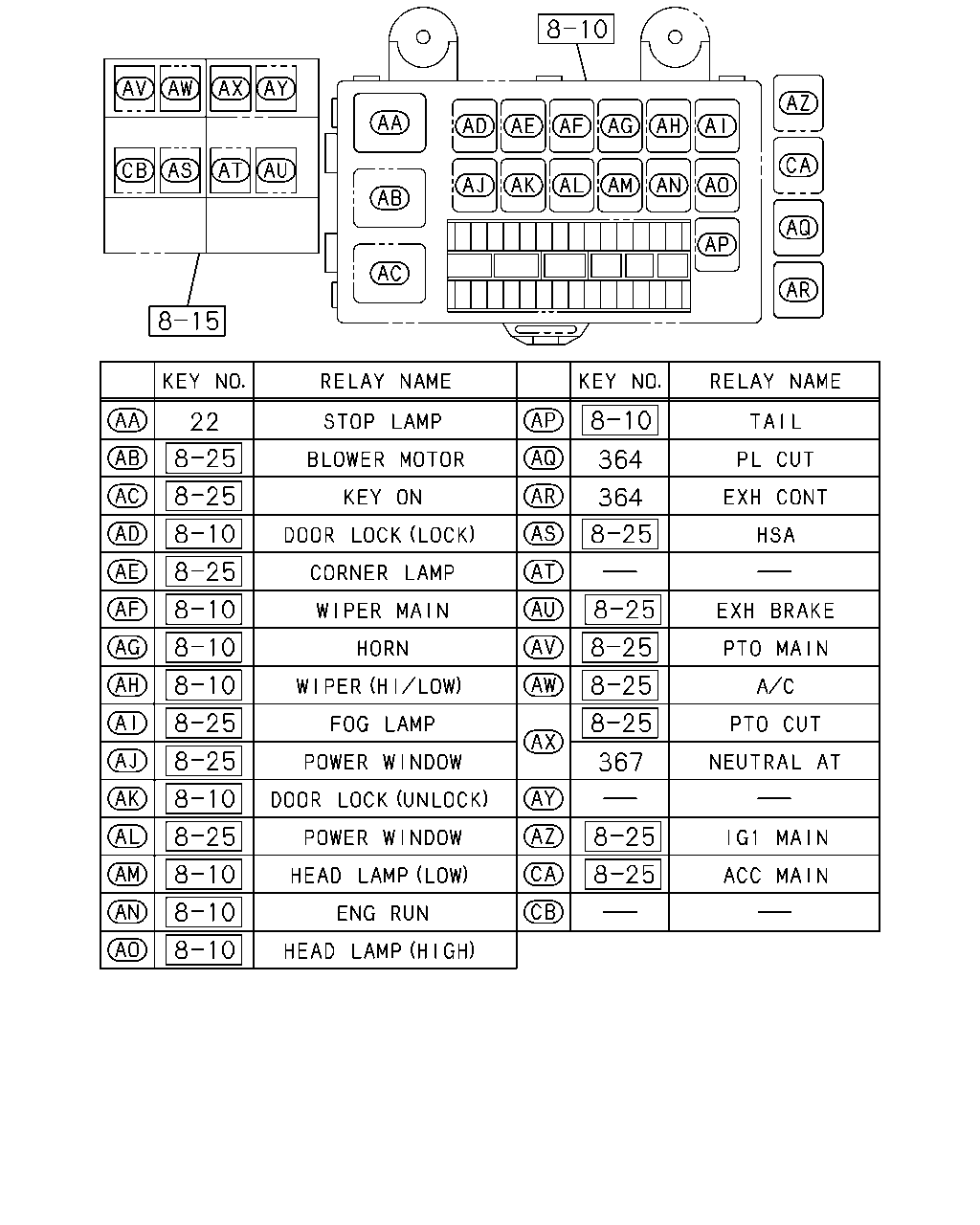

çizim 503342
22 364 364 367
BalonParca AdiParca NoAdetTipApplied Date A B C
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1511- ● ● ●
364 RELAY; AUTO CRUISE OFF
A/T<X9D> 24V 10A PANASONIC 		8-97173-035-1 03 1 1511- ● ● ●
367 RELAY; NEUTRAL
A/T<X9D> 24V 10A PANASONIC 		8-97173-035-1 01 1 1511- ● ● ●

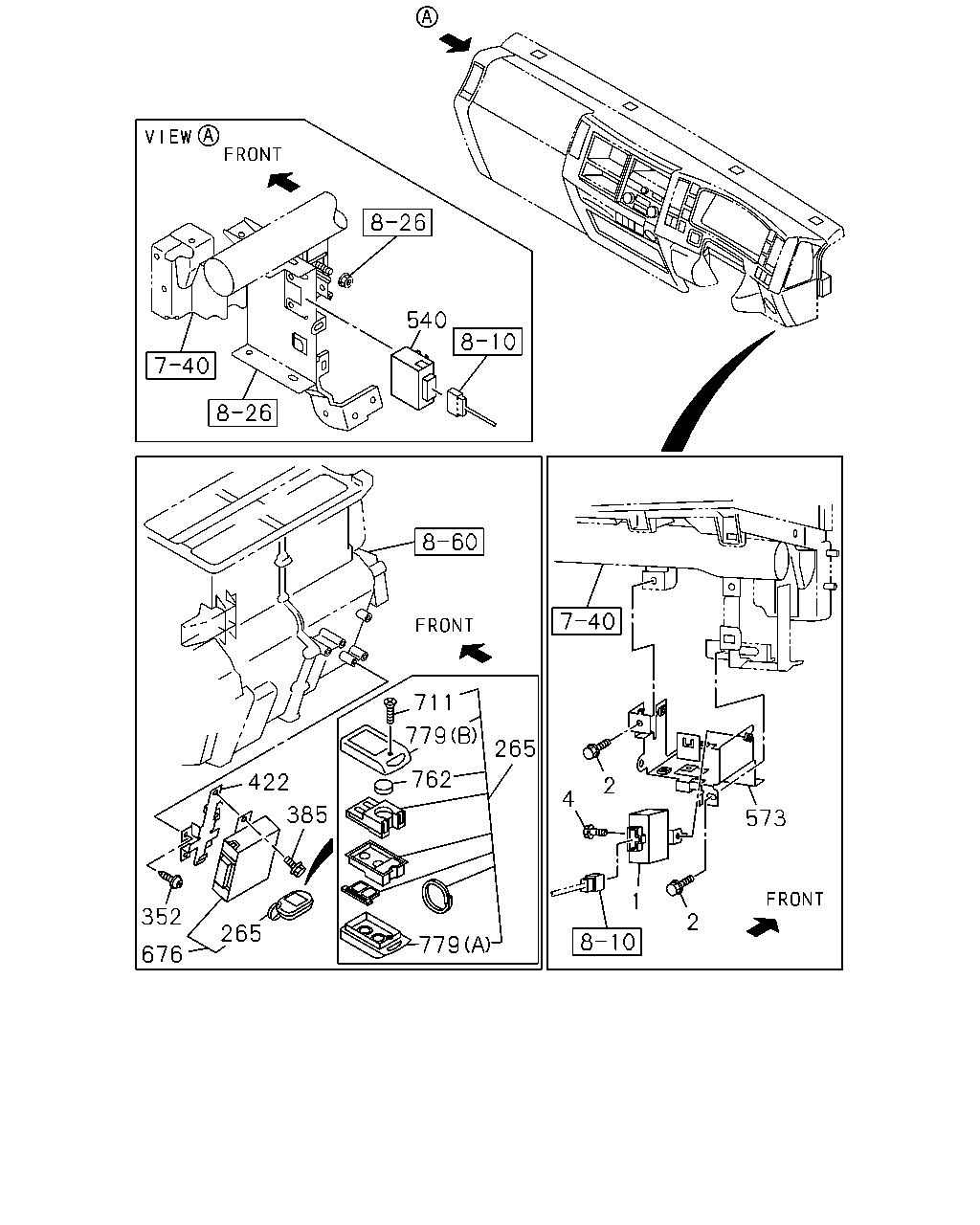

çizim 503511
540 352 676 265 385 422 711 779 265 762 779 4 2 1 2 573
BalonParca AdiParca NoAdetTipApplied Date A B C
1 UNIT; FLASHER 8-98025-533-1 01 1 1511- ● ● ●
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 1511- ● ● ●
4 SCREW; FLASHER UNIT
BOLT M6X16 FLANGE 		0-28650-616-0 01 1 1511- ● ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98218-236-0 02 1 1511- ● ● ●
352 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1511- ● ● ●
385 BOLT; CONT UNIT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1511- ● ● ●
422 BRACKET; CONT UNIT 8-98055-281-1 01 1 1511- ● ● ●
540 RELAY; WIPER INTERVAL 8-98233-976-0 01 1 1511- ● ● ●
573 BRACKET; FLASHER UNIT 8-97609-984-5 01 1 1511- ● ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98218-231-0 01 1 1511- ● ● ●
711 SCREW; TRANSMITTER
M2X5 		8-98218-239-0 02 1 1511- ● ● ●
762 BATTERY 8-98078-061-0 02 1 1511- ● ● ●
779 COVER; TRANSMITTER
(A) 		8-98218-240-0 02 1 1511- ● ● ●
779 COVER; TRANSMITTER
(B) 		8-98218-243-0 02 1 1511- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
