◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11714 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#169282) — 164 parça

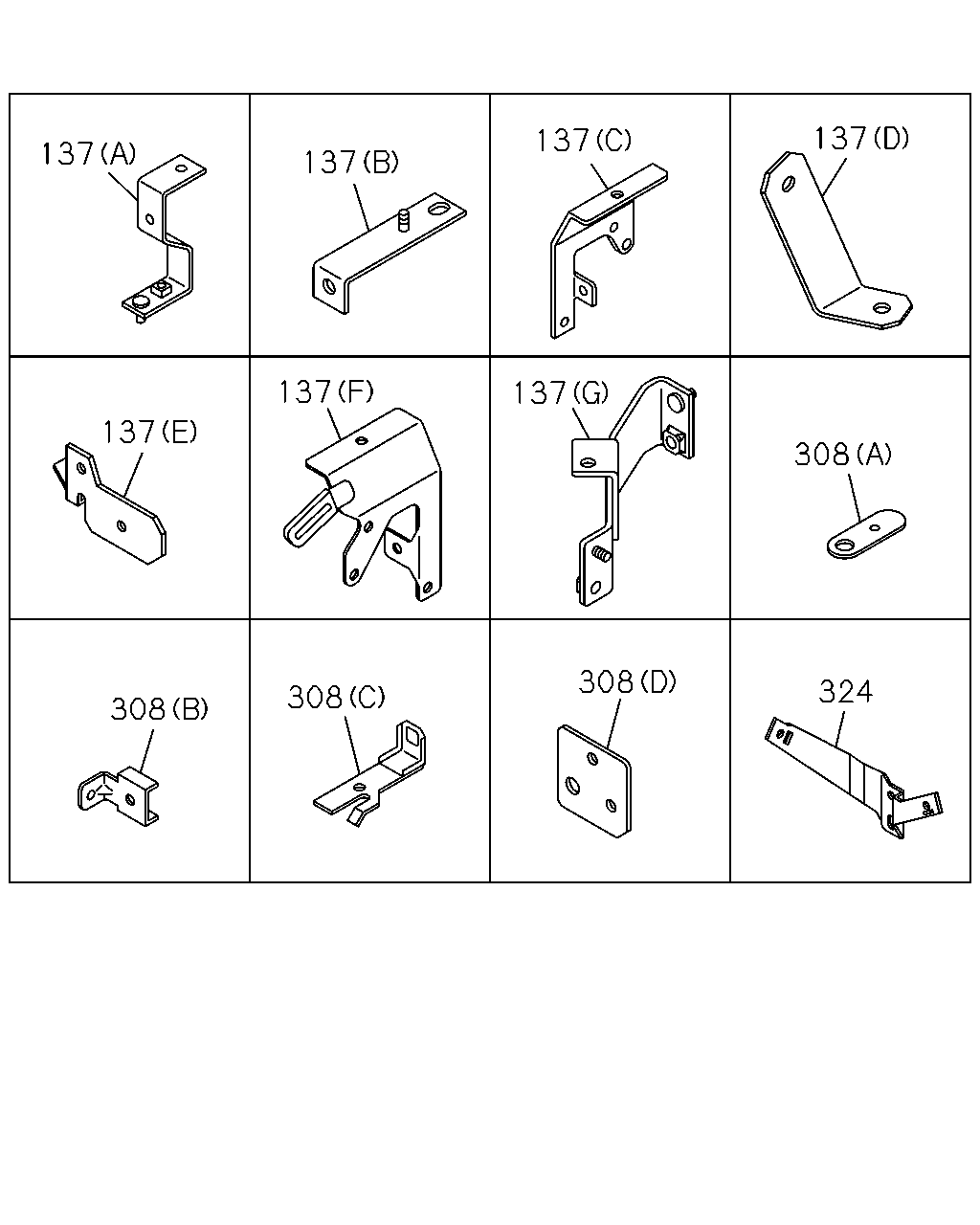

çizim 501928
137 137 137 137 137 137 137 308 308 308 308 324
BalonParca AdiParca NoAdetTipApplied Date A B C
137 BRACKET; HARNESS CLAMP
(G) 		8-98249-803-1 01 1 1511- ●
137 BRACKET; HARNESS CLAMP
(D) 		8-97614-728-1 01 1 1511- ● ● ●
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-013-0 01 1 1511- ● ● ●
137 BRACKET; HARNESS CLAMP
(E) 		8-98059-231-1 01 1 1511- ● ● ●
137 BRACKET; HARNESS CLAMP
TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-97618-098-2 01 1 1511- ● ● ●
137 BRACKET; HARNESS CLAMP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98246-061-0 01 1 1511- ● ● ●
137 BRACKET; HARNESS CLAMP
(A) 		8-98065-904-0 01 1 1511- ● ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1511- ● ● ●
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 1511- ● ● ●
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 1511- ● ● ●
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 1511- ● ● ●
324 BRACKET; CLIP 8-98061-654-2 01 1 1511- ● ● ●
324 BRACKET; CLIP 8-98061-653-2 01 1 1511- ● ● ●

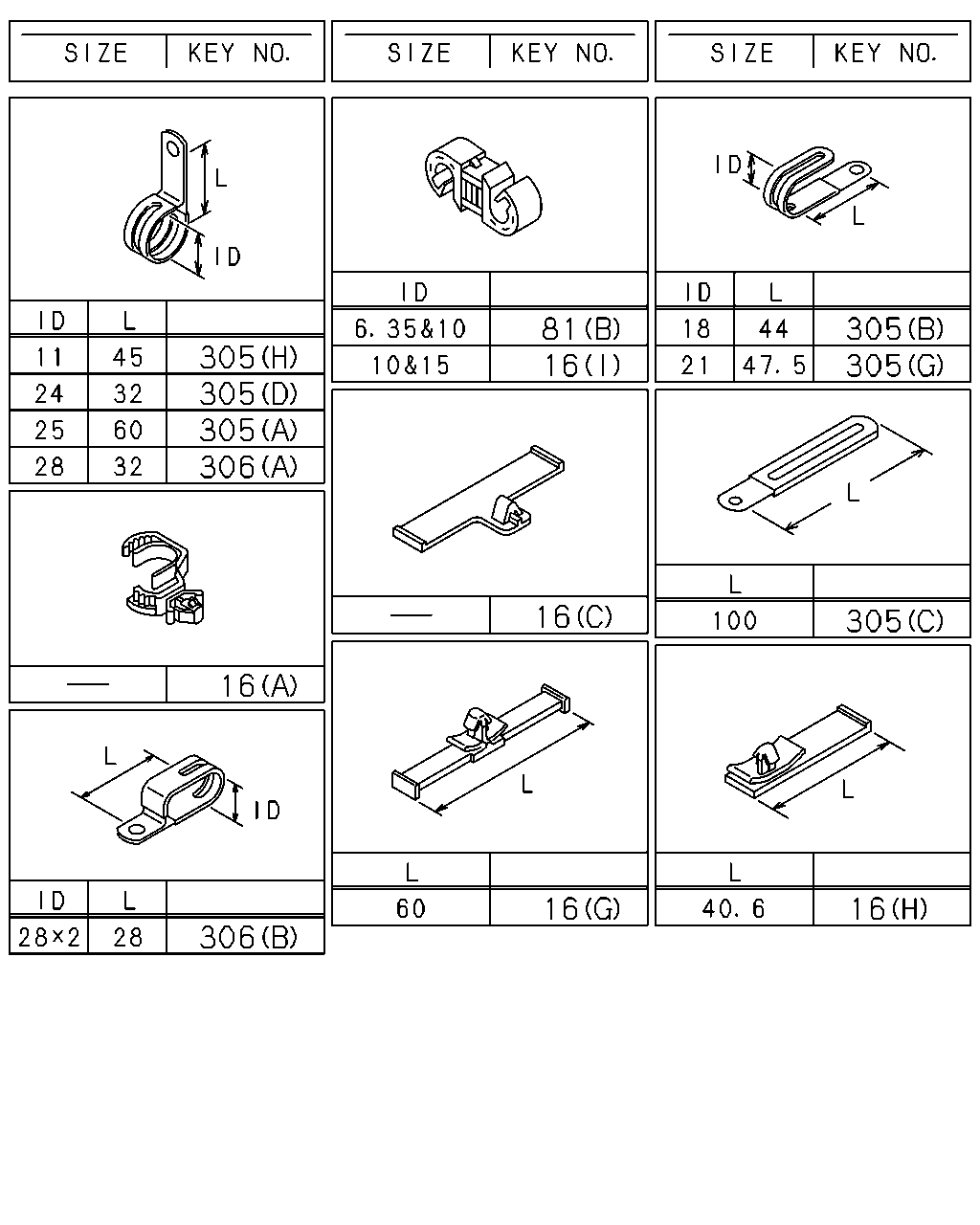

çizim 503110
305 305 306 16 306 81 16 16 305 305 305 16 305 16
BalonParca AdiParca NoAdetTipApplied Date A B C
16 CLIP; HARNESS
(K) ID=11 L=16 		0-95235-025-0 02 1 1511- ● ● ●
16 CLIP; HARNESS
(M) ID=11X2 L=16 		1-09700-734-0 01 1 1511- ● ● ●
16 CLIP; HARNESS
(F) L=350 		1-09707-183-0 01 1 1511- ● ● ●
16 CLIP; HARNESS
(I) ID=10 & 15 		1-09709-279-1 04 1 1511- ● ● ●
16 CLIP; HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 03 1 1511- ● ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1511- ● ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1511- ● ● ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1511- ● ● ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1511- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1511- ● ● ●
16 CLIP; HARNESS
LCT2500 A/T ALLISON(Y5W) (E) ID=11 L=20 		0-95235-035-0 02 1 1511- ● ● ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (J) ID=19 L=32 		0-95235-866-0 02 1 1511- ● ● ●
16 CLIP; HARNESS
(G) L=60 		8-94449-165-0 02 1 1511- ●
16 CLIP; HARNESS
(D) L=60 		8-97063-335-0 02 1 1511- ●
81 CLIP; HARNESS
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1511- ● ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(K) L=140 		8-97122-360-0 01 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1511- ● ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 1511- ● ● ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1511- ● ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1511- ● ● ●
çizim 503174
7 53 53 59 59 59 59 59 69
BalonParca AdiParca NoAdetTipApplied Date A B C
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1511- ● ● ●
53 BRACKET; HARNESS
(B) 		8-98052-458-0 01 1 1511- ● ● ●
53 BRACKET; HARNESS
LCT2500 A/T ALLISON(Y5W) (A) 		1-82698-296-0 02 1 1511- ● ● ●
59 BRACKET; FRAME HARNESS
MANUAL TRANSMISSION<X9C> (A) L=85 		8-98044-743-0 01 1 1511- ● ●
59 BRACKET; FRAME HARNESS
(C) 		8-97609-264-2 01 1 1511- ● ● ●
59 BRACKET; FRAME HARNESS
(B) 		8-97616-357-3 01 1 1511- ● ● ●
59 BRACKET; FRAME HARNESS
(E) 		8-98306-304-0 01 1 1511- ● ● ●
59 BRACKET; FRAME HARNESS
(D) L=75 		1-47478-323-0 01 1 1511- ●
69 BRACKET; CLIP
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-82698-167-0 01 1 1511- ● ● ●

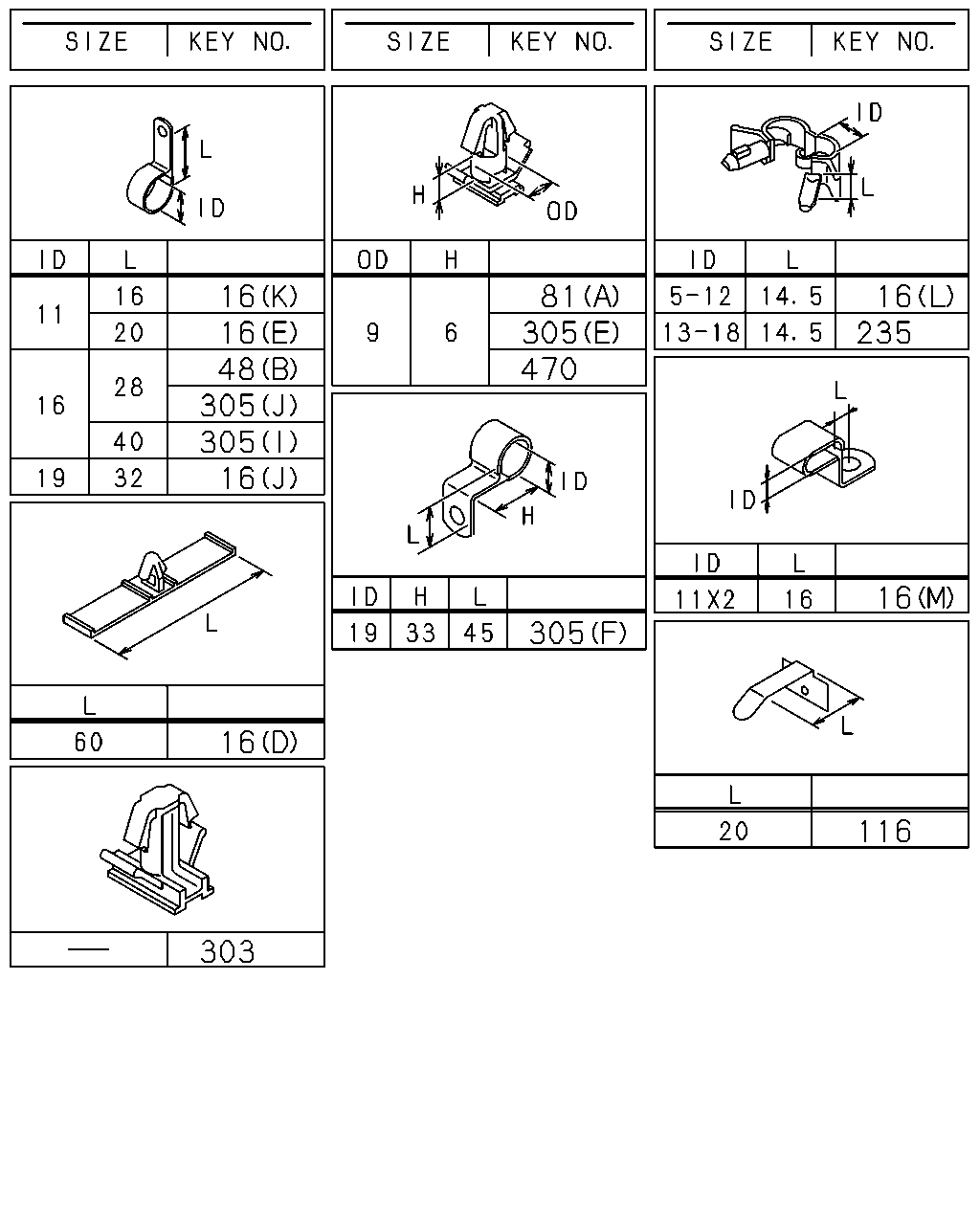

çizim 503267
16 48 16 305 16 305 16 303 81 470 305 305 16 16 116 235
BalonParca AdiParca NoAdetTipApplied Date A B C
16 CLIP; HARNESS
(K) ID=11 L=16 		0-95235-025-0 02 1 1511- ● ● ●
16 CLIP; HARNESS
(M) ID=11X2 L=16 		1-09700-734-0 01 1 1511- ● ● ●
16 CLIP; HARNESS
(F) L=350 		1-09707-183-0 01 1 1511- ● ● ●
16 CLIP; HARNESS
(I) ID=10 & 15 		1-09709-279-1 04 1 1511- ● ● ●
16 CLIP; HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 03 1 1511- ● ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1511- ● ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1511- ● ● ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1511- ● ● ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1511- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1511- ● ● ●
16 CLIP; HARNESS
LCT2500 A/T ALLISON(Y5W) (E) ID=11 L=20 		0-95235-035-0 02 1 1511- ● ● ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (J) ID=19 L=32 		0-95235-866-0 02 1 1511- ● ● ●
16 CLIP; HARNESS
(G) L=60 		8-94449-165-0 02 1 1511- ●
16 CLIP; HARNESS
(D) L=60 		8-97063-335-0 02 1 1511- ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1511- ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=16 L=28 		0-95235-556-0 01 1 1511- ●
81 CLIP; HARNESS
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1511- ● ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 1511- ● ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 1511- ● ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 02 1 1511- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=13-18 L=14.5 		1-09709-290-0 01 1 1511- ● ● ●
303 CLIP; HARNESS POWER TILT RELAY
OD=8.95 H=6.25 		8-97375-754-0 01 1 1511- ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(K) L=140 		8-97122-360-0 01 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1511- ● ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 1511- ● ● ●
470 CLIP; HARNESS,LICENSE LAMP
COUNTRY NEW ZEALAND(CX6) OD=9 H=6 		1-09709-178-0 01 1 1511- ●

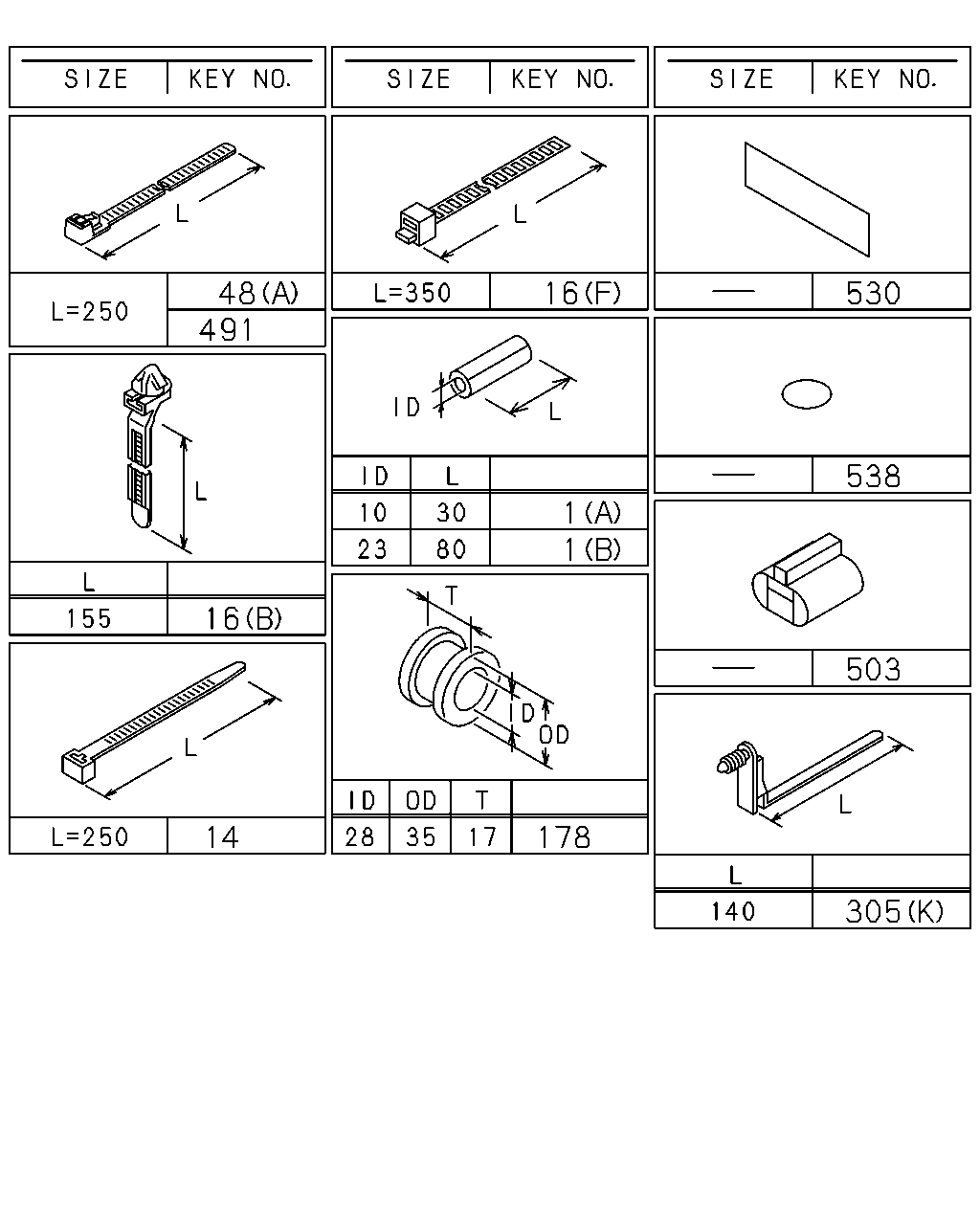

çizim 503445
48 16 14 16 1 1 178 530 538 503 305 491
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 1511- ● ● ●
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1511- ● ● ●
14 CLIP; BAND,HARNESS
LCT2500 A/T ALLISON(Y5W) L=250 		8-98216-430-0 15 1 1511- ● ● ●
14 CLIP; BAND,HARNESS
MZW6P M/T(RSZ) L=250 		8-98216-430-0 14 1 1511- ● ● ●
16 CLIP; HARNESS
(K) ID=11 L=16 		0-95235-025-0 02 1 1511- ● ● ●
16 CLIP; HARNESS
(M) ID=11X2 L=16 		1-09700-734-0 01 1 1511- ● ● ●
16 CLIP; HARNESS
(F) L=350 		1-09707-183-0 01 1 1511- ● ● ●
16 CLIP; HARNESS
(I) ID=10 & 15 		1-09709-279-1 04 1 1511- ● ● ●
16 CLIP; HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 03 1 1511- ● ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1511- ● ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1511- ● ● ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1511- ● ● ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1511- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1511- ● ● ●
16 CLIP; HARNESS
LCT2500 A/T ALLISON(Y5W) (E) ID=11 L=20 		0-95235-035-0 02 1 1511- ● ● ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (J) ID=19 L=32 		0-95235-866-0 02 1 1511- ● ● ●
16 CLIP; HARNESS
(G) L=60 		8-94449-165-0 02 1 1511- ●
16 CLIP; HARNESS
(D) L=60 		8-97063-335-0 02 1 1511- ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1511- ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=16 L=28 		0-95235-556-0 01 1 1511- ●
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1511- ● ● ●
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(K) L=140 		8-97122-360-0 01 1 1511- ● ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1511- ● ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 1511- ● ● ●
491 CLIP; BAND,HTR HOSE & HARNESS
A/T<X9D> L=250 		5-09707-030-1 03 1 1511- ● ● ●
503 CONNECTOR 1-82690-668-0 01 1 1511- ● ● ●
503 CONNECTOR
HEATER & DEFROSTER(C41) 		1-82690-668-0 01 1 1511- ● ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1511- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1511- ● ● ●
530 SEAL; HARNESS
A/T<X9D> 180X40 		1-72498-019-1 01 1 1511- ● ● ●
530 SEAL; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40 		1-72498-019-1 01 1 1511- ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 23 1 1511- ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1511- ● ● ●

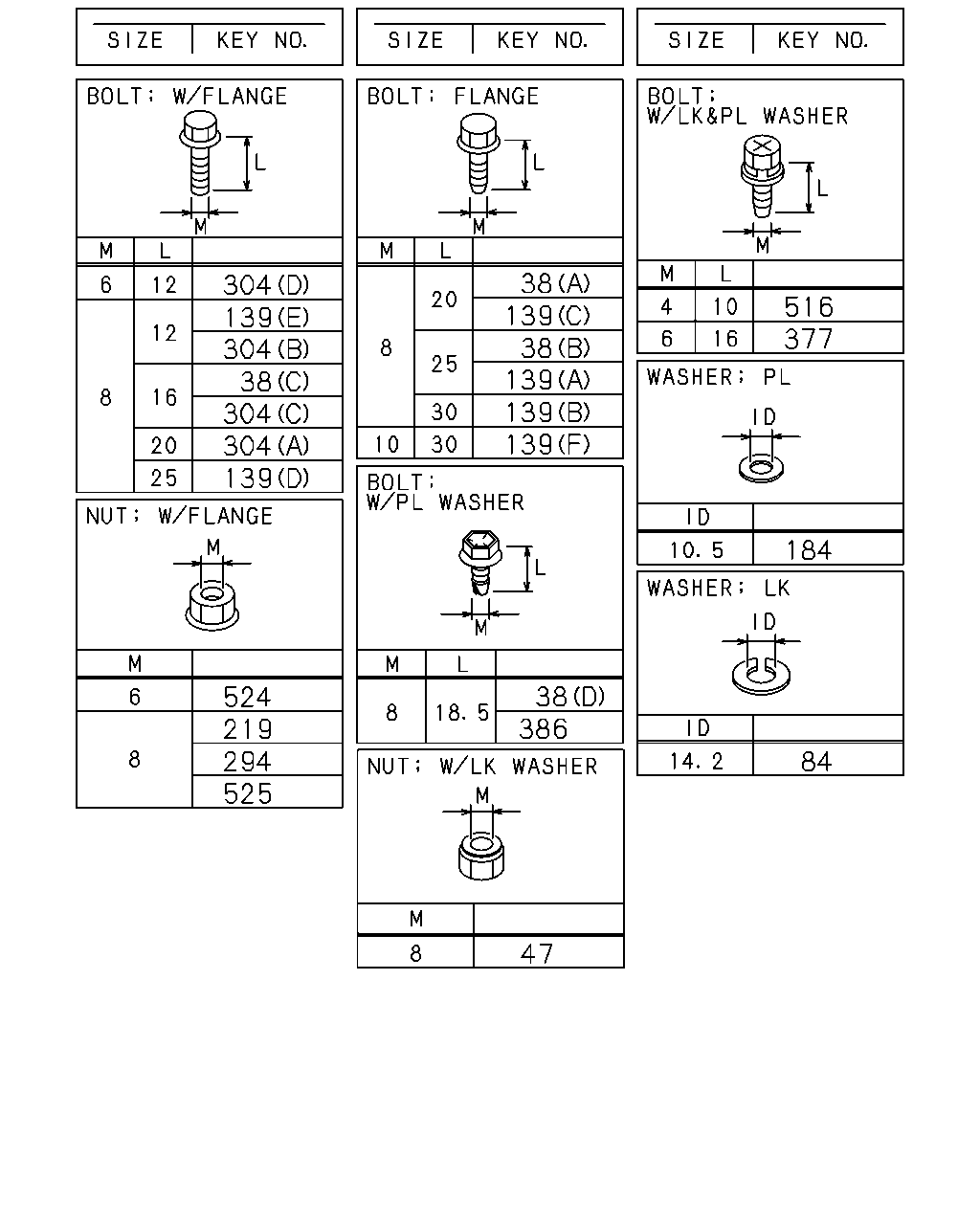

çizim 503447
304 304 139 38 304 139 304 524 219 294 525 38 38 139 139 139 139 38 386 47 516 184 377 84
BalonParca AdiParca NoAdetTipApplied Date A B C
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 03 1 1511- ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ● ●
38 BOLT; CLIP,HARNESS
(D) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1511- ● ● ●
38 BOLT; CLIP,HARNESS
LCT2500 A/T ALLISON(Y5W) (C) M8X16 FLANGE 		0-28050-816-0 01 1 1511- ● ● ●
38 BOLT; CLIP,HARNESS
LCT2500 A/T ALLISON(Y5W) (A) M8X20 FLANGE 		8-98105-048-0 01 1 1511- ● ● ●
38 BOLT; CLIP,HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ●
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1511- ● ● ●
84 WASHER; LK BRKT,HARNESS
ID=14.2 		0-91510-814-0 02 1 1511- ● ● ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1511- ● ● ●
139 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ● ● ●
139 BOLT; BRKT
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ● ● ●
139 BOLT; BRKT
MANUAL TRANSMISSION<X9C> (A) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1511- ● ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1511- ● ● ●
139 BOLT; BRKT
(F) M10X30 FLANGE 		0-28651-030-0 01 1 1511- ● ● ●
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 1511- ● ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1511- ● ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1511- ●
294 NUT
M8 FLANGE 		0-91180-108-0 05 1 1511- ● ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1511- ●
304 BOLT; ENG HARNESS CLIP
(D) M6X12 FLANGE 		0-28050-612-0 01 1 1511- ● ● ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1511- ● ● ●
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1511- ● ● ●
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1511- ● ● ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1511- ● ● ●
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1511- ● ● ●
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1511- ● ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1511- ● ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 03 1 1511- ● ● ●
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 1511- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
