Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#169281) — 344 parça

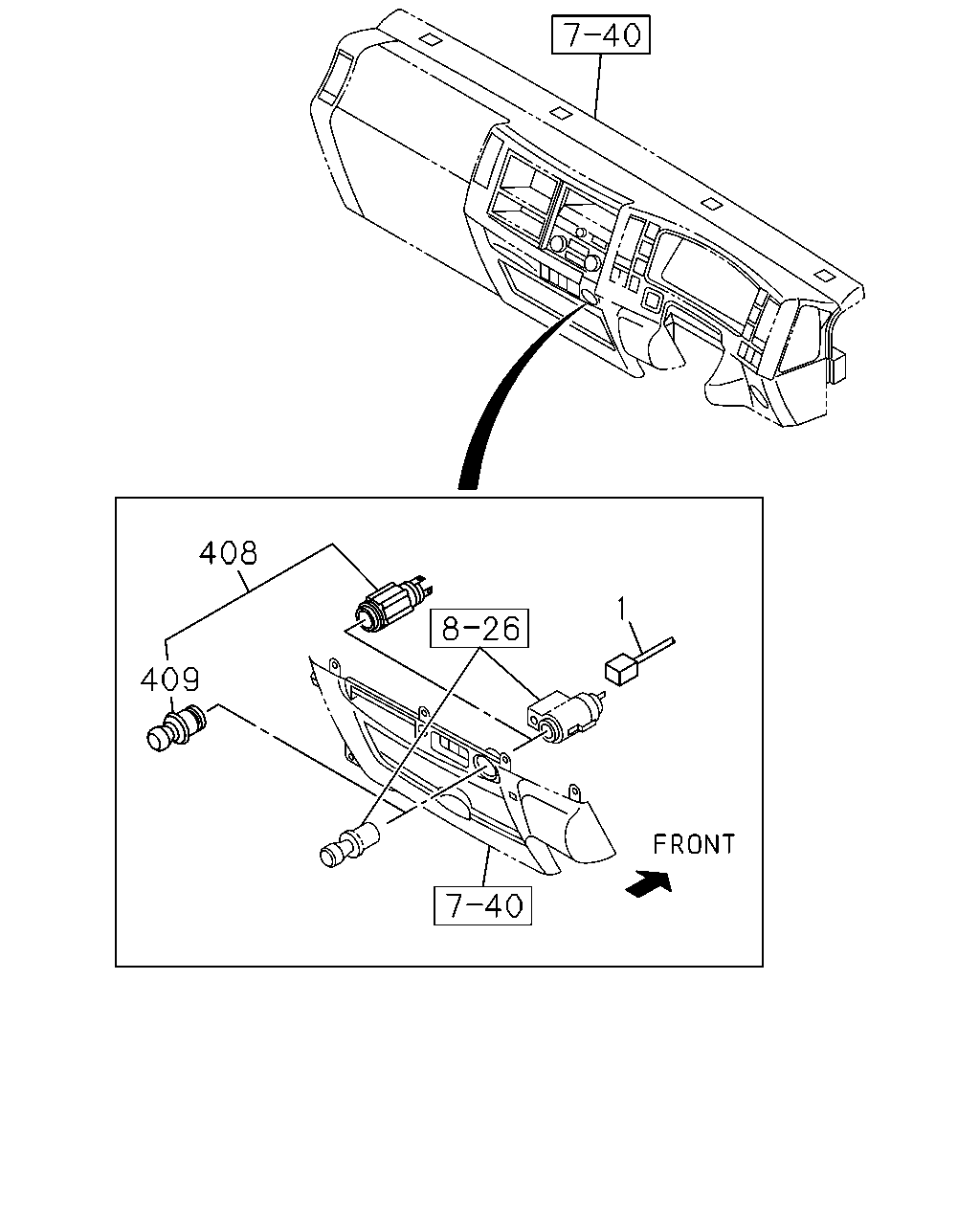

408 409 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-894-2	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-894-2	01	1	1511-		●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-896-2	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-896-2	01	1	1511-		●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-895-2	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-895-2	01	1	1511-		●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-897-2	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-897-2	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-903-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-907-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-905-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-909-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-902-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-906-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-904-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-908-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-898-2	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-900-2	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-899-2	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-901-2	01	1	1511-		●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-918-2	01	1	1511-			●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-919-2	01	1	1511-			●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-921-2	01	1	1511-			●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-923-2	01	1	1511-			●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-920-2	01	1	1511-			●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-922-2	01	1	1511-			●
408	SOCKET ASM; ACCESSORY EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98169-757-0	01	1	1511-	●	●	●
409	CAP; ACCESSORY SOCKET EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98183-771-0	01	1	1511-	●	●	●

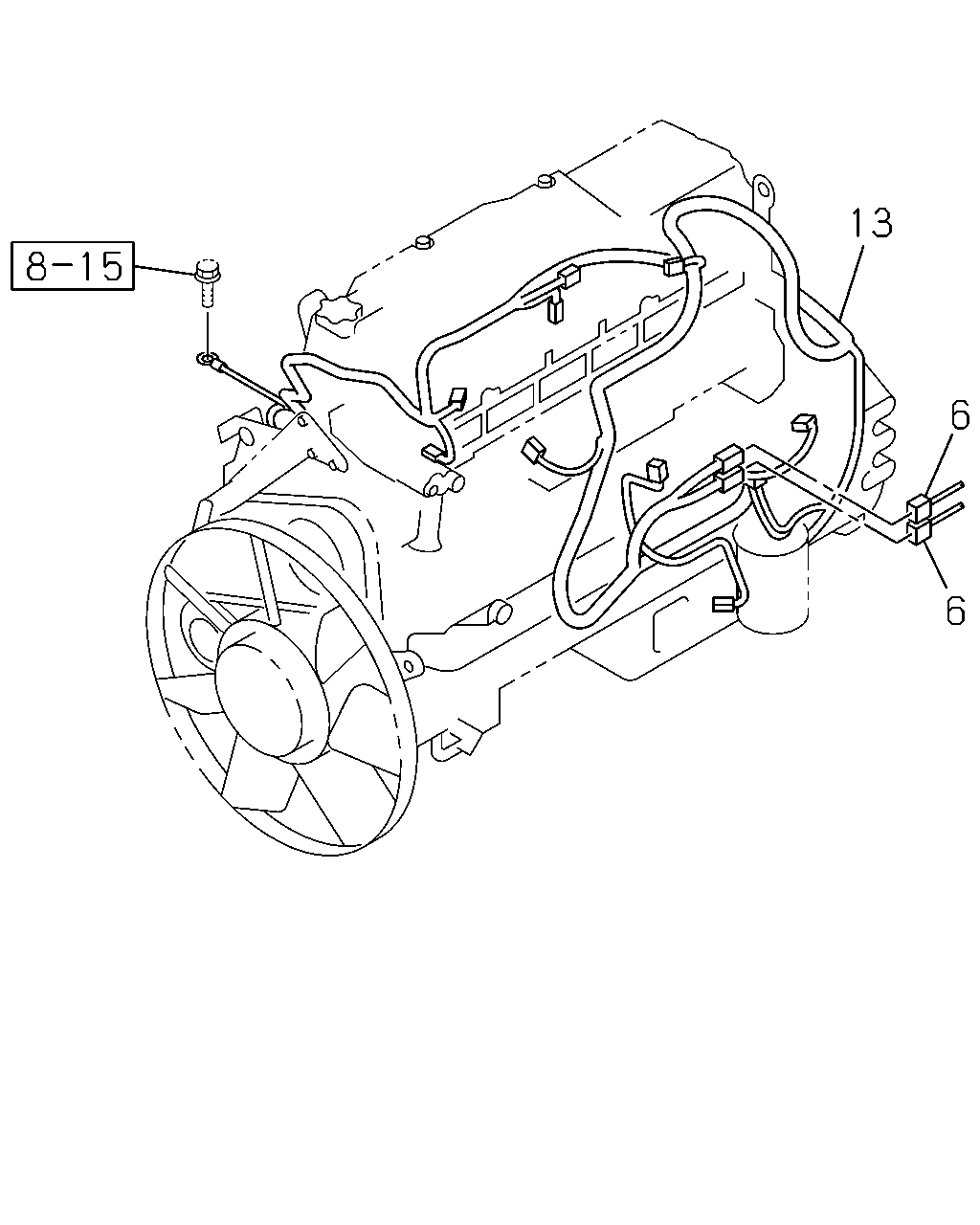

13 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W)	8-98303-326-1	01	1	1511-	●	●
6	HARNESS; FRAME MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-324-1	01	1	1511-	●	●
6	HARNESS; FRAME MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98305-060-1	01	1	1511-		●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W)	8-98303-328-0	01	1	1511-			●
6	HARNESS; FRAME MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-327-0	01	1	1511-			●
13	HARNESS; ENG MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44)	8-98328-515-0	01	1	1511-	●	●	●
13	HARNESS; ENG MZW6P M/T(RSZ) GENERATOR 24V50A(K89)	8-98328-514-0	01	1	1511-	●	●	●
13	HARNESS; ENG LCT2500 A/T ALLISON(Y5W) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44)	8-98328-521-0	01	1	1511-	●	●	●
13	HARNESS; ENG LCT2500 A/T ALLISON(Y5W) GENERATOR 24V50A(K89)	8-98328-520-0	01	1	1511-	●	●	●

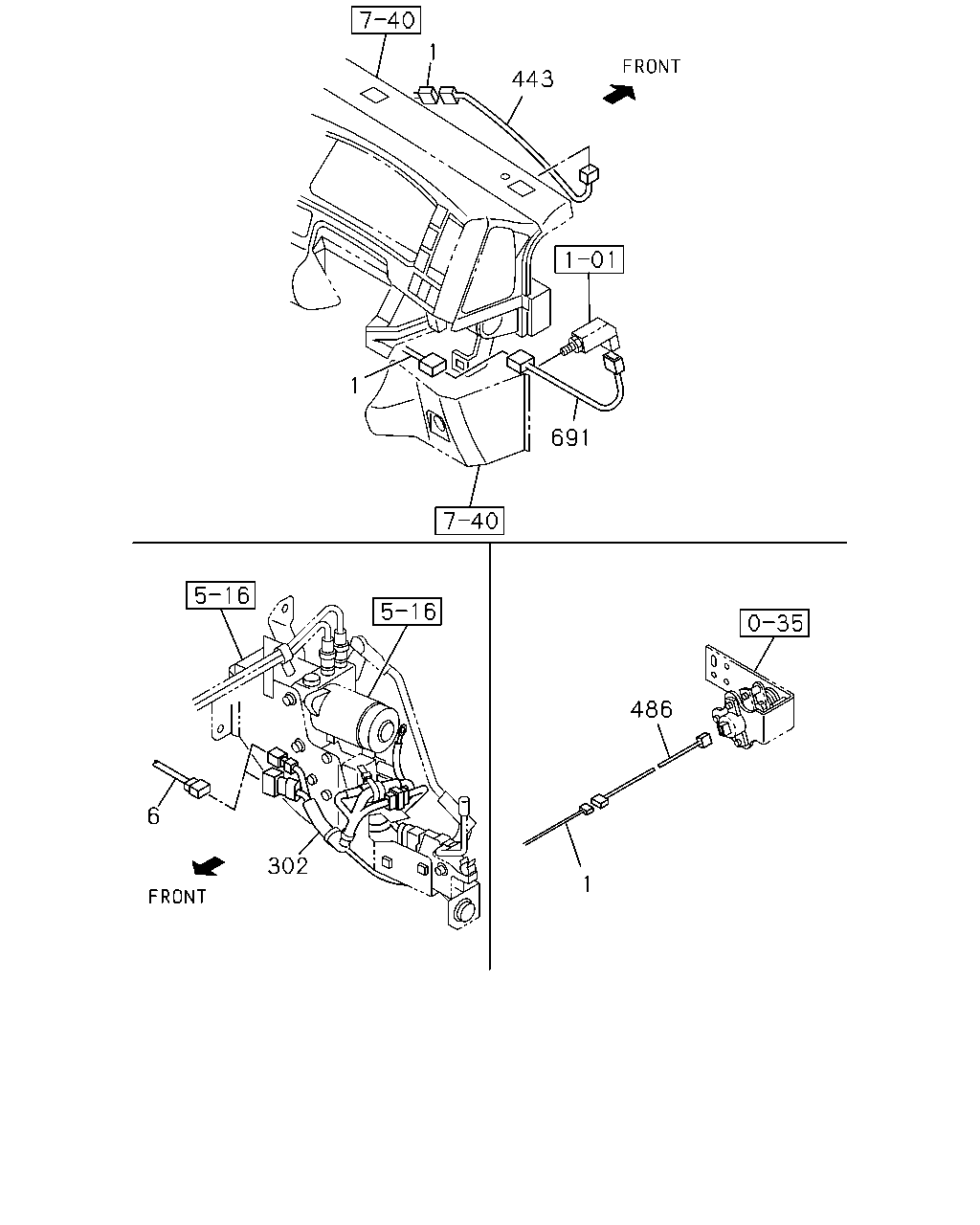

691 443 1 486 1 302 6 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-894-2	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-894-2	01	1	1511-		●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-896-2	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-896-2	01	1	1511-		●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-895-2	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-895-2	01	1	1511-		●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-897-2	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-897-2	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-903-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-907-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-905-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-909-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-902-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-906-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-904-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-908-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-898-2	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-900-2	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-899-2	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-901-2	01	1	1511-		●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-918-2	01	1	1511-			●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-919-2	01	1	1511-			●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-921-2	01	1	1511-			●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-923-2	01	1	1511-			●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-920-2	01	1	1511-			●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-922-2	01	1	1511-			●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W)	8-98303-326-1	01	1	1511-	●	●
6	HARNESS; FRAME MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-324-1	01	1	1511-	●	●
6	HARNESS; FRAME MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98305-060-1	01	1	1511-		●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W)	8-98303-328-0	01	1	1511-			●
6	HARNESS; FRAME MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-327-0	01	1	1511-			●
302	HARNESS; POWER CAB TILT	8-97622-116-0	01	1	1511-			●
443	HARNESS; EXT,A/C FULLAUTO AIR CONDITIONER(C68)	8-98096-565-0	01	1	1511-	●	●
486	HARNESS; ALL SPEED ACCEL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82675-898-0	01	1	1511-	●	●	●
691	HARNESS; IDLE CONT	8-98049-014-2	01	1	1511-	●	●	●

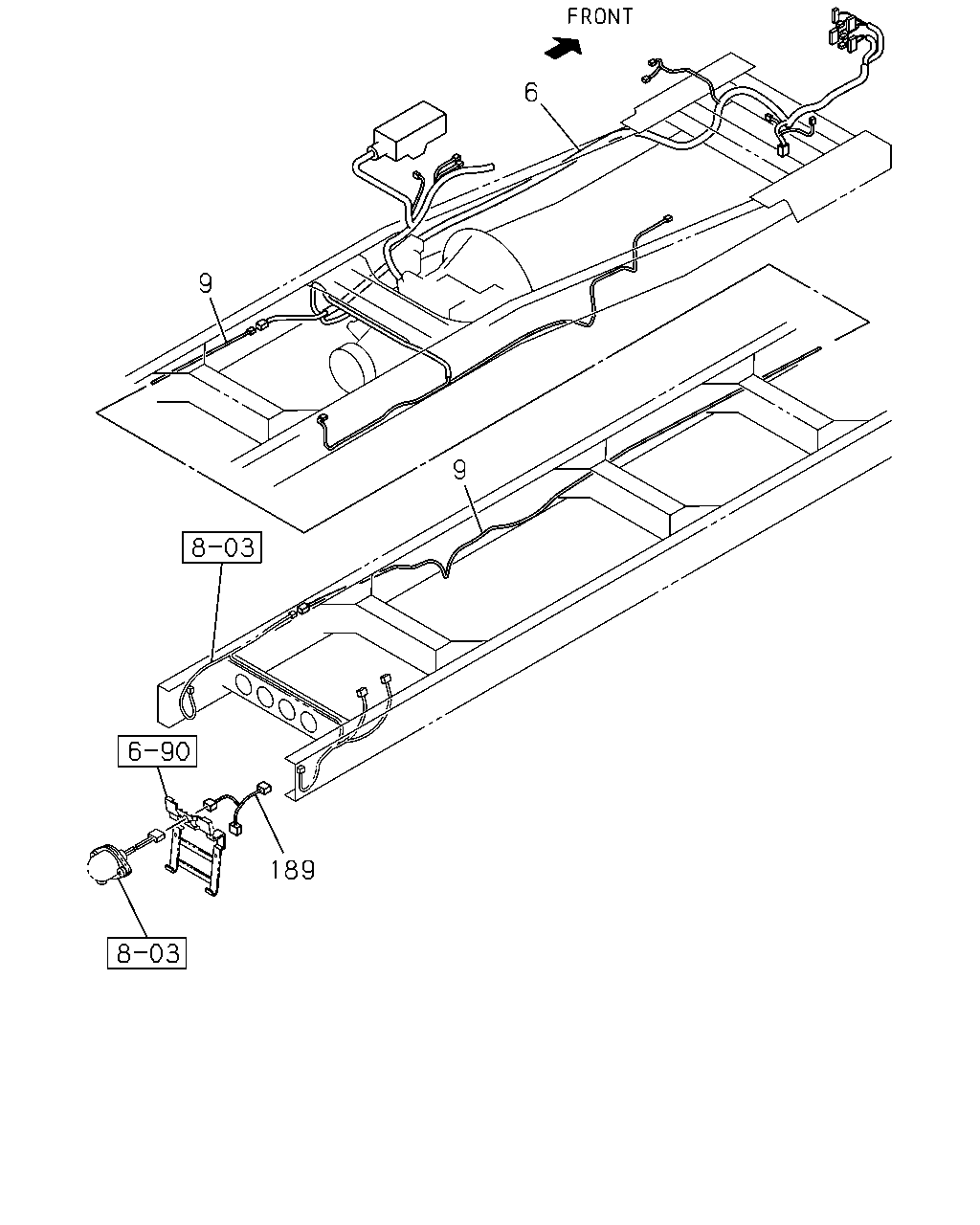

6 9 9 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W)	8-98303-326-1	01	1	1511-	●	●
6	HARNESS; FRAME MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-324-1	01	1	1511-	●	●
6	HARNESS; FRAME MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98305-060-1	01	1	1511-		●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W)	8-98303-328-0	01	1	1511-			●
6	HARNESS; FRAME MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-327-0	01	1	1511-			●
9	HARNESS; FRAME,RR WHEEL BASE 4300MM(43W)	8-98232-915-1	01	1	1511-	●
9	HARNESS; FRAME,RR WHEEL BASE 5100MM(51W)	8-98232-916-1	01	1	1511-	●
9	HARNESS; FRAME,RR WHEEL BASE 4300MM(43W)	8-98168-581-0	01	1	1511-		●
9	HARNESS; FRAME,RR WHEEL BASE 5500MM(55W)	8-98168-596-0	01	1	1511-		●
9	HARNESS; FRAME,RR WHEEL BASE 5100MM(51W)	8-98168-586-0	01	1	1511-		●	●
189	HARNESS; EXT	8-98131-066-0	01	1	1511-	●		●
189	HARNESS; EXT EXC. COUNTRY NEW ZEALAND(CX6)	8-98131-066-0	01	1	1511-		●

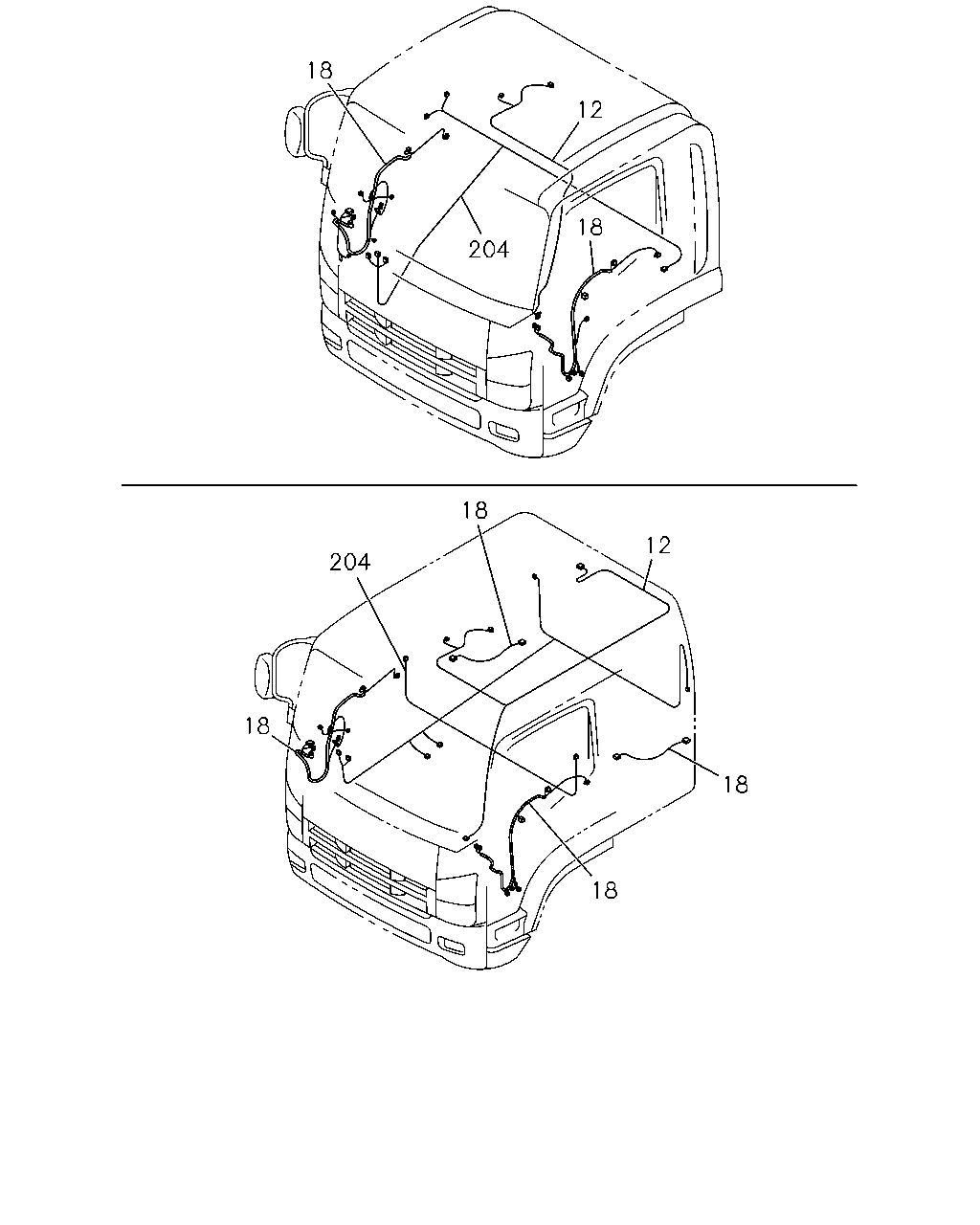

18 204 12 18 18 204 18 12 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	HARNESS; ROOF	8-98079-071-1	01	1	1511-	●	●
12	HARNESS; ROOF	8-98085-265-0	01	1	1511-			●
18	HARNESS; DOOR FRONT	8-98225-379-0	01	1	1511-	●		●
18	HARNESS; DOOR CORNERING LAMP<T87> FRONT	8-98225-379-0	01	1	1511-		●
18	HARNESS; DOOR FRONT	8-98225-378-0	01	1	1511-	●		●
18	HARNESS; DOOR CORNERING LAMP<T87> FRONT	8-98225-378-0	01	1	1511-		●
18	HARNESS; DOOR EXC. CORNERING LAMP<T87> FRONT	8-98079-079-5	01	1	1511-		●
18	HARNESS; DOOR EXC. CORNERING LAMP<T87> FRONT	8-98079-076-5	01	1	1511-		●
18	HARNESS; DOOR REAR	8-98056-047-1	02	1	1511-			●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5)	8-98084-201-1	01	1	1511-	●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-201-1	01	1	1511-		●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3)	8-98084-196-2	01	1	1511-	●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-196-2	01	1	1511-		●
204	HARNESS; CABLE,FLOOR LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5)	8-98085-251-1	01	1	1511-	●	●
204	HARNESS; CABLE,FLOOR LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3)	8-98085-250-2	01	1	1511-	●	●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-214-1	01	1	1511-		●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-210-2	01	1	1511-		●
204	HARNESS; CABLE,FLOOR LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5)	8-98306-563-0	01	1	1511-			●
204	HARNESS; CABLE,FLOOR LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3)	8-98306-564-0	01	1	1511-			●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5)	8-98085-255-1	01	1	1511-			●
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3)	8-98085-253-1	01	1	1511-			●

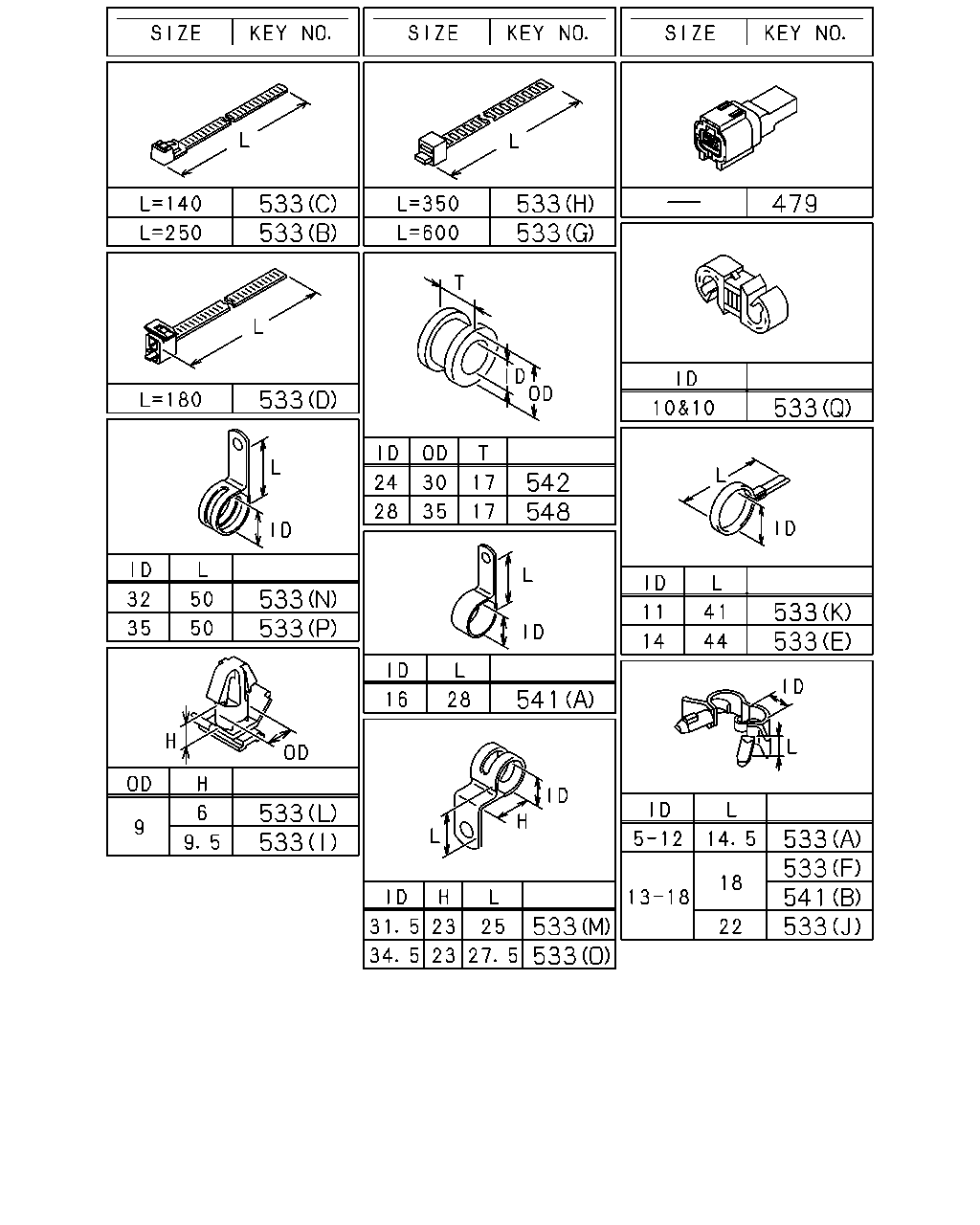

533 533 533 533 533 533 533 533 533 548 542 541 533 533 533 533 533 541 533 533 533 479

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
479	CAP; CONNECTOR EXC. H.S.A SYSTEM<6EP>	1-82691-191-0	01	1	1511-	●	●
479	CAP; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	1-82691-191-0	01	1	1511-			●
533	CLIP (Q) ID=10 & 10	1-09709-277-1	02	1	1511-			●
533	CLIP (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1511-			●
533	CLIP WHEEL BASE 4300MM(43W) (E) ID=14 L=44	9-09917-427-0	15	1	1511-	●
533	CLIP (J) ID=13-18 L=22	1-09709-292-0	01	1	1511-	●
533	CLIP WHEEL BASE 5100MM(51W) (J) ID=13-18 L=22	1-09709-292-0	01	1	1511-	●
533	CLIP WHEEL BASE 5100MM(51W) (E) ID=14 L=44	9-09917-427-0	17	1	1511-	●
533	CLIP (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1511-	●	●
533	CLIP (B) L=250	5-09707-030-1	04	1	1511-	●	●
533	CLIP (C) L=140	5-09707-031-1	02	1	1511-	●	●
533	CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) L=180	1-09707-162-1	01	1	1511-	●	●
533	CLIP (D) L=180	1-09707-162-1	01	1	1511-	●		●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) (D) L=180	1-09707-162-1	01	1	1511-		●
533	CLIP AIR CONDITIONER MANUAL CONTROL(C60) (D) L=180	1-09707-162-1	01	1	1511-			●
533	CLIP (G) L=600	1-09707-107-1	01	1	1511-	●	●	●
533	CLIP (H) L=350	1-09707-183-0	01	1	1511-	●	●	●
533	CLIP (H) L=350	1-09707-183-0	01	1	1511-	●	●	●
533	CLIP (L) OD=9 H=6	1-09709-178-0	01	1	1511-	●	●	●
533	CLIP (L) OD=9 H=6	1-09709-178-0	01	1	1511-	●	●	●
533	CLIP EXC. H.S.A SYSTEM<6EP> (L) OD=9 H=6	1-09709-178-0	01	1	1511-	●	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (L) OD=9 H=6	1-09709-178-0	01	1	1511-			●
533	CLIP (I) OD=9 H=9.5	1-09709-179-0	01	1	1511-	●	●	●
533	CLIP (B) L=250	5-09707-030-1	03	1	1511-	●	●	●
533	CLIP (B) L=250	5-09707-030-1	02	1	1511-	●	●	●
533	CLIP (C) L=140	5-09707-031-1	01	1	1511-	●	●	●
533	CLIP (K) ID=11 L=41	1-09700-403-0	01	1	1511-	●	●	●
533	CLIP (E) ID=14 L=44	9-09917-427-0	02	1	1511-	●	●	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (M) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1511-	●	●	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (N) ID=32 L=50	1-09701-055-1	01	1	1511-	●	●	●
533	CLIP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (O) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1511-	●	●	●
533	CLIP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=35 L=50	1-09701-214-0	01	1	1511-	●	●	●
533	CLIP (B) L=250	5-09707-030-1	01	1	1511-	●		●
533	CLIP (B) L=250	5-09707-030-1	01	1	1511-	●		●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) (B) L=250	5-09707-030-1	01	1	1511-		●
533	CLIP WHEEL BASE 4300MM(43W) (E) ID=14 L=44	9-09917-427-0	13	1	1511-		●
533	CLIP WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (F) ID=13-18 L=18	1-09709-291-0	01	1	1511-		●
533	CLIP WHEEL BASE 5100MM(51W) (F) ID=13-18 L=18	1-09709-291-0	01	1	1511-			●
533	CLIP WHEEL BASE 5500MM(55W) (E) ID=14 L=44	9-09917-427-0	19	1	1511-		●
533	CLIP WHEEL BASE 5100MM(51W) (E) ID=14 L=44	9-09917-427-0	16	1	1511-		●	●
541	CLIP (A) ID=16 L=28	0-95235-556-0	01	1	1511-			●
541	CLIP (B) ID=13-18 L=18	1-09709-291-0	02	1	1511-			●
542	GROMMET; HARNESS ID=24 OD=30 T=17	9-09956-092-1	02	1	1511-	●	●	●
548	GROMMET ID=28 OD=35 T=17	9-09956-256-2	01	1	1511-	●	●	●

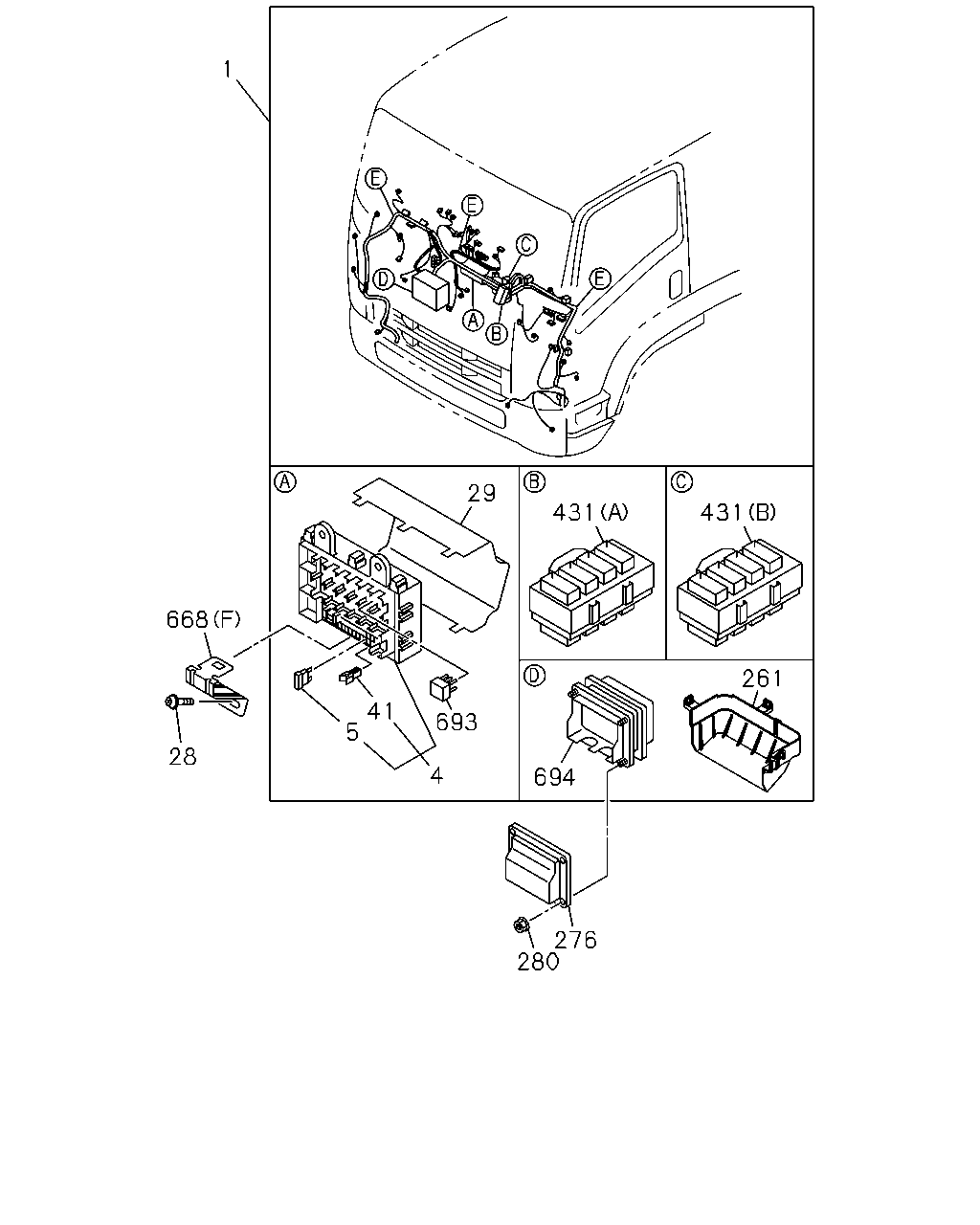

1 29 431 431 261 694 41 693 4 276 280 5 28 668

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-894-2	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-894-2	01	1	1511-		●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-896-2	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-896-2	01	1	1511-		●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-895-2	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-895-2	01	1	1511-		●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-897-2	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-897-2	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-903-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-907-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-905-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-909-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-902-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-906-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-904-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-908-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-898-2	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-900-2	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-899-2	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-901-2	01	1	1511-		●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-918-2	01	1	1511-			●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-919-2	01	1	1511-			●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-921-2	01	1	1511-			●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-923-2	01	1	1511-			●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-920-2	01	1	1511-			●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-922-2	01	1	1511-			●
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1511-	●	●	●
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1511-	●	●	●
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1511-	●	●	●
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1511-	●	●	●
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	AR	1	1511-	●	●	●
28	SCREW; FUSE BOX T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	1511-	●	●	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	1511-	●	●	●
41	PULLER; FUSE	8-98054-260-0	01	1	1511-	●	●	●
261	COVER; CONNECTOR BOX	8-98065-986-1	01	1	1511-	●	●	●
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1511-	●	●	●
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	1511-	●	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1511-	●	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1511-	●	●	●
668	BRACKET; HARNESS (A) L=170	1-47479-380-0	01	1	1511-	●	●	●
668	BRACKET; HARNESS (B)	8-97619-097-1	01	1	1511-	●	●	●
668	BRACKET; HARNESS (C)	8-97619-533-0	01	1	1511-	●	●	●
668	BRACKET; HARNESS (D)	8-98090-952-0	01	1	1511-	●	●	●
668	BRACKET; HARNESS (G)	8-98268-411-0	01	1	1511-	●	●	●
668	BRACKET; HARNESS (H)	8-97622-828-0	01	1	1511-	●	●	●
668	BRACKET; HARNESS (E)	8-98254-592-0	01	1	1511-	●	●	●
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (F)	8-98095-653-2	01	1	1511-	●	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1511-	●	●	●
694	BOX ASM; CONNECTOR	8-98057-771-0	01	1	1511-	●	●	●

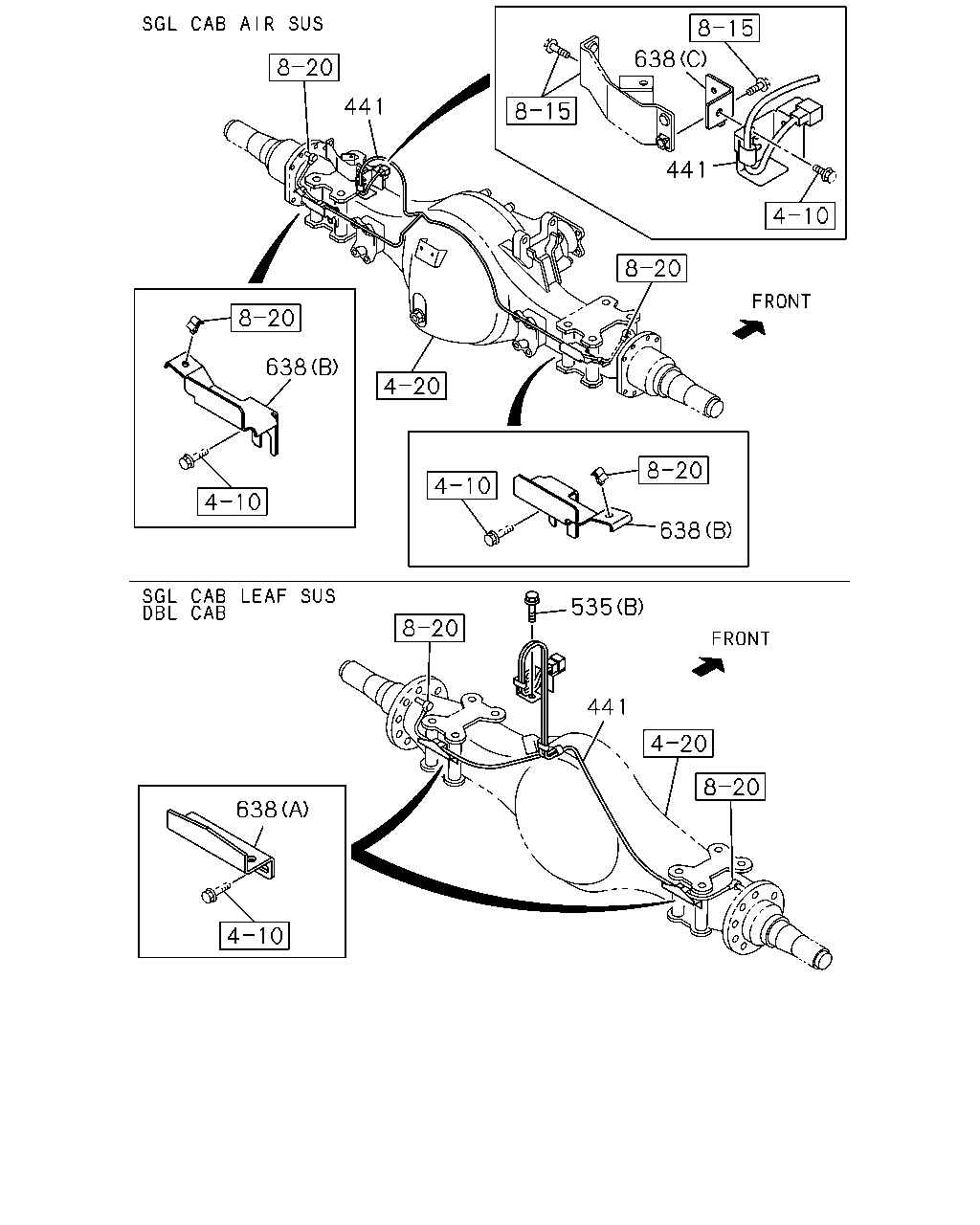

441 638 441 638 638 535 441 638

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
441	HARNESS; CABLE,SPEED SENSOR	8-98061-652-0	01	1	1511-	●	●	●
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1511-	●	●	●
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1511-	●	●	●
535	BOLT; BRKT FIX (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	1511-	●	●	●
638	BRACKET; SPD SENSOR (C)	8-98249-802-0	01	1	1511-	●
638	BRACKET; SPD SENSOR (B)	8-98236-732-0	01	1	1511-	●
638	BRACKET; SPD SENSOR (B)	8-98236-731-0	01	1	1511-	●
638	BRACKET; SPD SENSOR (A)	8-98012-580-1	02	1	1511-		●	●

290 290 525 293 535 267 267 639 534 267 639 534 535 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
267	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1511-	●	●	●
267	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1511-	●	●	●
267	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	01	1	1511-	●	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1511-	●	●	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1511-	●	●	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●	●
293	NUT M8 FLANGE	0-91180-108-0	01	1	1511-	●	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1511-	●	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1511-	●	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1511-			●
534	BOLT (A) M8X30 FLANGE	0-28650-830-0	01	1	1511-	●	●	●
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1511-	●	●	●
534	BOLT (C) M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1511-			●
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1511-	●	●	●
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1511-	●	●	●
535	BOLT; BRKT FIX (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	1511-	●	●	●
639	BOLT; CLIP (A) M8X30 FLANGE	0-28650-830-0	01	1	1511-	●	●	●
639	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1511-			●

668 668 668 668 668 668 668

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
668	BRACKET; HARNESS (A) L=170	1-47479-380-0	01	1	1511-	●	●	●
668	BRACKET; HARNESS (B)	8-97619-097-1	01	1	1511-	●	●	●
668	BRACKET; HARNESS (C)	8-97619-533-0	01	1	1511-	●	●	●
668	BRACKET; HARNESS (D)	8-98090-952-0	01	1	1511-	●	●	●
668	BRACKET; HARNESS (G)	8-98268-411-0	01	1	1511-	●	●	●
668	BRACKET; HARNESS (H)	8-97622-828-0	01	1	1511-	●	●	●
668	BRACKET; HARNESS (E)	8-98254-592-0	01	1	1511-	●	●	●
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (F)	8-98095-653-2	01	1	1511-	●	●	●

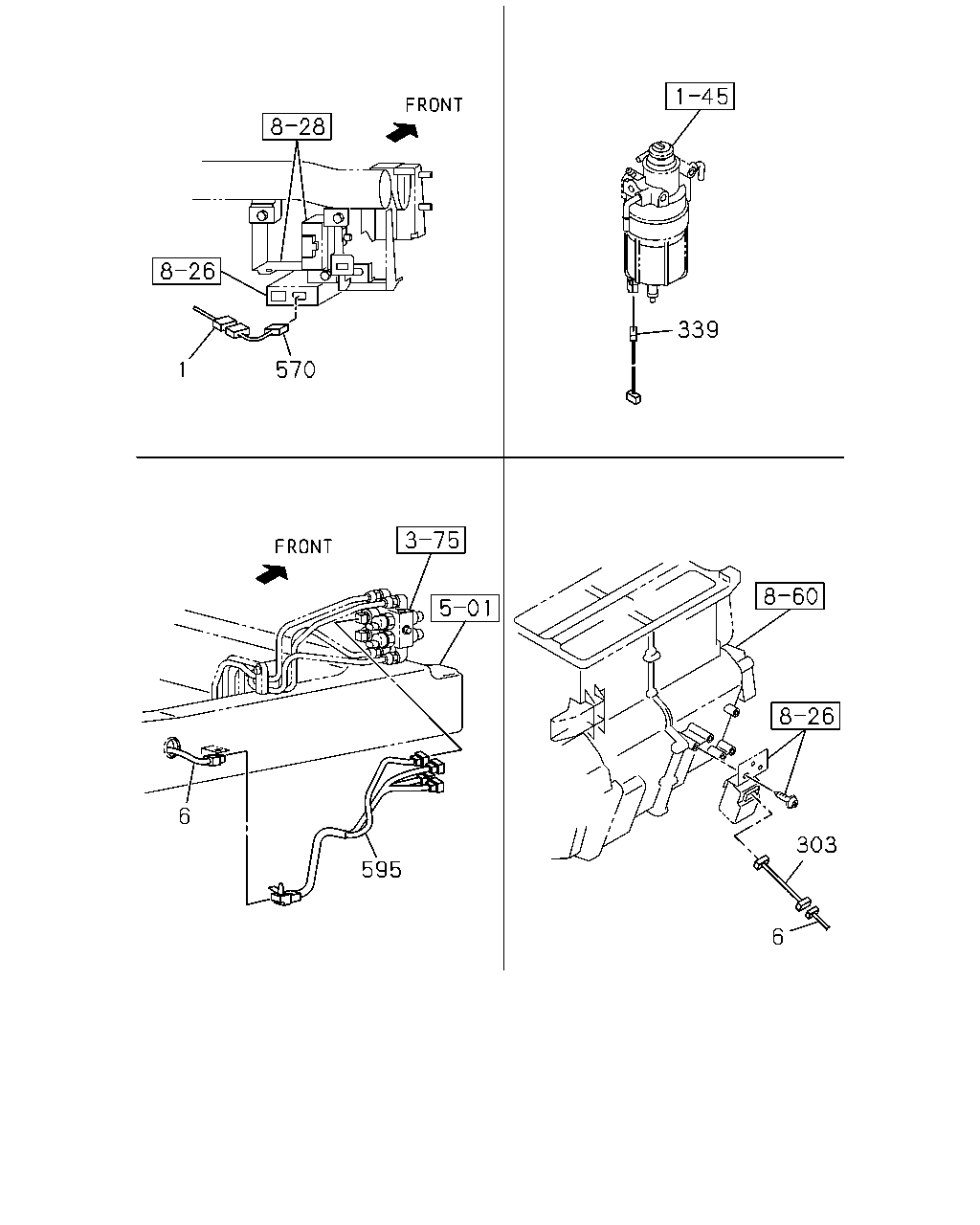

339 570 1 595 6 303 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-894-2	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-894-2	01	1	1511-		●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-896-2	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-896-2	01	1	1511-		●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-895-2	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-895-2	01	1	1511-		●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-897-2	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-897-2	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-903-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-907-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-905-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-909-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-902-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-906-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-904-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-908-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-898-2	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-900-2	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-899-2	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-901-2	01	1	1511-		●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-918-2	01	1	1511-			●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-919-2	01	1	1511-			●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-921-2	01	1	1511-			●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-923-2	01	1	1511-			●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-920-2	01	1	1511-			●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-922-2	01	1	1511-			●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W)	8-98303-326-1	01	1	1511-	●	●
6	HARNESS; FRAME MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-324-1	01	1	1511-	●	●
6	HARNESS; FRAME MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98305-060-1	01	1	1511-		●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W)	8-98303-328-0	01	1	1511-			●
6	HARNESS; FRAME MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-327-0	01	1	1511-			●
303	HARNESS; WATER LEVEL	8-98306-363-2	01	1	1511-	●	●	●
339	HARNESS; EXT,FUEL WHEEL BASE 4300MM(43W)	8-98239-526-1	01	1	1511-	●	●
339	HARNESS; EXT,FUEL WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)	8-98124-758-0	01	1	1511-	●	●
570	HARNESS; SPEED SENSOR LCT2500 A/T ALLISON(Y5W)	8-98305-915-0	01	1	1511-	●	●	●
570	HARNESS; SPEED SENSOR MZW6P M/T(RSZ) SPEED LIMITER 95KM(NNT)	8-98172-313-0	01	1	1511-	●	●	●
595	HARNESS; WARNING,BRK	8-98328-473-0	01	1	1511-	●		●
595	HARNESS; WARNING,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98328-473-0	01	1	1511-		●
595	HARNESS; WARNING,BRK TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98328-474-0	01	1	1511-		●

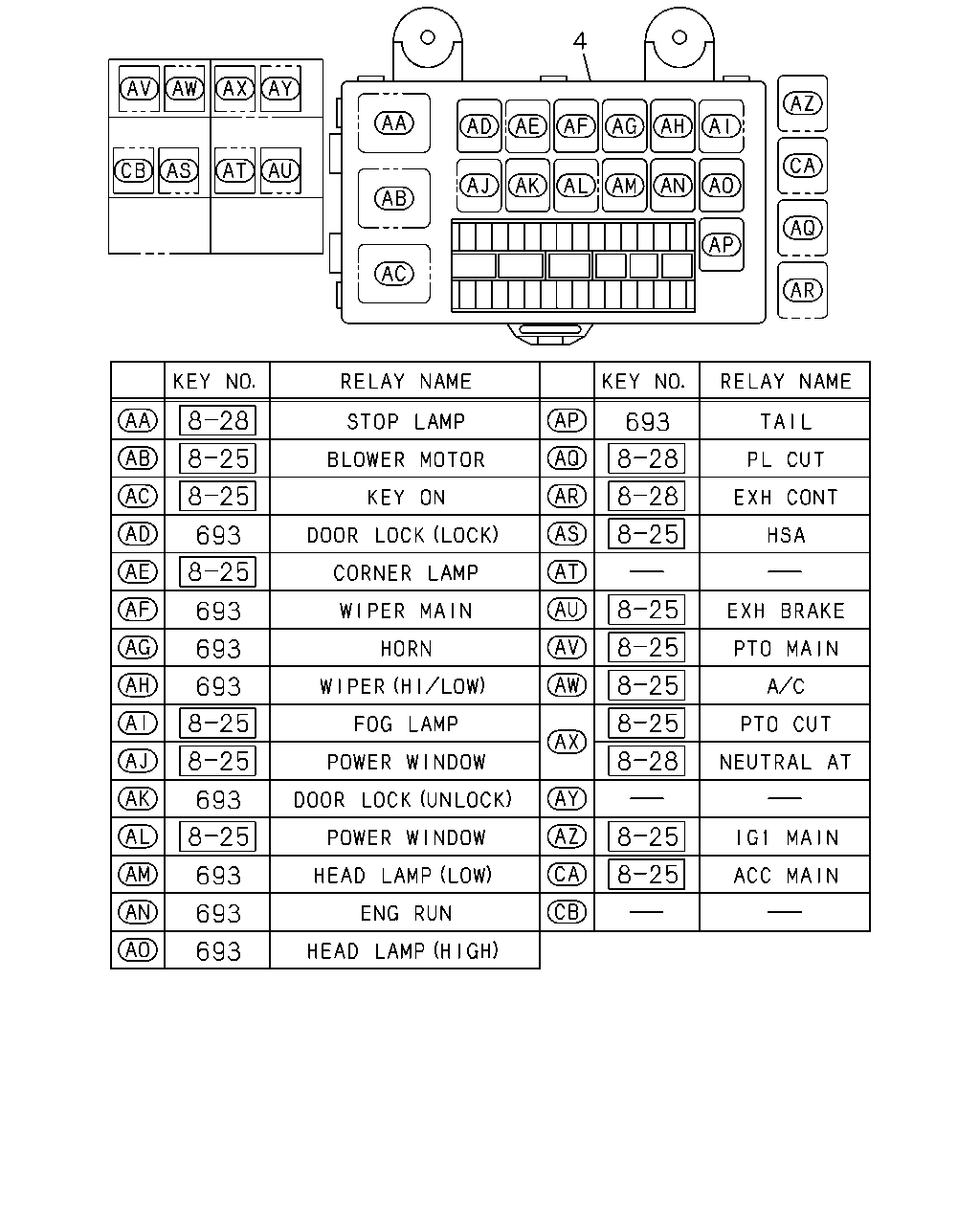

4 693 693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1511-	●	●	●
	693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1511-	●	●	●

2 2 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-894-2	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-894-2	01	1	1511-		●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-896-2	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-896-2	01	1	1511-		●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-895-2	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-895-2	01	1	1511-		●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-897-2	01	1	1511-	●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-897-2	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-903-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-907-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-905-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-909-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-902-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-906-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-904-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-908-2	01	1	1511-	●	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-898-2	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-900-2	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-899-2	01	1	1511-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98307-901-2	01	1	1511-		●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-918-2	01	1	1511-			●
1	HARNESS; CAB LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-919-2	01	1	1511-			●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-921-2	01	1	1511-			●
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-923-2	01	1	1511-			●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-920-2	01	1	1511-			●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-922-2	01	1	1511-			●
2	DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94416-438-1	AR	1	1511-	●	●	●
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	1511-	●	●	●
2	DIODE; CABLE HARNESS (C) 2P	8-98223-969-0	AR	1	1511-	●	●	●

579 231 637 6 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W)	8-98303-326-1	01	1	1511-	●	●
6	HARNESS; FRAME MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-324-1	01	1	1511-	●	●
6	HARNESS; FRAME MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98305-060-1	01	1	1511-		●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W)	8-98303-328-0	01	1	1511-			●
6	HARNESS; FRAME MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-327-0	01	1	1511-			●
231	HARNESS; TRANS MZW6P M/T(RSZ)	8-98243-722-0	01	1	1511-	●		●
231	HARNESS; TRANS MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98243-722-0	01	1	1511-		●
231	HARNESS; TRANS MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98234-229-1	01	1	1511-		●
579	HARNESS; A/T LCT2500 A/T ALLISON(Y5W)	8-98276-300-0	01	1	1511-	●	●	●
637	HARNESS; EXT,S/SENSOR LCT2500 A/T ALLISON(Y5W)	1-82671-045-1	01	1	1511-	●	●	●

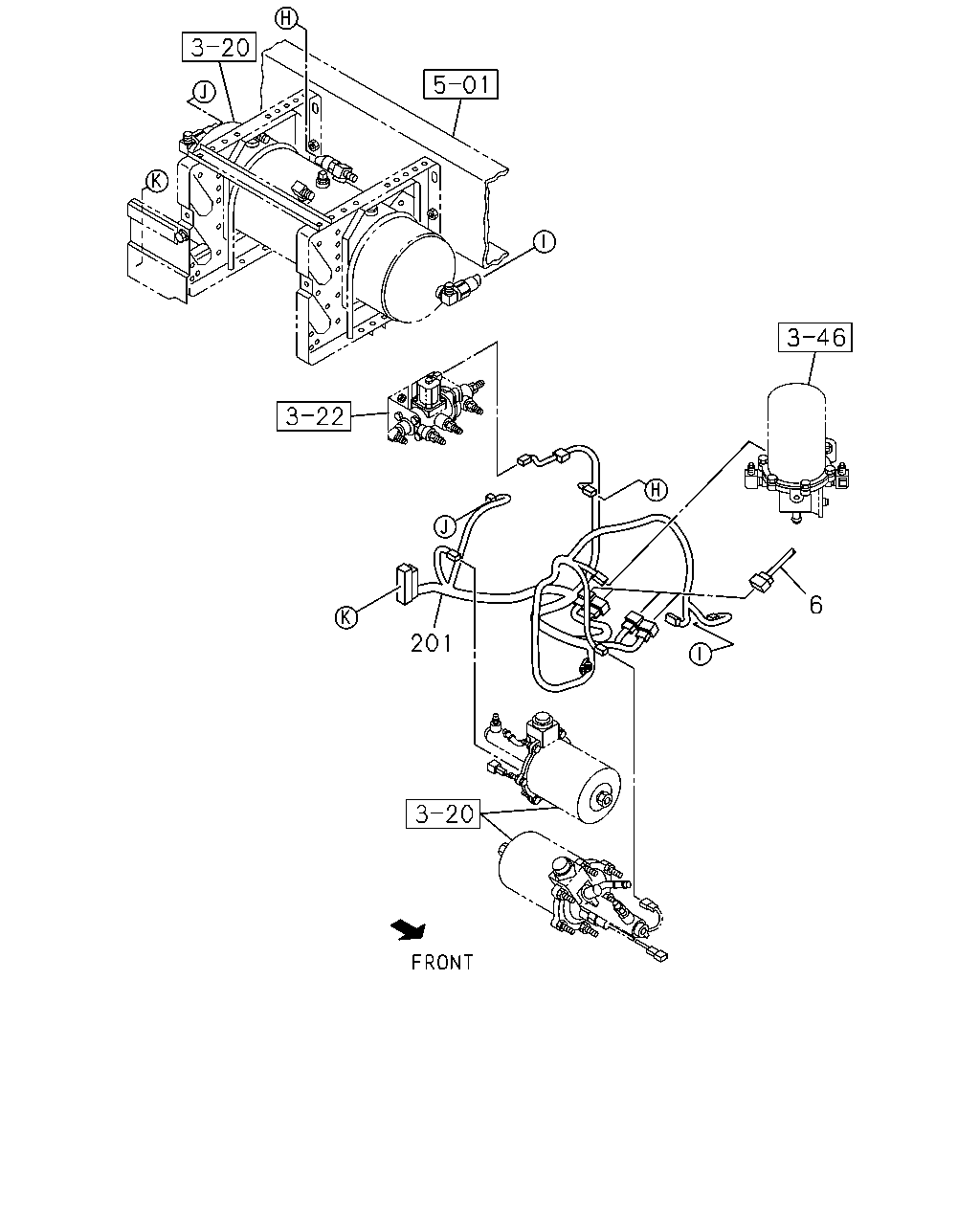

201 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W)	8-98303-326-1	01	1	1511-	●	●
6	HARNESS; FRAME MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-324-1	01	1	1511-	●	●
6	HARNESS; FRAME MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98305-060-1	01	1	1511-		●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W)	8-98303-328-0	01	1	1511-			●
6	HARNESS; FRAME MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-327-0	01	1	1511-			●
201	HARNESS; AIR TANK THROTTLE CONTROL SYSTEM(6XH)	8-98309-141-0	01	1	1511-	●	●
201	HARNESS; AIR TANK EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98309-142-0	01	1	1511-	●	●
201	HARNESS; AIR TANK	8-98304-330-0	01	1	1511-			●

6 10 27 174 388 453 184 184 720 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W)	8-98303-326-1	01	1	1511-	●	●
6	HARNESS; FRAME MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-324-1	01	1	1511-	●	●
6	HARNESS; FRAME MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98305-060-1	01	1	1511-		●
6	HARNESS; FRAME LCT2500 A/T ALLISON(Y5W)	8-98303-328-0	01	1	1511-			●
6	HARNESS; FRAME MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98303-327-0	01	1	1511-			●
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	1511-	●	●	●
27	FUSE UNIT 10A RED	8-98054-257-0	01	1	1511-	●	●	●
27	FUSE UNIT 15A BLUE	8-98054-258-0	02	1	1511-	●	●	●
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	02	1	1511-	●	●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1511-	●	●	●
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	02	1	1511-	●	●	●
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	1511-	●	●	●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	02	1	1511-	●	●	●
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	01	1	1511-			●
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	1511-	●	●	●
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	1511-	●	●	●
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	02	1	1511-	●	●	●
453	PROTECTOR; HARNESS	1-82699-709-0	02	1	1511-	●	●	●
534	BOLT (A) M8X30 FLANGE	0-28650-830-0	01	1	1511-	●	●	●
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1511-	●	●	●
534	BOLT (C) M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1511-			●
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	1511-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
