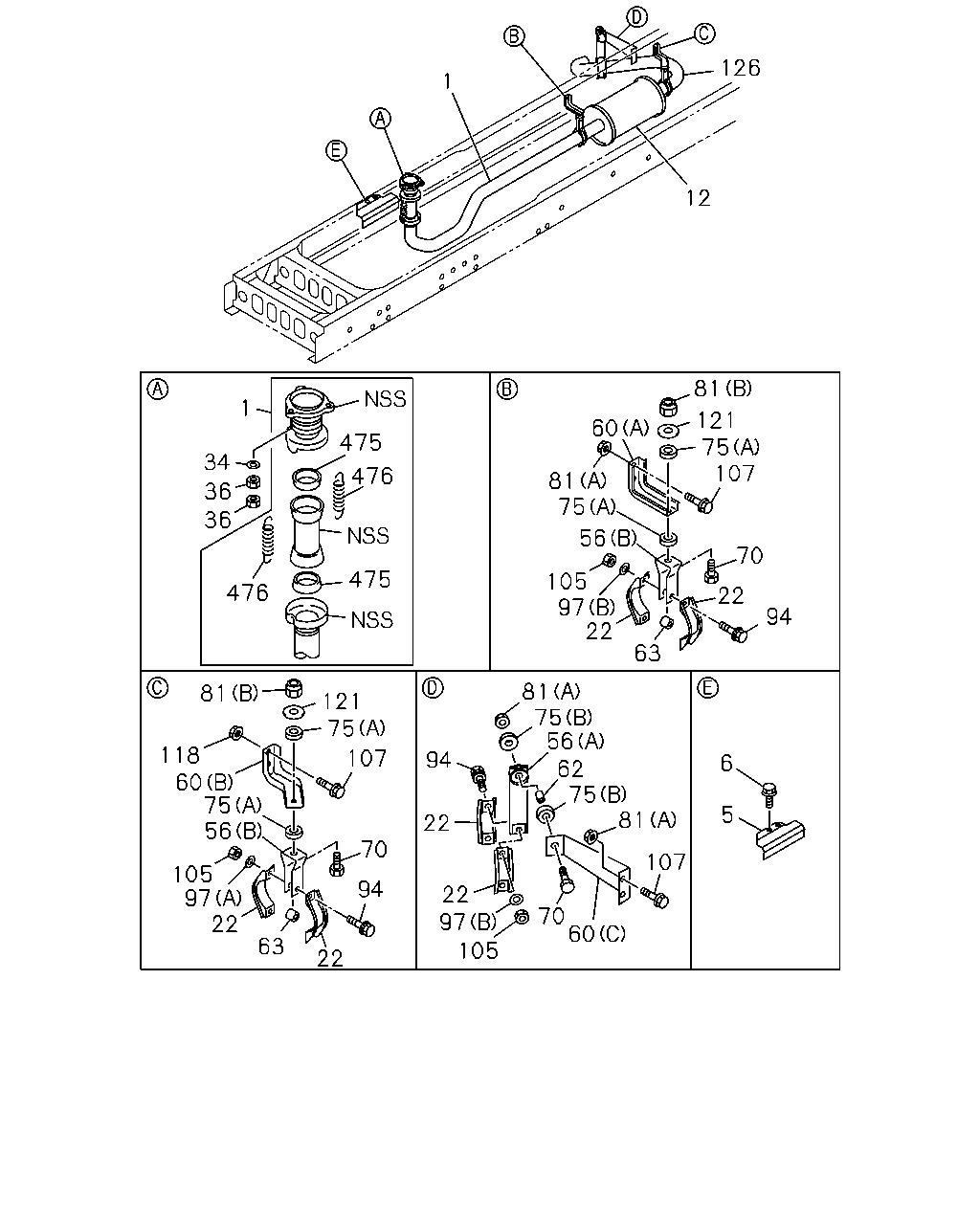

1-50 — EXHAUST PIPE AND SILENCER
(#16928) — 29 parça
126
1
12
81
1
121
75
107
60
475
34
476
81
75
36
36
56
70
475
105
97
22
476
22
94
63
81
75
56
62
75
81
81
121
75
118
60
75
56
107
94
6
5
22
70
107
105
97
22
94
22
97
70
60
63
105
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; EXH
8-98107-182-1
01
1
1110-
5
PROTECTOR; HEAT
8-98044-124-0
01
1
1110-
6
BOLT; HEAT PROTECTOR
M8X25 FLANGE
0-28650-825-0
02
1
1110-
12
SILENCER ASM; EXH
1-22140-880-0
01
1
1110-
22
CLAMP; EXH PIPE
ID=80-84
1-22133-233-0
06
1
1110-
34
WASHER; EXH PIPE
ID=13 OD=24 DISH
1-09500-030-0
03
1
1110-
36
NUT; EXH PIPE
M12
1-09400-010-0
06
1
1110-
56
BRACKET; CLAMP,EXH PIPE
(A) L=254
1-22131-527-1
01
1
1110-
56
BRACKET; CLAMP,EXH PIPE
(B) H=112
1-22139-043-0
02
1
1110-
60
BRACKET; FRAME TO BRKT
(C)
1-22131-514-0
01
1
1110-
60
BRACKET; FRAME TO BRKT
(A)
1-22151-512-3
01
1
1110-
60
BRACKET; FRAME TO BRKT
(B)
1-22151-945-0
01
1
1110-
62
TUBE; DIST,BRKT
L=22
9-22159-024-0
01
1
1110-
63
TUBE; DIST,BRKT
L=11
1-22139-026-0
02
1
1110-
70
BOLT; BRKT
M10X50
0-10856-050-0
03
1
1110-
75
RUBBER; SUPPORT,BRKT
(A) OD=30
1-22159-106-1
04
1
1110-
75
RUBBER; SUPPORT,BRKT
(B) OD=40
1-22159-193-0
02
1
1110-
81
NUT; BRKT
(A) M10 FLANGE
0-91180-210-0
05
1
1110-
81
NUT; BRKT
(B) M10 LOCK NUT
0-91370-010-0
02
1
1110-
94
BOLT; CLAMP
M10X45 W/LK&PL WASHER
8-98055-085-0
06
1
1110-
97
WASHER; PL,CLAMP
(A) ID=10.5
0-91614-510-0
02
1
1110-
97
WASHER; PL,CLAMP
(B) ID=10.5
9-09164-510-0
04
1
1110-
105
NUT; CLAMP
M10
0-91110-510-0
06
1
1110-
107
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
06
1
1110-
118
NUT; SILENCER MTG BRKT
M10 FLANGE
0-91180-210-0
02
1
1110-
121
WASHER; PL,BRKT
ID=10.5 OD=32
0-91614-810-0
02
1
1110-
126
PIPE; EXH,RR
1-22126-030-1
01
1
1110-
475
BEARING; SEAL,VIBNON,EXH PIPE
1-22119-277-1
02
1
1110-
476
SPRING; VIBNON,EXH PIPE
1-09583-298-0
02
1
1110-
