◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11714 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶
7-70 — SEPARATER AND BED (#169277) — 20 parça

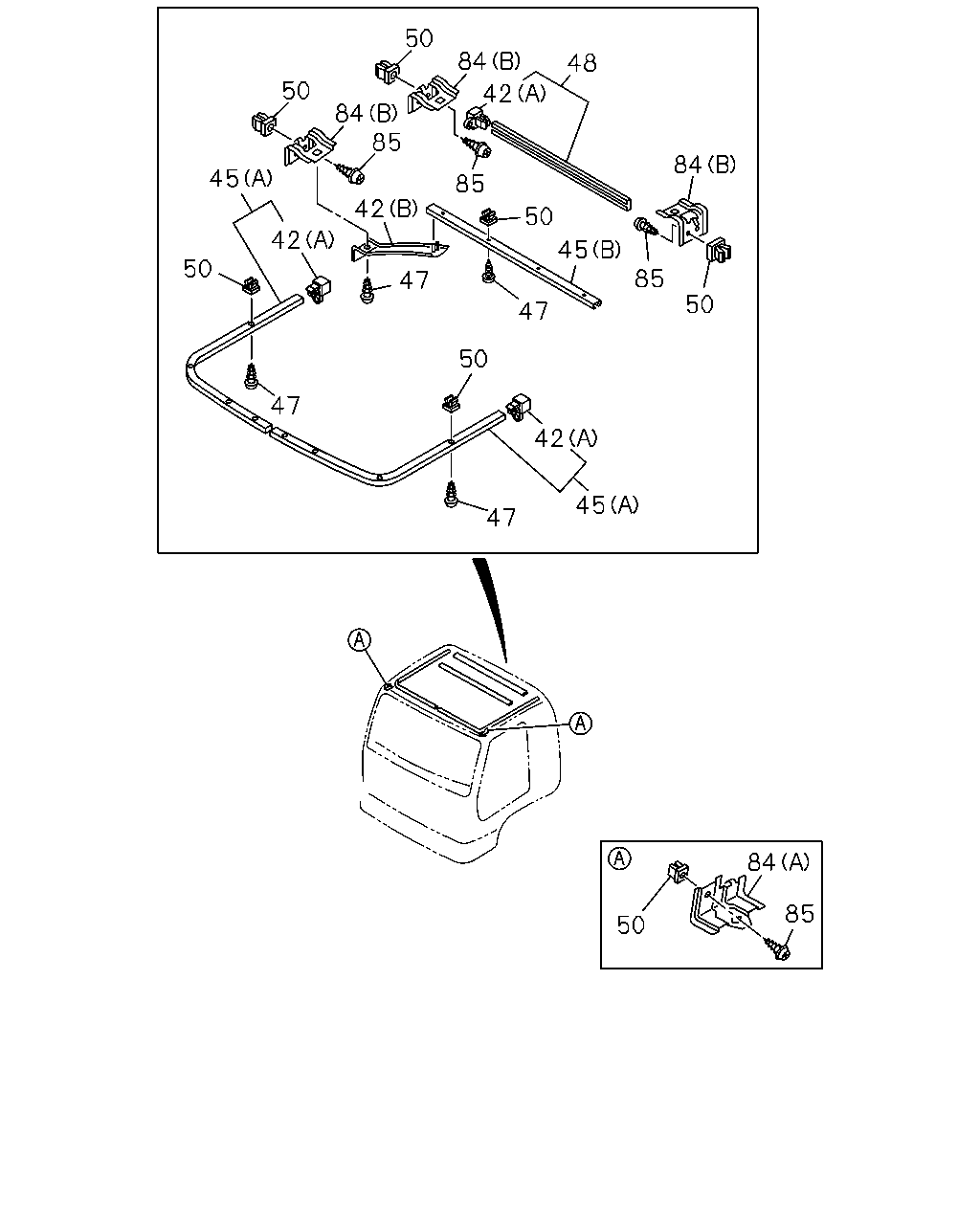

çizim 503550
50 50 84 45 50 42 42 42 84 48 84 45 50 85 50 47 47 85 42 45 47 47 50 84 85 85 50
BalonParca AdiParca NoAdetTipApplied Date A B C
42 STOPPER; CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY 		8-97408-038-0 01 1 1511- ● ●
42 STOPPER; CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY 		8-97408-038-0 02 1 1511- ● ●
42 STOPPER; CURTAIN RAIL
(B) DARK GRAY 		8-97407-972-2 01 1 1511- ● ● ●
42 STOPPER; CURTAIN RAIL
(B) DARK GRAY 		8-97407-499-2 01 1 1511- ● ● ●
45 RAIL; CURTAIN,FRT
ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY 		8-97415-672-0 01 1 1511- ● ●
45 RAIL; CURTAIN,FRT
ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY 		8-97415-671-0 01 1 1511- ● ●
45 RAIL; CURTAIN,FRT
(B) DARK GRAY 		8-97407-485-0 01 1 1511- ● ● ●
47 SCREW; CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> M5X20 		5-09981-059-0 14 1 1511- ● ●
47 SCREW; CURTAIN RAIL
M5X20 		5-09981-059-0 06 1 1511- ● ● ●
48 RAIL; CURTAIN,BACK
ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97407-866-2 01 1 1511- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
EXC. ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 1511- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5 		8-94279-078-0 20 1 1511- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1511- ● ● ●
50 GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 1511- ●
84 BRACKET; CURTAIN RAIL
(B) 		8-98042-152-0 04 1 1511- ● ●
84 BRACKET; CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> (A) 		8-98028-326-1 02 1 1511- ● ●
84 BRACKET; CURTAIN RAIL
(B) 		8-98042-152-0 02 1 1511- ●
85 SCREW; BRKT
ROUND CURTAIN RAIL<EDH> M5X20 		5-09981-059-0 06 1 1511- ● ●
85 SCREW; BRKT
EXC. ROUND CURTAIN RAIL<EDH> M5X20 		5-09981-059-0 04 1 1511- ● ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 02 1 1511- ●
