◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11714 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#169276) — 26 parça
çizim 501952
123 88 169
BalonParca AdiParca NoAdetTipApplied Date A B C
88 PLUG; HOLE
DARK GRAY 		8-97411-466-0 01 1 1511- ● ●
123 BELT ASM; SEAT 8-98097-971-0 01 1 1511- ● ● ●
169 SEAL
EXC. SEAT ASM - WITH CENTER SEAT<7BC> (A) OD=25 BLACK 		1-76798-019-0 01 1 1511- ● ●
169 SEAL
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609) ,BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),B ODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARABEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BOD Y COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989) ,BODY COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1511- ●
169 SEAL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) (B) OD=36 WHITE 		8-94271-620-1 02 1 1511- ●

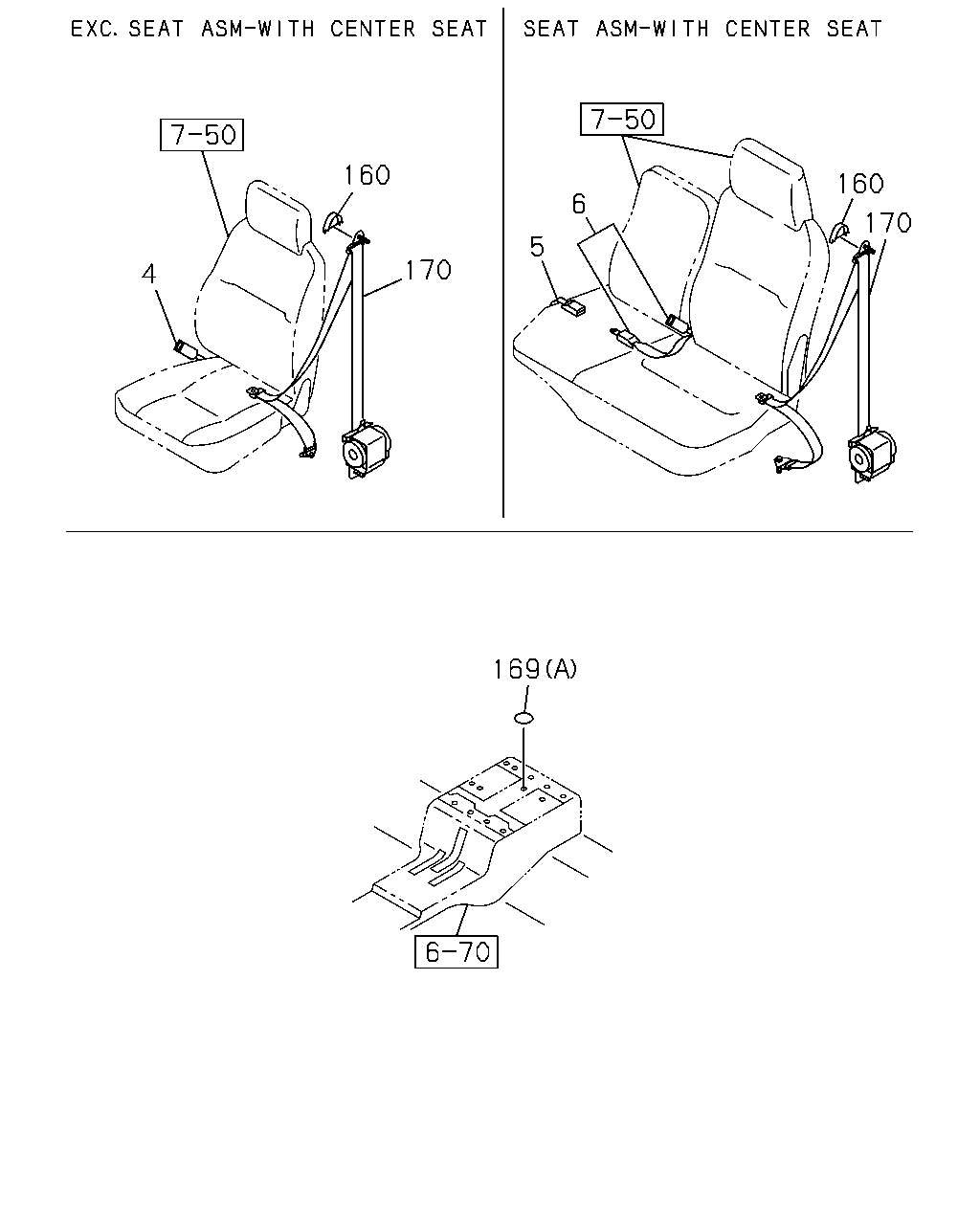

çizim 503434
160 170 4 160 6 5 170 169
BalonParca AdiParca NoAdetTipApplied Date A B C
4 BELT; PASSENGER SEAT,BUCKLE SIDE
EXC. SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-376-1 01 1 1511- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-377-1 01 1 1511- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97407-377-1 01 1 1511- ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97423-515-1 01 1 1511- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97423-515-1 01 1 1511- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1511- ● ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1511- ●
169 SEAL
EXC. SEAT ASM - WITH CENTER SEAT<7BC> (A) OD=25 BLACK 		1-76798-019-0 01 1 1511- ● ●
169 SEAL
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609) ,BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),B ODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARABEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BOD Y COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989) ,BODY COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1511- ●
169 SEAL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) (B) OD=36 WHITE 		8-94271-620-1 02 1 1511- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97428-394-0 01 1 1511- ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97428-435-0 01 1 1511- ● ● ●

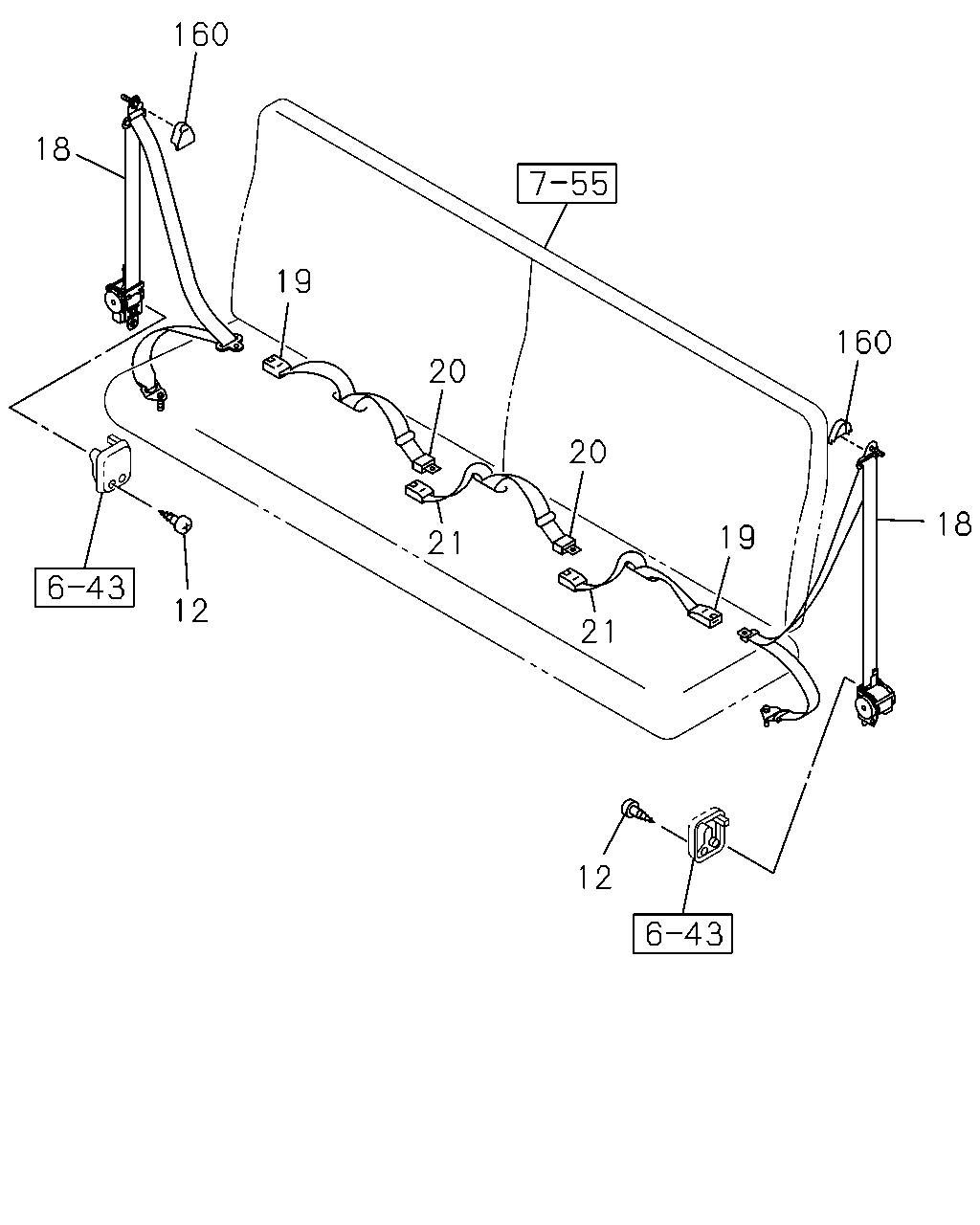

çizim 503492
160 19 20 20 19 21 21 12 18 12 18 160
BalonParca AdiParca NoAdetTipApplied Date A B C
12 SCREW; RETRACTOR COVER,SEAT BELT
M4X14 TAPPING 		0-74360-414-0 04 1 1511- ●
18 BELT; SEAT,RR
GRAY 		8-97466-948-0 02 1 1511- ●
19 BELT; RR SEAT,BUCKLE SIDE
GRAY 		8-97466-945-0 02 1 1511- ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97466-949-0 01 1 1511- ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97466-950-0 01 1 1511- ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97466-946-0 01 1 1511- ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97466-947-0 01 1 1511- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1511- ● ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1511- ●
