◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11714 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#169274) — 129 parça

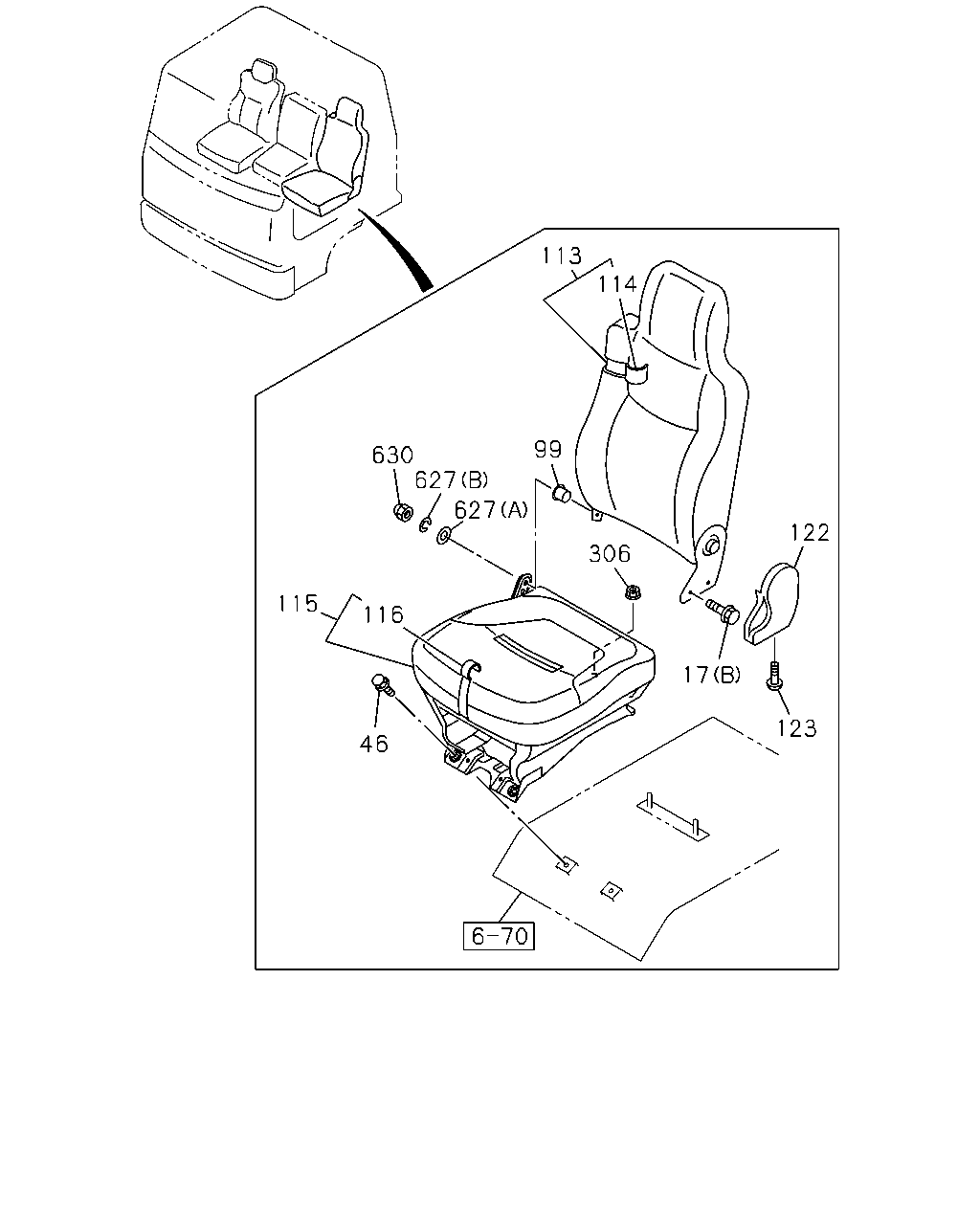

çizim 501854
113 99 114 627 630 627 306 17 122 123 46 115 116
BalonParca AdiParca NoAdetTipApplied Date A B C
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1511- ● ● ●
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1511- ● ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1511- ● ● ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1511- ● ● ●
113 BACK ASM; SEAT
DARK GRAY 		8-97421-422-0 01 1 1511- ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-424-0 01 1 1511- ● ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-418-1 01 1 1511- ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-420-0 01 1 1511- ● ● ●
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 1511- ● ● ●
123 SCREW; COVER,RECLINING 8-98070-026-0 01 1 1511- ● ● ●
306 NUT; SEAT ADJ
M10 FLANGE 		0-91180-110-0 02 1 1511- ● ● ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1511- ● ● ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1511- ● ● ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 1511- ● ● ●

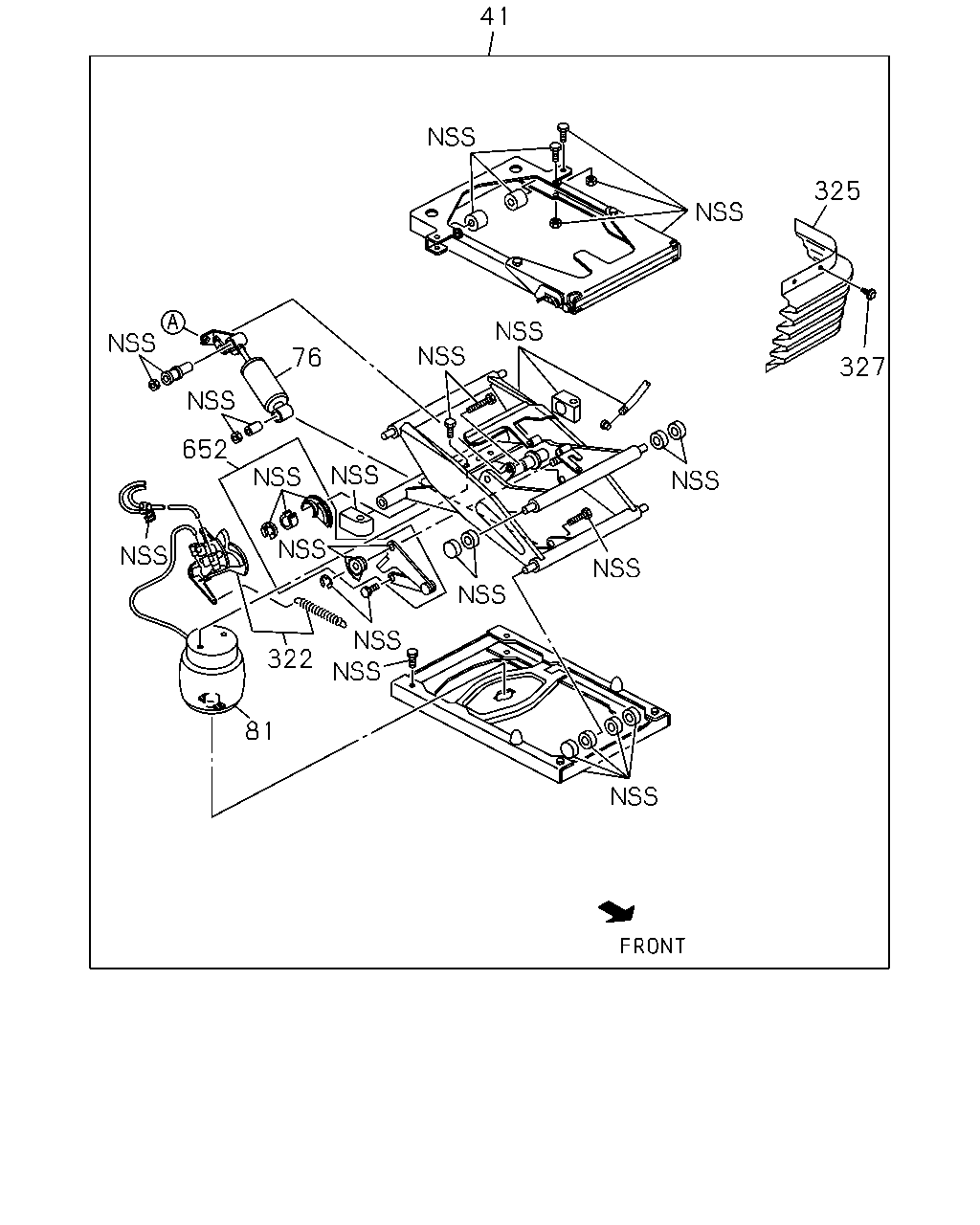

çizim 501859
41 325 327 81 322 652 76
BalonParca AdiParca NoAdetTipApplied Date A B C
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1511- ● ● ●
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 1511- ● ● ●
81 SPRING; AIR 8-98098-000-0 01 1 1511- ● ● ●
322 VALVE; AIR SPRING 8-98331-314-0 01 1 1511- ● ● ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 1511- ● ● ●
327 CLIP; COVER 8-98098-004-0 01 1 1511- ● ● ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 1511- ● ● ●

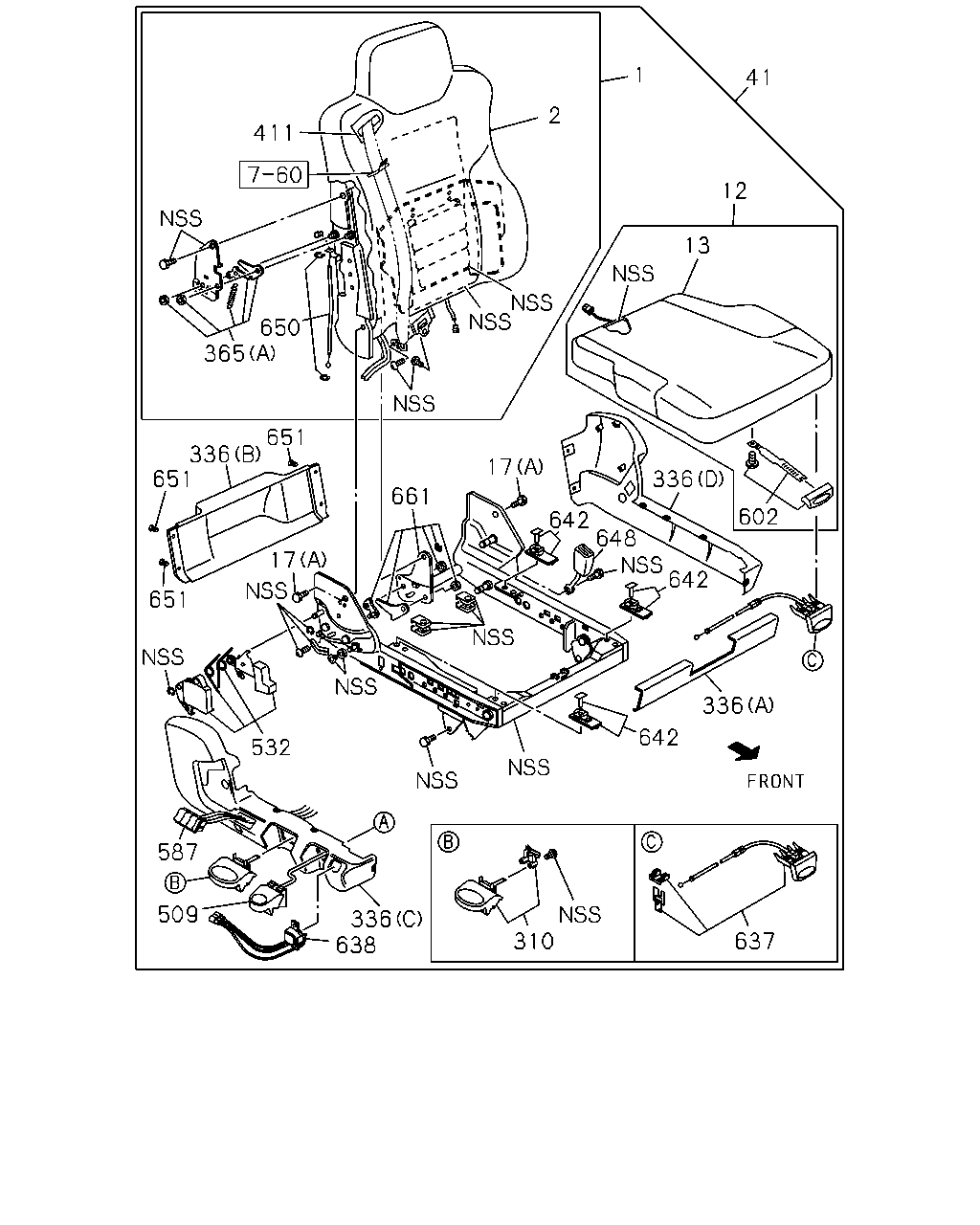

çizim 502937
41 1 2 12 13 411 650 365 602 336 17 661 651 336 651 651 17 642 648 642 336 642 532 587 509 336 638 310 637
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BACK ASM; SEAT 8-98097-964-0 01 1 1511- ● ● ●
2 COVER; TRIM,FRT SEAT,BACK 8-98232-353-0 01 1 1511- ● ● ●
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 1511- ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 1511- ● ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1511- ● ● ●
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1511- ● ● ●
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1511- ● ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-992-0 01 1 1511- ● ● ●
336 COVER; DRIVER SEAT
(D) 		8-98331-313-0 01 1 1511- ● ● ●
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 1511- ● ● ●
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 1511- ● ● ●
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 1511- ● ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1511- ● ●
365 LOCK ASM; SEAT
(B) 		1-72538-312-0 01 1 1511- ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1511- ● ● ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 1511- ● ● ●
509 LEVER; DAMPER 8-98097-988-0 01 1 1511- ● ● ●
532 LEVER ASM; TILT 8-98097-982-0 01 1 1511- ● ● ●
587 VALVE; LUMBAR SUPPORT 8-98097-986-0 01 1 1511- ● ● ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 1511- ● ● ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 1511- ● ● ●
638 VALVE; LOWERING 8-98097-994-0 01 1 1511- ● ● ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 1511- ● ● ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 1511- ● ● ●
650 CABLE 8-98232-354-0 01 1 1511- ● ● ●
651 RIVET 8-98194-075-0 04 1 1511- ● ● ●
661 LOCK ASM; RECLINING 8-98097-980-0 01 1 1511- ● ● ●

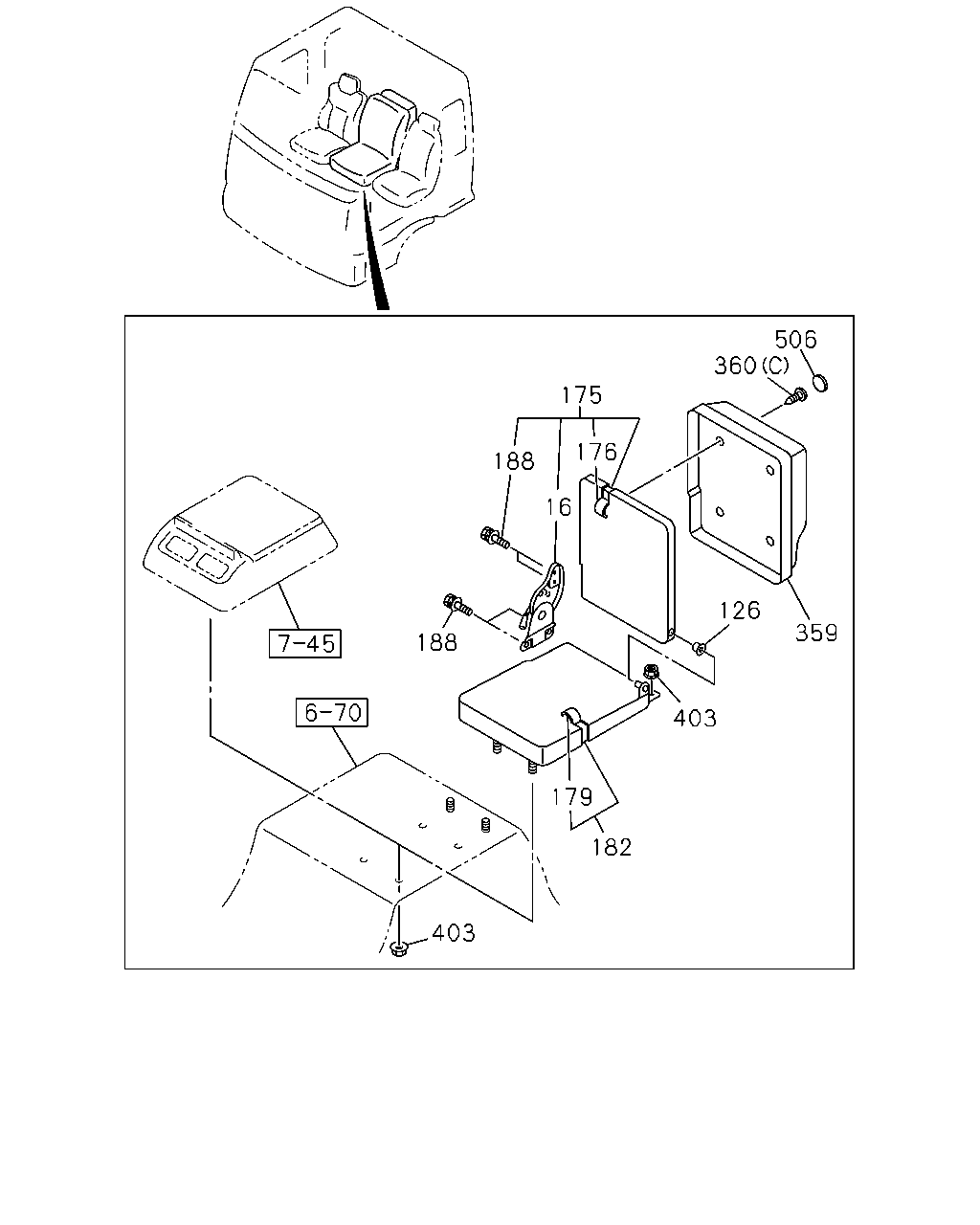

çizim 503156
403 182 179 403 126 359 360 506 188 16 176 175 188
BalonParca AdiParca NoAdetTipApplied Date A B C
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1511- ● ●
16 ADJUSTER ASM; RECLINING 1-75418-062-1 01 1 1511- ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		8-97854-900-0 01 1 1511- ● ●
126 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 1511- ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-434-1 01 1 1511- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
DARK GRAY 		8-97421-434-1 01 1 1511- ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-435-1 01 1 1511- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
DARK GRAY 		8-97421-435-1 01 1 1511- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-432-1 01 1 1511- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
DARK GRAY 		8-97421-432-1 01 1 1511- ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-430-3 01 1 1511- ● ●
182 CUSHION ASM; CENTER SEAT
DARK GRAY 		8-97421-430-3 01 1 1511- ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1511- ● ●
188 BOLT; BACK TO CUSHION
M10X16 FLANGE 		1-75198-053-0 04 1 1511- ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1511- ● ●
359 BOX; PARCEL
GRAY 		8-97417-261-0 01 1 1511- ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1511- ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 1511- ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1511- ● ●
360 SCREW; PARCEL
(A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1511- ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1511- ● ●
360 SCREW; PARCEL
(C) M5 		8-98062-663-0 04 1 1511- ●
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 1511- ● ●
403 NUT; CENTER SEAT
M8 FLANGE 		0-91180-108-0 04 1 1511- ●
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1511- ● ●
506 CAP; PARCEL BOX
GRAY 		8-97409-980-1 02 1 1511- ●

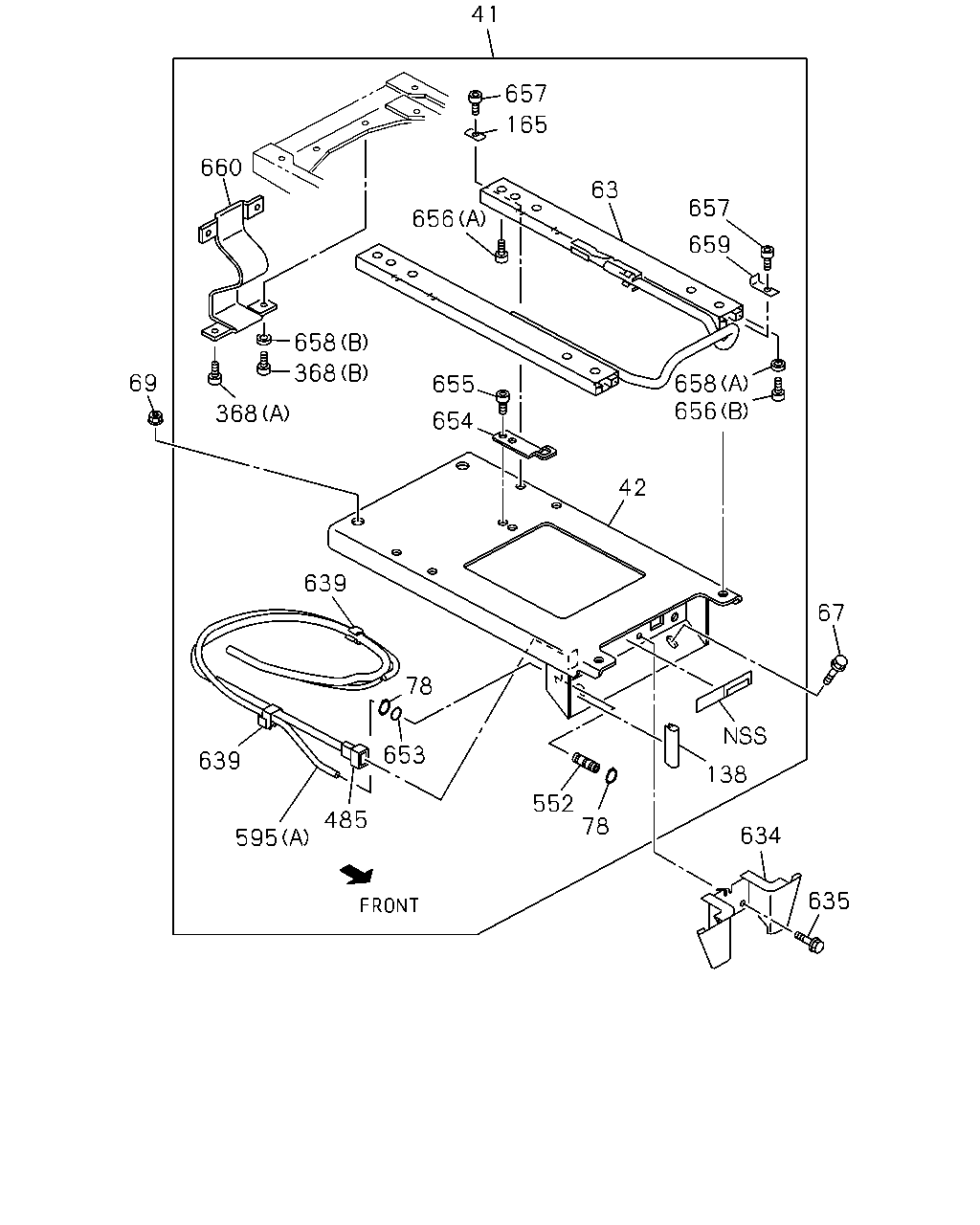

çizim 503347
41 657 656 165 63 660 658 368 368 69 655 639 654 78 653 485 595 639 552 78 138 634 635 67 42 656 658 659 657
BalonParca AdiParca NoAdetTipApplied Date A B C
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1511- ● ● ●
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 1511- ● ● ●
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 1511- ● ● ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1511- ● ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1511- ● ● ●
78 RING; SNAP 8-98101-900-0 02 1 1511- ● ● ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 1511- ● ● ●
165 WASHER; PL 1-75590-086-0 04 1 1511- ● ● ●
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 1511- ● ● ●
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 1511- ● ● ●
485 HARNESS; FRT SEAT 8-98106-360-0 01 1 1511- ● ● ●
552 CONNECTOR 8-98308-101-0 01 1 1511- ● ● ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 1511- ● ● ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1511- ● ● ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 1511- ● ● ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 1511- ● ● ●
639 CLIP; SEAT 8-98308-100-0 02 1 1511- ● ● ●
653 GASKET 8-98101-901-0 01 1 1511- ● ● ●
654 HOOK; STOPPER 8-98106-352-0 01 1 1511- ● ● ●
655 BOLT; HOOK 8-98106-353-0 02 1 1511- ● ● ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 1511- ● ● ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 1511- ● ● ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 1511- ● ● ●
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 1511- ● ● ●
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 1511- ● ● ●
659 STOPPER 8-98106-356-0 02 1 1511- ● ● ●
660 BELT; TETHER 8-98106-357-0 01 1 1511- ● ● ●

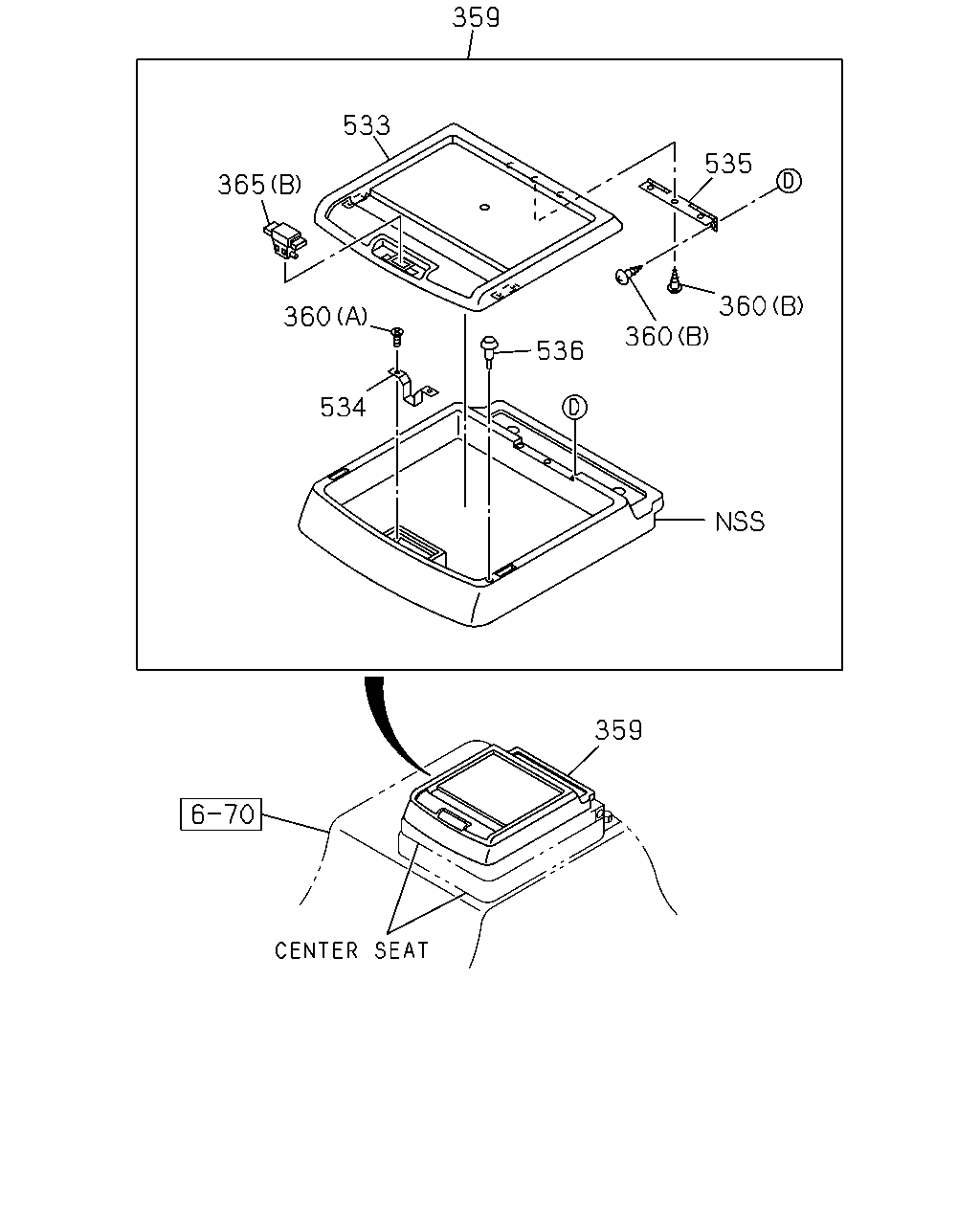

çizim 503375
359 359 535 360 360 536 534 360 365 533
BalonParca AdiParca NoAdetTipApplied Date A B C
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1511- ● ●
359 BOX; PARCEL
GRAY 		8-97417-261-0 01 1 1511- ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1511- ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 1511- ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1511- ● ●
360 SCREW; PARCEL
(A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1511- ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1511- ● ●
360 SCREW; PARCEL
(C) M5 		8-98062-663-0 04 1 1511- ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1511- ● ●
365 LOCK ASM; SEAT
(B) 		1-72538-312-0 01 1 1511- ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1511- ● ● ●
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1511- ● ●
533 LID; PARCEL BOX
GRAY 		8-97417-263-0 01 1 1511- ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-190-0 01 1 1511- ● ●
534 STRIKER; PARCEL BOX 1-72538-190-0 01 1 1511- ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1511- ● ●
535 HINGE; PARCEL BOX 1-72447-391-1 01 1 1511- ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-187-0 02 1 1511- ● ●
536 RUBBER; CUSHION 1-72538-187-0 02 1 1511- ●

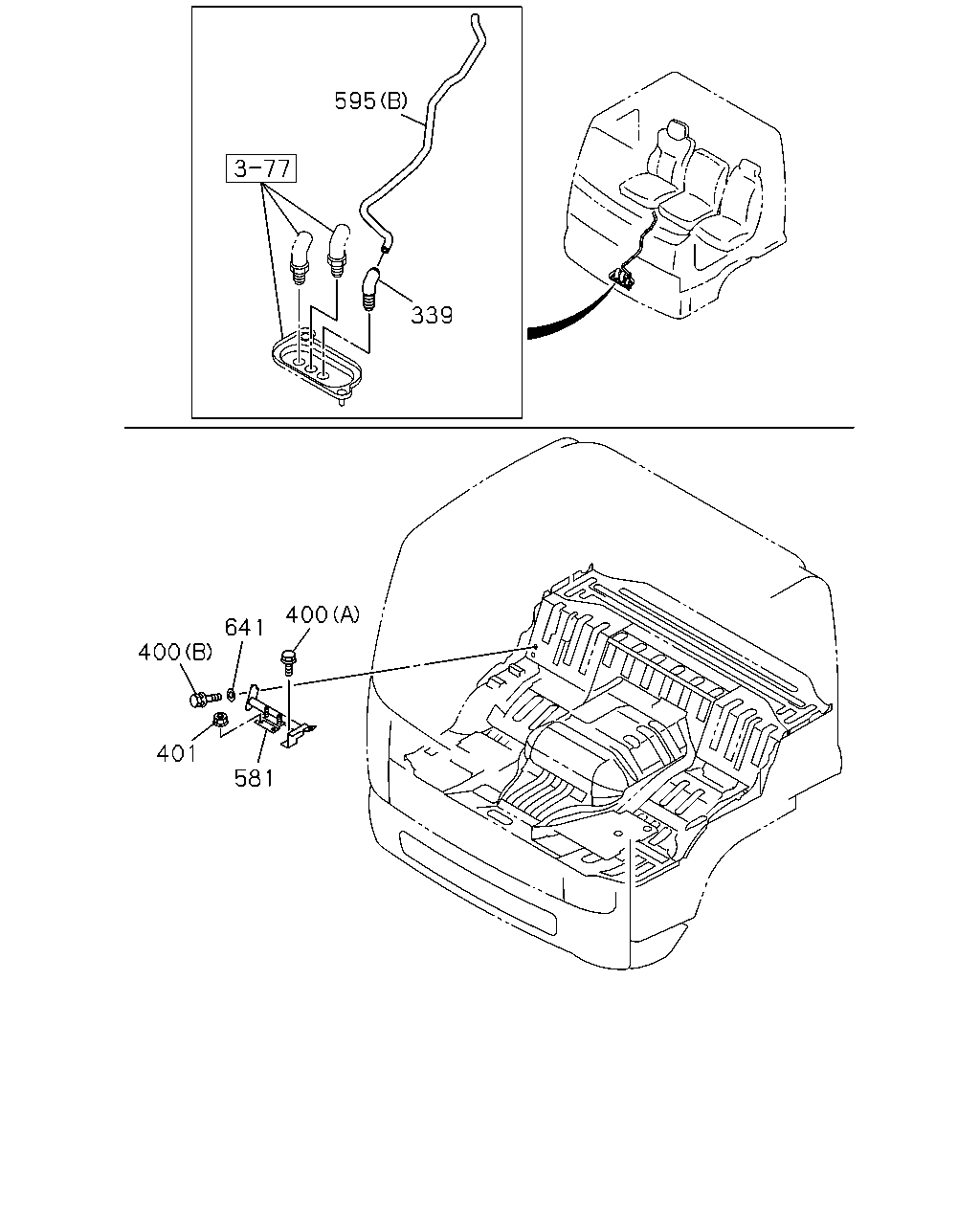

çizim 503433
595 339 400 641 400 401 581
BalonParca AdiParca NoAdetTipApplied Date A B C
339 UNION; DRIVER SEAT 8-98014-971-0 01 1 1511- ● ● ●
400 BOLT; SUPPORT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ● ●
400 BOLT; SUPPORT
(B) 		8-98098-996-0 02 1 1511- ● ● ●
401 NUT; SUPPORT
M10 FLANGE 		0-91180-110-0 02 1 1511- ● ● ●
581 PIPE; SEAT 8-97589-692-3 01 1 1511- ● ●
581 PIPE; SEAT 8-98051-067-2 01 1 1511- ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 1511- ● ● ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1511- ● ● ●
641 WASHER; SUPPORT 8-98099-007-0 02 1 1511- ● ● ●
