◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11714 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#169267) — 10 parça

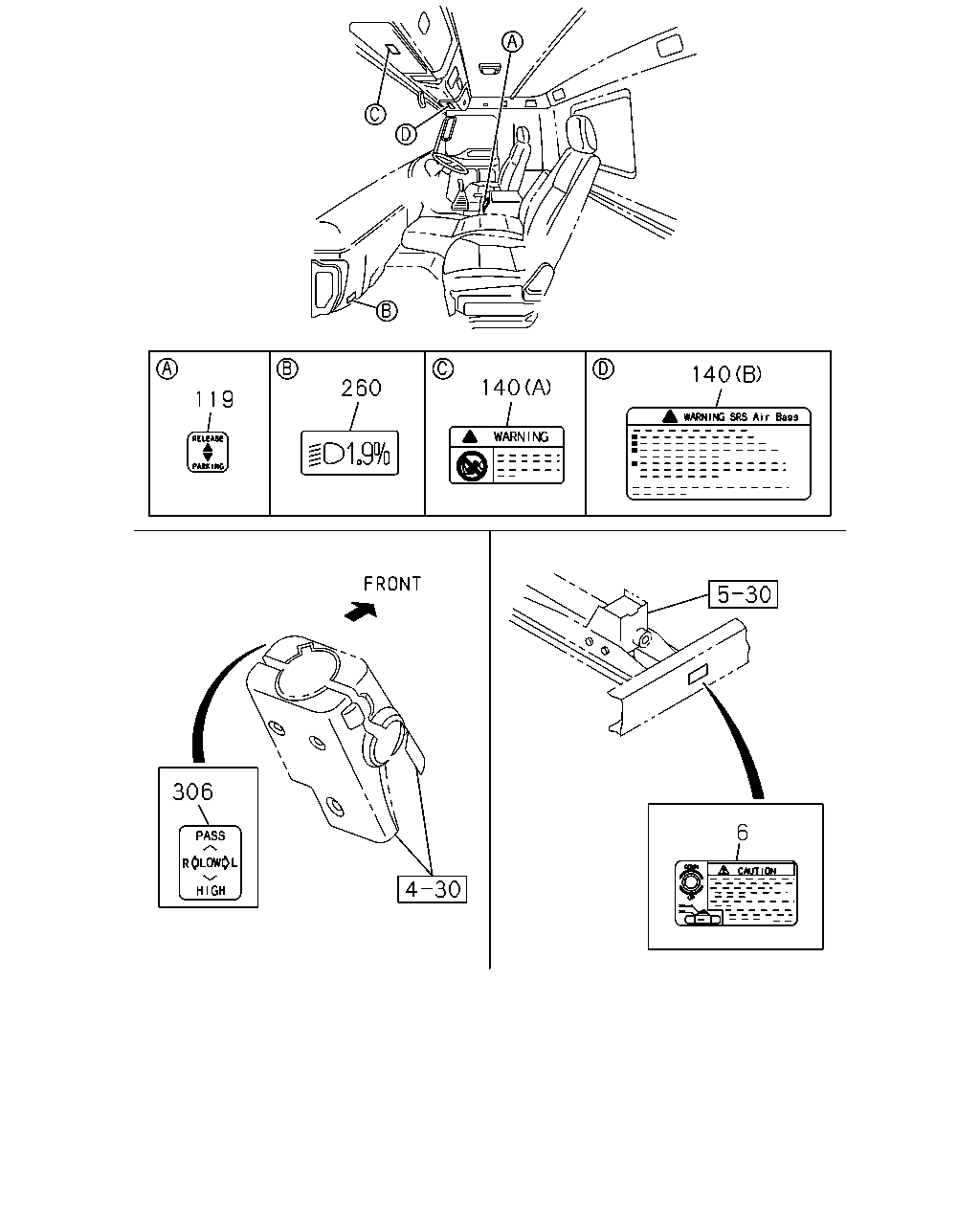

çizim 503004
260 140 140 119 6 306
BalonParca AdiParca NoAdetTipApplied Date A B C
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 1511- ● ● ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 1511- ● ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98080-839-0 02 1 1511- ● ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. H.S.A SYSTEM<6EP> (B) 		8-98139-964-0 01 1 1511- ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98139-964-0 01 1 1511- ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-501-1 01 1 1511- ● ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1511- ● ● ●

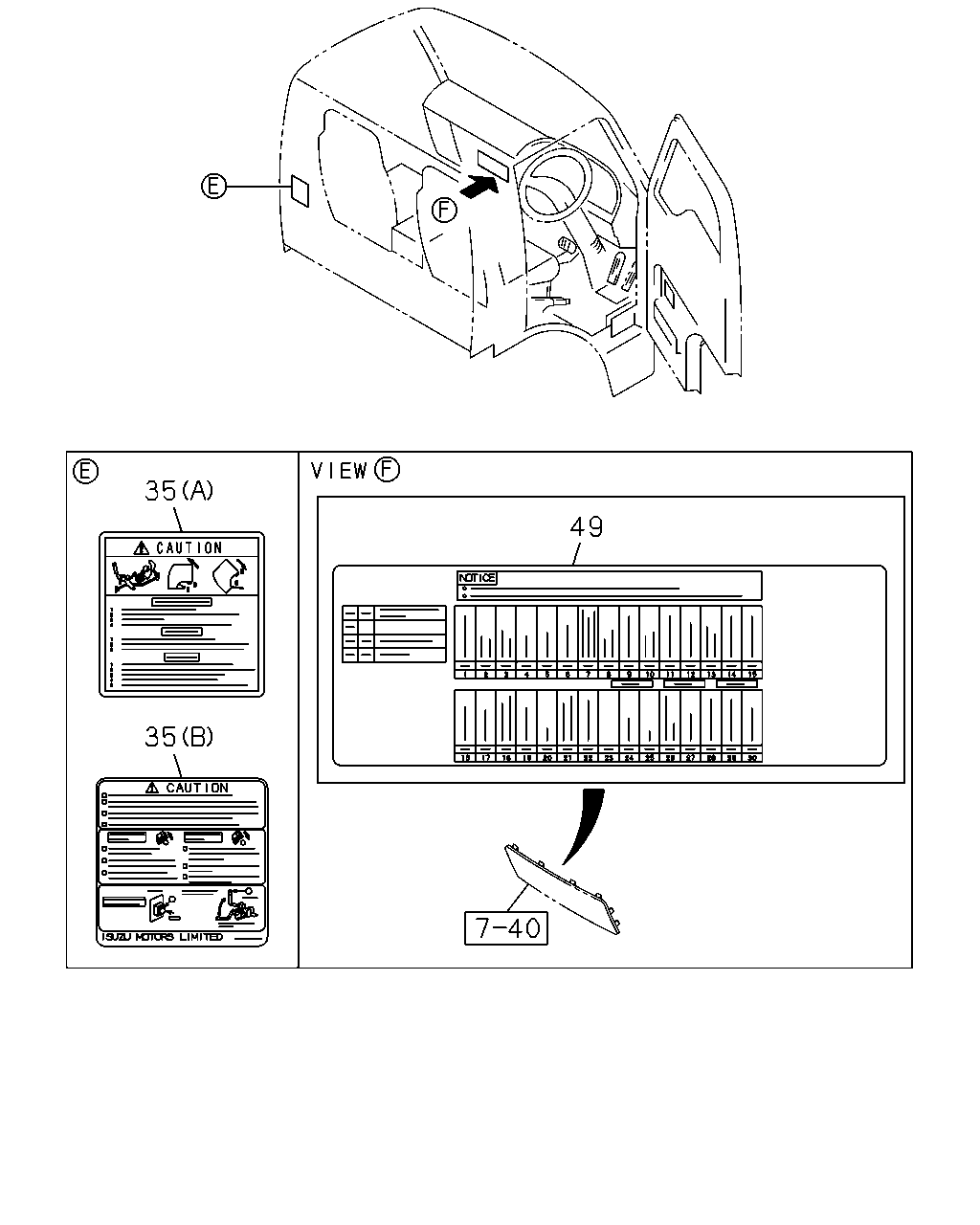

çizim 503056
35 35 49
BalonParca AdiParca NoAdetTipApplied Date A B C
35 PLATE; CAUTION,CAB
(A) 		8-98065-363-0 01 1 1511- ● ●
35 PLATE; CAUTION,CAB
(B) 		8-98069-325-0 01 1 1511- ●
49 PLATE; CAUTION,FUSE BOX 8-98305-918-1 01 1 1511- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
