◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11714 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#169262) — 12 parça

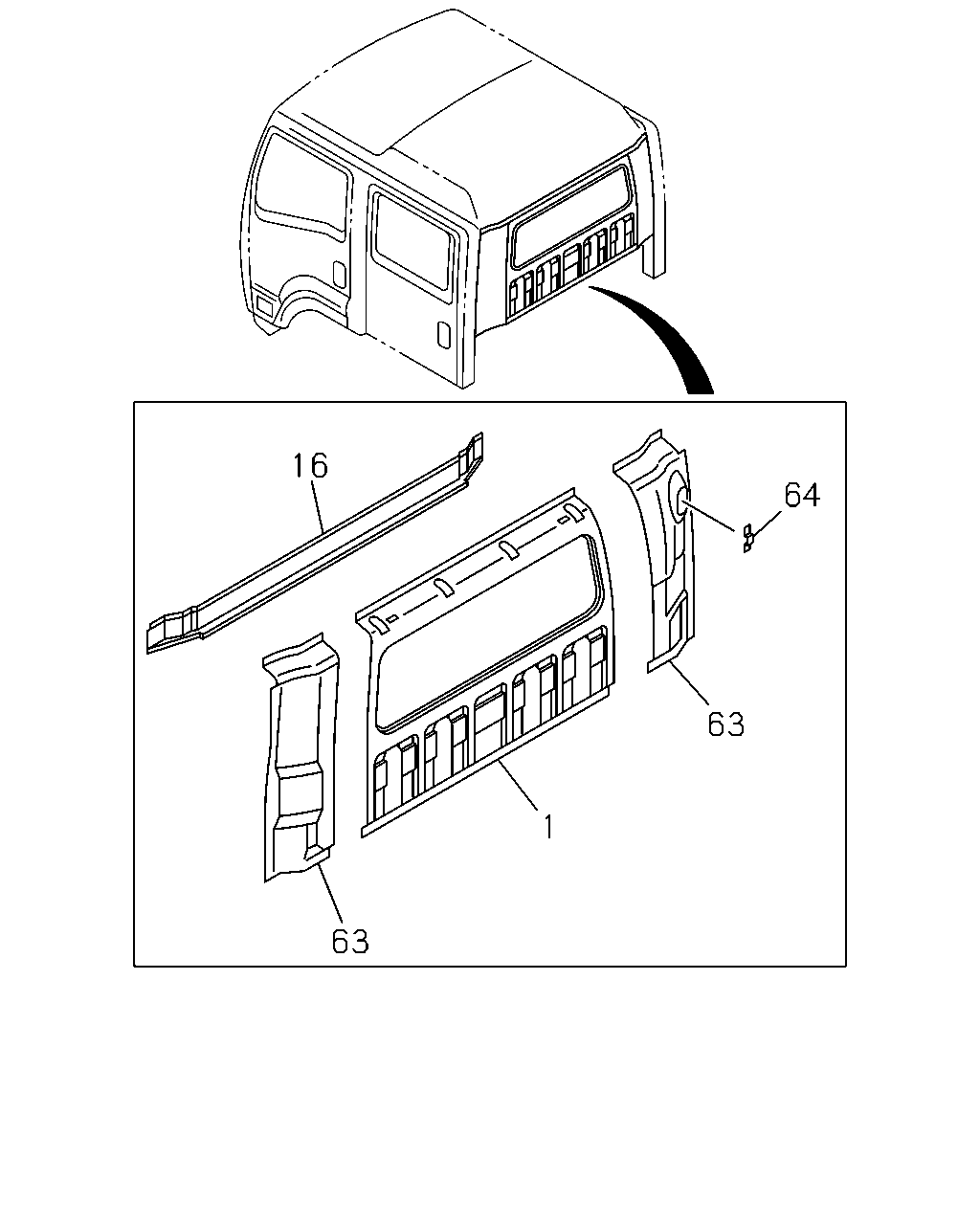

çizim 502685
16 64 63 1 63
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; BACK OUTER 8-97584-312-3 01 1 1511- ● ●
1 PANEL; BACK OUTER 8-97410-669-3 01 1 1511- ●
16 REINFORCEMENT; BACK OUTER PNL 8-98018-926-0 01 1 1511- ●
63 PANEL; BACK,SIDE 8-97411-024-1 01 1 1511- ●
63 PANEL; BACK,SIDE 8-97411-025-1 01 1 1511- ●
64 BRACKET; AIR INTAKE DUCT 8-97584-611-1 01 1 1511- ● ● ●

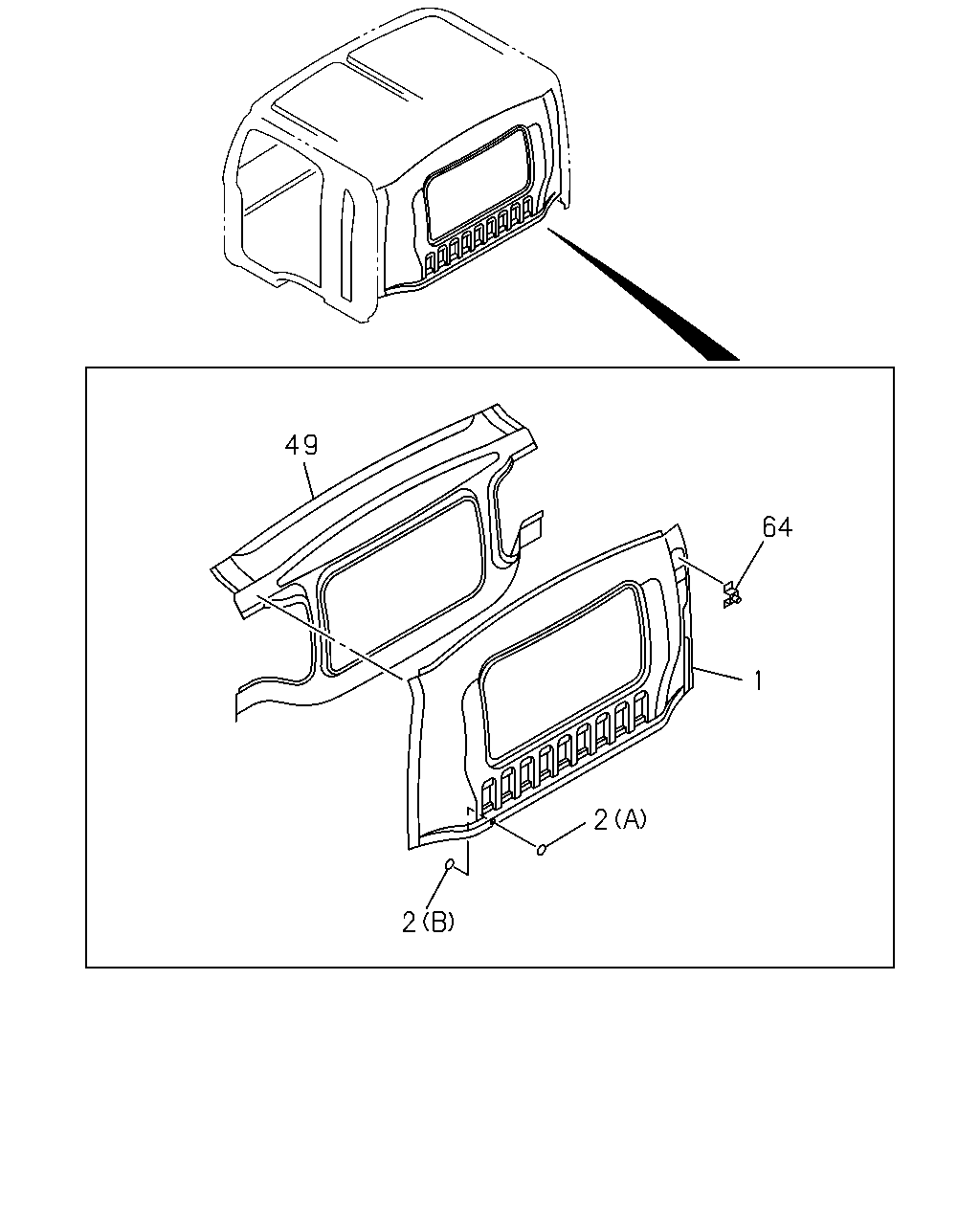

çizim 503054
49 64 2 1 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; BACK OUTER 8-97584-312-3 01 1 1511- ● ●
1 PANEL; BACK OUTER 8-97410-669-3 01 1 1511- ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK 		1-76798-019-0 02 1 1511- ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1511- ● ●
49 PANEL; BACK INNER 8-97584-609-3 01 1 1511- ● ●
64 BRACKET; AIR INTAKE DUCT 8-97584-611-1 01 1 1511- ● ● ●
