Isuzu WW
▶
TRUCKS
▶
FVR
▶
11409 - FVR(RHD)EURO1
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶
1-41 — FUEL PIPING; CHASSIS
(#16926) — 34 parça
◀

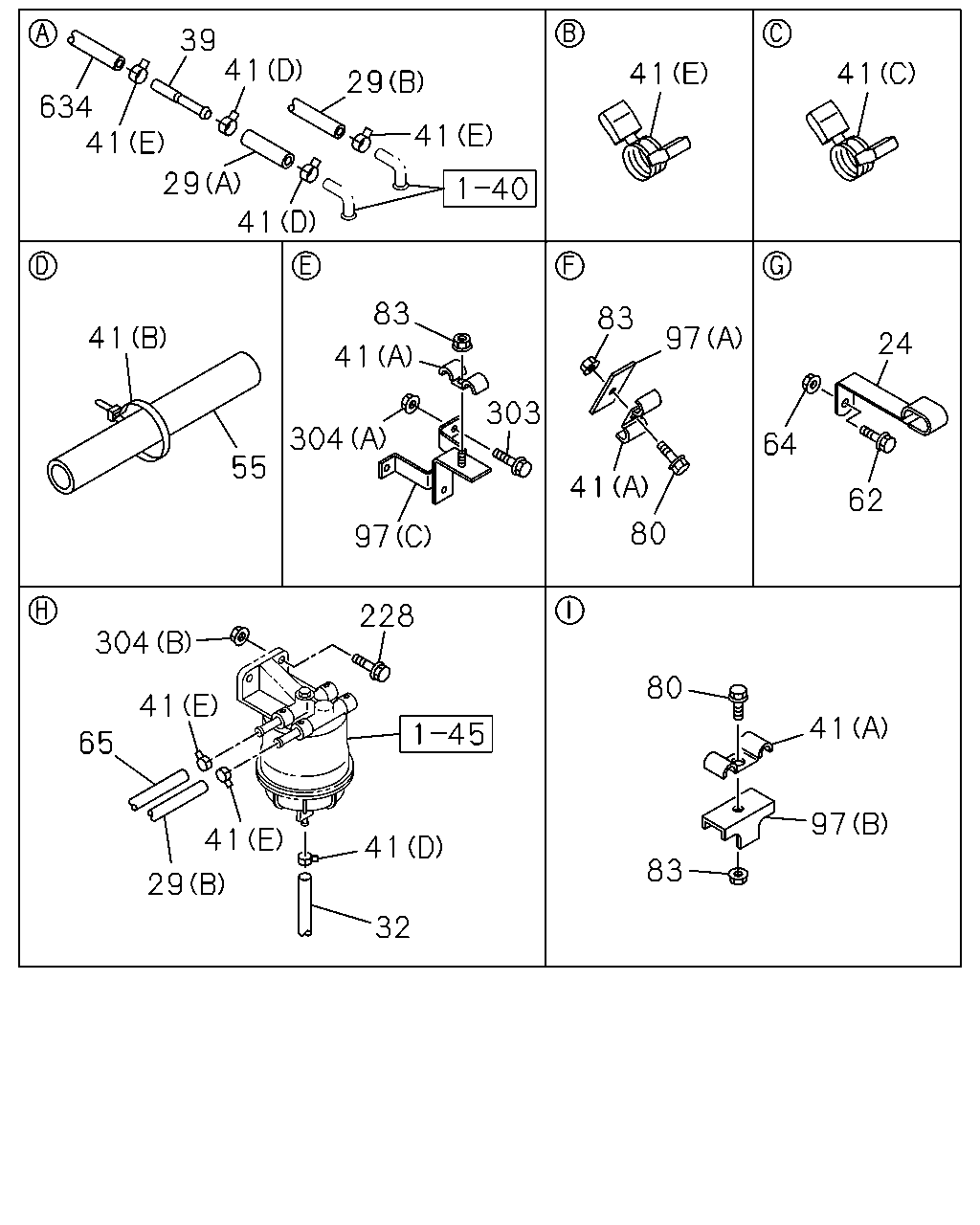

[141A] NO.2 (26 parça)

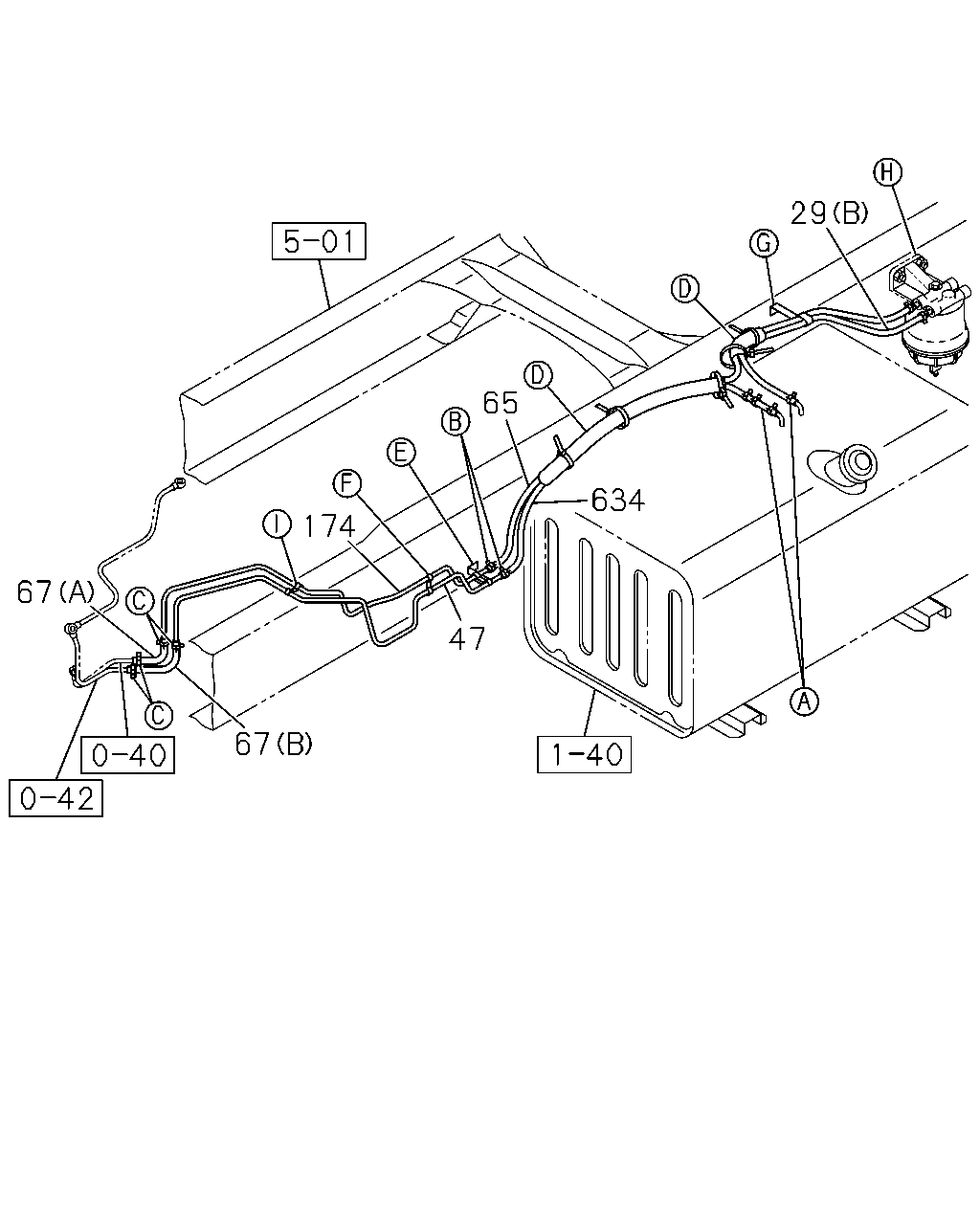

[141A] NO.1 (8 parça)
▶
62
64
24
41
41
41
29
41
39
41
634
29
83
41
41
55
304
41
83
303
97
41
97
80
41
97
80
83
41
228
32
29
65
304
41
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
CLIP; FUEL HOSE
ID=14X29 H=30 L=25
1-09701-101-0
01
1
1110-
29
HOSE; FUEL
(B)
8-98189-235-0
01
1
1110-
29
HOSE; FUEL
(A) L=80 SERVICED BY L=3000
0-01558-300-0
01
1
1110-
32
PIPE; DELIVERY,FUEL TANK
WHEEL BASE 3900MM(39W) SPARE WHEEL CARRIER FRAME SIDE<P13> L=310 SERVICED BY L=3000
0-01256-300-0
01
1
1110-
39
PIPE; FUEL
8-98009-438-1
01
1
1110-
41
CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3900MM(39W) SPARE WHEEL CARRIER FRAME SIDE<P13> (D) ID=13
8-94238-571-0
01
1
1110-
41
CLIP; FUEL PIPE,FUEL TANK
(A) ID=11 & 11 L=21.5 & 21.5
1-09700-660-0
04
1
1110-
41
CLIP; FUEL PIPE,FUEL TANK
(B) L=250
5-09707-030-1
05
1
1110-
41
CLIP; FUEL PIPE,FUEL TANK
(C) ID=16
8-94238-568-0
04
1
1110-
41
CLIP; FUEL PIPE,FUEL TANK
(D) ID=13
8-94238-571-0
02
1
1110-
41
CLIP; FUEL PIPE,FUEL TANK
(E) ID=14
8-97173-221-0
06
1
1110-
55
COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300
1-09360-677-1
02
1
1110-
62
BOLT; CLIP FIX
M8X30 FLANGE
0-28650-830-0
01
1
1110-
64
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1110-
65
HOSE; FUEL,DELIVERY PIPE
8-98189-234-0
01
1
1110-
80
BOLT; CLIP,FUEL TANK
M8X20 FLANGE
0-28650-820-0
02
1
1110-
80
BOLT; CLIP,FUEL TANK
M8X40 FLANGE
0-28650-840-0
01
1
1110-
83
NUT; CLIP,FUEL TANK
M8 FLANGE
0-91180-108-0
04
1
1110-
97
BRACKET; CLIP
(A) L=50
1-47475-299-2
01
1
1110-
97
BRACKET; CLIP
(B)
1-47475-427-1
01
1
1110-
97
BRACKET; CLIP
(C)
8-98076-024-0
01
1
1110-
228
BOLT; BRKT,SEDIMENTER
M10X40 FLANGE
0-28651-040-0
02
1
1110-
303
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
02
1
1110-
304
NUT; BRKT
(A) M8 FLANGE
0-91180-108-0
02
1
1110-
304
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
02
1
1110-
634
HOSE; RUBBER RETURN
8-98189-236-0
01
1
1110-
67
67
47
634
29
174
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
HOSE; FUEL
(B)
8-98189-235-0
01
1
1110-
29
HOSE; FUEL
(A) L=80 SERVICED BY L=3000
0-01558-300-0
01
1
1110-
47
PIPE; FUEL,RETURN
L=929
8-98189-188-1
01
1
1110-
65
HOSE; FUEL,DELIVERY PIPE
8-98189-234-0
01
1
1110-
67
HOSE; FUEL,DELIVERY
(A)
8-98189-232-0
01
1
1110-
67
HOSE; FUEL,DELIVERY
(B)
8-98189-233-0
01
1
1110-
174
PIPE; FUEL,FEED,FRT
8-98189-187-1
01
1
1110-
634
HOSE; RUBBER RETURN
8-98189-236-0
01
1
1110-
