◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11714 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#169258) — 183 parça

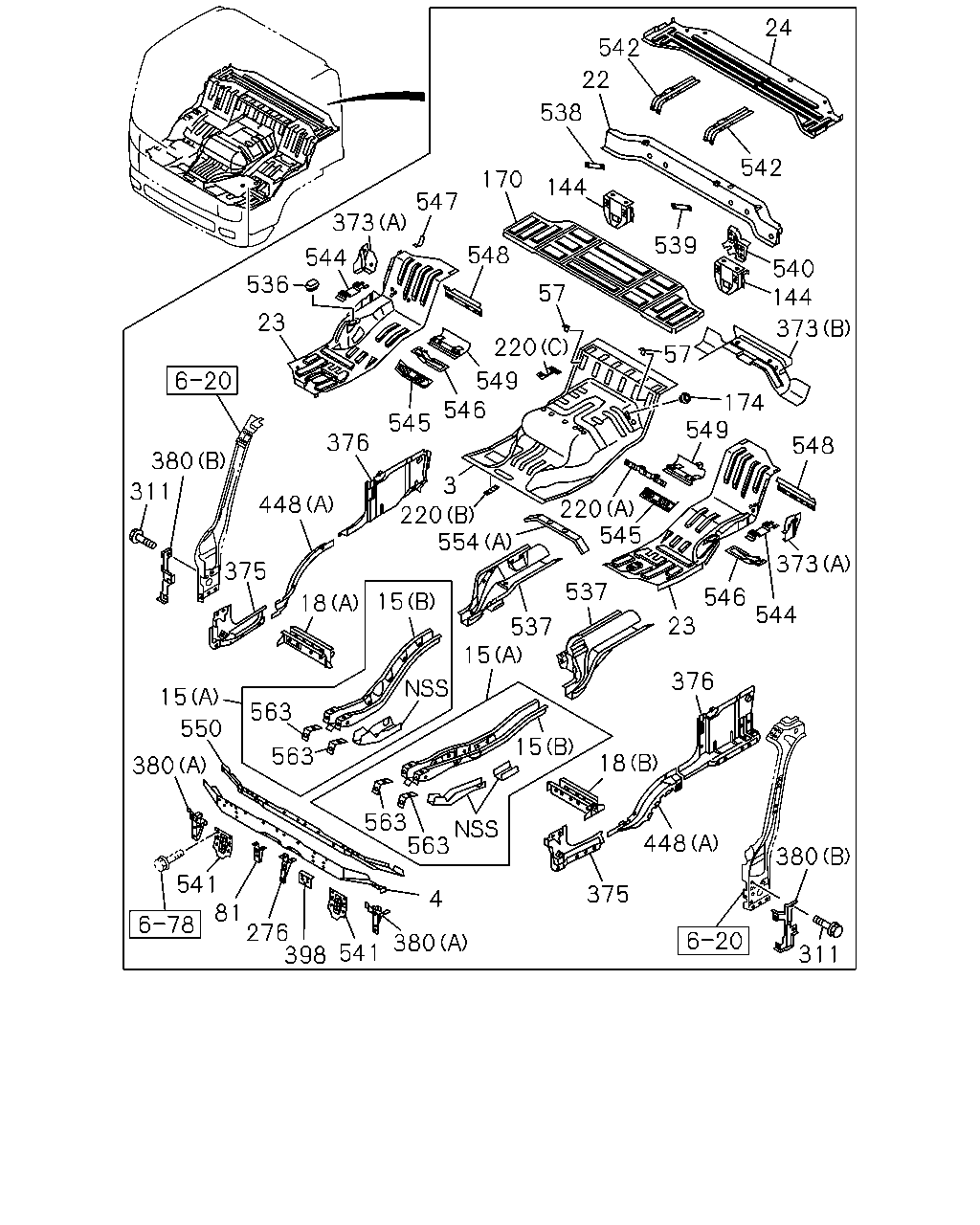

çizim 501405
24 542 540 144 373 548 174 549 57 539 144 538 22 542 170 547 548 373 544 536 23 376 545 546 549 220 57 373 544 546 23 537 537 15 15 220 554 220 545 448 18 380 311 375 380 4 563 563 563 563 15 550 380 541 81 276 398 541 18 375 448 380 311 15 3 376
BalonParca AdiParca NoAdetTipApplied Date A B C
3 HOOD ASM; ENG
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98065-705-8 01 1 1511- ●
3 HOOD ASM; ENG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98065-705-8 01 1 1511- ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-357-4 01 1 1511- ● ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98167-037-0 01 1 1511- ●
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1511- ● ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1511- ● ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1511- ● ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1511- ● ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1511- ● ● ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-397-5 01 1 1511- ● ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-420-4 01 1 1511- ● ● ●
18 FRAME; FLOOR,CENTER SIDE
(C) 		8-97610-539-2 01 1 1511- ●
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 1511- ● ●
22 FRAME; FLOOR REAR 8-97410-959-1 01 1 1511- ●
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 1511- ● ●
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1511- ● ●
23 PANEL; FLOOR,SIDE 8-97410-882-4 01 1 1511- ●
23 PANEL; FLOOR,SIDE 8-98216-751-0 01 1 1511- ●
24 PANEL; BED PAN 8-97584-377-6 01 1 1511- ● ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1511- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1511- ● ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1511- ● ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1511- ● ● ●
170 EXTENSION; RR FLOOR 8-97589-205-4 01 1 1511- ● ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1511- ● ●
220 PATCH
(A) 		8-97588-840-4 01 1 1511- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 1511- ● ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1511- ● ● ●
276 BRACKET; RAD GRILLE 8-98253-712-0 01 1 1511- ● ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1511- ● ● ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98228-266-0 01 1 1511- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1511- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1511- ● ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-943-0 01 1 1511- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-954-0 01 1 1511- ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1511- ● ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1511- ● ● ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1511- ● ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1511- ● ●
376 CLOSING; PILLAR,LWR 8-97612-016-5 01 1 1511- ●
376 CLOSING; PILLAR,LWR 8-98088-029-3 01 1 1511- ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1511- ● ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1511- ● ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1511- ● ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1511- ● ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1511- ● ● ●
448 CLOSING; ROCKER
(A) 		8-97589-551-2 01 1 1511- ● ●
448 CLOSING; ROCKER
(A) 		8-97589-552-2 01 1 1511- ● ●
448 CLOSING; ROCKER
(C) 		8-97610-658-1 01 1 1511- ●
448 CLOSING; ROCKER
(C) 		8-97610-659-1 01 1 1511- ●
448 CLOSING; ROCKER
(B) 		8-97611-856-0 01 1 1511- ●
448 CLOSING; ROCKER
(B) 		8-97611-857-0 01 1 1511- ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1511- ● ● ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1511- ● ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1511- ● ●
537 SUPPORT ASM; MTG RR 8-97410-940-1 01 1 1511- ●
537 SUPPORT ASM; MTG RR 8-97410-951-1 01 1 1511- ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1511- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97613-311-0 01 1 1511- ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1511- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1511- ● ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1511- ● ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1511- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1511- ● ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1511- ● ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1511- ● ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1511- ● ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1511- ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1511- ● ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1511- ● ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1511- ● ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1511- ● ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 1511- ● ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1511- ● ● ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1511- ● ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 1511- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 1511- ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1511- ● ● ●

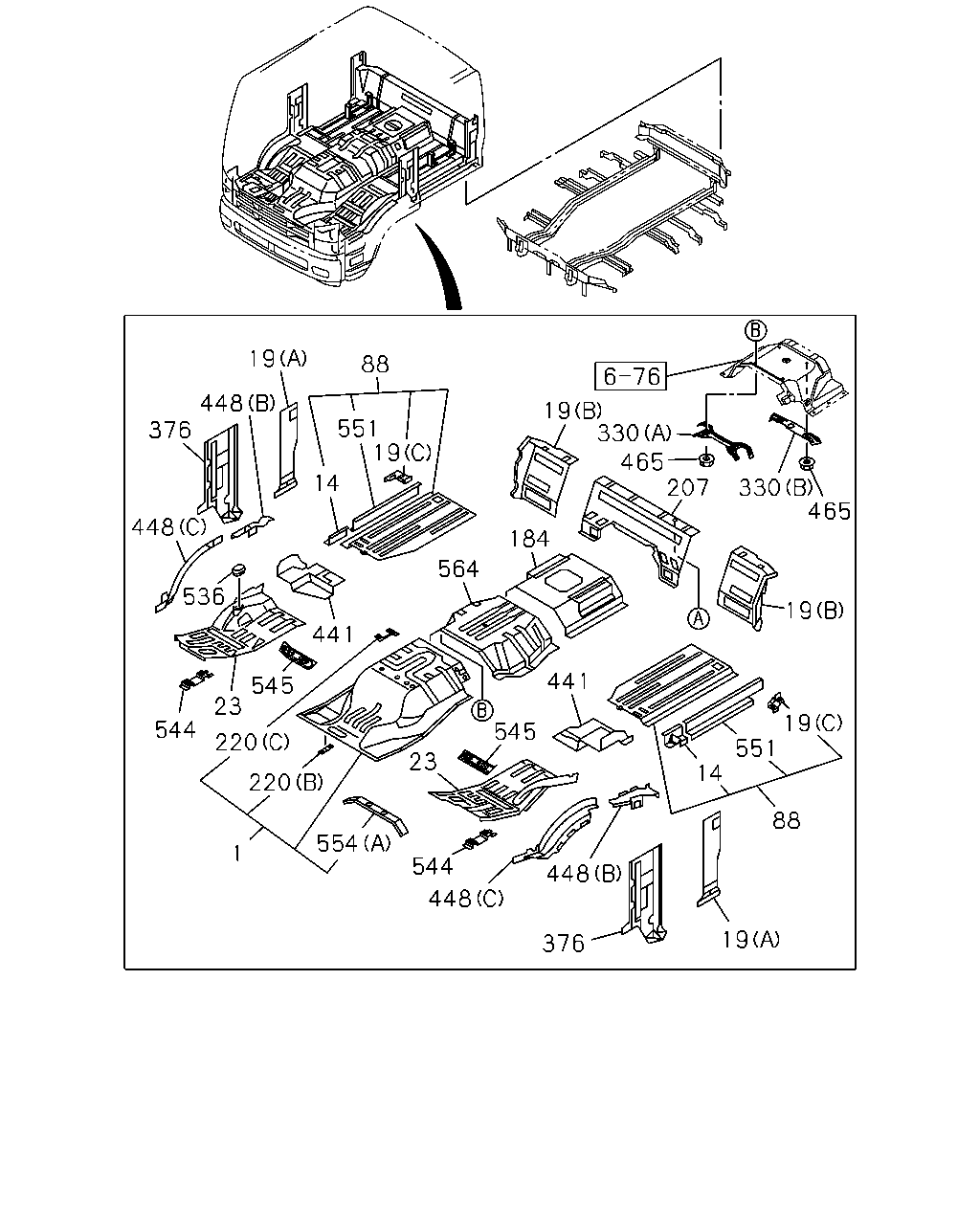

çizim 501727
465 330 207 465 330 19 184 441 19 551 14 88 19 376 448 448 544 554 220 1 220 23 544 545 536 448 376 448 19 88 551 14 441 564 19 19 545 23
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97410-865-7 01 1 1511- ●
1 PANEL; FLOOR
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98203-641-0 01 1 1511- ●
14 PANEL; FLOOR SIDE,FRT 8-98010-047-0 01 1 1511- ●
14 PANEL; FLOOR SIDE,FRT 8-98010-048-0 01 1 1511- ●
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-051-1 01 1 1511- ●
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-052-1 01 1 1511- ●
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-963-1 01 1 1511- ●
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-964-1 01 1 1511- ●
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98084-841-1 01 1 1511- ●
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98084-842-1 01 1 1511- ●
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 1511- ● ●
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1511- ● ●
23 PANEL; FLOOR,SIDE 8-97410-882-4 01 1 1511- ●
23 PANEL; FLOOR,SIDE 8-98216-751-0 01 1 1511- ●
88 BOARD ASM; FLOOR 8-97615-912-2 01 1 1511- ●
88 BOARD ASM; FLOOR 8-97615-913-3 01 1 1511- ●
184 HOOD ASM; ENG RR 8-97410-869-1 01 1 1511- ●
207 PANEL; FLOOR,RR CTR 8-97410-927-3 01 1 1511- ●
220 PATCH
(A) 		8-97588-840-4 01 1 1511- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 1511- ● ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1511- ● ● ●
330 REINFORCEMENT; FLOOR
(A) 		8-98248-128-0 01 1 1511- ●
330 REINFORCEMENT; FLOOR
(B) 		8-98248-129-0 01 1 1511- ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1511- ● ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1511- ● ●
376 CLOSING; PILLAR,LWR 8-97612-016-5 01 1 1511- ●
376 CLOSING; PILLAR,LWR 8-98088-029-3 01 1 1511- ●
441 PANEL; EXTENSION,FLOOR SIDE 8-97410-911-2 01 1 1511- ●
441 PANEL; EXTENSION,FLOOR SIDE 8-98050-317-2 01 1 1511- ●
448 CLOSING; ROCKER
(A) 		8-97589-551-2 01 1 1511- ● ●
448 CLOSING; ROCKER
(A) 		8-97589-552-2 01 1 1511- ● ●
448 CLOSING; ROCKER
(C) 		8-97610-658-1 01 1 1511- ●
448 CLOSING; ROCKER
(C) 		8-97610-659-1 01 1 1511- ●
448 CLOSING; ROCKER
(B) 		8-97611-856-0 01 1 1511- ●
448 CLOSING; ROCKER
(B) 		8-97611-857-0 01 1 1511- ●
465 NUT; REINFORCEMENT
M6 FLANGE 		0-91180-106-0 04 1 1511- ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1511- ● ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1511- ● ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1511- ● ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1511- ● ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1511- ● ● ●
551 PANEL; FLOOR SIDE,CTR 8-98010-049-2 01 1 1511- ●
551 PANEL; FLOOR SIDE,CTR 8-98010-050-2 01 1 1511- ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1511- ● ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 1511- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 1511- ●
564 PANEL; ENG HOOD EXT FRT 8-97610-271-1 01 1 1511- ●

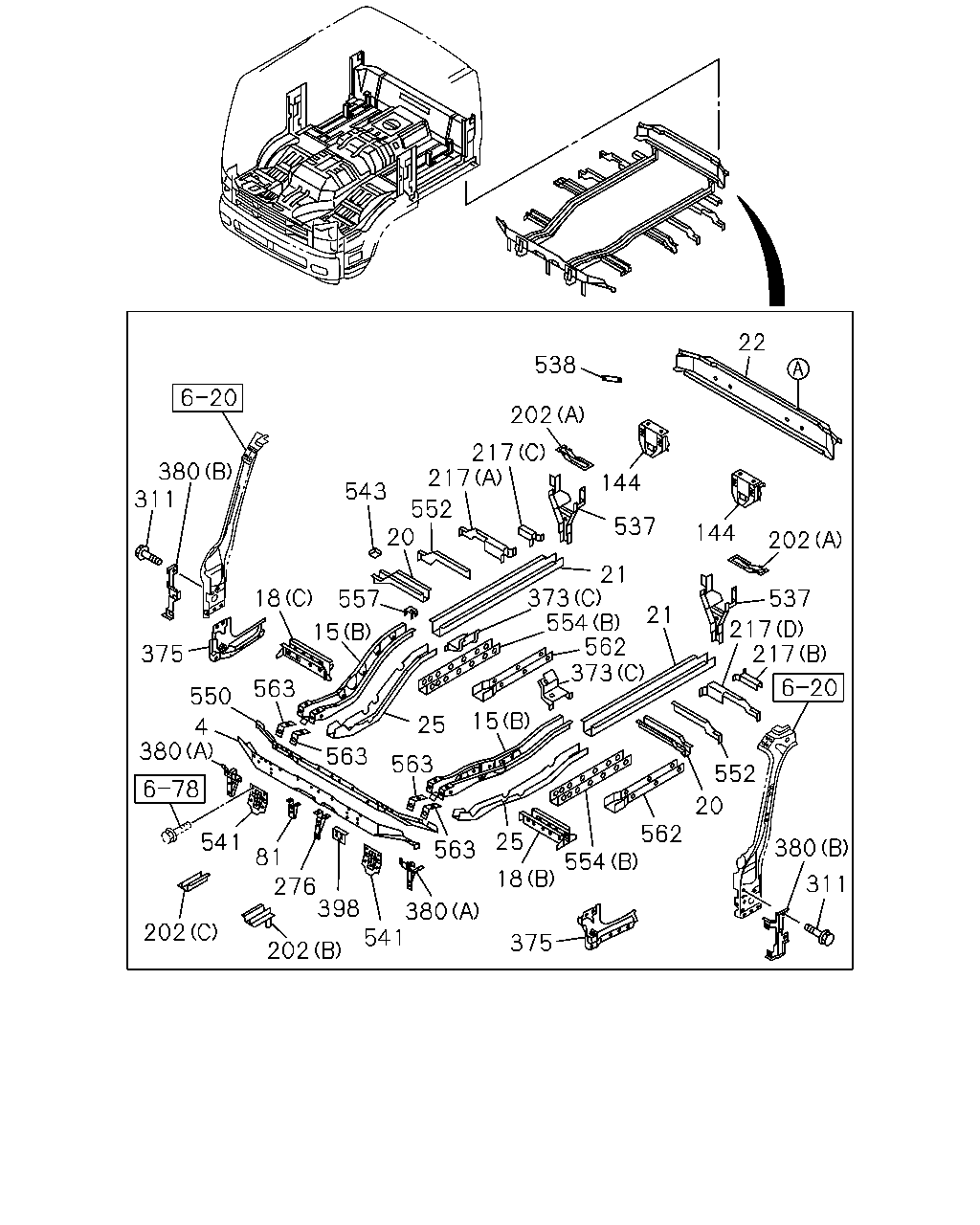

çizim 501839
538 202 217 217 543 380 552 537 144 22 202 144 537 217 217 562 554 21 21 373 373 20 557 15 18 375 550 563 563 563 25 15 563 18 25 375 380 541 398 276 81 541 380 202 554 20 562 552 311 380 4 311 202
BalonParca AdiParca NoAdetTipApplied Date A B C
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1511- ● ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1511- ● ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1511- ● ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1511- ● ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1511- ● ● ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-397-5 01 1 1511- ● ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-420-4 01 1 1511- ● ● ●
18 FRAME; FLOOR,CENTER SIDE
(C) 		8-97610-539-2 01 1 1511- ●
20 FRAME; FLOOR SIDE,REAR 8-98057-164-1 01 1 1511- ●
20 FRAME; FLOOR SIDE,REAR 8-98057-167-1 01 1 1511- ●
21 FRAME; FLOOR CENTER 8-97410-938-2 01 1 1511- ●
21 FRAME; FLOOR CENTER 8-97410-950-3 01 1 1511- ●
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 1511- ● ●
22 FRAME; FLOOR REAR 8-97410-959-1 01 1 1511- ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-225-4 01 1 1511- ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-226-4 01 1 1511- ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1511- ● ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1511- ● ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1511- ● ● ●
202 PANEL; CENTER MTG REINF
(A) 		8-97584-426-0 02 1 1511- ●
202 PANEL; CENTER MTG REINF
(C) 		8-97607-514-0 01 1 1511- ●
202 PANEL; CENTER MTG REINF
(B) 		8-97607-515-0 01 1 1511- ●
217 PANEL; SEAT STAND
(C) 		8-97410-945-1 01 1 1511- ●
217 PANEL; SEAT STAND
(B) 		8-97410-956-1 01 1 1511- ●
217 PANEL; SEAT STAND
(A) 		8-98057-178-1 01 1 1511- ●
217 PANEL; SEAT STAND
(D) 		8-98057-196-1 01 1 1511- ●
276 BRACKET; RAD GRILLE 8-98253-712-0 01 1 1511- ● ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1511- ● ● ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98228-266-0 01 1 1511- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1511- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1511- ● ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-943-0 01 1 1511- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-954-0 01 1 1511- ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1511- ● ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1511- ● ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1511- ● ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1511- ● ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1511- ● ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1511- ● ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1511- ● ● ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1511- ● ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1511- ● ●
537 SUPPORT ASM; MTG RR 8-97410-940-1 01 1 1511- ●
537 SUPPORT ASM; MTG RR 8-97410-951-1 01 1 1511- ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1511- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97613-311-0 01 1 1511- ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1511- ● ● ●
543 GUSSET; RR PILLAR,LWR 8-98024-396-0 01 1 1511- ●
543 GUSSET; RR PILLAR,LWR 8-98035-734-0 01 1 1511- ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1511- ● ● ●
552 PANEL; STEP RR 8-98057-170-0 01 1 1511- ●
552 PANEL; STEP RR 8-98057-171-0 01 1 1511- ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1511- ● ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 1511- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 1511- ●
557 PATCH; SEAT 8-98074-333-0 01 1 1511- ●
562 REINFORCEMENT; FLOOR 8-97410-939-3 02 1 1511- ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1511- ● ● ●
