Isuzu WW
▶
TRUCKS
▶
FRR
▶
11714 - FRR AUST/NZ EURO5 EXC.SPACECAB
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶
6-60 — ROOF PANEL
(#169256) — 32 parça
Tümü
A - FCD5MS
B - FCR5MS
C - FCR5WS
◀

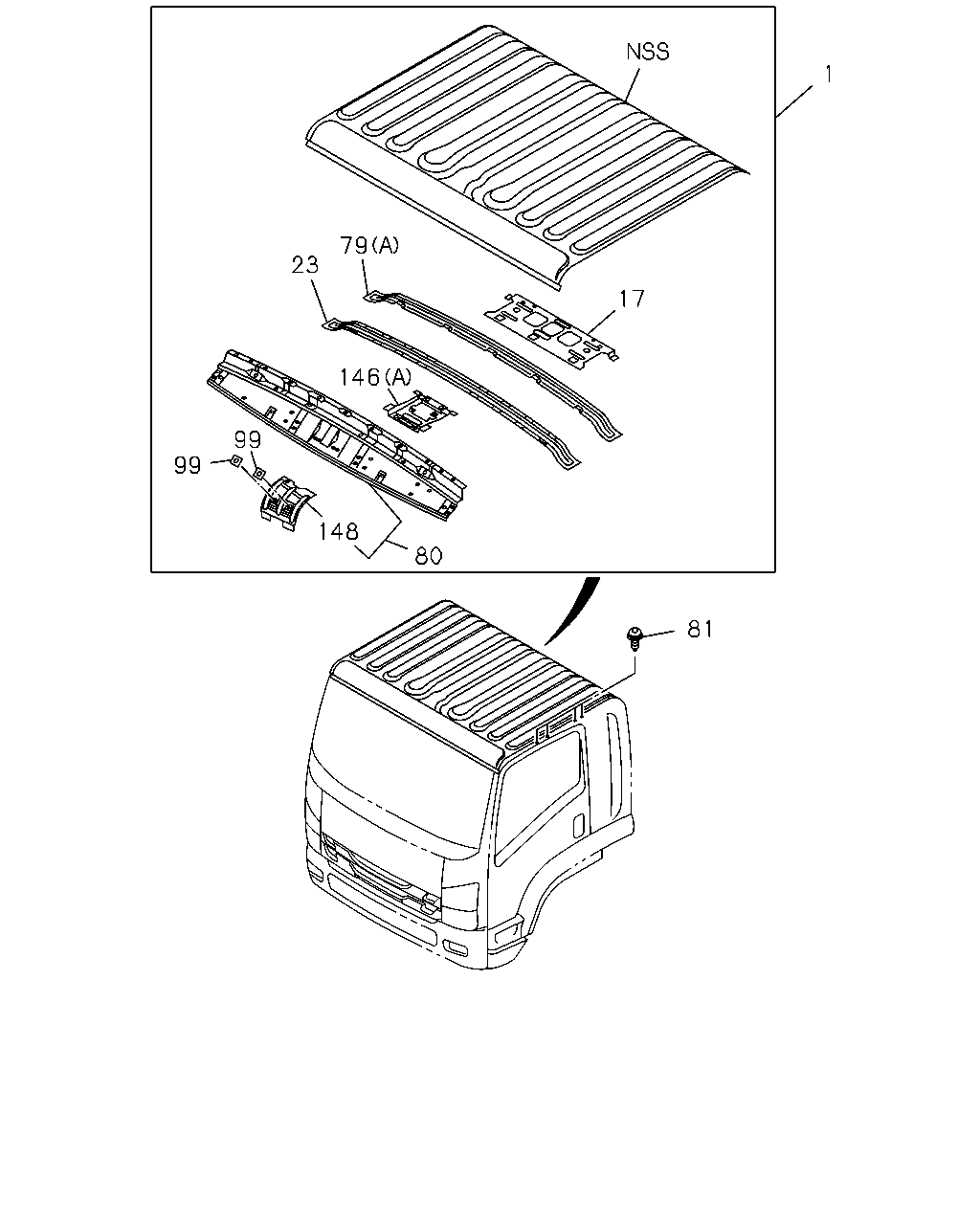

[660A] SGL CAB (15 parça)

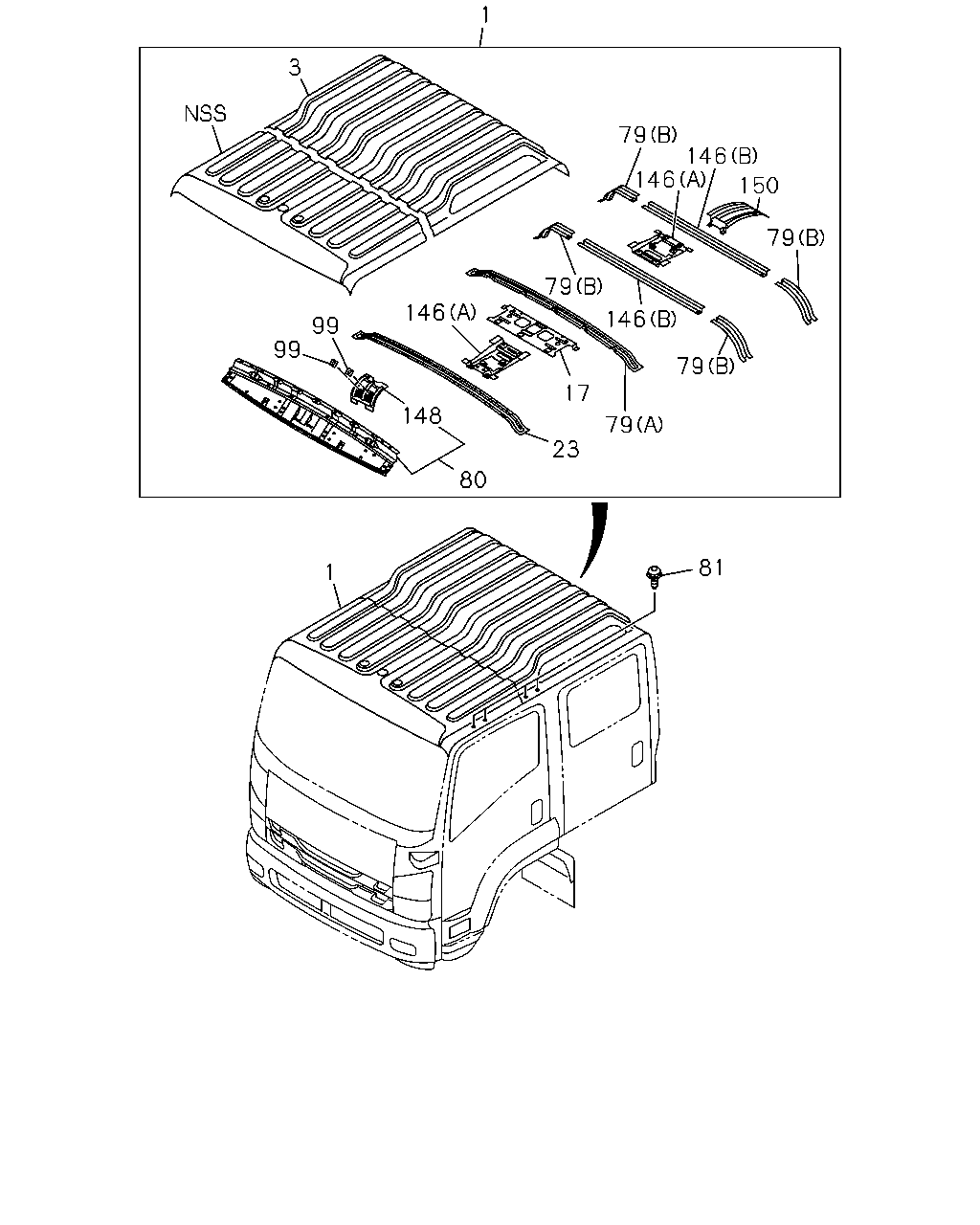

[660A] DBL CAB (17 parça)
▶
1
17
79
23
146
99
99
148
80
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9>
8-97584-170-7
01
1
1511-
●
●
1
PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9>
8-98017-276-6
01
1
1511-
●
●
1
PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9>
8-97587-641-7
01
1
1511-
●
1
PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9>
8-98065-284-6
01
1
1511-
●
17
REINFORCEMENT; ROOF PNL CENTER
8-97584-203-5
01
1
1511-
●
●
●
23
REINFORCEMENT; ROOF PANEL,FRT
8-98019-310-0
01
1
1511-
●
●
●
79
REINFORCEMENT; ROOF PANEL,RR
(A)
8-97584-199-1
01
1
1511-
●
●
●
79
REINFORCEMENT; ROOF PANEL,RR
(B)
8-98008-023-0
04
1
1511-
●
80
PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9>
8-97584-191-4
01
1
1511-
●
●
●
81
BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
1511-
●
●
●
99
SEAL; BODY,METAL
MIRROR O/S UNDER VIEW<RR9> 30X30 ID=20 T=0.7
1-61281-380-2
02
1
1511-
●
●
●
146
REINFORCEMENT; ROOM LAMP
(A)
8-98075-827-0
01
1
1511-
●
●
146
REINFORCEMENT; ROOM LAMP
(B)
8-98010-736-1
02
1
1511-
●
146
REINFORCEMENT; ROOM LAMP
(A)
8-98075-827-0
02
1
1511-
●
148
REINFORCEMENT; MIRROR
MIRROR O/S UNDER VIEW<RR9>
8-97411-015-1
01
1
1511-
●
●
●
1
3
79
146
150
79
146
79
79
146
17
23
79
81
1
80
148
146
99
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9>
8-97584-170-7
01
1
1511-
●
●
1
PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9>
8-98017-276-6
01
1
1511-
●
●
1
PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9>
8-97587-641-7
01
1
1511-
●
1
PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9>
8-98065-284-6
01
1
1511-
●
3
PANEL; ROOF,RR
8-97411-040-1
01
1
1511-
●
17
REINFORCEMENT; ROOF PNL CENTER
8-97584-203-5
01
1
1511-
●
●
●
23
REINFORCEMENT; ROOF PANEL,FRT
8-98019-310-0
01
1
1511-
●
●
●
79
REINFORCEMENT; ROOF PANEL,RR
(A)
8-97584-199-1
01
1
1511-
●
●
●
79
REINFORCEMENT; ROOF PANEL,RR
(B)
8-98008-023-0
04
1
1511-
●
80
PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9>
8-97584-191-4
01
1
1511-
●
●
●
81
BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
1511-
●
●
●
99
SEAL; BODY,METAL
MIRROR O/S UNDER VIEW<RR9> 30X30 ID=20 T=0.7
1-61281-380-2
02
1
1511-
●
●
●
146
REINFORCEMENT; ROOM LAMP
(A)
8-98075-827-0
01
1
1511-
●
●
146
REINFORCEMENT; ROOM LAMP
(B)
8-98010-736-1
02
1
1511-
●
146
REINFORCEMENT; ROOM LAMP
(A)
8-98075-827-0
02
1
1511-
●
148
REINFORCEMENT; MIRROR
MIRROR O/S UNDER VIEW<RR9>
8-97411-015-1
01
1
1511-
●
●
●
150
REINFORCEMENT; ROOF BACK
8-98085-374-0
01
1
1511-
●
