◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11714 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶
6-30 — FRONT DOOR AND HINGE (#169246) — 12 parça

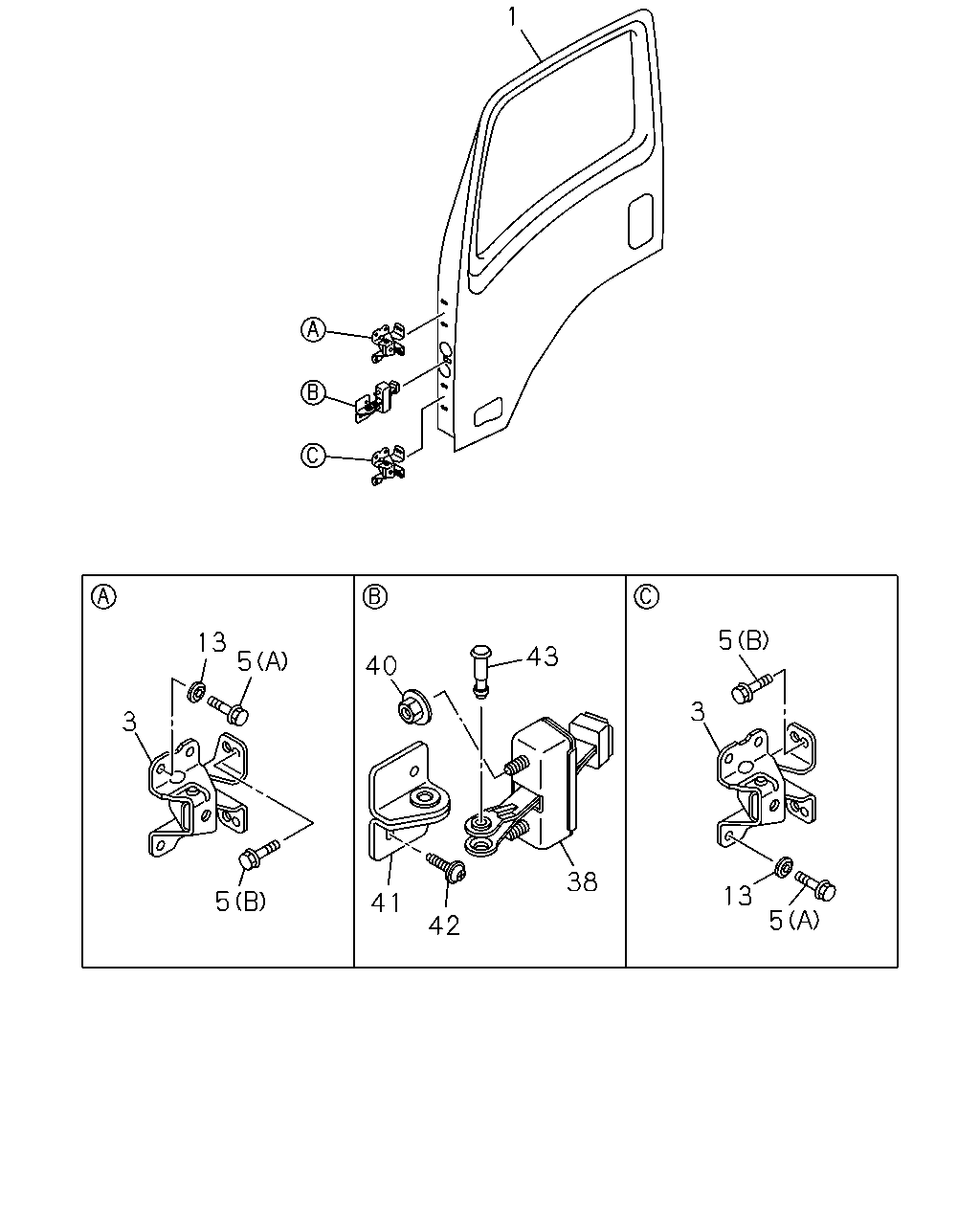

çizim 502803
5 3 3 5 42 38 41 40 43 5 13 3 5 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DOOR ASM; FRT,WO/TRIM 8-98260-598-0 01 1 1511- ● ● ●
1 DOOR ASM; FRT,WO/TRIM 8-98260-597-0 01 1 1511- ● ● ●
3 HINGE; DOOR FRT 8-98191-302-0 04 1 1511- ● ● ●
5 BOLT; HINGE
(B) M8X23 FLANGE 		8-98029-440-0 08 1 1511- ● ● ●
5 BOLT; HINGE
(A) M8X20 FLANGE 		8-98049-756-0 06 1 1511- ● ● ●
5 BOLT; HINGE
(A) M8X20 FLANGE 		8-98049-756-0 06 1 1511- ● ● ●
13 WASHER; HINGE
ID=8.1 W/SEAL 		8-97890-584-1 04 1 1511- ● ● ●
38 CHECKER ASM; DOOR 8-98296-602-0 02 1 1511- ● ● ●
40 NUT; CHECKER
M8 W/DISHED WASHER 		8-98302-918-0 04 1 1511- ● ● ●
41 BRACKET; CHECKER 8-98029-290-3 02 1 1511- ● ● ●
42 BOLT; BRKT
M6X20 W/PL WASHER 		8-98032-159-2 04 1 1511- ● ● ●
43 PIN 8-98037-152-2 02 1 1511- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
