◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11714 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#169245) — 126 parça

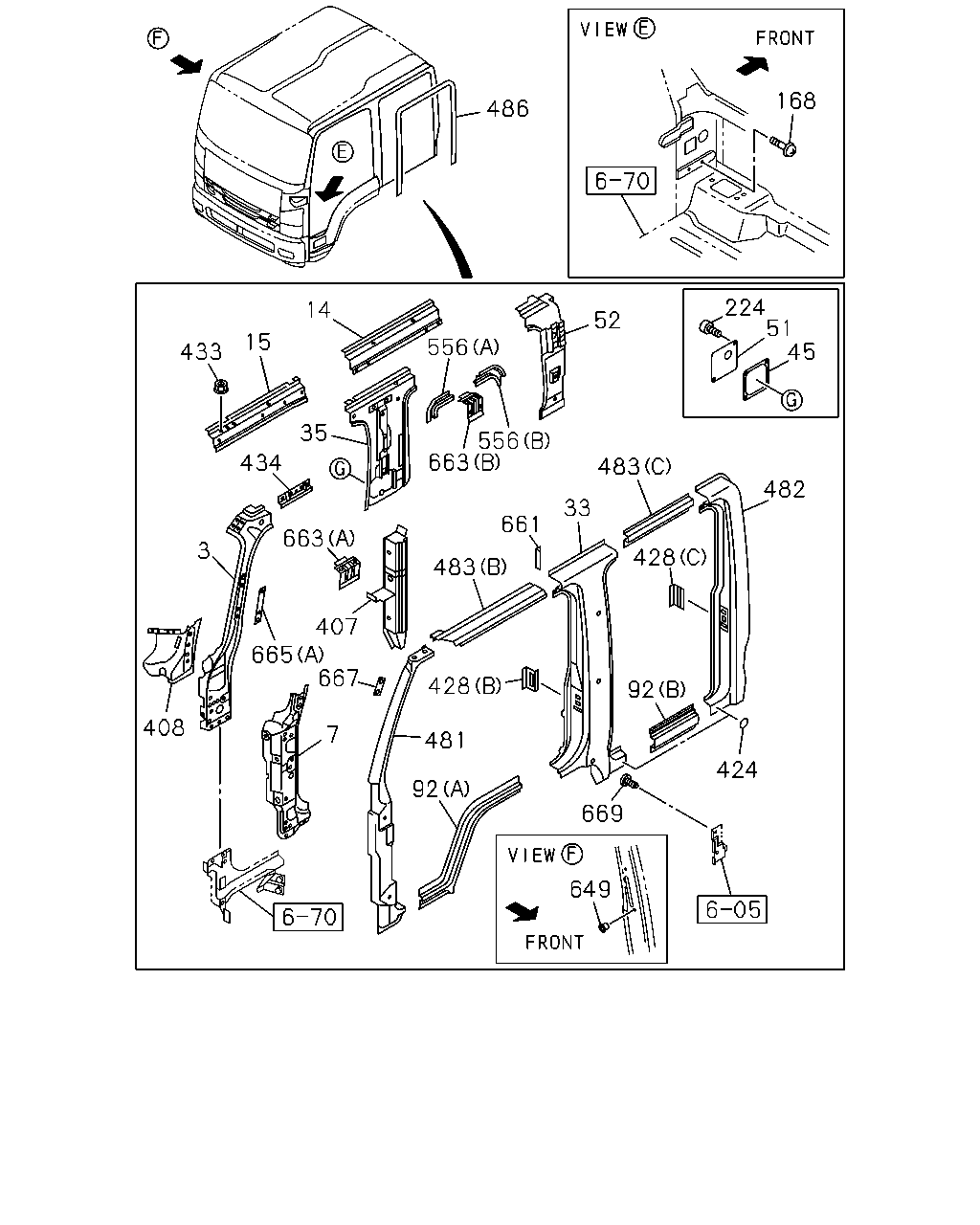

çizim 501834
486 168 224 51 45 483 482 428 33 661 556 663 663 434 35 15 14 556 52 433 3 407 665 667 7 408 92 481 428 483 92 424 669 649
BalonParca AdiParca NoAdetTipApplied Date A B C
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1511- ● ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1511- ● ● ●
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1511- ● ● ●
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1511- ● ● ●
14 PANEL; REINF,SIDE DRIP 8-97583-706-2 01 1 1511- ●
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1511- ● ●
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1511- ● ●
15 PANEL; CANT RAIL SIDE 8-97583-740-1 01 1 1511- ●
15 PANEL; CANT RAIL SIDE 8-97583-739-1 01 1 1511- ●
33 PANEL; CENTER PILLAR,OUTER 8-98069-091-0 01 1 1511- ●
33 PANEL; CENTER PILLAR,OUTER 8-98069-090-0 01 1 1511- ●
35 PANEL; CENTER PILLAR,INNER 8-98080-456-2 01 1 1511- ●
35 PANEL; CENTER PILLAR,INNER 8-98080-457-2 01 1 1511- ●
45 SEAL; B-C POST 8-97853-731-2 02 1 1511- ●
51 COVER; HOLE,B-C POST 8-94273-658-0 02 1 1511- ●
52 PANEL; D-POST UPR 8-98306-388-0 01 1 1511- ●
52 PANEL; D-POST UPR 8-98306-387-0 01 1 1511- ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1511- ● ● ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1511- ● ● ●
92 PANEL; SIDE SILL,CAB
(B) 		8-98069-113-0 02 1 1511- ●
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1511- ● ● ●
224 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1511- ●
407 PILLAR; HINGE,RR DOOR 8-97410-824-2 01 1 1511- ●
407 PILLAR; HINGE,RR DOOR 8-97410-822-2 01 1 1511- ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 1511- ● ● ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 1511- ● ● ●
424 SEAL; CLOSING
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609) ,BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),B ODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARABEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BOD Y COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989) ,BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1511- ●
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1511- ●
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97585-261-4 01 1 1511- ● ●
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97585-260-4 01 1 1511- ● ●
428 REINFORCEMENT; DOOR STRIKER
(C) 		8-97851-446-1 01 1 1511- ●
428 REINFORCEMENT; DOOR STRIKER
(B) 		8-98014-549-0 01 1 1511- ●
428 REINFORCEMENT; DOOR STRIKER
(C) 		8-97851-445-1 01 1 1511- ●
428 REINFORCEMENT; DOOR STRIKER
(B) 		8-98014-548-0 01 1 1511- ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 1511- ● ● ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1511- ● ● ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1511- ● ● ●
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 1511- ● ● ●
481 PANEL; SIDE FRT PILLAR
MIRROR O/S UNDER VIEW<RR9> 		8-98092-915-0 01 1 1511- ● ● ●
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98072-714-1 01 1 1511- ● ● ●
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1511- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1511- ● ●
482 PANEL; SIDE RR PILLAR 8-98097-238-0 01 1 1511- ●
482 PANEL; SIDE RR PILLAR 8-98097-237-0 01 1 1511- ●
483 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 1511- ● ●
483 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 1511- ● ●
483 PANEL; SIDE CANTRAIL
(C) 		8-98069-095-0 02 1 1511- ●
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 1511- ●
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 1511- ●
486 SEAL; BODY SIDE 8-98245-050-0 02 1 1511- ●
556 PATCH; ROOF SIDE
(A) 		8-98024-391-0 01 1 1511- ●
556 PATCH; ROOF SIDE
(B) 		8-98024-393-0 01 1 1511- ●
556 PATCH; ROOF SIDE
(A) 		8-98024-390-0 01 1 1511- ●
556 PATCH; ROOF SIDE
(B) 		8-98024-392-0 01 1 1511- ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1511- ● ● ●
661 BRACKET; SIDE PANEL 8-98012-623-1 01 1 1511- ●
661 BRACKET; SIDE PANEL 8-98012-621-1 01 1 1511- ●
663 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1511- ● ● ●
663 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1511- ● ● ●
663 BRACKET; AIR
(B) 		8-98020-643-1 01 1 1511- ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-98012-287-1 02 1 1511- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-97585-314-0 02 1 1511- ● ● ●
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98109-948-0 01 1 1511- ● ● ●
669 STUD; FENDER
M6X12 		8-98013-112-0 01 1 1511- ●

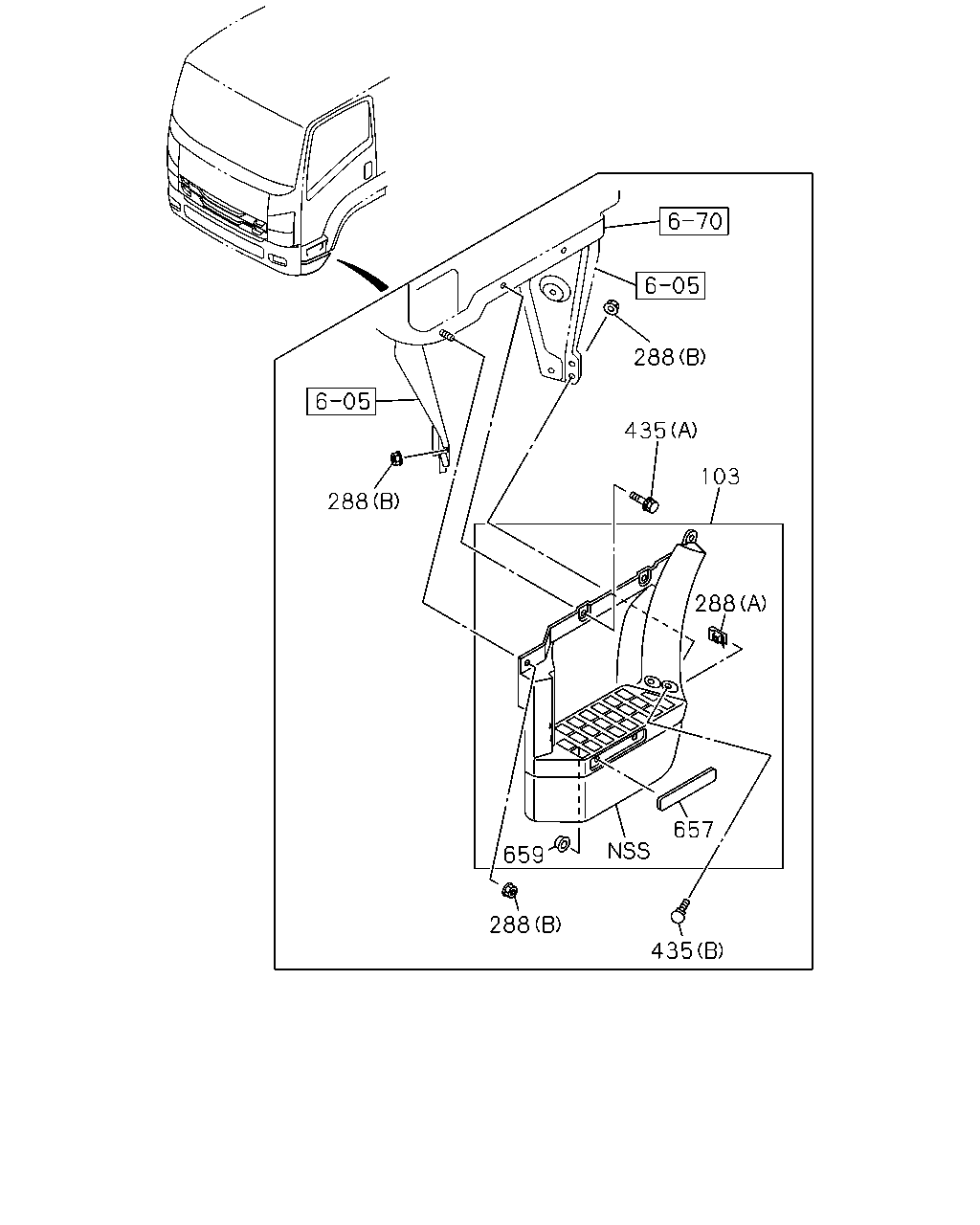

çizim 502728
288 435 103 288 657 659 288 435 288
BalonParca AdiParca NoAdetTipApplied Date A B C
103 PLATE; STEP 8-98037-326-3 01 1 1511- ● ● ●
103 PLATE; STEP 8-98037-325-3 01 1 1511- ● ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1511- ● ● ●
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1511- ● ● ●
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1511- ● ● ●
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1511- ● ● ●
657 REFLECTOR; REFLEX 8-97378-910-0 02 1 1511- ● ● ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1511- ● ● ●

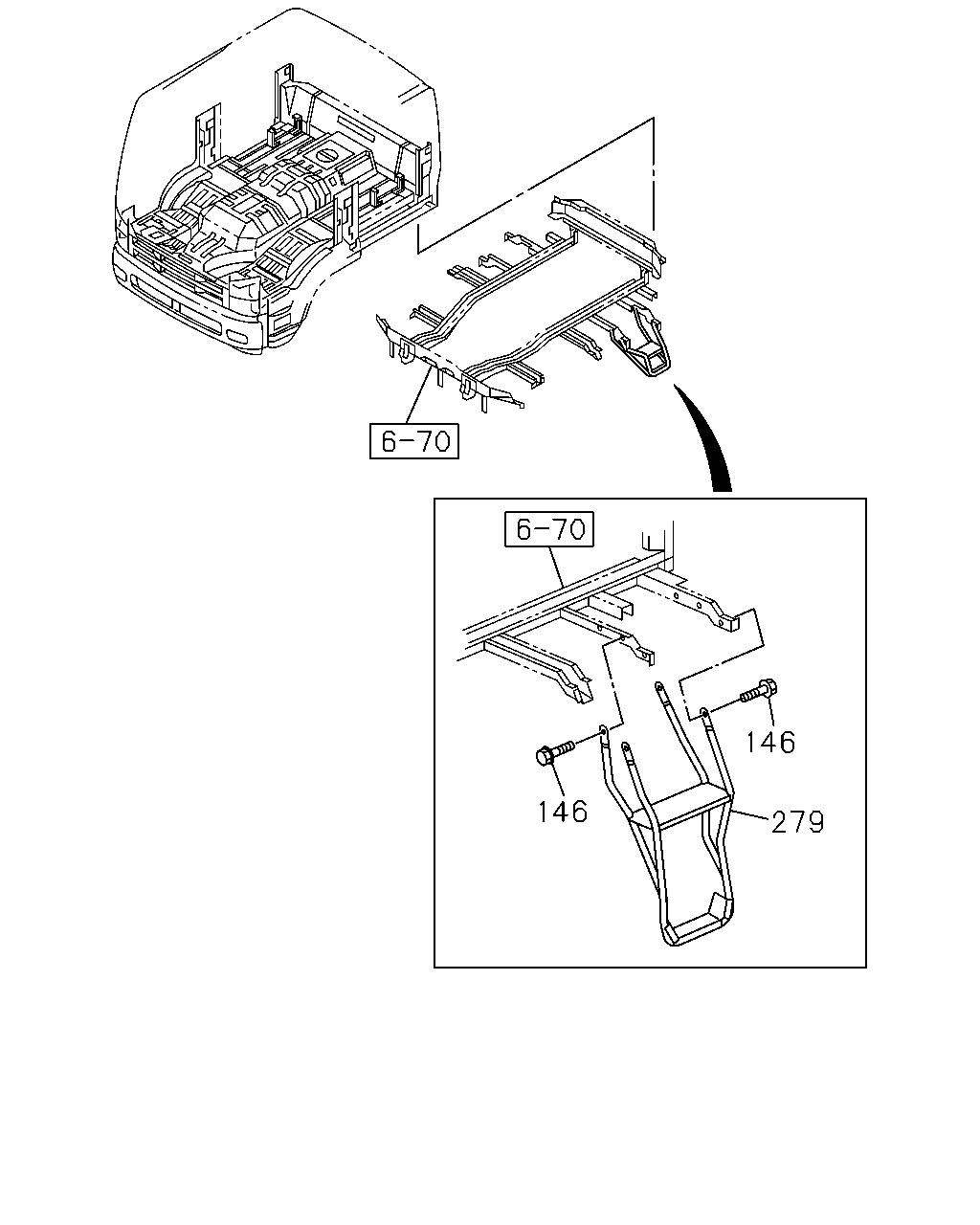

çizim 502801
279 146 146
BalonParca AdiParca NoAdetTipApplied Date A B C
146 BOLT; STEP BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 1511- ●
279 BOARD; STEP 1ST 8-97607-508-3 01 1 1511- ●
279 BOARD; STEP 1ST 8-97607-507-3 01 1 1511- ●

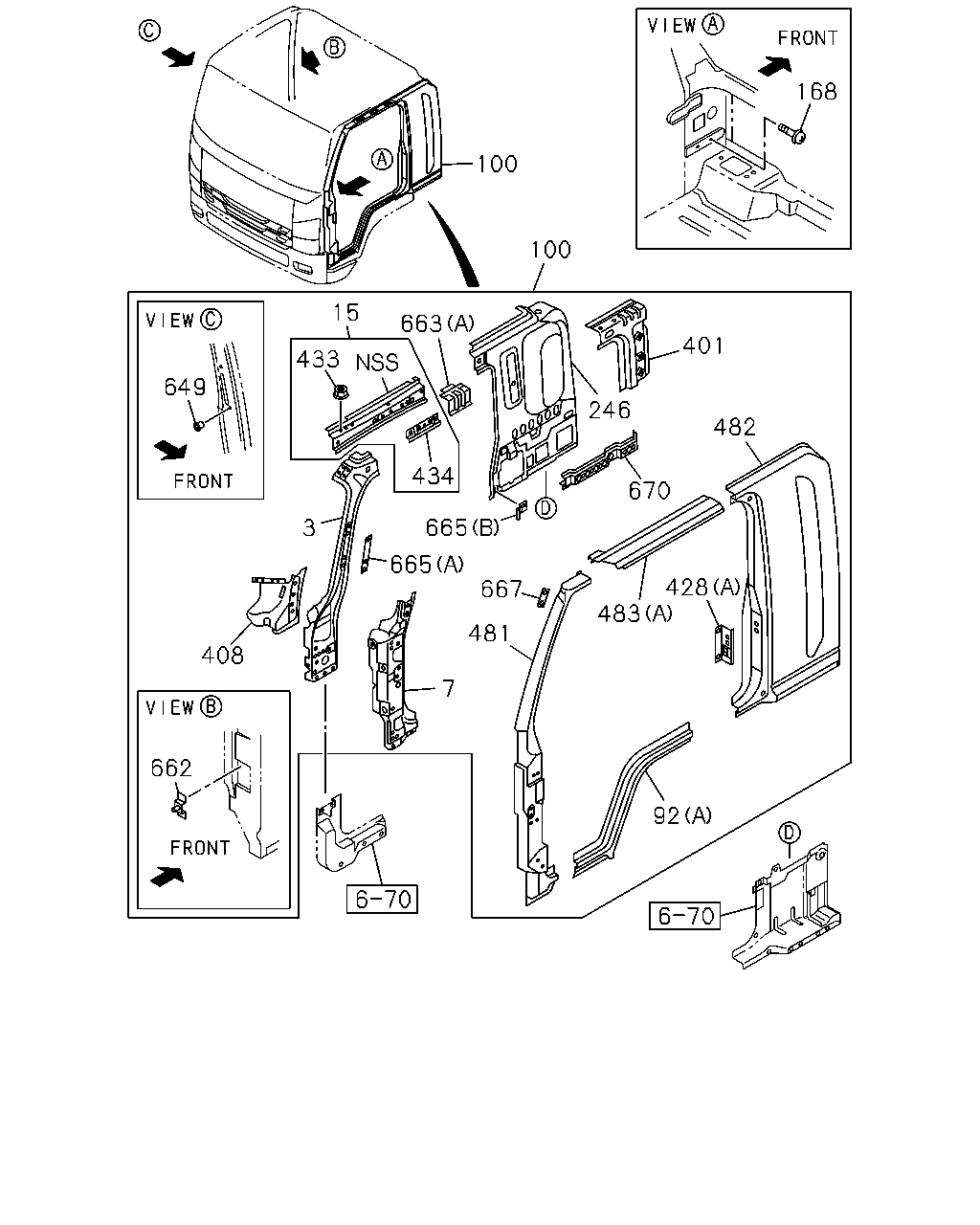

çizim 502863
100 100 168 15 663 433 649 3 408 662 92 7 481 667 665 665 434 246 670 482 401 428 483
BalonParca AdiParca NoAdetTipApplied Date A B C
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1511- ● ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1511- ● ● ●
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1511- ● ● ●
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1511- ● ● ●
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1511- ● ●
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1511- ● ●
15 PANEL; CANT RAIL SIDE 8-97583-740-1 01 1 1511- ●
15 PANEL; CANT RAIL SIDE 8-97583-739-1 01 1 1511- ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1511- ● ● ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1511- ● ● ●
92 PANEL; SIDE SILL,CAB
(B) 		8-98069-113-0 02 1 1511- ●
100 PANEL ASM; BODY SIDE 8-97586-063-5 01 1 1511- ● ●
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> 		8-97586-079-7 01 1 1511- ● ●
100 PANEL ASM; BODY SIDE
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97586-071-6 01 1 1511- ● ●
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1511- ● ● ●
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 1511- ● ●
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 1511- ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 1511- ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 1511- ● ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 1511- ● ● ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 1511- ● ● ●
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97585-261-4 01 1 1511- ● ●
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97585-260-4 01 1 1511- ● ●
428 REINFORCEMENT; DOOR STRIKER
(C) 		8-97851-446-1 01 1 1511- ●
428 REINFORCEMENT; DOOR STRIKER
(B) 		8-98014-549-0 01 1 1511- ●
428 REINFORCEMENT; DOOR STRIKER
(C) 		8-97851-445-1 01 1 1511- ●
428 REINFORCEMENT; DOOR STRIKER
(B) 		8-98014-548-0 01 1 1511- ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 1511- ● ● ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1511- ● ● ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1511- ● ● ●
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 1511- ● ● ●
481 PANEL; SIDE FRT PILLAR
MIRROR O/S UNDER VIEW<RR9> 		8-98092-915-0 01 1 1511- ● ● ●
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98072-714-1 01 1 1511- ● ● ●
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1511- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1511- ● ●
482 PANEL; SIDE RR PILLAR 8-98097-238-0 01 1 1511- ●
482 PANEL; SIDE RR PILLAR 8-98097-237-0 01 1 1511- ●
483 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 1511- ● ●
483 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 1511- ● ●
483 PANEL; SIDE CANTRAIL
(C) 		8-98069-095-0 02 1 1511- ●
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 1511- ●
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 1511- ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1511- ● ● ●
662 BRACKET; DUCT 8-97584-611-1 01 1 1511- ● ●
663 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1511- ● ● ●
663 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1511- ● ● ●
663 BRACKET; AIR
(B) 		8-98020-643-1 01 1 1511- ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-98012-287-1 02 1 1511- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-97585-314-0 02 1 1511- ● ● ●
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98109-948-0 01 1 1511- ● ● ●
670 STIFFENER; PANEL,SIDE 8-98015-044-1 02 1 1511- ● ●
