Sayfa 6-05 - Isuzu EPC

6-05 — FRONT PANEL (#169243) — 419 parça

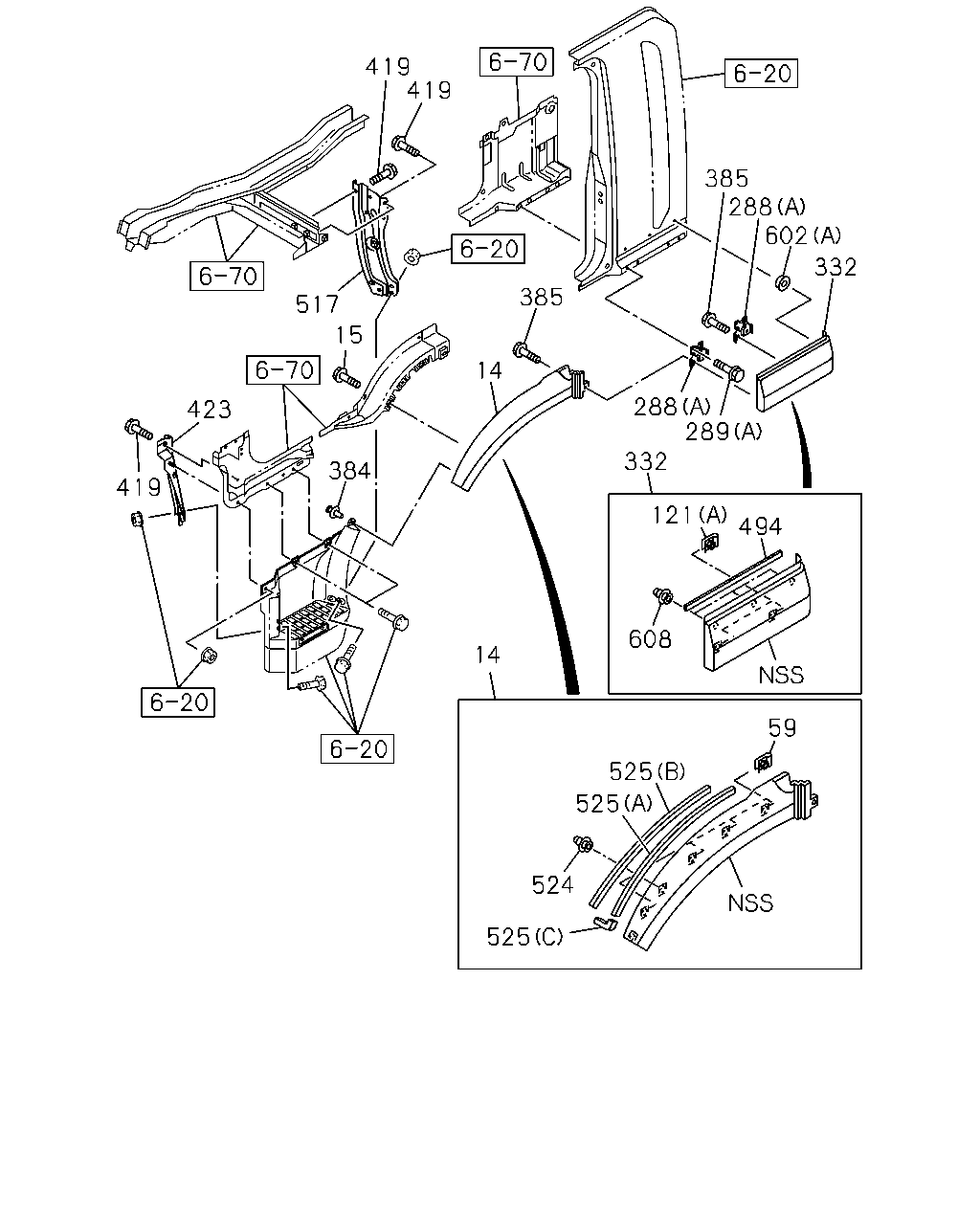

419 419 385 385 608 288 332 289 288 332 121 494 608 14 525 525 524 525 59 14 384 423 419 517 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	FENDER; FRT BLACK	8-98041-399-3	01	1	1511-	●	●	●
14	FENDER; FRT BLACK	8-98041-398-3	01	1	1511-	●	●	●
15	BOLT; FENDER M6X20 W/PL WASHER	8-98059-504-0	06	1	1511-	●	●	●
59	GROMMET; SCREW	8-94279-723-0	02	1	1511-	●	●	●
59	GROMMET; SCREW	8-94279-723-0	02	1	1511-			●
59	GROMMET; SCREW	8-94279-723-0	08	1	1511-	●	●	●
121	GROMMET; FENDER (A)	8-94279-723-0	04	1	1511-	●	●
121	GROMMET; FENDER (C) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1511-	●	●	●
121	GROMMET; FENDER (D) OD=8.3	8-94279-989-0	10	1	1511-	●	●	●
121	GROMMET; FENDER (B) H=15	8-94463-268-1	04	1	1511-	●	●	●
121	GROMMET; FENDER (E)	8-98073-421-0	01	1	1511-	●	●	●
121	GROMMET; FENDER (E)	8-98073-420-0	01	1	1511-	●	●	●
288	BRACKET; FENDER SKIRT (A)	8-98041-162-1	04	1	1511-	●	●
288	BRACKET; FENDER SKIRT (B)	8-98019-871-3	01	1	1511-			●
288	BRACKET; FENDER SKIRT (B)	8-98019-870-3	01	1	1511-			●
289	BOLT; FENDER SKIRT BRKT (A) M6X16 FLANGE	0-28650-616-0	08	1	1511-	●	●
289	BOLT; FENDER SKIRT BRKT (B) M6X20 W/PL WASHER	8-98059-504-0	02	1	1511-			●
332	FENDER; RR BODY COLOR AL GRAY(517) GRAY	8-97413-606-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR AL GRAY(517) GRAY	8-97413-596-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR ARC WHITE(729) WHITE	8-97407-507-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR ARC WHITE(729) WHITE	8-97407-506-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR BRIGHT YELLOW(538) YELLOW	8-97417-755-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR BRIGHT YELLOW(538) YELLOW	8-97417-754-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR CARDINAL RED(736) RED	8-97411-310-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR CARDINAL RED(736) RED	8-97411-304-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR DARK BLUE(695) BLUE	8-97413-609-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR DARK BLUE(695) BLUE	8-97413-599-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR FIRE RED(915) RED	8-97411-313-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR FIRE RED(915) RED	8-97411-307-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR FT ORANGE(609) BEIGE	8-97411-819-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR FT ORANGE(609) BEIGE	8-97411-818-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR GERANIUM RED(681) RED	8-97413-608-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR GERANIUM RED(681) RED	8-97413-598-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR GOLDEN YELLOW(904) YELLOW	8-97411-314-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR GOLDEN YELLOW(904) YELLOW	8-97411-308-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR GREEN(989) GREEN	8-97413-615-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR GREEN(989) GREEN	8-97413-605-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR HIGHWAY ORANGE(944) ORANGE	8-97413-613-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR HIGHWAY ORANGE(944) ORANGE	8-97413-603-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR MARINE BLUE(890) BLUE	8-97413-612-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR MARINE BLUE(890) BLUE	8-97413-602-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR POLAR WHITE(982) WHITE	8-97417-675-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR POLAR WHITE(982) WHITE	8-97417-674-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR PURPLISH BLUE(668) BLUE	8-97413-607-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR PURPLISH BLUE(668) BLUE	8-97413-597-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR RMS ORANGE(550) ORANGE	8-97427-958-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR RMS ORANGE(550) ORANGE	8-97427-957-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR SAHARA BEIGE(829) BEIGE	8-97411-311-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR SAHARA BEIGE(829) BEIGE	8-97411-305-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR TOLL GREEN(543) GREEN	8-97423-769-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR TOLL GREEN(543) GREEN	8-97423-768-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR TRANS BLUE(999) BLUE	8-97411-315-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR TRANS BLUE(999) BLUE	8-97411-309-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR WHEATLAND YELLOW(812) YELLOW	8-97413-611-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR WHEATLAND YELLOW(812) YELLOW	8-97413-601-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR WOODLAND GREEN(807) DARK GREEN	8-97413-610-2	01	1	1511-	●	●
332	FENDER; RR BODY COLOR WOODLAND GREEN(807) DARK GREEN	8-97413-600-2	01	1	1511-	●	●
384	CLIP; FENDER LWR D8X13.5	1-09987-248-1	02	1	1511-	●	●	●
385	SCREW; FENDER LWR M6X20 W/PL WASHER	8-98059-504-0	04	1	1511-	●	●
385	SCREW; FENDER LWR M6X20 W/PL WASHER	8-98059-504-0	02	1	1511-			●
419	BOLT; STEP M8X20 FLANGE	0-28650-820-0	08	1	1511-	●	●	●
423	SUPPORT ASM; STEP	8-98037-336-1	01	1	1511-	●	●	●
423	SUPPORT ASM; STEP	8-98037-335-1	01	1	1511-	●	●	●
494	FINISHER; FENDER	8-98072-723-0	01	1	1511-	●	●
494	FINISHER; FENDER	8-98041-172-1	01	1	1511-	●	●
517	SUPPORT; STEP PANEL	8-98037-339-2	01	1	1511-	●	●	●
517	SUPPORT; STEP PANEL	8-98037-338-2	01	1	1511-	●	●	●
524	CLIP; FENDER COVER OD=7.9 BLACK	8-94279-974-1	02	1	1511-	●	●	●
525	SEAL; FENDER (A) UPPER	8-98061-760-0	02	1	1511-	●	●	●
525	SEAL; FENDER (B) LOWER	8-98061-761-0	02	1	1511-	●	●	●
525	SEAL; FENDER (C)	8-98061-762-0	02	1	1511-	●	●	●
608	CLIP D5.4X8	1-09983-154-0	06	1	1511-	●	●

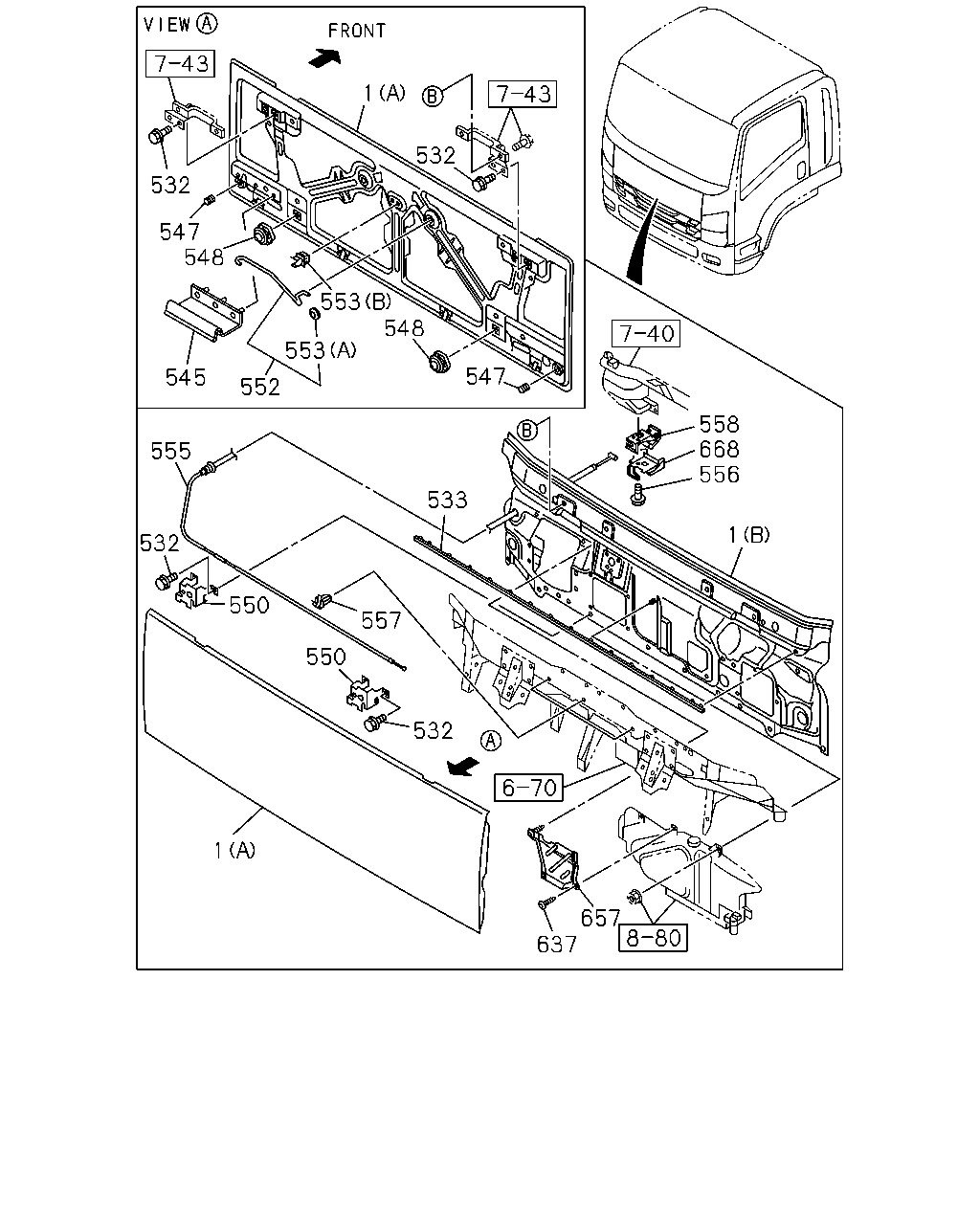

1 532 532 548 547 545 552 553 553 547 548 558 556 668 533 557 550 550 532 555 532 1 657 637 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PANEL ASM; FRT (B)	8-97585-958-9	01	1	1511-	●	●	●
1	PANEL ASM; FRT (A)	8-98030-230-3	01	1	1511-	●	●	●
532	BOLT; FRT PANEL M8X20 FLANGE	0-28650-820-0	08	1	1511-	●	●	●
533	SEAL; FRT PANEL	8-98096-288-0	01	1	1511-	●	●	●
545	SEAL; FRT LID	8-98123-264-0	01	1	1511-	●	●	●
547	RUBBER; CUSHION OD=22 L=29	8-94324-556-2	02	1	1511-	●	●	●
548	STRIKER; FRT LID PANEL	8-98068-145-1	02	1	1511-	●	●	●
550	LOCK ASM; FRT LID	8-98036-569-2	02	1	1511-	●	●	●
552	STAY; FRT LID	8-98089-836-0	01	1	1511-	●	●	●
553	CLIP; STAY (B)	8-97031-428-0	01	1	1511-	●	●	●
553	CLIP; STAY (A)	8-98059-320-0	01	1	1511-	●	●	●
555	CABLE; FRT LID	8-98036-573-1	01	1	1511-	●	●	●
556	BOLT; CABLE M6X16 FLANGE	0-28650-616-0	01	1	1511-	●	●	●
557	CLIP; CABLE ID=4.8	8-94128-483-0	03	1	1511-	●	●	●
558	LEVER; FRT LID	1-79338-007-1	01	1	1511-	●	●	●
637	CLIP; COVER OD=16 L=11	1-76378-155-0	02	1	1511-	●	●	●
657	COVER; WIPER IDLER	8-98060-908-0	01	1	1511-	●	●	●
668	COVER; LEVER,FRT LID	8-98076-339-1	01	1	1511-	●	●	●

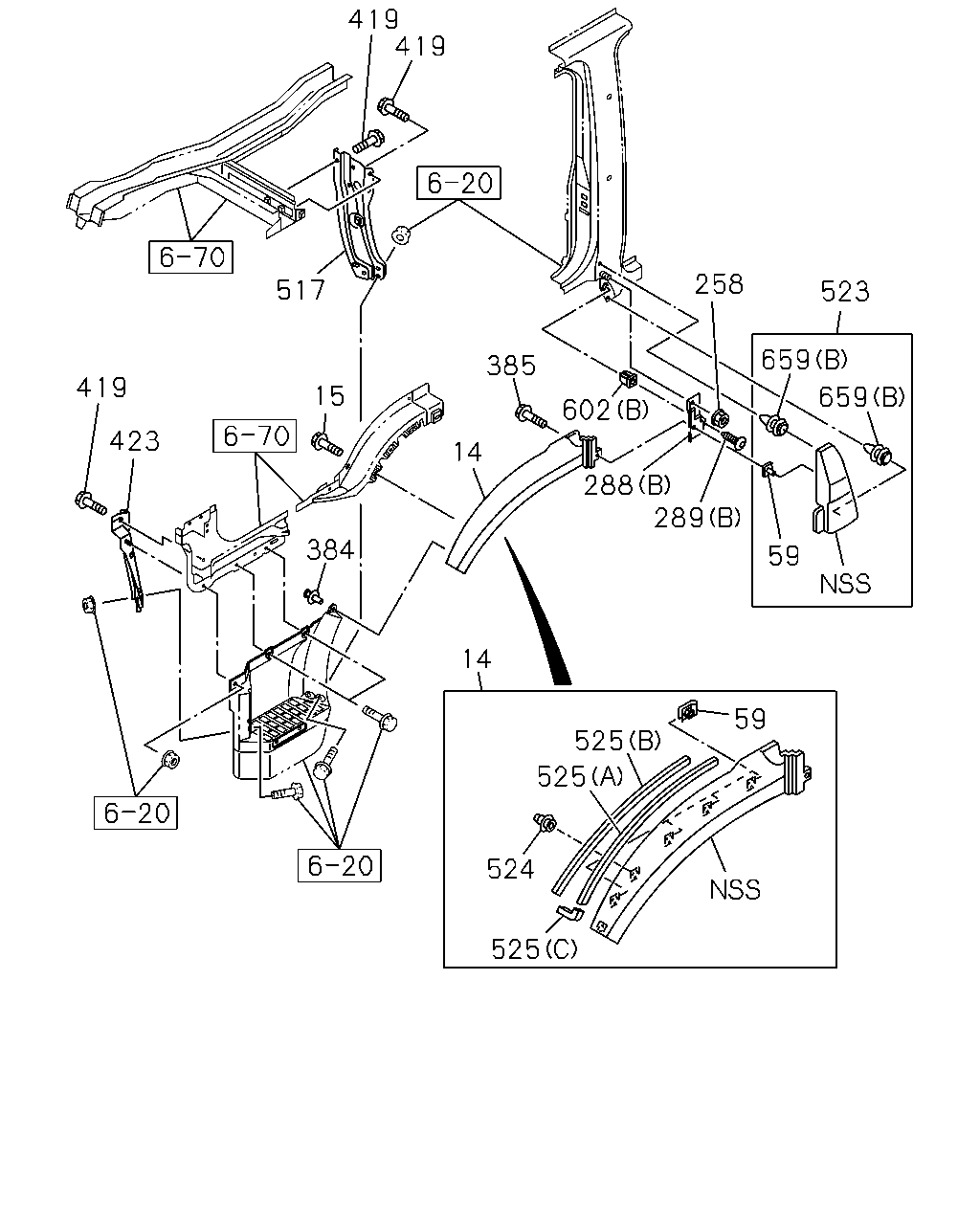

419 419 517 15 423 419 384 14 14 385 602 288 289 258 523 659 659 59 59 525 525 524 525

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	FENDER; FRT BLACK	8-98041-399-3	01	1	1511-	●	●	●
14	FENDER; FRT BLACK	8-98041-398-3	01	1	1511-	●	●	●
15	BOLT; FENDER M6X20 W/PL WASHER	8-98059-504-0	06	1	1511-	●	●	●
59	GROMMET; SCREW	8-94279-723-0	02	1	1511-	●	●	●
59	GROMMET; SCREW	8-94279-723-0	02	1	1511-			●
59	GROMMET; SCREW	8-94279-723-0	08	1	1511-	●	●	●
258	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	1511-			●
288	BRACKET; FENDER SKIRT (A)	8-98041-162-1	04	1	1511-	●	●
288	BRACKET; FENDER SKIRT (B)	8-98019-871-3	01	1	1511-			●
288	BRACKET; FENDER SKIRT (B)	8-98019-870-3	01	1	1511-			●
289	BOLT; FENDER SKIRT BRKT (A) M6X16 FLANGE	0-28650-616-0	08	1	1511-	●	●
289	BOLT; FENDER SKIRT BRKT (B) M6X20 W/PL WASHER	8-98059-504-0	02	1	1511-			●
384	CLIP; FENDER LWR D8X13.5	1-09987-248-1	02	1	1511-	●	●	●
385	SCREW; FENDER LWR M6X20 W/PL WASHER	8-98059-504-0	04	1	1511-	●	●
385	SCREW; FENDER LWR M6X20 W/PL WASHER	8-98059-504-0	02	1	1511-			●
419	BOLT; STEP M8X20 FLANGE	0-28650-820-0	08	1	1511-	●	●	●
423	SUPPORT ASM; STEP	8-98037-336-1	01	1	1511-	●	●	●
423	SUPPORT ASM; STEP	8-98037-335-1	01	1	1511-	●	●	●
517	SUPPORT; STEP PANEL	8-98037-339-2	01	1	1511-	●	●	●
517	SUPPORT; STEP PANEL	8-98037-338-2	01	1	1511-	●	●	●
523	COVER; FENDER RR BODY COLOR AL GRAY(517) GRAY	8-97413-447-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR AL GRAY(517) GRAY	8-97413-679-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR ARC WHITE(729) WHITE	8-97413-124-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR ARC WHITE(729) WHITE	8-97413-117-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR CARDINAL RED(736) RED	8-97413-121-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR CARDINAL RED(736) RED	8-97413-114-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR DARK BLUE(695) BLUE	8-97413-450-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR DARK BLUE(695) BLUE	8-97413-682-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR FIRE RED(915) RED	8-97413-122-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR FIRE RED(915) RED	8-97413-115-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR FT ORANGE(609) BEIGE	8-97413-123-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR FT ORANGE(609) BEIGE	8-97413-116-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR GERANIUM RED(681) RED	8-97413-449-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR GERANIUM RED(681) RED	8-97413-681-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR GOLDEN YELLOW(904) YELLOW	8-97413-125-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR GOLDEN YELLOW(904) YELLOW	8-97413-118-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR GREEN(989) GREEN	8-97413-456-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR GREEN(989) GREEN	8-97413-688-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR HIGHWAY ORANGE(944) ORANGE	8-97413-454-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR HIGHWAY ORANGE(944) ORANGE	8-97413-686-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR MARINE BLUE(890) BLUE	8-97413-453-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR MARINE BLUE(890) BLUE	8-97413-685-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR POLAR WHITE(982) WHITE	8-97417-739-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR POLAR WHITE(982) WHITE	8-97417-738-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR PURPLISH BLUE(668) BLUE	8-97413-448-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR PURPLISH BLUE(668) BLUE	8-97413-680-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR SAHARA BEIGE(829) BEIGE	8-97413-126-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR SAHARA BEIGE(829) BEIGE	8-97413-119-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR TRANS BLUE(999) BLUE	8-97413-120-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR TRANS BLUE(999) BLUE	8-97413-113-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR WHEATLAND YELLOW(812) YELLOW	8-97413-452-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR WHEATLAND YELLOW(812) YELLOW	8-97413-684-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR WOODLAND GREEN(807) DARK GREEN	8-97413-451-1	01	1	1511-			●
523	COVER; FENDER RR BODY COLOR WOODLAND GREEN(807) DARK GREEN	8-97413-683-1	01	1	1511-			●
524	CLIP; FENDER COVER OD=7.9 BLACK	8-94279-974-1	02	1	1511-	●	●	●
525	SEAL; FENDER (A) UPPER	8-98061-760-0	02	1	1511-	●	●	●
525	SEAL; FENDER (B) LOWER	8-98061-761-0	02	1	1511-	●	●	●
525	SEAL; FENDER (C)	8-98061-762-0	02	1	1511-	●	●	●
602	RETAINER; COVER (A) ID=5.4 OD=6.8	8-98241-984-0	06	1	1511-	●	●
602	RETAINER; COVER (B) D=10X10 L=8 M6	1-09983-119-0	02	1	1511-			●
659	CLIP; FENDER (A) D5.4X8	1-09983-154-0	08	1	1511-	●	●	●
659	CLIP; FENDER (B) OD=8.5 GRAY	8-97893-482-0	04	1	1511-			●

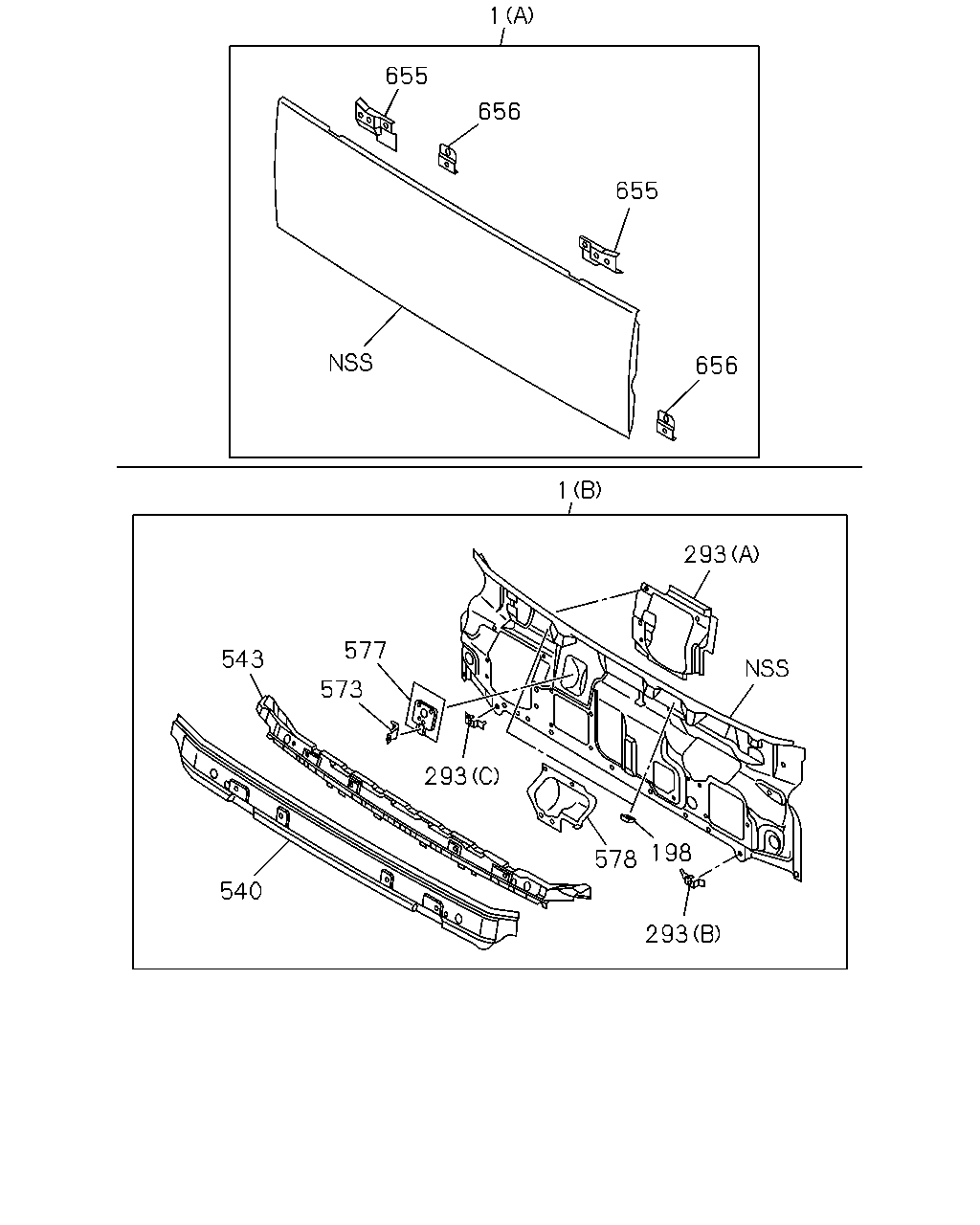

1 655 655 656 656 1 293 198 578 293 573 543 540 293 577

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PANEL ASM; FRT (B)	8-97585-958-9	01	1	1511-	●	●	●
1	PANEL ASM; FRT (A)	8-98030-230-3	01	1	1511-	●	●	●
198	NUT; PANEL M6	9-09114-086-0	02	1	1511-	●	●	●
293	BRACKET; PANEL (A)	8-97586-007-3	01	1	1511-	●	●	●
293	BRACKET; PANEL (B)	8-98008-124-1	01	1	1511-	●	●	●
293	BRACKET; PANEL (C)	8-98008-126-1	01	1	1511-	●	●	●
540	PANEL; FRONT,OUTER	8-97585-965-2	01	1	1511-	●	●	●
543	CLOSING; FRT MTG RAIL	8-97585-989-4	01	1	1511-	●	●	●
573	BRACKET; SUPPORT	8-98008-127-2	01	1	1511-	●	●	●
577	BRACKET; IDLER	8-97586-019-1	01	1	1511-	●	●	●
578	COVER; WIPER MOTOR	8-97586-018-3	01	1	1511-	●	●	●
655	PATCH; HINGE	8-98031-263-0	01	1	1511-	●	●	●
655	PATCH; HINGE	8-98031-264-0	01	1	1511-	●	●	●
656	PATCH; STRIKER	8-98031-265-0	02	1	1511-	●	●	●

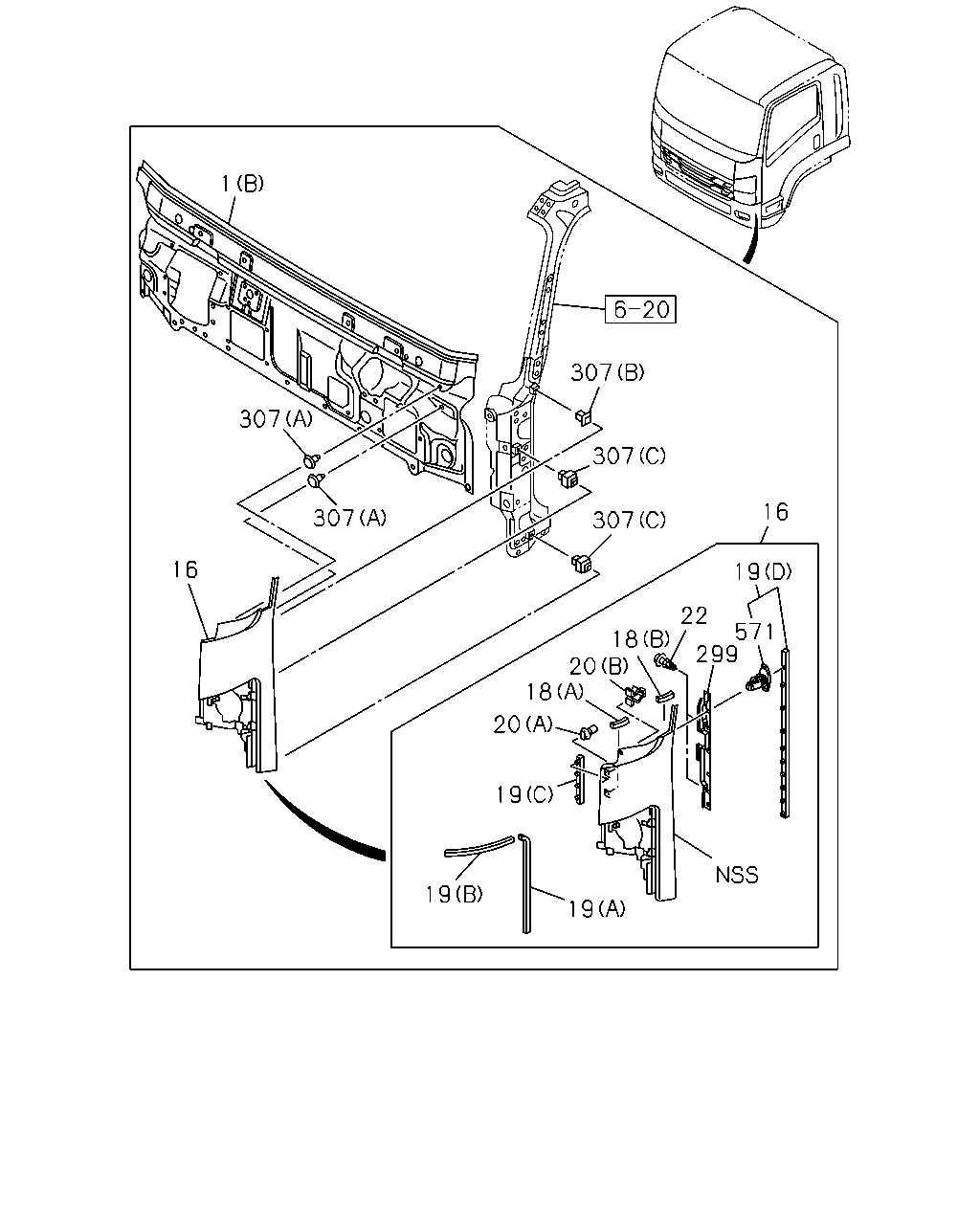

1 307 307 307 16 19 22 571 299 18 20 18 20 19 19 19 307 307 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PANEL ASM; FRT (B)	8-97585-958-9	01	1	1511-	●	●	●
1	PANEL ASM; FRT (A)	8-98030-230-3	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR BRIGHT YELLOW(538) YELLOW	8-97417-749-4	01	1	1511-	●	●
16	PANEL; FRONT,SIDE BODY COLOR RMS ORANGE(550) ORANGE	8-97427-956-4	01	1	1511-	●	●
16	PANEL; FRONT,SIDE BODY COLOR TOLL GREEN(543) GREEN	8-97423-798-4	01	1	1511-	●	●
16	PANEL; FRONT,SIDE BODY COLOR AL GRAY(517) GRAY	8-97417-654-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR AL GRAY(517) GRAY	8-97413-576-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) WHITE	8-97409-901-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) WHITE	8-97407-509-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR BRIGHT YELLOW(538) YELLOW	8-97417-748-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR CARDINAL RED(736) RED	8-97411-298-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR CARDINAL RED(736) RED	8-97411-292-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR DARK BLUE(695) BLUE	8-97415-030-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR DARK BLUE(695) BLUE	8-97413-579-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR FIRE RED(915) RED	8-97411-301-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR FIRE RED(915) RED	8-97411-295-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR FT ORANGE(609) BEIGE	8-97411-300-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR FT ORANGE(609) BEIGE	8-97411-294-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR GERANIUM RED(681) RED	8-97417-656-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR GERANIUM RED(681) RED	8-97413-578-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR GOLDEN YELLOW(904) YELLOW	8-97411-302-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR GOLDEN YELLOW(904) YELLOW	8-97411-296-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR GREEN(989) GREEN	8-97417-660-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR GREEN(989) GREEN	8-97413-585-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR HIGHWAY ORANGE(944) ORANGE	8-97417-658-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR HIGHWAY ORANGE(944) ORANGE	8-97413-583-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) BLUE	8-97417-657-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) BLUE	8-97413-582-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR POLAR WHITE(982) WHITE	8-97417-659-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR POLAR WHITE(982) WHITE	8-97417-653-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR PURPLISH BLUE(668) BLUE	8-97417-655-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR PURPLISH BLUE(668) BLUE	8-97413-577-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR RMS ORANGE(550) ORANGE	8-97427-955-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR SAHARA BEIGE(829) BEIGE	8-97411-299-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR SAHARA BEIGE(829) BEIGE	8-97411-293-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR TOLL GREEN(543) GREEN	8-97423-797-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR TRANS BLUE(999) BLUE	8-97411-303-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR TRANS BLUE(999) BLUE	8-97411-297-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR WHEATLAND YELLOW(812) YELLOW	8-97415-032-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR WHEATLAND YELLOW(812) YELLOW	8-97413-581-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR WOODLAND GREEN(807) DARK GREEN	8-97415-031-4	01	1	1511-	●	●	●
16	PANEL; FRONT,SIDE BODY COLOR WOODLAND GREEN(807) DARK GREEN	8-97413-580-4	01	1	1511-	●	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL (B)	8-98038-608-0	01	1	1511-	●	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL (B)	8-98038-608-0	01	1	1511-	●	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL (A)	8-98043-511-1	01	1	1511-	●	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL (A)	8-98043-511-1	01	1	1511-	●	●	●
19	SEAL; FRT SIDE PANEL (B)	8-98035-268-0	01	1	1511-	●	●	●
19	SEAL; FRT SIDE PANEL (B)	8-98035-268-0	01	1	1511-	●	●	●
19	SEAL; FRT SIDE PANEL (A)	8-98062-215-0	01	1	1511-	●	●	●
19	SEAL; FRT SIDE PANEL (A)	8-98062-215-0	01	1	1511-	●	●	●
19	SEAL; FRT SIDE PANEL (C)	8-98036-581-0	01	1	1511-	●	●	●
19	SEAL; FRT SIDE PANEL (D)	8-98041-359-2	01	1	1511-	●	●	●
19	SEAL; FRT SIDE PANEL (C)	8-98036-580-0	01	1	1511-	●	●	●
19	SEAL; FRT SIDE PANEL (D)	8-98041-358-2	01	1	1511-	●	●	●
20	CLIP; FRT PANEL SIDE (A)	8-97410-739-1	02	1	1511-	●	●	●
20	CLIP; FRT PANEL SIDE (A)	8-97410-739-1	02	1	1511-	●	●	●
20	CLIP; FRT PANEL SIDE (B)	8-97410-740-3	01	1	1511-	●	●	●
20	CLIP; FRT PANEL SIDE (B)	8-97410-740-3	01	1	1511-	●	●	●
22	SCREW; FRT PANEL SIDE M4X10 TAPPING W/PL WASHER	0-74360-410-0	03	1	1511-	●	●	●
22	SCREW; FRT PANEL SIDE M4X10 TAPPING W/PL WASHER	0-74360-410-0	03	1	1511-	●	●	●
299	COVER; FRT PANEL SIDE	8-98034-814-1	01	1	1511-	●	●	●
299	COVER; FRT PANEL SIDE	8-98034-813-1	01	1	1511-	●	●	●
307	GROMMET; FRT PANEL (B)	8-97410-738-0	02	1	1511-	●	●	●
307	GROMMET; FRT PANEL (C)	8-98021-300-1	04	1	1511-	●	●	●
307	GROMMET; FRT PANEL (A) OD=20	8-98034-363-1	04	1	1511-	●	●	●
571	CLIP; SEAL NATURAL	8-98027-457-0	10	1	1511-	●	●	●
571	CLIP; SEAL NATURAL	8-98027-457-0	10	1	1511-	●	●	●

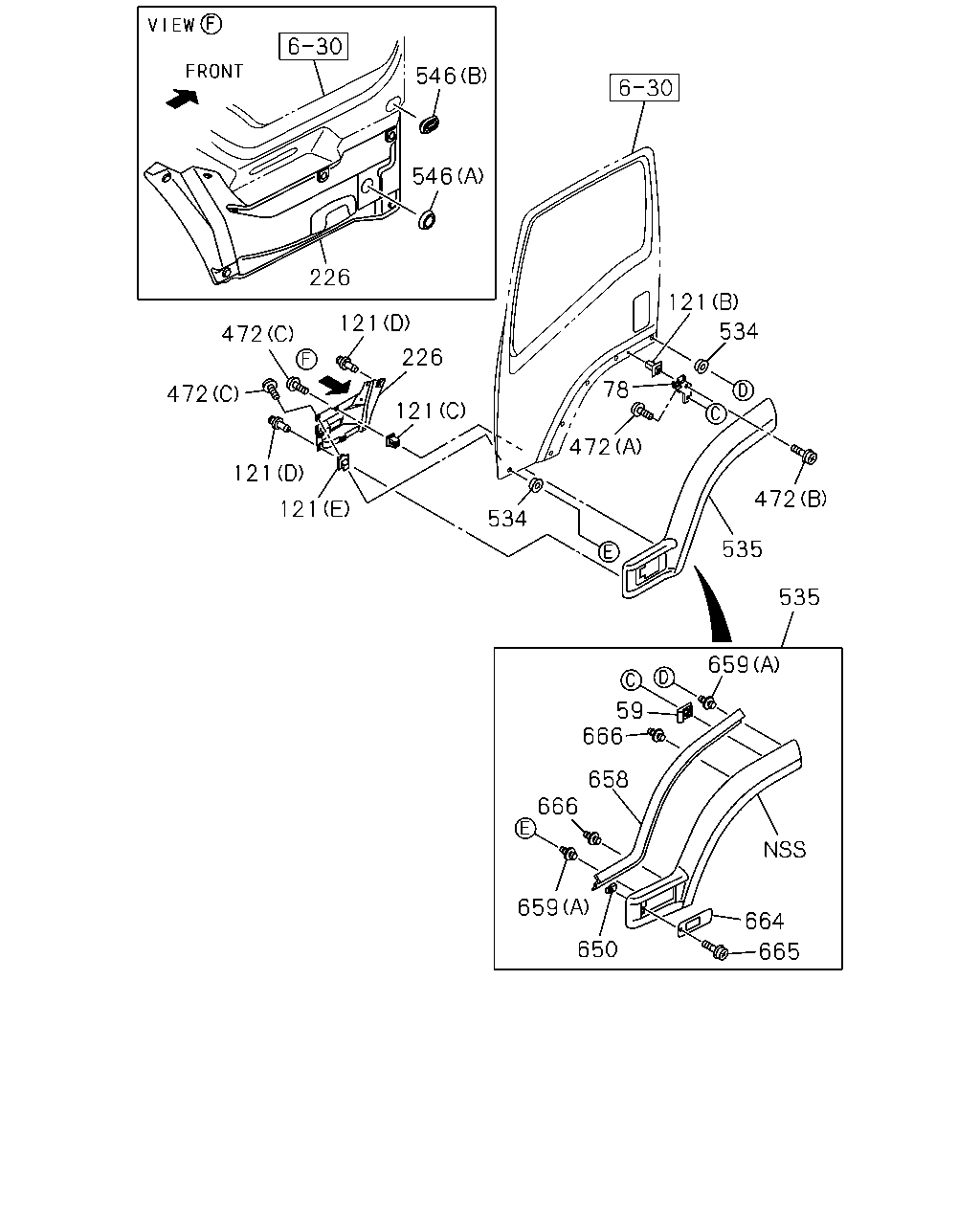

546 546 226 472 472 121 121 121 226 121 121 534 78 472 534 472 535 535 659 59 666 658 666 659 650 664 665

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
59	GROMMET; SCREW	8-94279-723-0	02	1	1511-	●	●	●
59	GROMMET; SCREW	8-94279-723-0	02	1	1511-			●
59	GROMMET; SCREW	8-94279-723-0	08	1	1511-	●	●	●
78	BRACKET; FENDER	8-98041-166-1	01	1	1511-	●	●	●
78	BRACKET; FENDER	8-98041-165-1	01	1	1511-	●	●	●
121	GROMMET; FENDER (A)	8-94279-723-0	04	1	1511-	●	●
121	GROMMET; FENDER (C) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1511-	●	●	●
121	GROMMET; FENDER (D) OD=8.3	8-94279-989-0	10	1	1511-	●	●	●
121	GROMMET; FENDER (B) H=15	8-94463-268-1	04	1	1511-	●	●	●
121	GROMMET; FENDER (E)	8-98073-421-0	01	1	1511-	●	●	●
121	GROMMET; FENDER (E)	8-98073-420-0	01	1	1511-	●	●	●
226	PROTECTOR; FRT	8-98037-713-2	01	1	1511-	●	●	●
226	PROTECTOR; FRT	8-98037-712-2	01	1	1511-	●	●	●
472	SCREW; FENDER TO CAB (A) M6X18 TAPPING	8-98059-505-0	02	1	1511-	●	●	●
472	SCREW; FENDER TO CAB (C) M5X16	8-98090-737-0	08	1	1511-	●	●	●
472	SCREW; FENDER TO CAB (B) M5X12	8-98093-669-0	04	1	1511-	●	●	●
534	FASTENER ID=5.4 OD=6.8	8-98241-984-0	12	1	1511-	●	●	●
535	FENDER; BLISTER BODY COLOR BRIGHT YELLOW(538) YELLOW	8-97417-780-0	01	1	1511-	●
535	FENDER; BLISTER BODY COLOR BRIGHT YELLOW(538) CORNERING LAMP<T87> YELLOW	8-97417-780-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR BRIGHT YELLOW(538) YELLOW	8-97417-778-0	01	1	1511-	●
535	FENDER; BLISTER BODY COLOR BRIGHT YELLOW(538) CORNERING LAMP<T87> YELLOW	8-97417-778-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR RMS ORANGE(550)	8-97427-960-0	01	1	1511-	●
535	FENDER; BLISTER BODY COLOR RMS ORANGE(550) CORNERING LAMP<T87>	8-97427-960-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR RMS ORANGE(550)	8-97427-959-0	01	1	1511-	●
535	FENDER; BLISTER BODY COLOR RMS ORANGE(550) CORNERING LAMP<T87>	8-97427-959-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR TOLL GREEN(543) GREEN	8-97423-833-0	01	1	1511-	●
535	FENDER; BLISTER BODY COLOR TOLL GREEN(543) CORNERING LAMP<T87> GREEN	8-97423-833-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR TOLL GREEN(543) GREEN	8-97423-832-0	01	1	1511-	●
535	FENDER; BLISTER BODY COLOR TOLL GREEN(543) CORNERING LAMP<T87> GREEN	8-97423-832-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR AL GRAY(517) GRAY	8-97415-296-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR AL GRAY(517) CORNERING LAMP<T87> GRAY	8-97415-296-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR AL GRAY(517) GRAY	8-97415-271-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR AL GRAY(517) CORNERING LAMP<T87> GRAY	8-97415-271-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR ARC WHITE(729) WHITE	8-97415-303-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR ARC WHITE(729) CORNERING LAMP<T87> WHITE	8-97415-303-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR ARC WHITE(729) WHITE	8-97415-278-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR ARC WHITE(729) CORNERING LAMP<T87> WHITE	8-97415-278-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR CARDINAL RED(736) RED	8-97415-298-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR CARDINAL RED(736) CORNERING LAMP<T87> RED	8-97415-298-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR CARDINAL RED(736) RED	8-97415-273-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR CARDINAL RED(736) CORNERING LAMP<T87> RED	8-97415-273-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR DARK BLUE(695) BLUE	8-97415-289-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR DARK BLUE(695) CORNERING LAMP<T87> BLUE	8-97415-289-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR DARK BLUE(695) BLUE	8-97415-264-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR DARK BLUE(695) CORNERING LAMP<T87> BLUE	8-97415-264-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR FIRE RED(915) RED	8-97415-299-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR FIRE RED(915) CORNERING LAMP<T87> RED	8-97415-299-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR FIRE RED(915) RED	8-97415-274-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR FIRE RED(915) CORNERING LAMP<T87> RED	8-97415-274-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR FT ORANGE(609) BEIGE	8-97424-806-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR FT ORANGE(609) CORNERING LAMP<T87> BEIGE	8-97424-806-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR FT ORANGE(609) BEIGE	8-97424-805-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR FT ORANGE(609) CORNERING LAMP<T87> BEIGE	8-97424-805-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR GERANIUM RED(681) RED	8-97415-297-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR GERANIUM RED(681) CORNERING LAMP<T87> RED	8-97415-297-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR GERANIUM RED(681) RED	8-97415-272-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR GERANIUM RED(681) CORNERING LAMP<T87> RED	8-97415-272-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR GOLDEN YELLOW(904) YELLOW	8-97415-307-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR GOLDEN YELLOW(904) CORNERING LAMP<T87> YELLOW	8-97415-307-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR GOLDEN YELLOW(904) YELLOW	8-97415-282-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR GOLDEN YELLOW(904) CORNERING LAMP<T87> YELLOW	8-97415-282-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR GREEN(989) GREEN	8-97415-292-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR GREEN(989) CORNERING LAMP<T87> GREEN	8-97415-292-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR GREEN(989) GREEN	8-97415-267-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR GREEN(989) CORNERING LAMP<T87> GREEN	8-97415-267-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR HIGHWAY ORANGE(944) ORANGE	8-97415-309-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR HIGHWAY ORANGE(944) CORNERING LAMP<T87> ORANGE	8-97415-309-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR HIGHWAY ORANGE(944) ORANGE	8-97415-284-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR HIGHWAY ORANGE(944) CORNERING LAMP<T87> ORANGE	8-97415-284-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR MARINE BLUE(890) BLUE	8-97415-312-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR MARINE BLUE(890) CORNERING LAMP<T87> BLUE	8-97415-312-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR MARINE BLUE(890) BLUE	8-97415-287-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR MARINE BLUE(890) CORNERING LAMP<T87> BLUE	8-97415-287-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR POLAR WHITE(982) WHITE	8-97417-781-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR POLAR WHITE(982) CORNERING LAMP<T87> WHITE	8-97417-781-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR POLAR WHITE(982) WHITE	8-97417-779-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR POLAR WHITE(982) CORNERING LAMP<T87> WHITE	8-97417-779-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR PURPLISH BLUE(668) BLUE	8-97415-288-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR PURPLISH BLUE(668) CORNERING LAMP<T87> BLUE	8-97415-288-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR PURPLISH BLUE(668) BLUE	8-97415-263-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR PURPLISH BLUE(668) CORNERING LAMP<T87> BLUE	8-97415-263-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR SAHARA BEIGE(829) BEIGE	8-97415-311-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR SAHARA BEIGE(829) CORNERING LAMP<T87> BEIGE	8-97415-311-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR SAHARA BEIGE(829) BEIGE	8-97415-286-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR SAHARA BEIGE(829) CORNERING LAMP<T87> BEIGE	8-97415-286-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR TRANS BLUE(999) BLUE	8-97415-290-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR TRANS BLUE(999) CORNERING LAMP<T87> BLUE	8-97415-290-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR TRANS BLUE(999) BLUE	8-97415-265-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR TRANS BLUE(999) CORNERING LAMP<T87> BLUE	8-97415-265-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR WHEATLAND YELLOW(812) YELLOW	8-97415-310-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR WHEATLAND YELLOW(812) CORNERING LAMP<T87> YELLOW	8-97415-310-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR WHEATLAND YELLOW(812) YELLOW	8-97415-285-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR WHEATLAND YELLOW(812) CORNERING LAMP<T87> YELLOW	8-97415-285-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR WOODLAND GREEN(807) DARK GREEN	8-97415-295-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR WOODLAND GREEN(807) CORNERING LAMP<T87> DARK GREEN	8-97415-295-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR WOODLAND GREEN(807) DARK GREEN	8-97415-270-0	01	1	1511-	●		●
535	FENDER; BLISTER BODY COLOR WOODLAND GREEN(807) CORNERING LAMP<T87> DARK GREEN	8-97415-270-0	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR AL GRAY(517) EXC. CORNERING LAMP<T87> GRAY	8-97415-340-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR AL GRAY(517) EXC. CORNERING LAMP<T87> GRAY	8-97415-320-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR ARC WHITE(729) EXC. CORNERING LAMP<T87> WHITE	8-97415-345-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR ARC WHITE(729) EXC. CORNERING LAMP<T87> WHITE	8-97415-325-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR BRIGHT YELLOW(538) EXC. CORNERING LAMP<T87> YELLOW	8-97417-771-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR BRIGHT YELLOW(538) EXC. CORNERING LAMP<T87> YELLOW	8-97417-770-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR CARDINAL RED(736) EXC. CORNERING LAMP<T87> RED	8-97415-342-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR CARDINAL RED(736) EXC. CORNERING LAMP<T87> RED	8-97415-322-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR DARK BLUE(695) EXC. CORNERING LAMP<T87> BLUE	8-97415-334-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR DARK BLUE(695) EXC. CORNERING LAMP<T87> BLUE	8-97415-314-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR FIRE RED(915) EXC. CORNERING LAMP<T87> RED	8-97415-343-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR FIRE RED(915) EXC. CORNERING LAMP<T87> RED	8-97415-323-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR FT ORANGE(609) EXC. CORNERING LAMP<T87> BEIGE	8-97415-344-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR FT ORANGE(609) EXC. CORNERING LAMP<T87> BEIGE	8-97415-324-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR GERANIUM RED(681) EXC. CORNERING LAMP<T87> RED	8-97415-341-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR GERANIUM RED(681) EXC. CORNERING LAMP<T87> RED	8-97415-321-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR GOLDEN YELLOW(904) EXC. CORNERING LAMP<T87> YELLOW	8-97415-348-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR GOLDEN YELLOW(904) EXC. CORNERING LAMP<T87> YELLOW	8-97415-328-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR GREEN(989) EXC. CORNERING LAMP<T87> GREEN	8-97415-337-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR GREEN(989) EXC. CORNERING LAMP<T87> GREEN	8-97415-317-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR HIGHWAY ORANGE(944) EXC. CORNERING LAMP<T87> ORANGE	8-97415-349-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR HIGHWAY ORANGE(944) EXC. CORNERING LAMP<T87> ORANGE	8-97415-329-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR MARINE BLUE(890) EXC. CORNERING LAMP<T87> BLUE	8-97415-352-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR MARINE BLUE(890) EXC. CORNERING LAMP<T87> BLUE	8-97415-332-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR POLAR WHITE(982) EXC. CORNERING LAMP<T87> WHITE	8-97417-743-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR POLAR WHITE(982) EXC. CORNERING LAMP<T87> WHITE	8-97417-742-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR PURPLISH BLUE(668) EXC. CORNERING LAMP<T87> BLUE	8-97415-333-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR PURPLISH BLUE(668) EXC. CORNERING LAMP<T87> BLUE	8-97415-313-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR RMS ORANGE(550) EXC. CORNERING LAMP<T87> ORANGE	8-97427-962-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR RMS ORANGE(550) EXC. CORNERING LAMP<T87> ORANGE	8-97427-961-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR SAHARA BEIGE(829) EXC. CORNERING LAMP<T87> BEIGE	8-97415-351-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR SAHARA BEIGE(829) EXC. CORNERING LAMP<T87> BEIGE	8-97415-331-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR TOLL GREEN(543) EXC. CORNERING LAMP<T87> GREEN	8-97423-804-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR TOLL GREEN(543) EXC. CORNERING LAMP<T87> GREEN	8-97423-803-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR TRANS BLUE(999) EXC. CORNERING LAMP<T87> BLUE	8-97415-335-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR TRANS BLUE(999) EXC. CORNERING LAMP<T87> BLUE	8-97415-315-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR WHEATLAND YELLOW(812) EXC. CORNERING LAMP<T87> YELLOW	8-97415-350-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR WHEATLAND YELLOW(812) EXC. CORNERING LAMP<T87> YELLOW	8-97415-330-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR WOODLAND GREEN(807) EXC. CORNERING LAMP<T87> DARK GREEN	8-97415-339-1	01	1	1511-		●
535	FENDER; BLISTER BODY COLOR WOODLAND GREEN(807) EXC. CORNERING LAMP<T87> DARK GREEN	8-97415-319-1	01	1	1511-		●
546	PLUG; DUMMY HOLE (A) OD=38	8-94159-507-0	02	1	1511-	●	●	●
546	PLUG; DUMMY HOLE (B)	8-94430-184-1	02	1	1511-	●	●	●
650	NUT; SPIRE EXC. CORNERING LAMP<T87>	8-94279-501-0	02	1	1511-		●
658	FINISHER; BLISTER FENDER	8-98041-169-3	01	1	1511-	●	●	●
658	FINISHER; BLISTER FENDER	8-98041-168-3	01	1	1511-	●	●	●
659	CLIP; FENDER (A) D5.4X8	1-09983-154-0	08	1	1511-	●	●	●
659	CLIP; FENDER (B) OD=8.5 GRAY	8-97893-482-0	04	1	1511-			●
664	BASE; DOOR,SIDE TURN BODY COLOR AL GRAY(517) EXC. CORNERING LAMP<T87> GRAY	8-97421-549-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR AL GRAY(517) EXC. CORNERING LAMP<T87> GRAY	8-97421-521-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR ARC WHITE(729) EXC. CORNERING LAMP<T87> WHITE	8-97421-497-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR ARC WHITE(729) EXC. CORNERING LAMP<T87> WHITE	8-97421-485-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR BRIGHT YELLOW(538) EXC. CORNERING LAMP<T87> YELLOW	8-97421-633-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR BRIGHT YELLOW(538) EXC. CORNERING LAMP<T87> YELLOW	8-97421-631-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR CARDINAL RED(736) EXC. CORNERING LAMP<T87> RED	8-97421-499-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR CARDINAL RED(736) EXC. CORNERING LAMP<T87> RED	8-97421-487-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR DARK BLUE(695) EXC. CORNERING LAMP<T87> BLUE	8-97421-539-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR DARK BLUE(695) EXC. CORNERING LAMP<T87> BLUE	8-97421-511-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR FIRE RED(915) EXC. CORNERING LAMP<T87> RED	8-97421-503-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR FIRE RED(915) EXC. CORNERING LAMP<T87> RED	8-97421-491-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR FT ORANGE(609) EXC. CORNERING LAMP<T87> BEIGE	8-97421-553-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR FT ORANGE(609) EXC. CORNERING LAMP<T87> BEIGE	8-97421-525-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR GERANIUM RED(681) EXC. CORNERING LAMP<T87> RED	8-97421-551-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR GERANIUM RED(681) EXC. CORNERING LAMP<T87> RED	8-97421-523-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR GOLDEN YELLOW(904) EXC. CORNERING LAMP<T87> YELLOW	8-97421-505-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR GOLDEN YELLOW(904) EXC. CORNERING LAMP<T87> YELLOW	8-97421-493-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR GREEN(989) EXC. CORNERING LAMP<T87> GREEN	8-97421-543-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR GREEN(989) EXC. CORNERING LAMP<T87> GREEN	8-97421-515-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR HIGHWAY ORANGE(944) EXC. CORNERING LAMP<T87> ORANGE	8-97421-559-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR HIGHWAY ORANGE(944) EXC. CORNERING LAMP<T87> ORANGE	8-97421-531-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR MARINE BLUE(890) EXC. CORNERING LAMP<T87> BLUE	8-97421-563-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR MARINE BLUE(890) EXC. CORNERING LAMP<T87> BLUE	8-97421-535-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR POLAR WHITE(982) EXC. CORNERING LAMP<T87> WHITE	8-97421-607-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR POLAR WHITE(982) EXC. CORNERING LAMP<T87> WHITE	8-97421-605-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR PURPLISH BLUE(668) EXC. CORNERING LAMP<T87> BLUE	8-97421-537-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR PURPLISH BLUE(668) EXC. CORNERING LAMP<T87> BLUE	8-97421-509-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR RMS ORANGE(550) EXC. CORNERING LAMP<T87> ORANGE	8-97428-026-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR RMS ORANGE(550) EXC. CORNERING LAMP<T87> ORANGE	8-97428-023-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR SAHARA BEIGE(829) EXC. CORNERING LAMP<T87> BEIGE	8-97421-501-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR SAHARA BEIGE(829) EXC. CORNERING LAMP<T87> BEIGE	8-97421-489-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR TOLL GREEN(543) EXC. CORNERING LAMP<T87> GREEN	8-97423-846-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR TOLL GREEN(543) EXC. CORNERING LAMP<T87> GREEN	8-97423-845-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR TRANS BLUE(999) EXC. CORNERING LAMP<T87> BLUE	8-97421-507-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR TRANS BLUE(999) EXC. CORNERING LAMP<T87> BLUE	8-97421-495-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR WHEATLAND YELLOW(812) EXC. CORNERING LAMP<T87> YELLOW	8-97421-596-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR WHEATLAND YELLOW(812) EXC. CORNERING LAMP<T87> YELLOW	8-97421-533-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR WOODLAND GREEN(807) EXC. CORNERING LAMP<T87> DARK GREEN	8-97421-547-0	01	1	1511-		●
664	BASE; DOOR,SIDE TURN BODY COLOR WOODLAND GREEN(807) EXC. CORNERING LAMP<T87> DARK GREEN	8-97421-519-0	01	1	1511-		●
665	SCREW; FENDER EXC. CORNERING LAMP<T87> M6X20 W/PL WASHER	0-36210-620-0	02	1	1511-		●
666	CLIP; BLISTER FENDER	8-98071-178-0	04	1	1511-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
