Isuzu WW
▶
TRUCKS
▶
FVR
▶
11409 - FVR(RHD)EURO1
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#16924) — 38 parça
◀

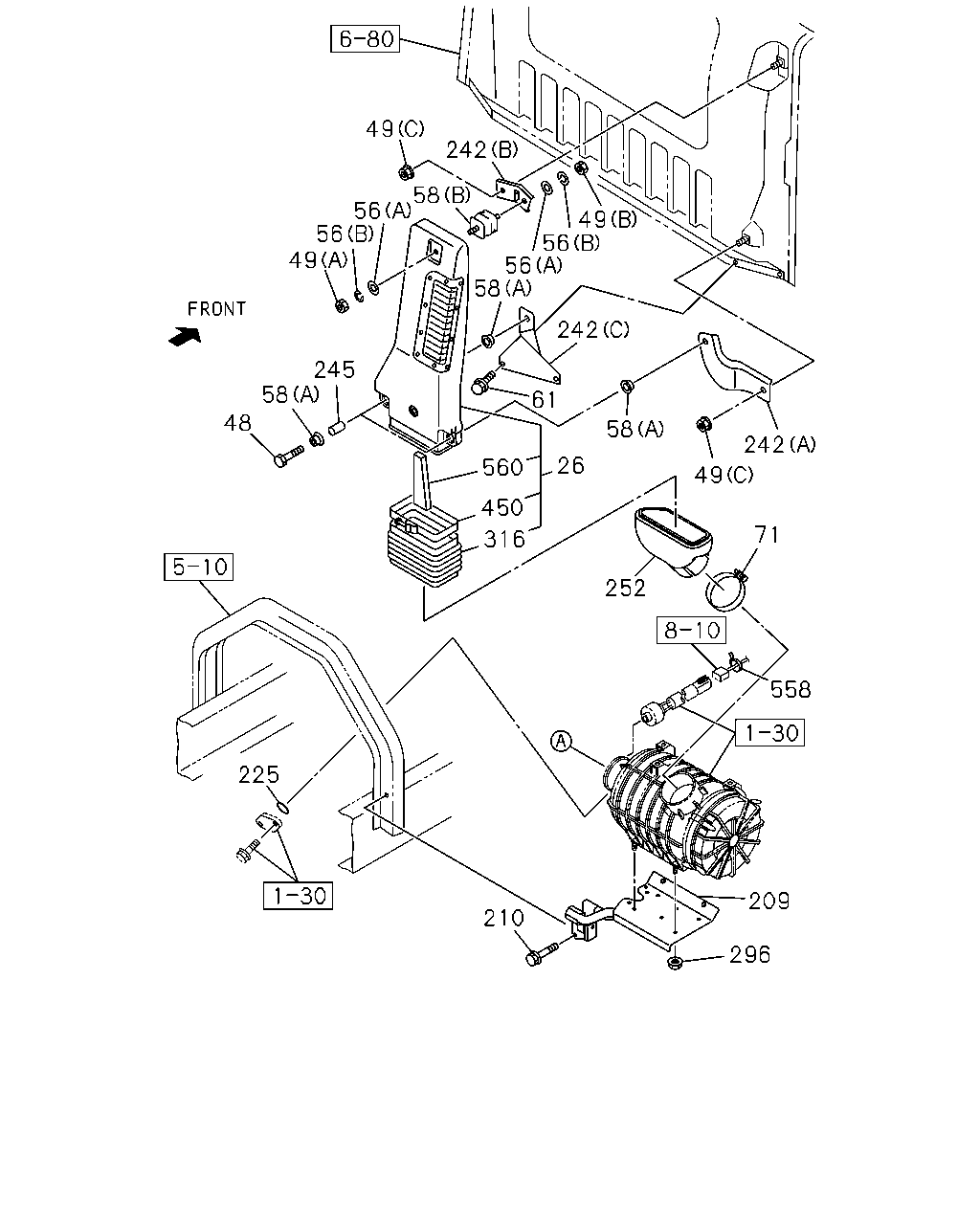

[131A] DUCT FIXING (26 parça)

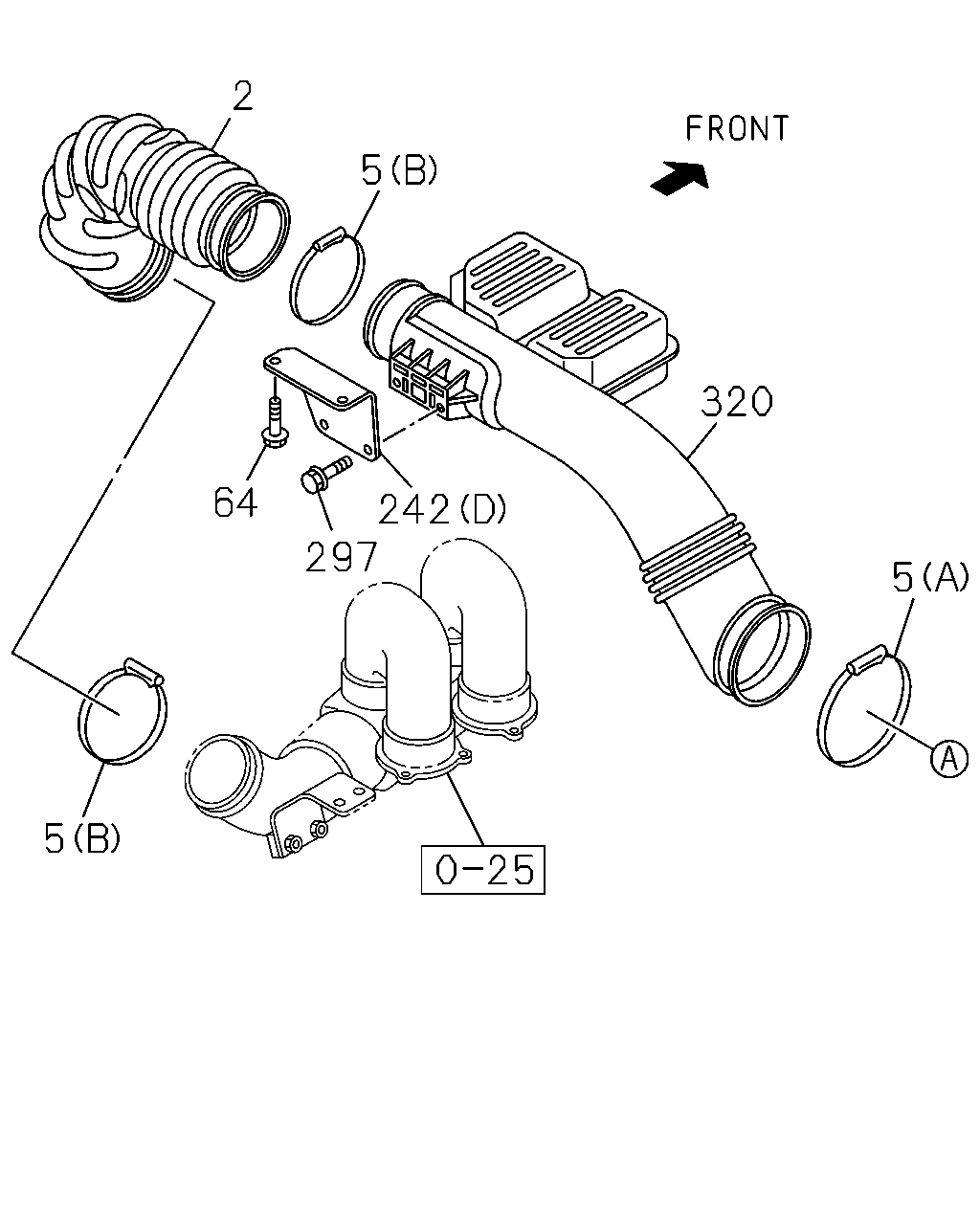

[131A] PIPING (12 parça)
▶
49
242
58
56
56
49
49
56
56
58
242
245
61
58
48
58
242
26
560
49
450
71
316
252
558
225
209
210
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
1110-
48
BOLT; AIR DUCT
M10X26
1-09030-044-1
02
1
1110-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
1110-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
1110-
49
NUT; AIR DUCT
(C) M8 FLANGE
8-94279-517-0
02
1
1110-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
1110-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
1110-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1110-
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
1110-
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
1110-
71
CLIP; AIR DUCT
ID=120-140
8-98133-367-0
01
1
1110-
209
BRACKET; ACL
8-98021-995-1
01
1
1110-
210
BOLT; ACL BRKT
M10X25 FLANGE
0-28651-025-0
04
1
1110-
225
GASKET; AIR PIPE
ID=24.4
1-09623-057-0
01
1
1110-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
1110-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
1110-
242
BRACKET; AIR DUCT
(A)
8-98019-304-1
01
1
1110-
242
BRACKET; AIR DUCT
(D)
8-98100-411-1
01
1
1110-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
1110-
252
DUCT; AIR INT
8-98012-861-1
01
1
1110-
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
1110-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
1110-
450
CLAMP; HOSE
9-09915-504-1
01
1
1110-
558
CLIP; AIR FLOW SENSOR
L=600
1-09707-107-1
01
1
1110-
558
CLIP; AIR FLOW SENSOR
L=250
5-09707-030-1
02
1
1110-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
1110-
2
5
320
64
242
297
5
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOSE; ACL
8-98144-931-0
01
1
1110-
5
CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=110-130
8-98133-359-0
01
1
1110-
5
CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=90-110
8-98133-365-0
02
1
1110-
5
CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) L=64
1-09707-138-0
02
1
1110-
5
CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142
1-09707-139-0
01
1
1110-
64
BOLT; BRKT,AIR DUCT
M10X25 FLANGE
0-28651-025-0
02
1
1110-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
1110-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
1110-
242
BRACKET; AIR DUCT
(A)
8-98019-304-1
01
1
1110-
242
BRACKET; AIR DUCT
(D)
8-98100-411-1
01
1
1110-
297
BOLT; DUCT
M8X25 FLANGE
0-28650-825-0
02
1
1110-
320
HOSE; CONN,ACL
8-98185-864-0
01
1
1110-
