Isuzu WW
▶
TRUCKS
▶
FRR
▶
11714 - FRR AUST/NZ EURO5 EXC.SPACECAB
▶
5 - Frame, Cab Mounting
▶

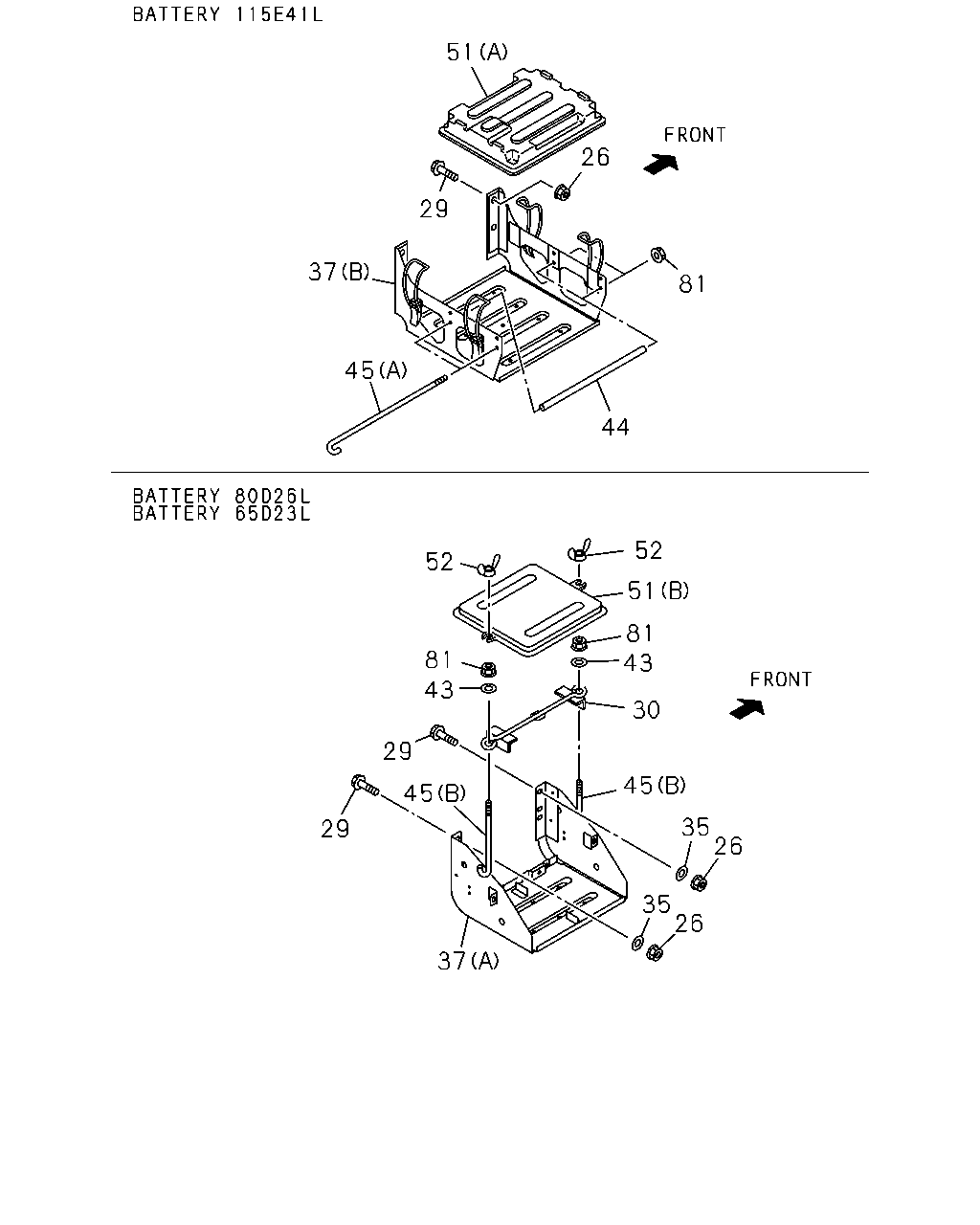

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#169238) — 15 parça
Tümü
A - FCD5MS
B - FCR5MS
C - FCR5WS
51
29
37
45
44
81
26
52
51
81
43
30
52
81
43
29
45
29
37
35
26
26
35
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1511-
●
●
●
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28651-035-0
04
1
1511-
●
●
●
30
PLATE; BATTERY
EXC. BATTERY 115E41L<8MA>
5-53615-004-1
01
1
1511-
●
●
●
35
WASHER; PL,BATTERY CARRIER
EXC. BATTERY 115E41L<8MA> ID=10.5 OD=22
0-91614-610-0
04
1
1511-
●
●
●
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98261-636-0
01
1
1511-
●
●
●
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A)
8-97384-068-2
01
1
1511-
●
●
●
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-97384-067-2
01
1
1511-
●
●
●
43
WASHER; PL,CLAMP
EXC. BATTERY 115E41L<8MA> ID=8.4 OD=22
0-91614-708-0
02
1
1511-
●
●
●
44
SPACER; BATTERY
BATTERY 115E41L<8MA>
8-98261-682-0
02
1
1511-
●
●
●
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A) L=430
8-97134-740-0
02
1
1511-
●
●
●
45
ROD; TENSION,BATTERY
EXC. BATTERY 115E41L<8MA> (B) L=120
9-53616-615-0
02
1
1511-
●
●
●
51
COVER; BATTERY
BATTERY 115E41L<8MA> (A)
1-53612-037-2
01
1
1511-
●
●
●
51
COVER; BATTERY
EXC. BATTERY 115E41L<8MA> (B)
8-97120-747-0
01
1
1511-
●
●
●
52
NUT; WING,COVER FIX
EXC. BATTERY 115E41L<8MA> M8 WING NUT
0-91118-408-0
02
1
1511-
●
●
●
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
1511-
●
●
●
