5-15 — CAB MOUNTING; CAB SIDE (#169235) — 138 parça

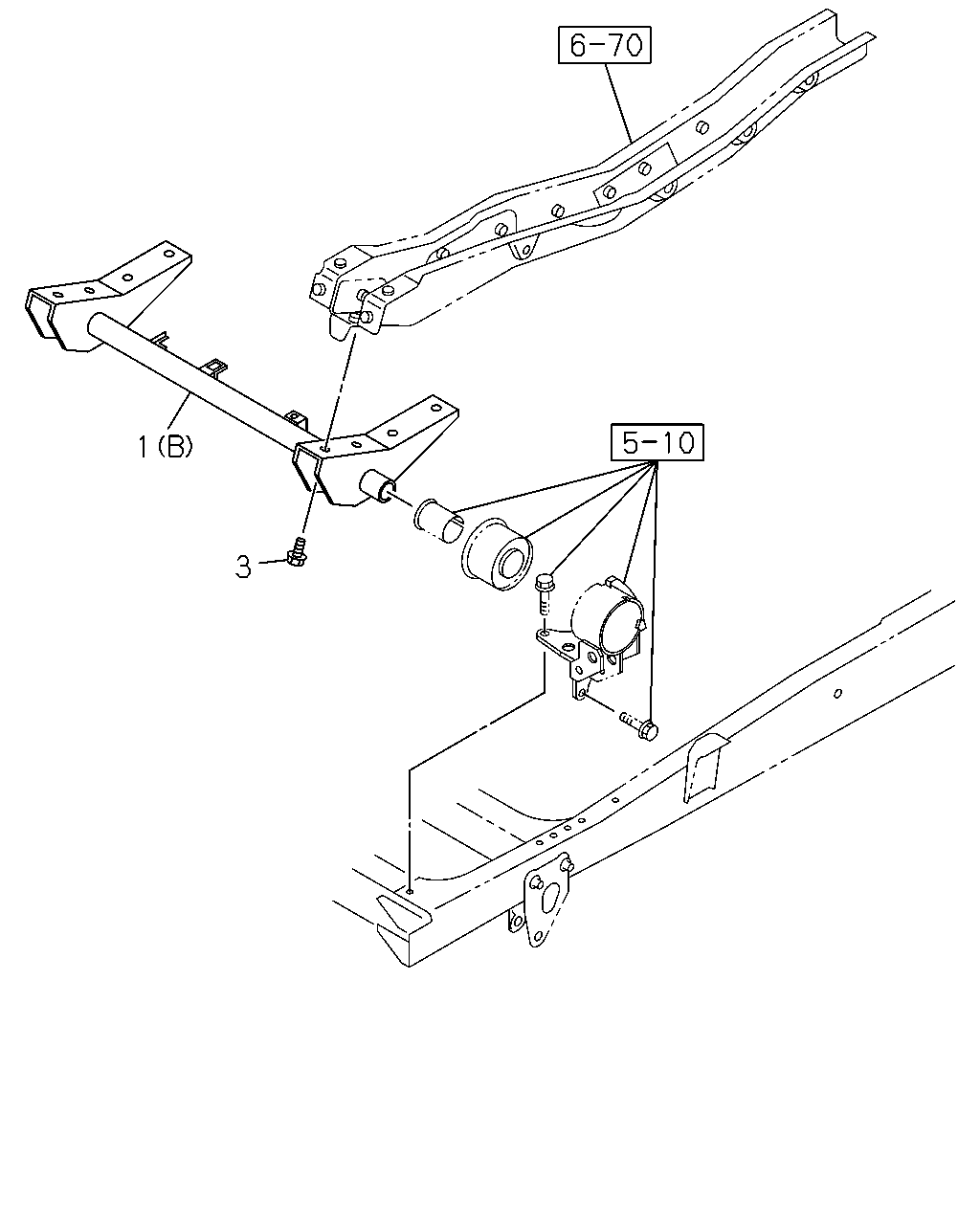

1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LEVER; TORSION BAR (A)	8-98010-752-7	01	1	1511-	●	●
1	LEVER; TORSION BAR (B)	8-98010-764-1	01	1	1511-			●
3	BOLT; LEVER M12X42 FLANGE	8-98090-287-1	08	1	1511-	●	●	●

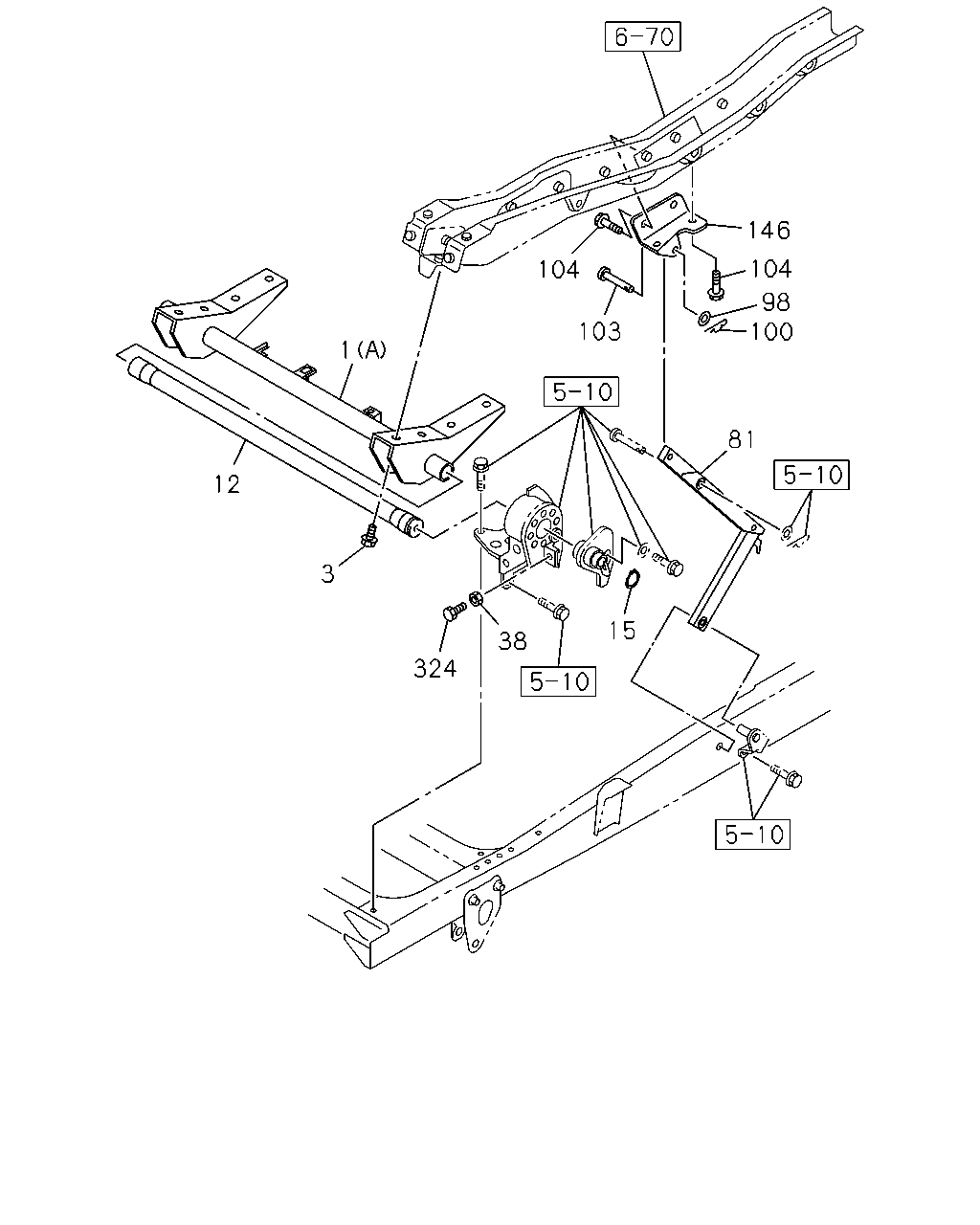

146 104 98 100 103 104 1 12 3 324 15 38 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LEVER; TORSION BAR (A)	8-98010-752-7	01	1	1511-	●	●
1	LEVER; TORSION BAR (B)	8-98010-764-1	01	1	1511-			●
3	BOLT; LEVER M12X42 FLANGE	8-98090-287-1	08	1	1511-	●	●	●
12	BAR; TORSION,UPR	8-98010-947-1	01	1	1511-	●	●
15	RING; SNAP,TORSION BAR T=1.90 BLUE	8-97129-615-0	01	1	1511-	●	●
38	NUT; LK M14	0-91110-514-0	01	1	1511-	●	●
81	STAY ASM; CAB TILT	8-98278-111-0	01	1	1511-	●	●
98	WASHER; CAB STAY ID=10.5 T=2.0	1-09985-183-0	01	1	1511-	●	●
100	PIN; SNAP,CAB STAY TO CAB L=34	8-98039-426-1	01	1	1511-	●	●
103	PIN; JOINT,CAB STAY	1-09744-108-1	01	1	1511-	●	●
104	BOLT; CAB STAY BRKT M10X30 FLANGE	0-28661-030-0	04	1	1511-	●	●
146	BRACKET ASM; CAB STAY UPR	8-98019-506-0	01	1	1511-	●	●
324	BOLT; ADJUST M14X55	8-98004-319-1	01	1	1511-	●	●

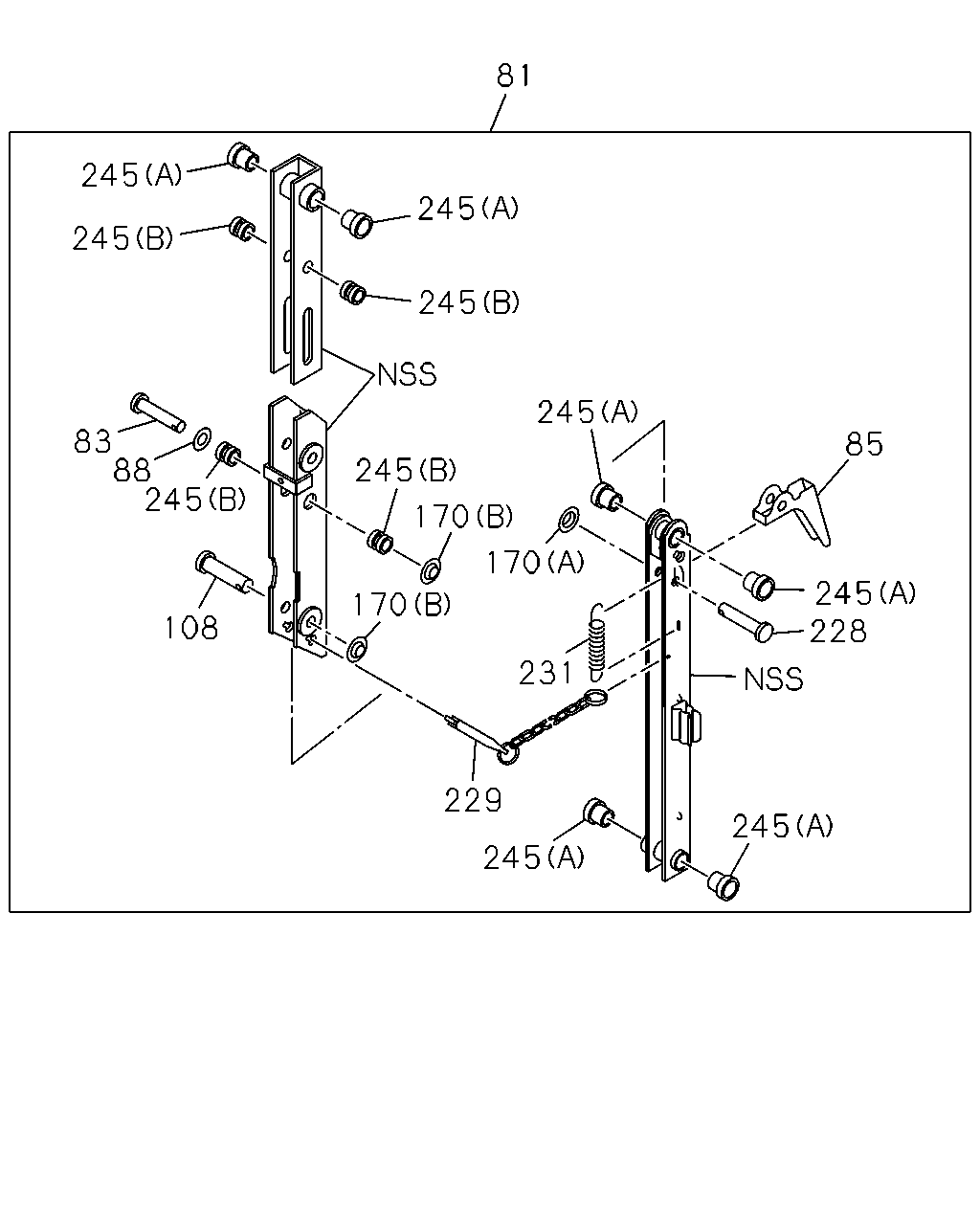

81 245 245 83 245 245 245 245 85 170 245 228 245 229 231 170 108 88 245 245 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	STAY ASM; CAB TILT	8-98278-111-0	01	1	1511-	●	●
83	PIN; JOINT,CAB STAY OD=10 L=42	1-09744-106-0	01	1	1511-	●	●
85	LEVER; LOCK,CAB STAY	1-62500-503-0	01	1	1511-	●	●
88	WASHER; PL,CAB STAY PIN ID=10.5 T=2.0	1-09985-183-0	01	1	1511-	●	●
108	PIN; ADJ,CAB STAY OD=10 L=42	1-09744-106-0	01	1	1511-	●	●
170	NUT (A) ID=7.9 PUSH NUT	8-97022-565-0	01	1	1511-	●	●
170	NUT (B) ID=9.9 PUSH NUT	8-97022-566-0	02	1	1511-	●	●
228	PIN; SAFETY LOCK SPRING,CAB STAY OD=8 L=27	1-09744-086-2	01	1	1511-	●	●
229	PIN ASM; SAFETY	1-62500-517-1	01	1	1511-	●	●
231	SPRING; RETURN,LOCK LEVER,CAB STAY	1-09583-244-0	01	1	1511-	●	●
245	BUSHING; CAB STAY (A)	1-62500-587-0	06	1	1511-	●	●
245	BUSHING; CAB STAY (B)	1-62500-588-0	04	1	1511-	●	●

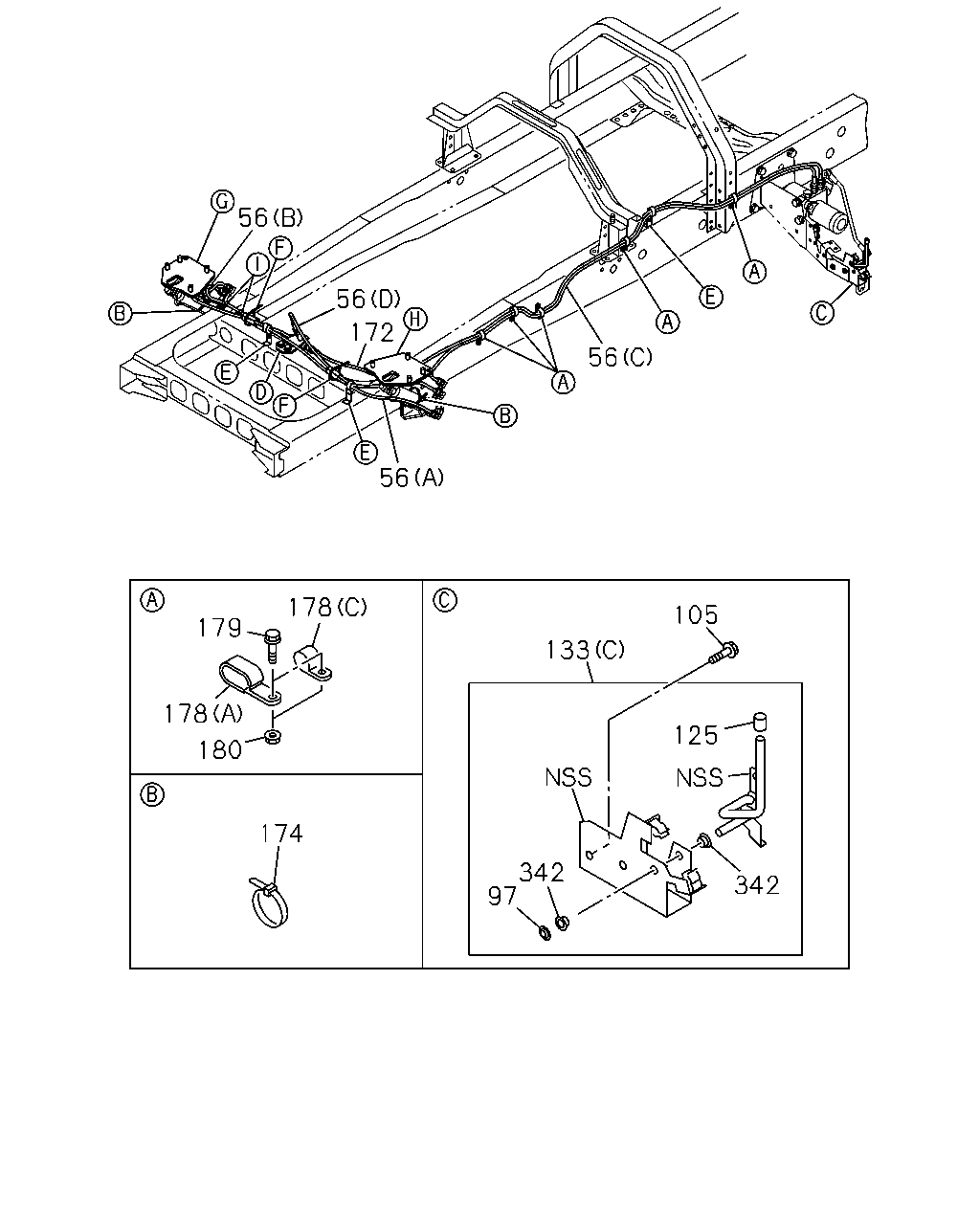

56 56 172 56 56 133 105 125 342 342 97 174 180 178 179 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
56	HOSE; FLEX,OIL PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) L=1500	8-98044-009-2	01	1	1511-			●
56	HOSE; FLEX,OIL PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) L=935	8-98044-010-2	01	1	1511-			●
56	HOSE; FLEX,OIL PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) L=2810	8-98044-008-2	01	1	1511-			●
56	HOSE; FLEX,OIL PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) L=670	8-98044-011-2	01	1	1511-			●
97	NUT; CAB STAY PIN ID=9.9 PUSH NUT	8-97022-566-0	01	1	1511-			●
105	BOLT; CAB STAY M8X16 FLANGE	0-28050-816-0	02	1	1511-			●
125	GRIP; HAND LEVER,CAB LOCK ID=9.0	8-94207-303-0	01	1	1511-			●
133	LOCK ASM; CAB (A)	8-98094-285-2	01	1	1511-	●	●	●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	1511-	●	●	●
133	LOCK ASM; CAB (C)	8-97608-198-0	01	1	1511-			●
172	HOSE; FLEX,OIL TILT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=3010	8-98044-012-2	01	1	1511-			●
174	CLIP; BAND,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-031-1	04	1	1511-			●
174	CLIP; BAND,FLEX HOSE HEATER & DEFROSTER(C41) L=140	5-09707-031-1	06	1	1511-			●
174	CLIP; BAND,FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=250	5-09707-030-1	02	1	1511-			●
178	CLIP; FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=19 L=28	0-95235-856-0	01	1	1511-			●
178	CLIP; FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9X2 L=20	0-95324-835-0	03	1	1511-			●
178	CLIP; FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M13X2 H=20 L=60	1-09701-280-0	03	1	1511-			●
178	CLIP; FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=8.3 & 10	8-94176-792-0	02	1	1511-			●
179	BOLT; CLIP,FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28650-820-0	07	1	1511-			●
180	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	03	1	1511-			●
342	BUSHING; LEVER,CAB LOCK T=6 OD=17.5	9-33659-249-0	02	1	1511-			●

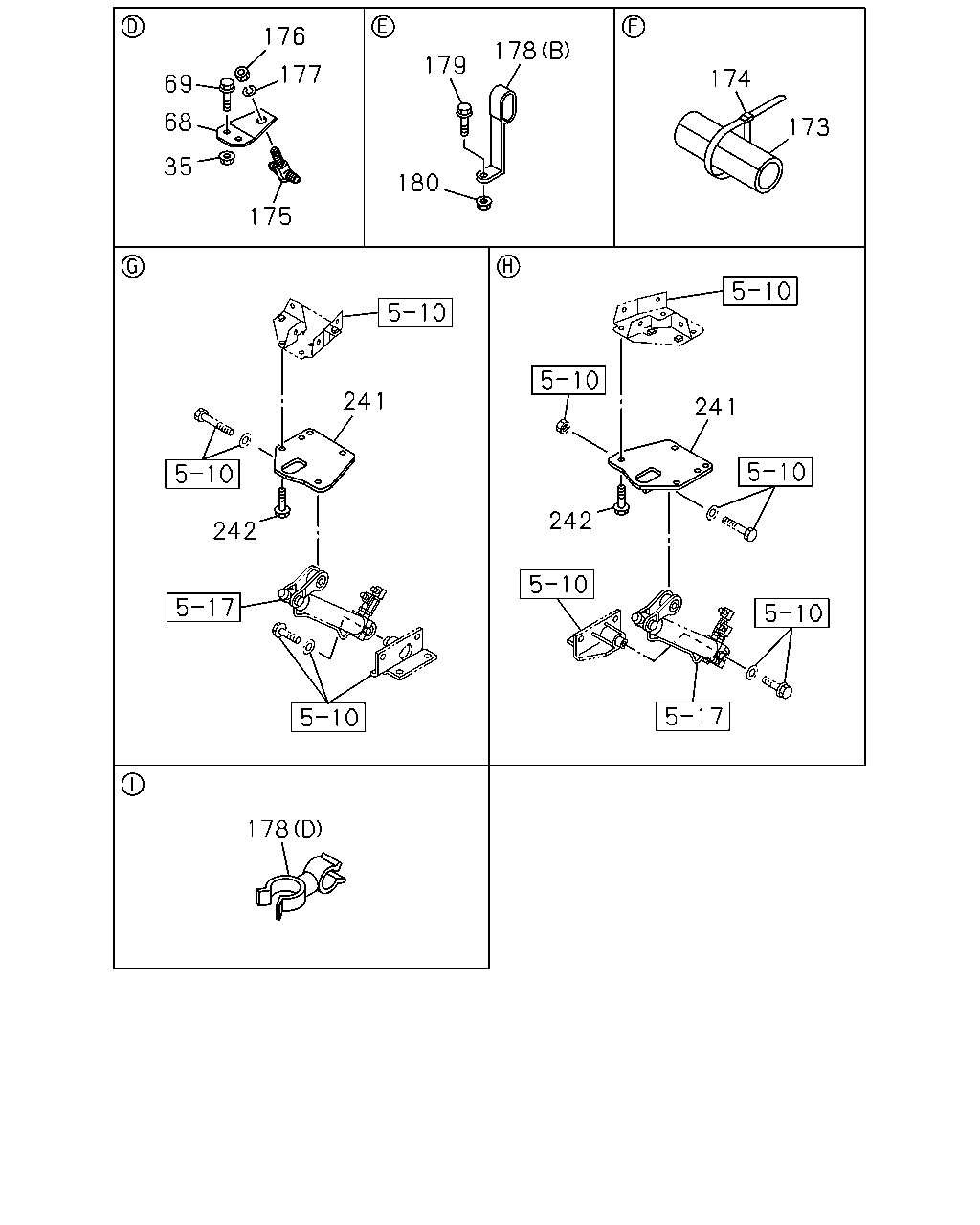

176 177 69 68 35 175 180 179 178 174 173 241 242 241 242 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C
35	NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	02	1	1511-	●
68	BRACKET; UNION HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98044-029-1	01	1	1511-	●
69	BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●
173	SLEEVE; RUBBER,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=17 OD=21 L=40	1-09337-012-0	01	1	1511-	●
173	SLEEVE; RUBBER,FLEX HOSE HEATER & DEFROSTER(C41) ID=17 OD=21 L=40	1-09337-012-0	03	1	1511-	●
174	CLIP; BAND,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-031-1	04	1	1511-	●
174	CLIP; BAND,FLEX HOSE HEATER & DEFROSTER(C41) L=140	5-09707-031-1	06	1	1511-	●
174	CLIP; BAND,FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=250	5-09707-030-1	02	1	1511-	●
175	UNION; FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M12 L=69	0-92138-506-0	01	1	1511-	●
176	NUT; UNION HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M12	9-09840-280-0	01	1	1511-	●
177	WASHER; LK,UNION HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-09985-189-0	01	1	1511-	●
178	CLIP; FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=19 L=28	0-95235-856-0	01	1	1511-	●
178	CLIP; FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9X2 L=20	0-95324-835-0	03	1	1511-	●
178	CLIP; FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M13X2 H=20 L=60	1-09701-280-0	03	1	1511-	●
178	CLIP; FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=8.3 & 10	8-94176-792-0	02	1	1511-	●
179	BOLT; CLIP,FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28650-820-0	07	1	1511-	●
180	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	03	1	1511-	●
241	BRACKET; POWER CYL UPR,CAB TILT	8-98095-154-0	01	1	1511-	●
241	BRACKET; POWER CYL UPR,CAB TILT	8-98095-153-0	01	1	1511-	●
242	BOLT; POWER CYL BRKT,CAB TILT M10X30 FLANGE	0-28661-030-0	08	1	1511-	●

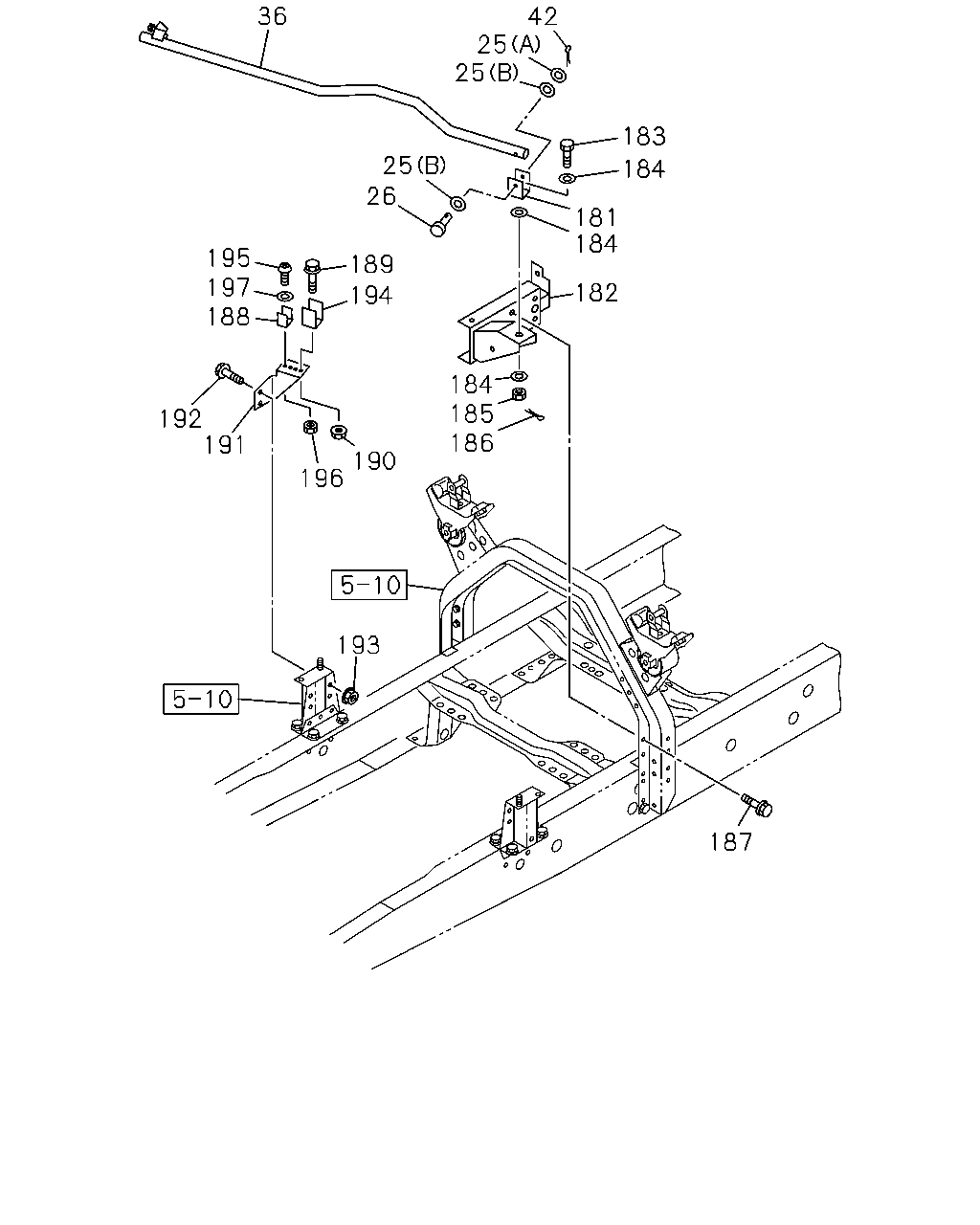

36 42 25 25 183 184 181 184 182 25 26 189 194 195 197 188 192 191 196 190 184 185 186 193 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C
25	WASHER; PL,STAY (A) ID=15	0-91610-514-0	01	1	1511-	●
25	WASHER; PL,STAY (B) ID=15	0-91614-614-0	02	1	1511-	●
26	PIN; STAY OD=14 L=62	0-82354-462-0	01	1	1511-	●
36	STAY; OIL TILT	8-98057-730-1	01	1	1511-	●
42	PIN; SPLIT,STAY OD=3.7 L=25	0-81124-025-0	01	1	1511-	●
181	BRACKET; STAY,OIL TILT	1-53719-018-1	01	1	1511-	●
182	BRACKET; STAY BRKT,OIL TILT	8-98100-303-1	01	1	1511-	●
183	BOLT; BRKT M16X40 W/PIN HOLE	1-09042-043-0	01	1	1511-	●
184	WASHER; PL,BRKT ID=17 OD=30	0-91610-516-0	03	1	1511-	●
185	NUT; BRKT M16 SLOTTED	8-98049-689-0	01	1	1511-	●
186	PIN; BRKT OD=3.7 L=25	0-81124-025-0	01	1	1511-	●
187	BOLT; BRKT M8X25 FLANGE	0-28050-825-0	04	1	1511-	●
188	CLIP; STAY,OIL TILT	1-09709-114-0	01	1	1511-	●
189	BOLT; CLIP M6X12 FLANGE	0-28050-612-0	02	1	1511-	●
190	NUT; CLIP M6 FLANGE	0-91180-106-0	02	1	1511-	●
191	BRACKET; CLIP,STAY	8-98050-969-1	01	1	1511-	●
192	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1511-	●
193	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1511-	●
194	GUIDE; STAY	1-53719-020-0	01	1	1511-	●
195	SCREW; GUIDE M4X12	0-34218-412-0	02	1	1511-	●
196	NUT; GUIDE M4	9-99110-404-0	02	1	1511-	●
197	WASHER; LK,GUIDE ID=4.1	0-91510-504-0	02	1	1511-	●

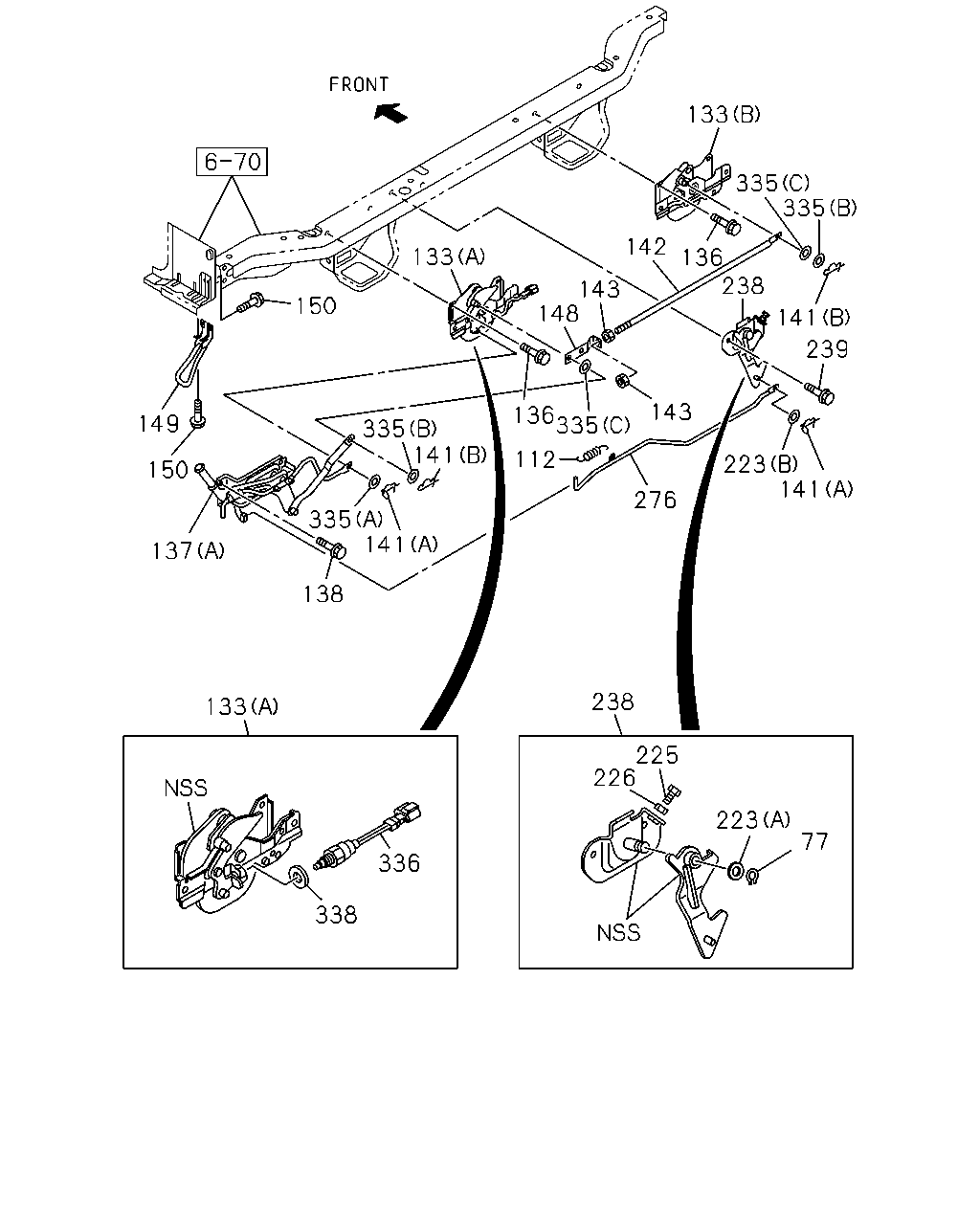

133 335 142 335 136 141 143 148 136 143 335 150 133 149 137 150 133 238 276 112 223 239 141 336 338 226 223 77 225 335 335 138 141 141 238

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
77	RING; SNAP ID=14.7	0-91800-616-0	01	1	1511-	●	●
112	SPRING; RETURN,SAFETY ROD	1-79718-655-0	01	1	1511-	●	●
133	LOCK ASM; CAB (A)	8-98094-285-2	01	1	1511-	●	●	●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	1511-	●	●	●
133	LOCK ASM; CAB (C)	8-97608-198-0	01	1	1511-			●
136	BOLT; CAB LK M8X20 FLANGE	0-28650-820-0	08	1	1511-	●	●	●
137	CONTROL UNIT; CAB LOCK (A)	8-97584-470-5	01	1	1511-	●	●
137	CONTROL UNIT; CAB LOCK (B)	8-98057-300-3	01	1	1511-			●
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE	0-28650-820-0	04	1	1511-	●	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	1511-	●	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	1511-	●	●
141	PIN; SNAP,CAB LOCK ROD (B) L=32.6	8-98062-280-0	02	1	1511-	●	●	●
142	ROD; HOOK TO HOOK	8-97587-990-0	01	1	1511-	●	●	●
143	NUT; JAW JOINT,HOOK TO HOOK M10	0-91110-510-0	02	1	1511-	●	●	●
148	JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	1511-	●	●	●
149	HANDLE; TILT	8-98025-706-0	01	1	1511-	●	●
150	BOLT; TILT HANDLE M8X20 FLANGE	0-28650-820-0	04	1	1511-	●	●
223	WASHER; PL,SAFETY LK (B) ID=8.4 OD=16	0-91610-508-0	01	1	1511-	●	●
223	WASHER; PL,SAFETY LK (A) ID=17 OD=30	0-91610-516-0	01	1	1511-	●	●
225	BOLT; SAFETY LK M8X30 FLANGE	0-28050-830-0	01	1	1511-	●	●
226	NUT; SAFETY LK M8	0-91110-508-0	01	1	1511-	●	●
238	LOCK ASM; SAFETY,CAB TILT	8-98048-899-1	01	1	1511-	●	●
239	BOLT; SAFETY LK M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
276	ROD ASM; CAB LOCK,HOOK TO HOOK	8-98048-830-1	01	1	1511-	●	●
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=16	0-91610-508-0	01	1	1511-	●	●	●
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=26	0-91610-612-0	02	1	1511-	●	●	●
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	02	1	1511-	●	●	●
336	SWITCH; CAB LOCK	8-98091-155-1	01	1	1511-	●	●	●
338	WASHER; CAB LOCK ID=17 OD=30	0-91610-516-0	01	1	1511-	●	●	●

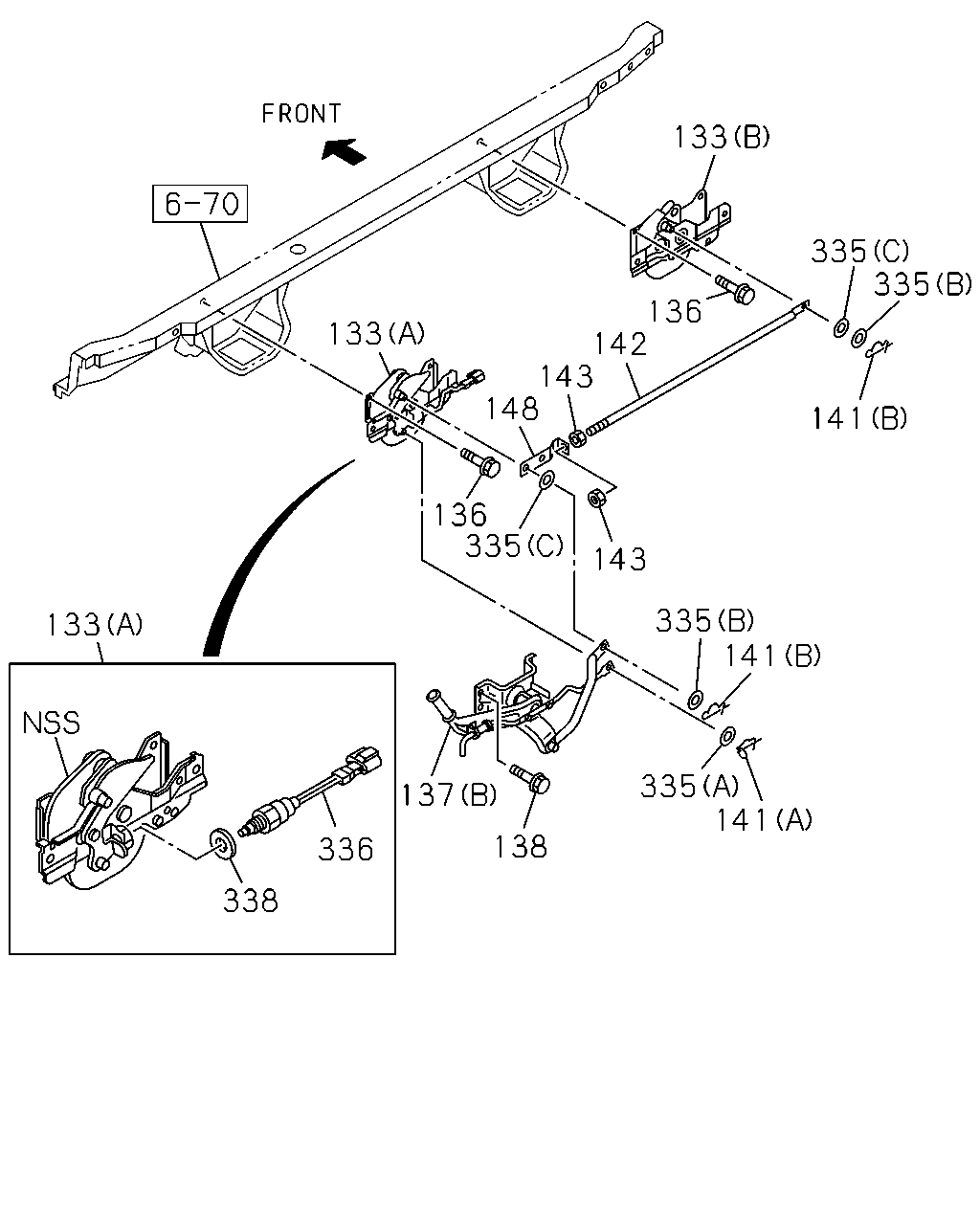

133 338 336 137 138 335 141 141 335 143 335 136 148 143 142 136 133 335 335 141 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
133	LOCK ASM; CAB (A)	8-98094-285-2	01	1	1511-	●	●	●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	1511-	●	●	●
133	LOCK ASM; CAB (C)	8-97608-198-0	01	1	1511-			●
136	BOLT; CAB LK M8X20 FLANGE	0-28650-820-0	08	1	1511-	●	●	●
137	CONTROL UNIT; CAB LOCK (A)	8-97584-470-5	01	1	1511-	●	●
137	CONTROL UNIT; CAB LOCK (B)	8-98057-300-3	01	1	1511-			●
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE	0-28650-820-0	04	1	1511-	●	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	1511-	●	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	1511-	●	●
141	PIN; SNAP,CAB LOCK ROD (B) L=32.6	8-98062-280-0	02	1	1511-	●	●	●
142	ROD; HOOK TO HOOK	8-97587-990-0	01	1	1511-	●	●	●
143	NUT; JAW JOINT,HOOK TO HOOK M10	0-91110-510-0	02	1	1511-	●	●	●
148	JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	1511-	●	●	●
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=16	0-91610-508-0	01	1	1511-	●	●	●
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=26	0-91610-612-0	02	1	1511-	●	●	●
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	02	1	1511-	●	●	●
336	SWITCH; CAB LOCK	8-98091-155-1	01	1	1511-	●	●	●
338	WASHER; CAB LOCK ID=17 OD=30	0-91610-516-0	01	1	1511-	●	●	●
