5-01 — FRAME AND OTHER PARTS (#169233) — 91 parça

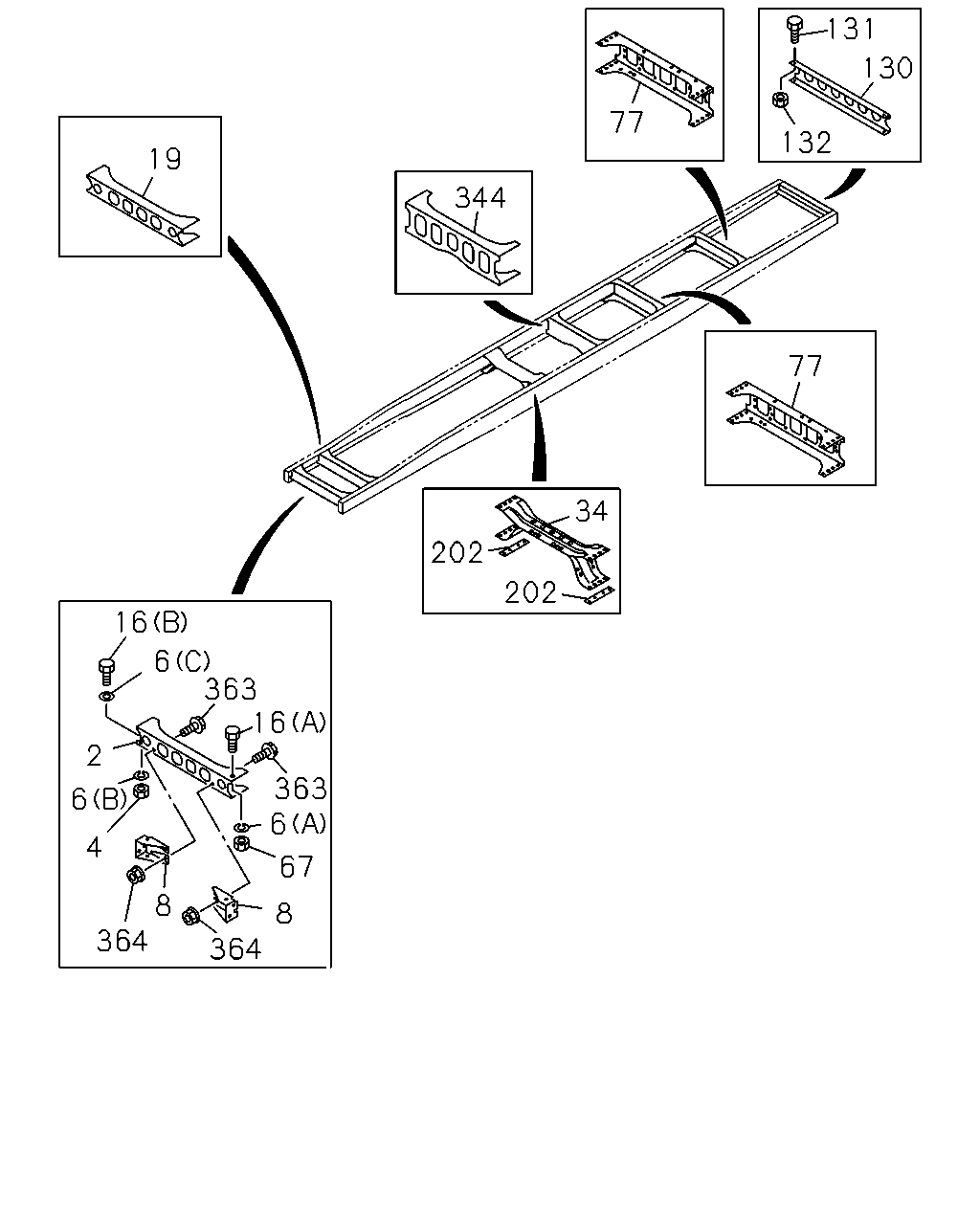

çizim 502396
19 344 77 132 131 130 77 34 202 202 16 6 363 16 363 6 67 8 364 364 4 6 2 8
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 1511- ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1511- ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1511- ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1511- ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1511- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-759-2 01 1 1511- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-760-3 01 1 1511- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1511- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1511- ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-4 01 1 1511- ● ● ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 1511- ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1511- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
AIR SUS(FCD***) 		8-97609-481-4 02 1 1511- ● ●
77 MEMBER; CROSS,TRUNNION RR
LEAF SUS(FCR***) 		8-97610-935-1 02 1 1511- ● ●
77 MEMBER; CROSS,TRUNNION RR 8-97610-935-1 02 1 1511- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1511- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1511- ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1511- ● ● ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 1511- ● ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1511- ● ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1511- ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1511- ● ● ●

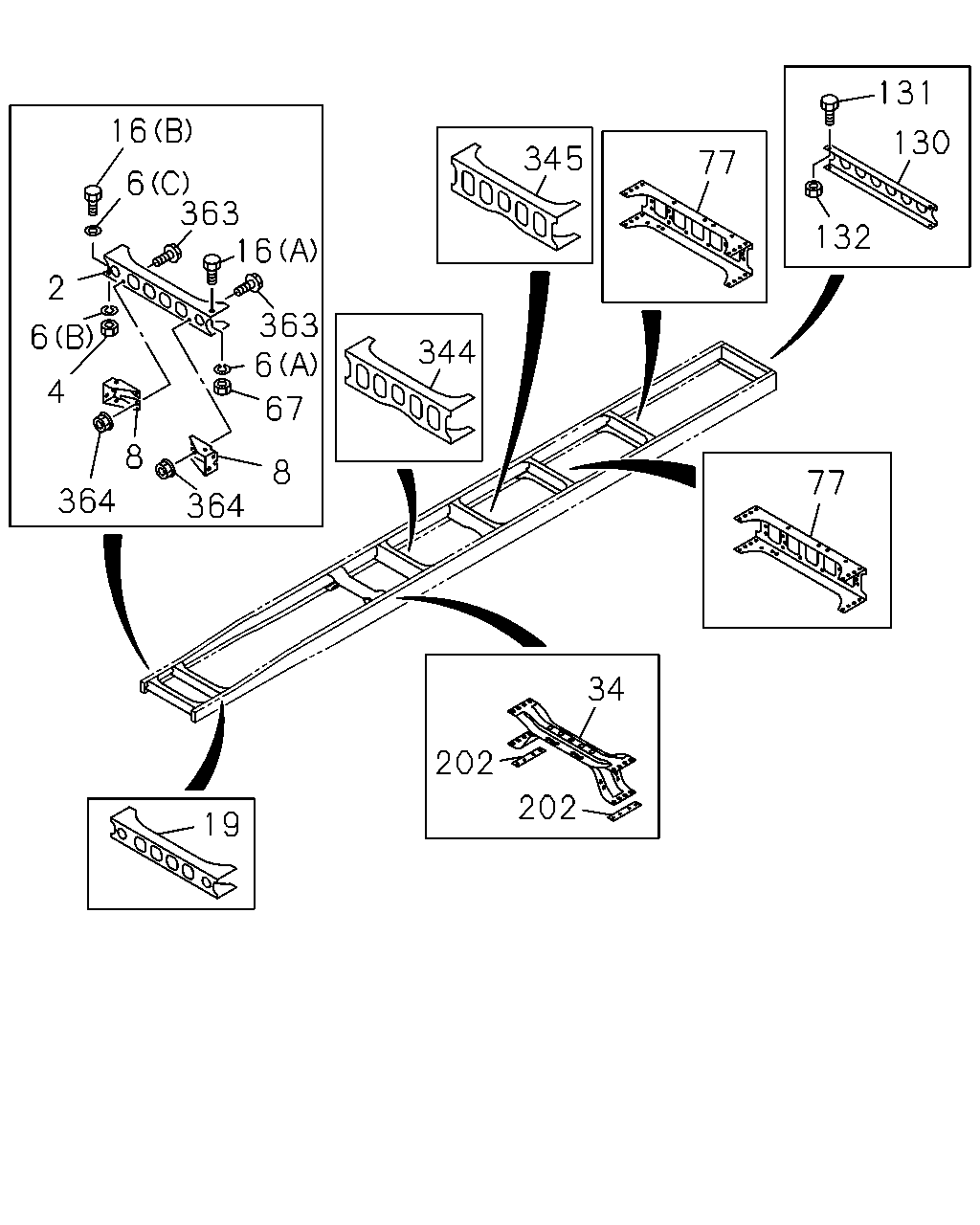

çizim 502512
77 77 131 132 130 345 344 202 202 34 16 2 6 16 363 363 6 8 67 364 364 8 4 6 19
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 1511- ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1511- ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1511- ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1511- ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1511- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-759-2 01 1 1511- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-760-3 01 1 1511- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1511- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1511- ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-4 01 1 1511- ● ● ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 1511- ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1511- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
AIR SUS(FCD***) 		8-97609-481-4 02 1 1511- ● ●
77 MEMBER; CROSS,TRUNNION RR
LEAF SUS(FCR***) 		8-97610-935-1 02 1 1511- ● ●
77 MEMBER; CROSS,TRUNNION RR 8-97610-935-1 02 1 1511- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1511- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1511- ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1511- ● ● ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 1511- ● ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1511- ● ● ●
345 MEMBER; CROSS,5TH 8-97609-472-2 01 1 1511- ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1511- ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1511- ● ● ●

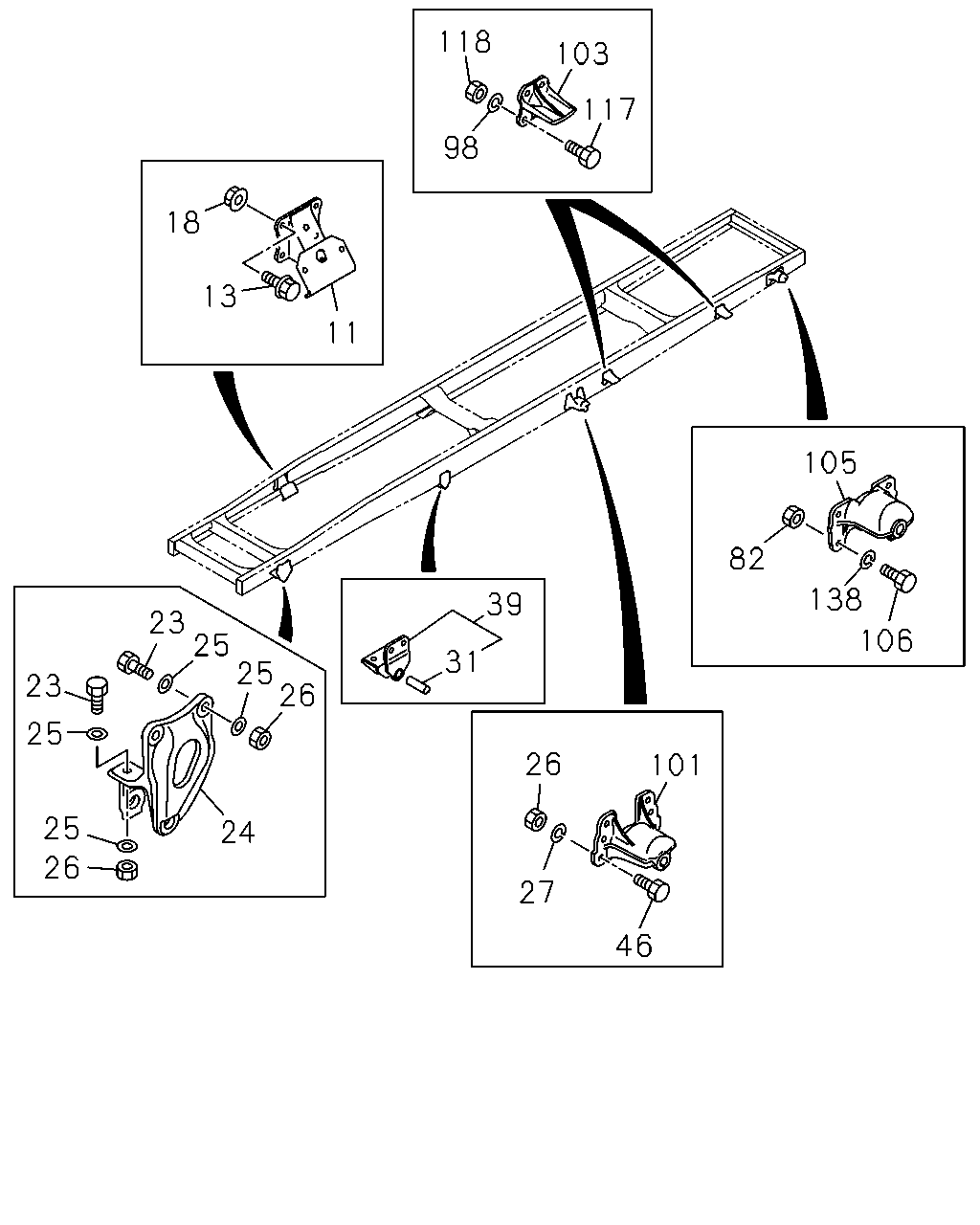

çizim 502558
118 103 117 98 18 13 11 39 31 105 82 106 138 101 46 27 26 26 25 25 23 24 23 25 25 26
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG 8-97609-502-0 02 1 1511- ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1511- ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1511- ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1511- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 1511- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 1511- ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1511- ● ● ●
26 NUT; BRKT,SPR
AIR SUS(FCD***) M14 		0-91110-514-0 08 1 1511- ● ●
26 NUT; BRKT,SPR
LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 1511- ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1511- ●
27 WASHER; LK,BRKT,FRT SPR
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 12 1 1511- ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 1511- ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1511- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 1511- ● ● ●
46 BOLT; BRKT FIX
LEAF SUS(FCR***) M14X50 		0-20951-450-0 12 1 1511- ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 1511- ●
82 NUT; BRKT
LEAF SUS(FCR***) M14 		0-91110-514-0 10 1 1511- ● ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 1511- ●
98 WASHER; LK,STOPPER
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 16 1 1511- ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1511- ●
101 BRACKET; RR SPR,FRT
LEAF SUS(FCR***) 		1-53353-090-4 02 1 1511- ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1511- ●
103 STOPPER; SUB SPR
LEAF SUS(FCR***) 		1-53356-059-1 04 1 1511- ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1511- ●
105 BRACKET; RR SPR,RR
LEAF SUS(FCR***) 		1-53354-074-0 02 1 1511- ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 1511- ●
106 BOLT; BRKT
LEAF SUS(FCR***) M14X50 		0-20951-450-0 10 1 1511- ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 1511- ●
117 BOLT; STOPPER
LEAF SUS(FCR***) M14X50 		0-20951-450-0 16 1 1511- ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1511- ●
118 NUT; STOPPER
LEAF SUS(FCR***) M14 		0-91110-514-0 16 1 1511- ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1511- ●
138 WASHER; LK,BRKT
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 10 1 1511- ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 1511- ●

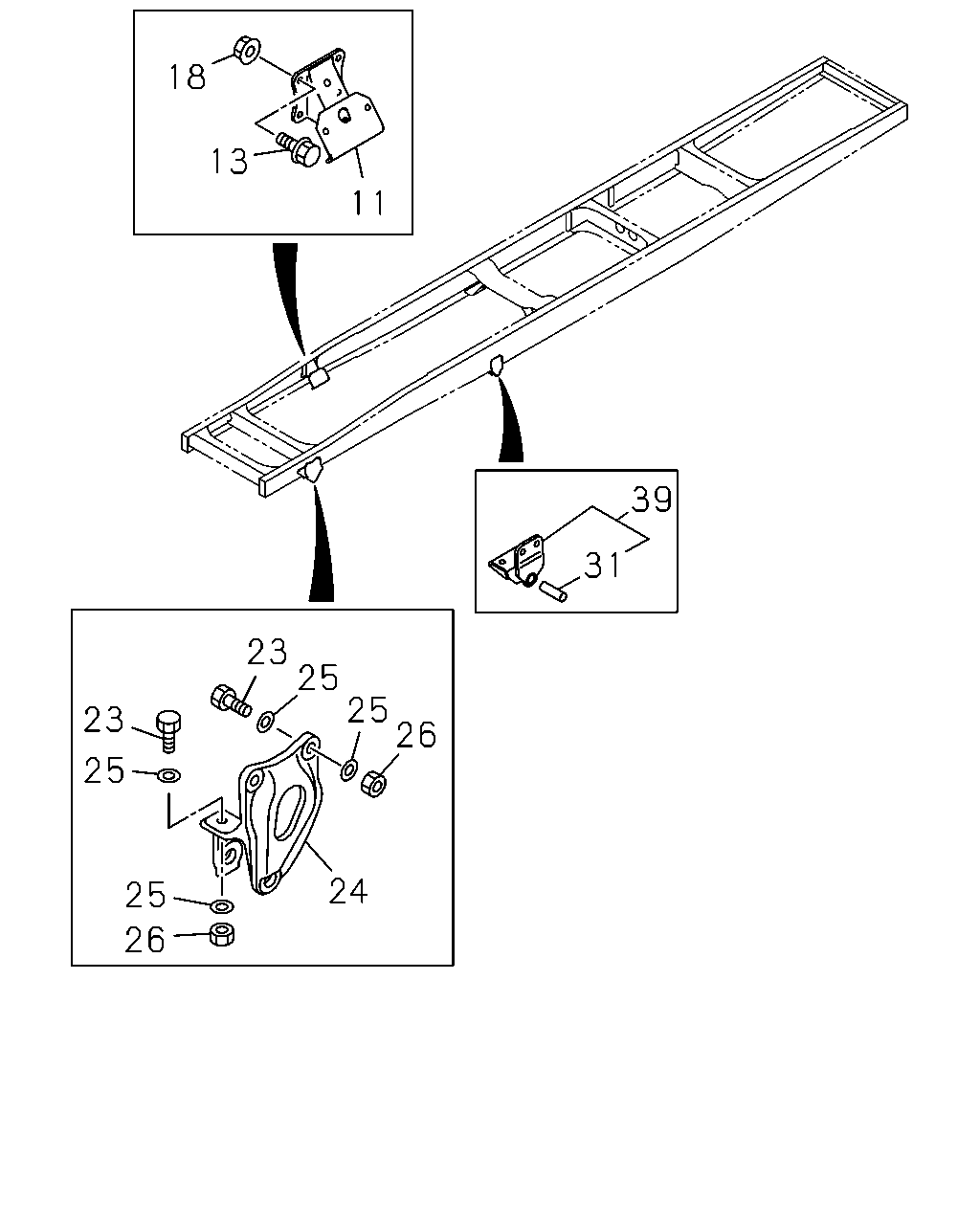

çizim 502580
13 18 11 39 31 25 26 25 23 23 25 25 26 24
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG 8-97609-502-0 02 1 1511- ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1511- ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1511- ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1511- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 1511- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 1511- ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1511- ● ● ●
26 NUT; BRKT,SPR
AIR SUS(FCD***) M14 		0-91110-514-0 08 1 1511- ● ●
26 NUT; BRKT,SPR
LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 1511- ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1511- ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1511- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 1511- ● ● ●
