4-71 — AIR SUSPENSION PIPING (#169231) — 10 parça

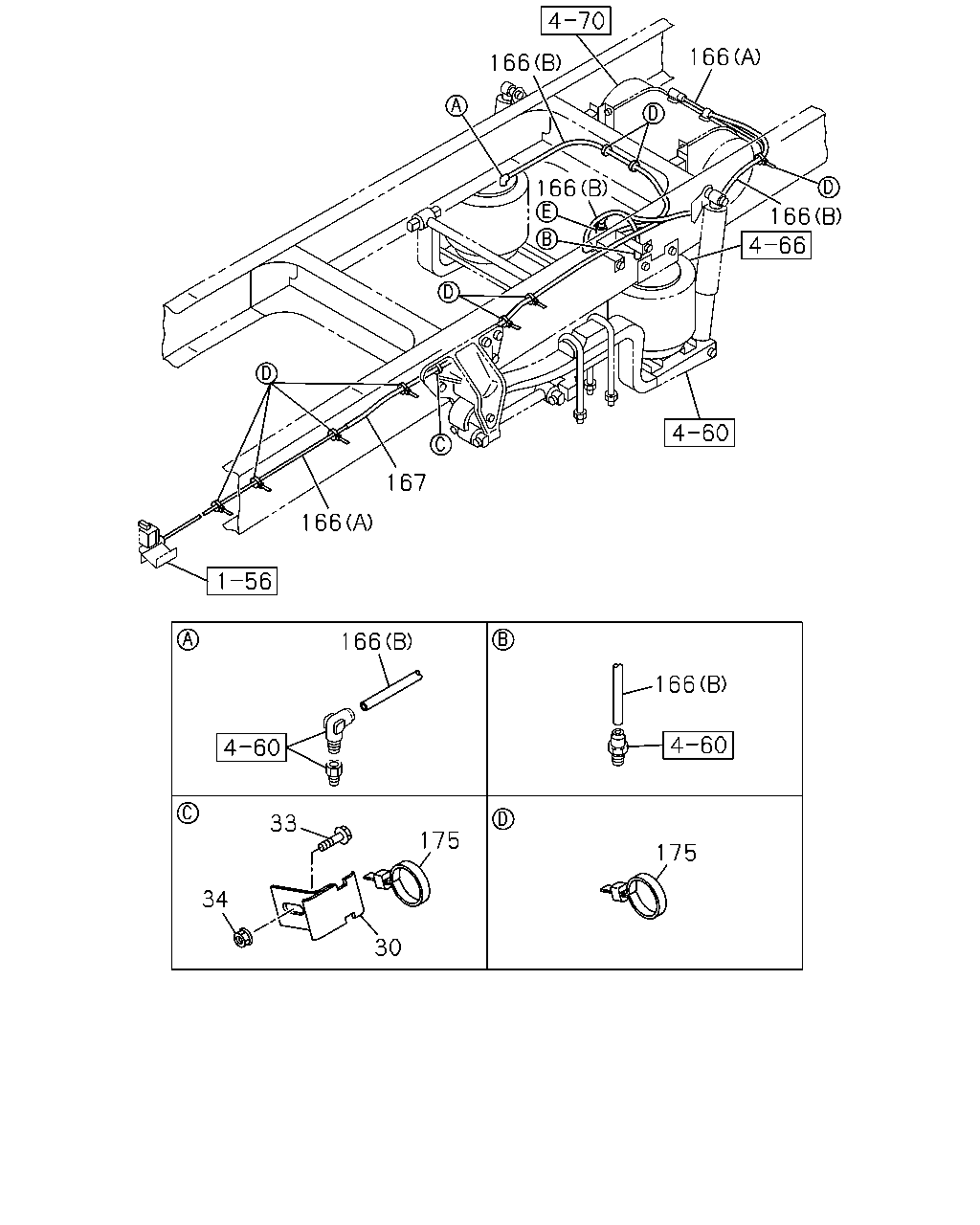

çizim 502637
166 166 166 166 167 166 166 166 175 33 34 30 175
BalonParca AdiParca NoAdetTipApplied Date
30 BRACKET; CLIP 1-47479-693-0 01 1 1511-
33 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1511-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1511-
166 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 01 1 1511-
166 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 1511-
167 TUBE; CORRUGATE
SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1511-
175 CLIP
L=350 		1-09707-183-0 07 1 1511-
çizim 502662
162 162 162 162 162
BalonParca AdiParca NoAdetTipApplied Date
162 UNION; TUBE
(A) 		1-09661-289-0 01 1 1511-
162 UNION; TUBE
(B) 		8-97633-775-0 02 1 1511-
162 UNION; TUBE
(C) 		8-97633-779-0 02 1 1511-
