◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11714 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#169223) — 36 parça

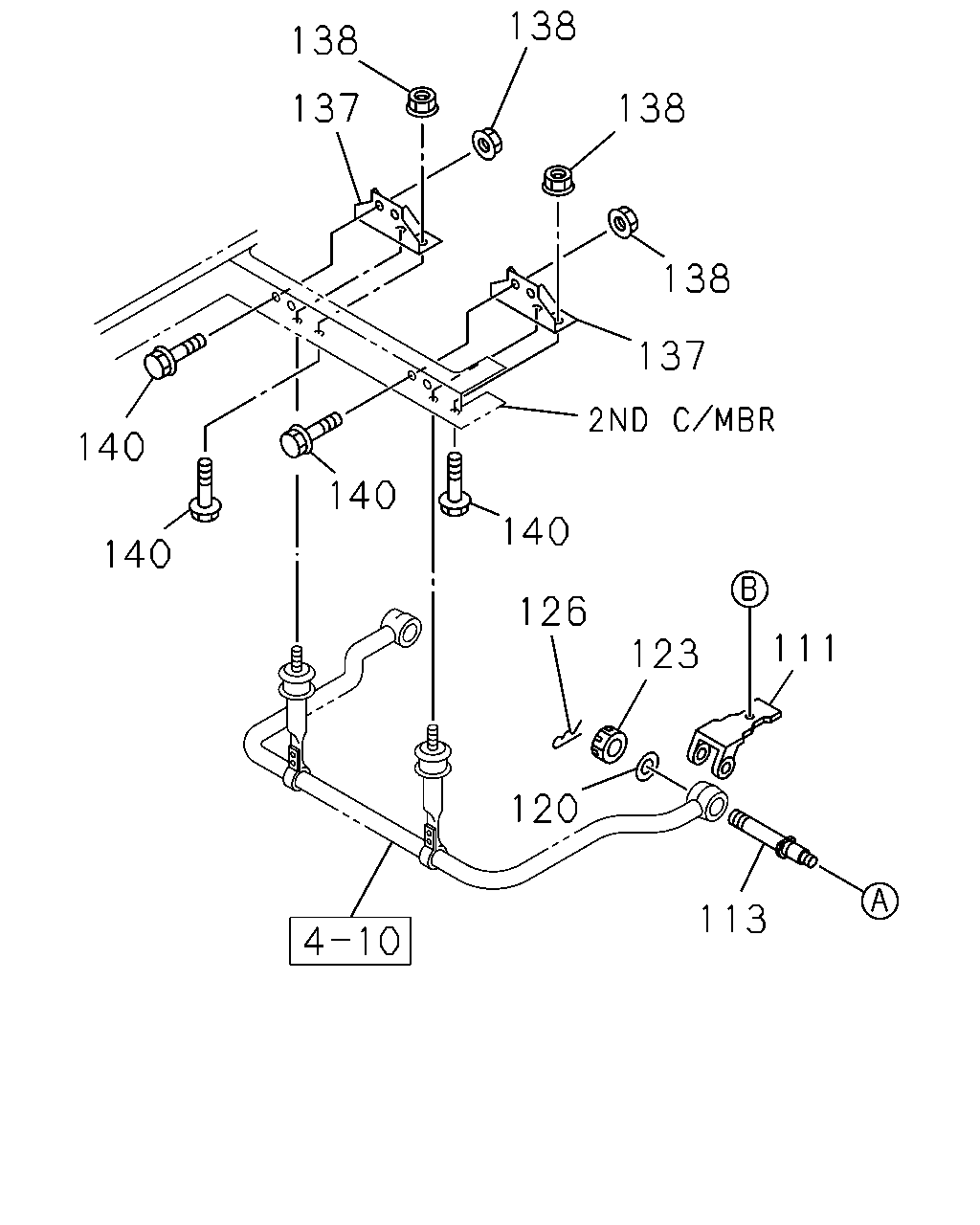

çizim 502603
111 113 123 126 120 140 137 138 138 138 138 137 140 140 140
BalonParca AdiParca NoAdetTipApplied Date A B C
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-591-1 01 1 1511- ● ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-590-1 01 1 1511- ● ● ●
113 PIN; SUPPORTER 8-98010-654-0 02 1 1511- ● ● ●
120 WASHER; PL,SUPPORT BRKT TO BODY
ID=23 		0-91614-522-0 02 1 1511- ● ● ●
123 NUT; PIN TO SUPPORTER
M22 		0-91116-522-0 02 1 1511- ● ● ●
126 PIN; SPLIT,STAB
OD=4.6 L=45 		0-81125-045-0 02 1 1511- ● ● ●
137 BRACKET; STAB BAR TO FRAME 1-51781-060-2 02 1 1511- ● ● ●
138 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1511- ● ● ●
140 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 08 1 1511- ● ● ●

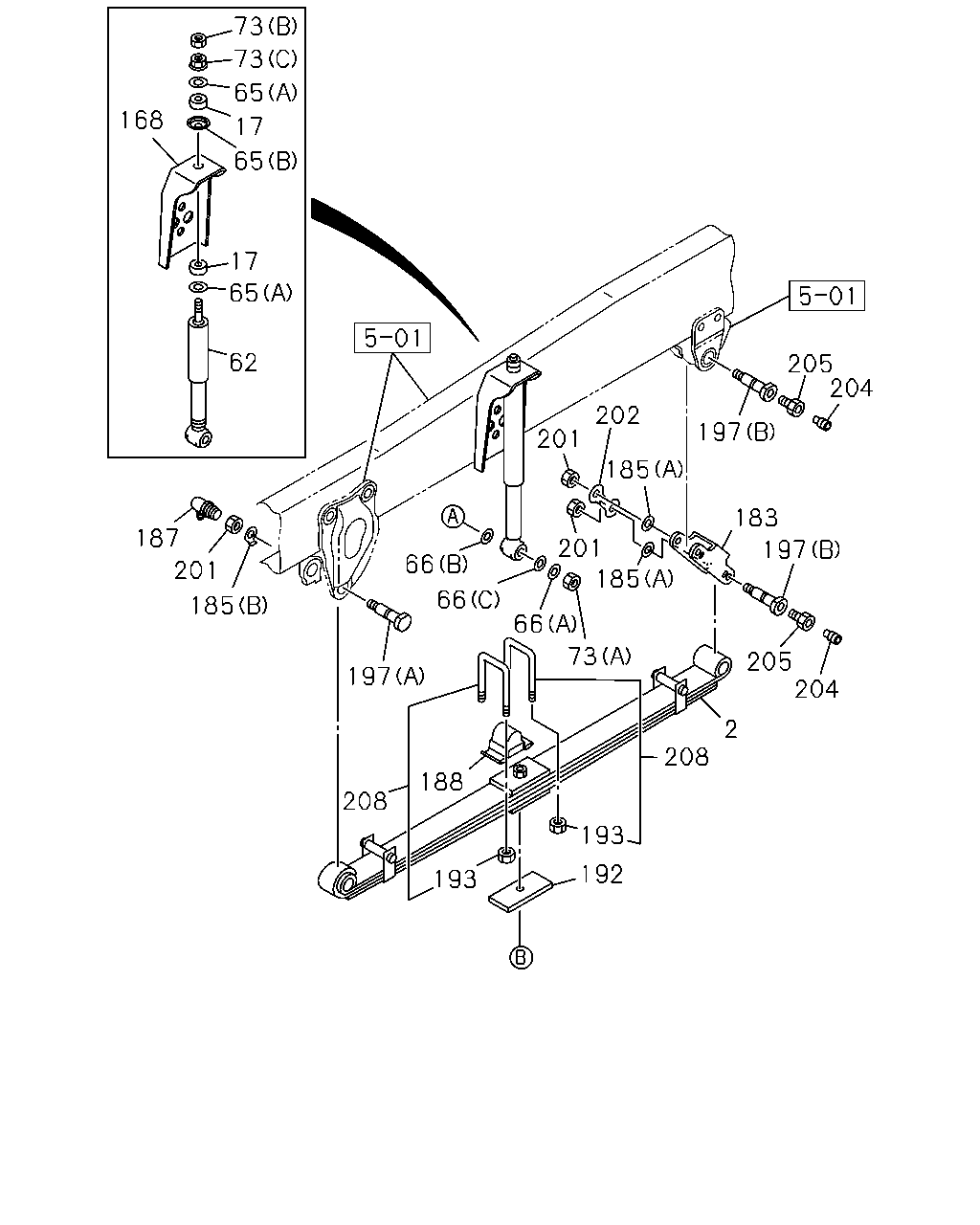

çizim 503661
205 197 202 201 66 187 185 201 168 73 65 73 17 17 62 65 204 183 205 204 66 197 66 73 208 193 188 208 193 192 2 65 185 201 197 185
BalonParca AdiParca NoAdetTipApplied Date A B C
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98111-360-0 01 1 1511- ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98111-361-0 01 1 1511- ● ● ●
17 BUSHING; RUBBER,S/ABS 1-51631-004-0 04 1 1511- ● ● ●
62 ABSORBER ASM; SHOCK,FRT 8-98060-332-0 02 1 1511- ● ● ●
65 WASHER; S/ABS
(B) 		1-51631-023-0 02 1 1511- ● ● ●
65 WASHER; S/ABS
(A) ID=10.5 OD=40 T=3.2 		8-98010-405-0 04 1 1511- ● ● ●
66 WASHER; LK,S/ABS SETTING
(A) ID=12.2 		0-91510-812-0 02 1 1511- ● ● ●
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 		0-91610-516-0 02 1 1511- ● ● ●
66 WASHER; LK,S/ABS SETTING
(C) ID=12.5 		1-09503-171-0 02 1 1511- ● ● ●
73 NUT; BRKT,SHOCK
(A) M12 		0-91110-512-0 02 1 1511- ● ● ●
73 NUT; BRKT,SHOCK
(B) M10 		0-91111-510-0 02 1 1511- ● ● ●
73 NUT; BRKT,SHOCK
(C) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ● ●
168 BRACKET; S/ABS,FRT SUSP 8-98060-258-0 02 1 1511- ● ● ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 1511- ● ● ●
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 1511- ● ● ●
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 1511- ● ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1511- ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-112-0 02 1 1511- ● ● ●
192 PIECE; DIST
T=4.5 		1-51177-149-0 AR 1 1511- ● ● ●
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 1511- ● ● ●
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 1511- ● ● ●
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 1511- ● ● ●
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 1511- ● ● ●
202 PLATE; LK,SPR PIN 8-98010-648-0 02 1 1511- ● ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 1511- ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 1511- ● ● ●
208 U-BOLT SET; FRT SPRING
L=150 		1-87870-466-0 04 1 1511- ● ● ●
