◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11714 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-42 - POWER STEERING OIL PUMP ▶
4-42 — POWER STEERING OIL PUMP (#169222) — 23 parça

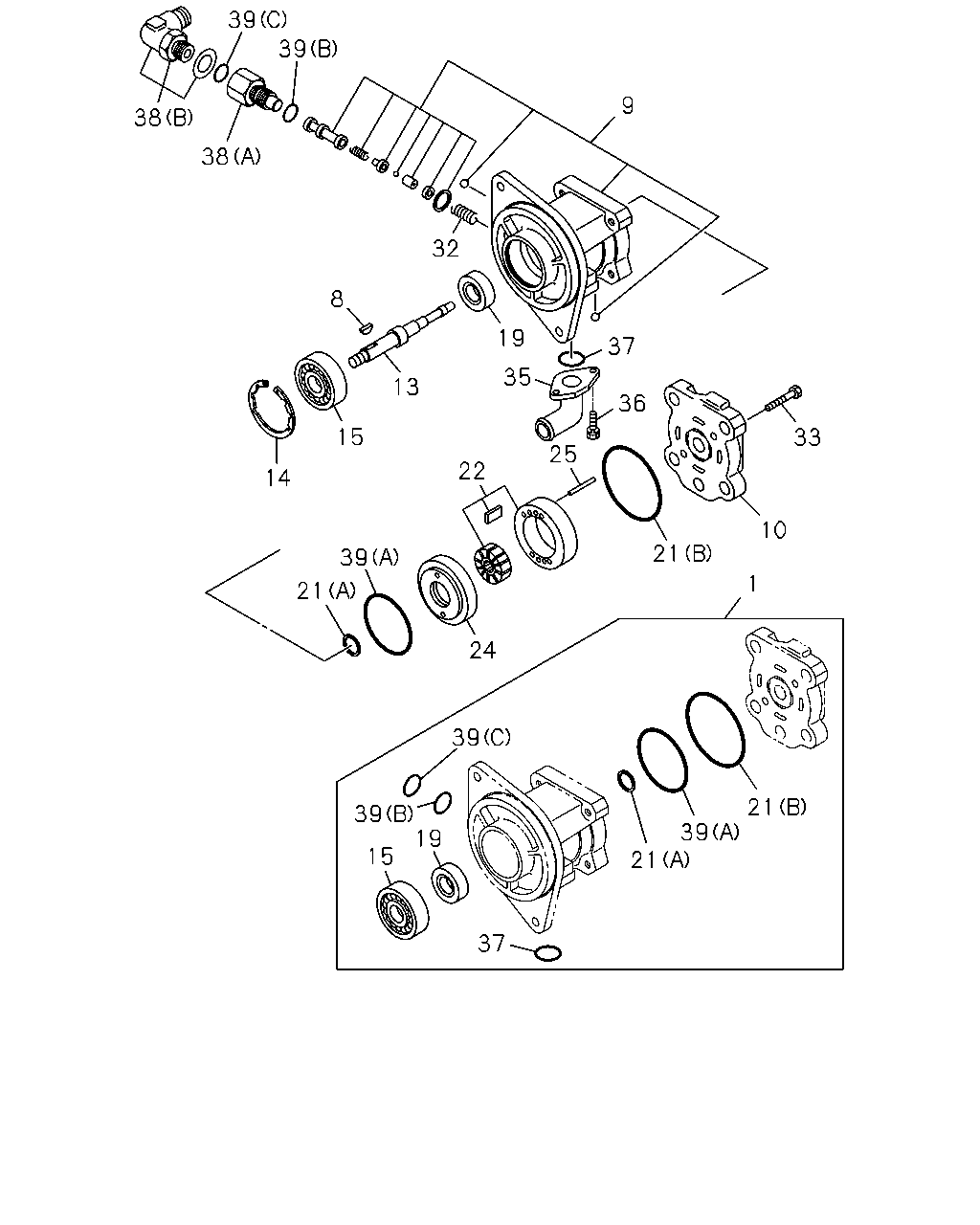

çizim 502463
39 38 38 39 9 37 19 32 8 14 15 13 35 36 25 22 39 21 33 10 1 21 24 39 39 15 37 21 21 39 19
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
ASM PART: A = 1-19500-627-1 		1-85574-073-0 01 1 -
8 KEY; SHAFT,OIL PUMP
ASM PART: A = 1-19500-627-1 		9-08055-413-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 1-19500-627-1 		8-98073-203-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: A = 1-19500-627-1 		1-19511-160-0 01 1 -
13 SHAFT KIT; RET
ASM PART: A = 1-19500-627-1 		1-19521-040-0 01 1 -
14 RING; RET,OIL PUMP
ASM PART: A = 1-19500-627-1 		1-19519-257-0 01 1 -
15 BEARING; BALL,OIL PUMP
ASM PART: A = 1-19500-627-1 		1-19519-264-0 01 1 -
19 SEAL; OIL,OIL PUMP
ASM PART: A = 1-19500-627-1 		1-19519-256-0 01 1 -
21 GASKET; FRT COVER TO BODY
(B) ASM PART: A = 1-19500-627-1 		1-19519-345-0 01 1 -
21 GASKET; FRT COVER TO BODY
(A) ASM PART: A = 1-19500-627-1 		8-97182-099-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 1-19500-627-1 		1-19519-341-0 01 1 -
24 PLATE ASM; THRUST
ASM PART: A = 1-19500-627-1 		8-97182-103-0 01 1 -
25 PIN; HSG,P/S
ASM PART: A = 1-19500-627-1 		1-33739-271-0 02 1 -
32 SPRING; OIL PUMP
ASM PART: A = 1-19500-627-1 		8-94475-376-0 01 1 -
33 BOLT; COVER
ASM PART: A = 1-19500-627-1 		1-19519-346-1 04 1 -
35 PIPE; HOSE CONN,OIL PUMP
ASM PART: A = 1-19500-627-1 		8-98080-055-0 01 1 -
36 BOLT; CONN,PIPE
ASM PART: A = 1-19500-627-1 		1-19519-124-1 02 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 1-19500-627-1 		1-33739-070-0 01 1 -
38 CONNECTOR; OIL PUMP
(B) ASM PART: A = 1-19500-627-1 		1-19519-307-1 01 1 -
38 CONNECTOR; OIL PUMP
(A) ASM PART: A = 1-19500-627-1 		1-19519-343-1 01 1 -
39 GASKET; OIL PUMP
(A) ASM PART: A = 1-19500-627-1 		1-19519-259-0 01 1 -
39 GASKET; OIL PUMP
(C) ASM PART: A = 1-19500-627-1 		1-19519-308-0 01 1 -
39 GASKET; OIL PUMP
(B) ASM PART: A = 1-19500-627-1 		9-48429-028-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
