Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#169219) — 202 parça

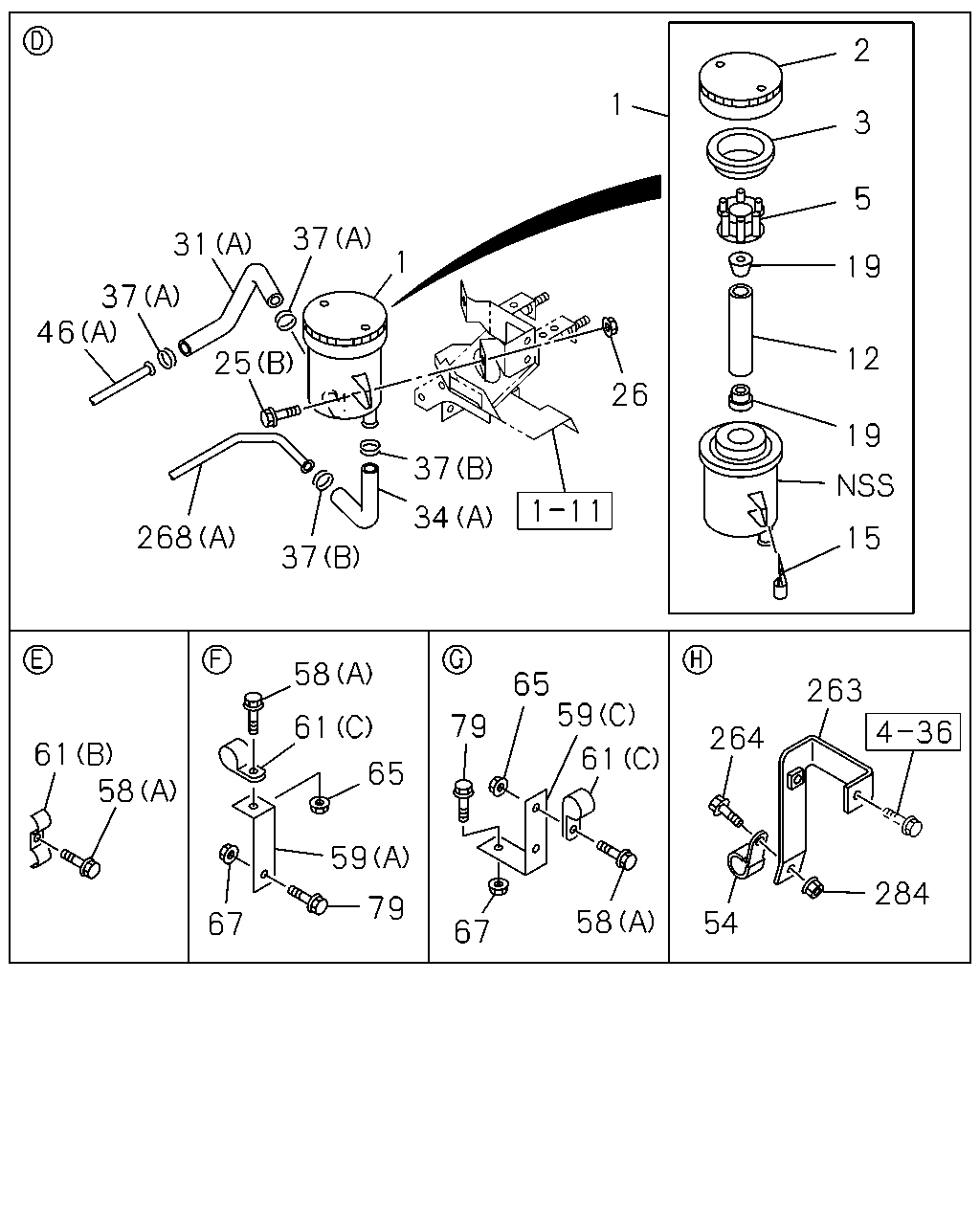

46 37 31 37 268 37 34 37 26 25 1 1 61 58 58 61 65 59 79 67 65 79 59 61 67 58 264 263 54 284 2 3 5 19 12 19 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1511-	●	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1511-	●	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1511-	●	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1511-	●	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1511-	●	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1511-	●	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1511-	●	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1511-	●	●
25	BOLT; OIL TANK BRKT MANUAL TRANSMISSION<X9C> (B) M8X25 FLANGE	0-28650-825-0	02	1	1511-			●
25	BOLT; OIL TANK BRKT MANUAL TRANSMISSION<X9C> (A) M8X20 FLANGE	0-28650-820-0	02	1	1511-			●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
26	NUT; OIL TANK TO BRKT MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	02	1	1511-			●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1511-	●	●
31	HOSE; P/S OIL TANK,INL MANUAL TRANSMISSION<X9C> (B)	8-98101-814-0	01	1	1511-			●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1511-	●	●
34	HOSE; P/S OIL TANK,OUTLET MANUAL TRANSMISSION<X9C> (B)	8-98101-815-0	01	1	1511-			●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1511-	●	●
37	CLIP; HOSE,P/S MANUAL TRANSMISSION<X9C> (A) ID=26	1-09704-082-0	02	1	1511-			●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1511-	●	●
37	CLIP; HOSE,P/S MANUAL TRANSMISSION<X9C> (B) ID=32	1-09704-085-0	02	1	1511-			●
37	CLIP; HOSE,P/S MANUAL TRANSMISSION<X9C> (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1511-			●
37	CLIP; HOSE,P/S MANUAL TRANSMISSION<X9C> (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1511-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2729	8-98327-480-0	01	1	1511-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK MANUAL TRANSMISSION<X9C> (B) L=2794	8-98327-479-0	01	1	1511-			●
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	1511-	●	●
54	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> ID=19 L=20	0-95235-836-0	01	1	1511-			●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
58	BOLT; CLIP MANUAL TRANSMISSION<X9C> (A) M8X16 FLANGE	0-28050-816-0	02	1	1511-			●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
58	BOLT; CLIP MANUAL TRANSMISSION<X9C> (A) M8X20 FLANGE	0-28650-820-0	02	1	1511-			●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1511-	●	●
58	BOLT; CLIP MANUAL TRANSMISSION<X9C> (A) M8X20 FLANGE	0-28650-820-0	03	1	1511-			●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1511-	●	●
59	BRACKET; CLIP,OIL PIPE MANUAL TRANSMISSION<X9C> (C)	1-21464-481-0	01	1	1511-			●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1511-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1511-	●	●
59	BRACKET; CLIP,OIL PIPE MANUAL TRANSMISSION<X9C> (A) L=95	1-82699-085-0	01	1	1511-			●
59	BRACKET; CLIP,OIL PIPE MANUAL TRANSMISSION<X9C> (D)	1-47471-051-0	01	1	1511-			●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1511-	●	●
61	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> (C) ID=16 L=20	0-95235-536-0	02	1	1511-			●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1511-	●	●
61	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1511-			●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1511-	●	●
61	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1511-			●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
65	NUT; BRKT MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	02	1	1511-			●
65	NUT; BRKT MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	01	1	1511-			●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
67	NUT; BRKT MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	01	1	1511-			●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1511-	●	●
79	BOLT; BRKT MANUAL TRANSMISSION<X9C> M8X25 FLANGE	0-28650-825-0	02	1	1511-			●
263	BRACKET; P/S PIPE	8-98079-444-0	01	1	1511-	●	●
263	BRACKET; P/S PIPE MANUAL TRANSMISSION<X9C>	8-98079-444-0	01	1	1511-			●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
264	BOLT; PIPE BRKT MANUAL TRANSMISSION<X9C> M8X20 FLANGE	0-28650-820-0	01	1	1511-			●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-041-0	01	1	1511-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE MANUAL TRANSMISSION<X9C> (B)	8-98154-046-0	01	1	1511-			●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
284	NUT; PIPE MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	01	1	1511-			●

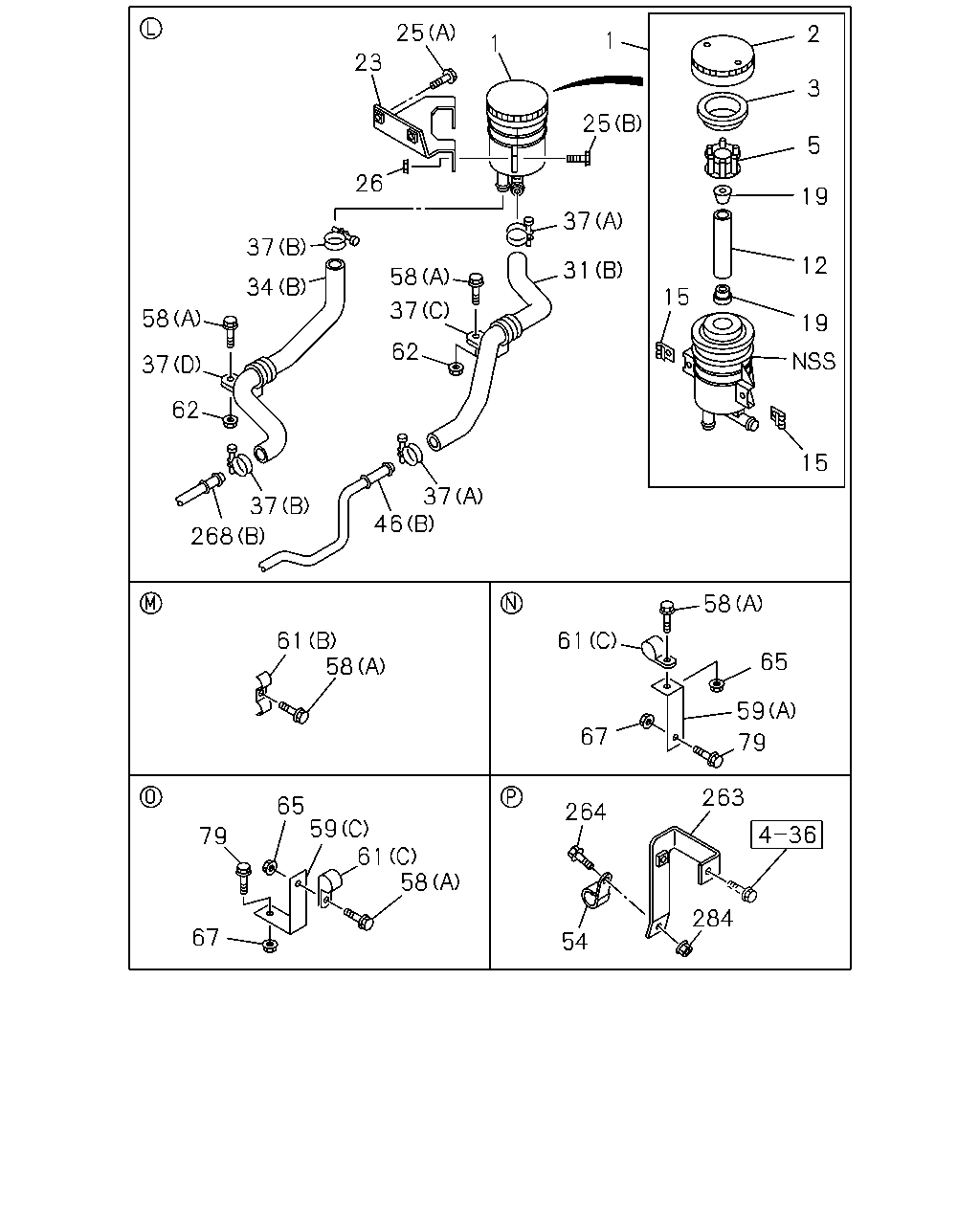

2 3 5 19 12 19 15 15 58 65 59 61 67 79 264 54 263 284 65 79 67 59 61 58 61 58 268 37 46 37 62 37 58 31 37 25 1 1 25 23 26 37 34 58 37 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1511-	●	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1511-	●	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1511-	●	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1511-	●	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1511-	●	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1511-	●	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1511-	●	●	●
23	BRACKET; OIL TANK,P/S MANUAL TRANSMISSION<X9C>	8-98125-268-0	01	1	1511-			●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1511-	●	●
25	BOLT; OIL TANK BRKT MANUAL TRANSMISSION<X9C> (B) M8X25 FLANGE	0-28650-825-0	02	1	1511-			●
25	BOLT; OIL TANK BRKT MANUAL TRANSMISSION<X9C> (A) M8X20 FLANGE	0-28650-820-0	02	1	1511-			●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
26	NUT; OIL TANK TO BRKT MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	02	1	1511-			●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1511-	●	●
31	HOSE; P/S OIL TANK,INL MANUAL TRANSMISSION<X9C> (B)	8-98101-814-0	01	1	1511-			●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1511-	●	●
34	HOSE; P/S OIL TANK,OUTLET MANUAL TRANSMISSION<X9C> (B)	8-98101-815-0	01	1	1511-			●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1511-	●	●
37	CLIP; HOSE,P/S MANUAL TRANSMISSION<X9C> (A) ID=26	1-09704-082-0	02	1	1511-			●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1511-	●	●
37	CLIP; HOSE,P/S MANUAL TRANSMISSION<X9C> (B) ID=32	1-09704-085-0	02	1	1511-			●
37	CLIP; HOSE,P/S MANUAL TRANSMISSION<X9C> (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1511-			●
37	CLIP; HOSE,P/S MANUAL TRANSMISSION<X9C> (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1511-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2729	8-98327-480-0	01	1	1511-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK MANUAL TRANSMISSION<X9C> (B) L=2794	8-98327-479-0	01	1	1511-			●
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	1511-	●	●
54	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> ID=19 L=20	0-95235-836-0	01	1	1511-			●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
58	BOLT; CLIP MANUAL TRANSMISSION<X9C> (A) M8X16 FLANGE	0-28050-816-0	02	1	1511-			●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
58	BOLT; CLIP MANUAL TRANSMISSION<X9C> (A) M8X20 FLANGE	0-28650-820-0	02	1	1511-			●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1511-	●	●
58	BOLT; CLIP MANUAL TRANSMISSION<X9C> (A) M8X20 FLANGE	0-28650-820-0	03	1	1511-			●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1511-	●	●
59	BRACKET; CLIP,OIL PIPE MANUAL TRANSMISSION<X9C> (C)	1-21464-481-0	01	1	1511-			●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1511-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1511-	●	●
59	BRACKET; CLIP,OIL PIPE MANUAL TRANSMISSION<X9C> (A) L=95	1-82699-085-0	01	1	1511-			●
59	BRACKET; CLIP,OIL PIPE MANUAL TRANSMISSION<X9C> (D)	1-47471-051-0	01	1	1511-			●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1511-	●	●
61	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> (C) ID=16 L=20	0-95235-536-0	02	1	1511-			●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1511-	●	●
61	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1511-			●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1511-	●	●
61	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1511-			●
62	NUT; CLIP FIX MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	02	1	1511-			●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
65	NUT; BRKT MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	02	1	1511-			●
65	NUT; BRKT MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	01	1	1511-			●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
67	NUT; BRKT MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	01	1	1511-			●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1511-	●	●
79	BOLT; BRKT MANUAL TRANSMISSION<X9C> M8X25 FLANGE	0-28650-825-0	02	1	1511-			●
263	BRACKET; P/S PIPE	8-98079-444-0	01	1	1511-	●	●
263	BRACKET; P/S PIPE MANUAL TRANSMISSION<X9C>	8-98079-444-0	01	1	1511-			●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
264	BOLT; PIPE BRKT MANUAL TRANSMISSION<X9C> M8X20 FLANGE	0-28650-820-0	01	1	1511-			●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-041-0	01	1	1511-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE MANUAL TRANSMISSION<X9C> (B)	8-98154-046-0	01	1	1511-			●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
284	NUT; PIPE MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	01	1	1511-			●

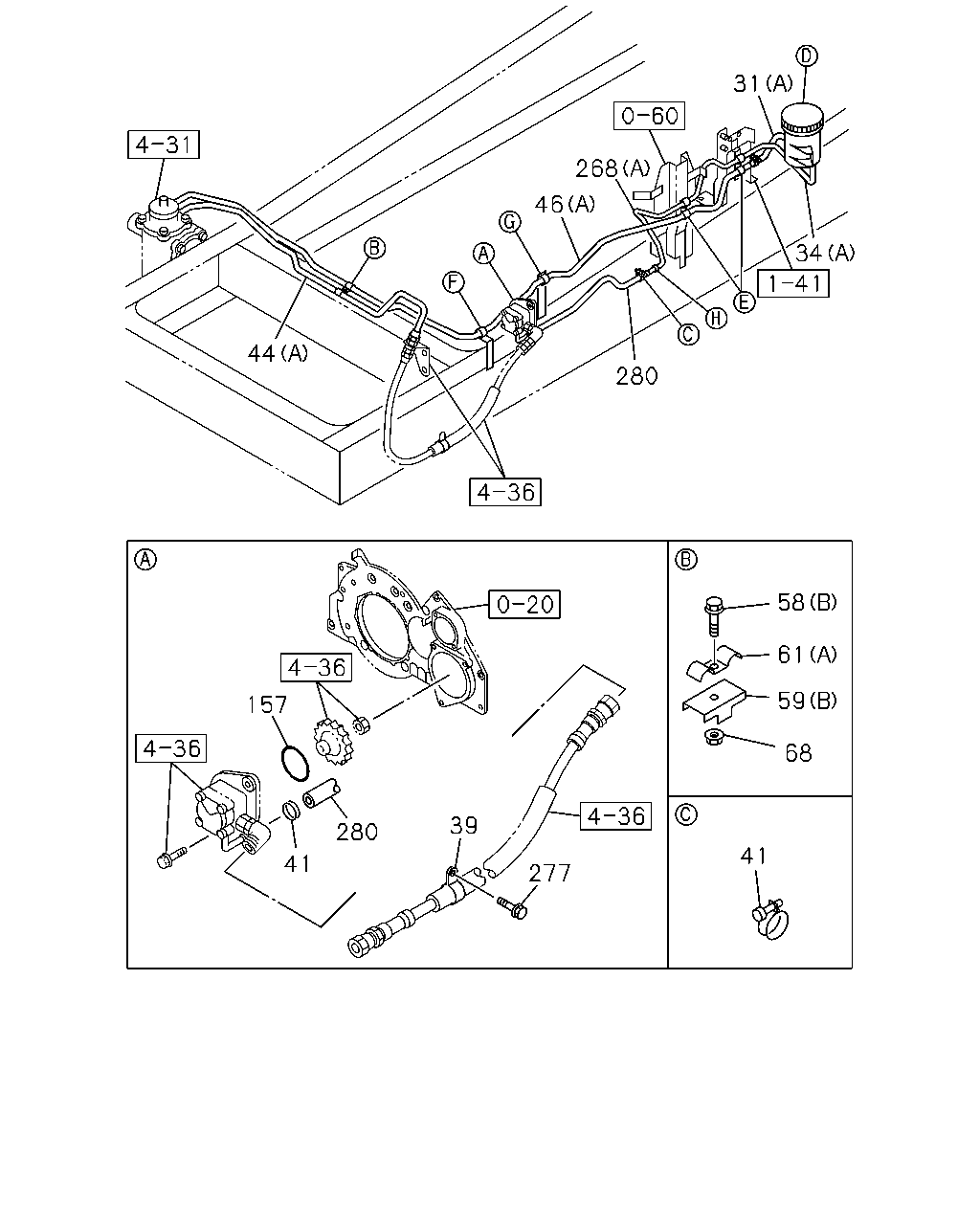

44 46 268 31 280 34 58 61 59 68 41 277 39 280 157 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1511-	●	●
31	HOSE; P/S OIL TANK,INL MANUAL TRANSMISSION<X9C> (B)	8-98101-814-0	01	1	1511-			●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1511-	●	●
34	HOSE; P/S OIL TANK,OUTLET MANUAL TRANSMISSION<X9C> (B)	8-98101-815-0	01	1	1511-			●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	1511-	●	●
39	CLIP; FLEX HOSE MANUAL TRANSMISSION<X9C> ID=40	8-94226-553-0	01	1	1511-			●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1511-	●	●
41	CLIP; HOSE,P/S MANUAL TRANSMISSION<X9C> ID=32	1-09704-085-0	02	1	1511-			●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98099-150-0	01	1	1511-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE MANUAL TRANSMISSION<X9C> (B)	8-98114-406-0	01	1	1511-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2729	8-98327-480-0	01	1	1511-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK MANUAL TRANSMISSION<X9C> (B) L=2794	8-98327-479-0	01	1	1511-			●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
58	BOLT; CLIP MANUAL TRANSMISSION<X9C> (A) M8X16 FLANGE	0-28050-816-0	02	1	1511-			●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
58	BOLT; CLIP MANUAL TRANSMISSION<X9C> (A) M8X20 FLANGE	0-28650-820-0	02	1	1511-			●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1511-	●	●
58	BOLT; CLIP MANUAL TRANSMISSION<X9C> (A) M8X20 FLANGE	0-28650-820-0	03	1	1511-			●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1511-	●	●
59	BRACKET; CLIP,OIL PIPE MANUAL TRANSMISSION<X9C> (C)	1-21464-481-0	01	1	1511-			●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1511-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1511-	●	●
59	BRACKET; CLIP,OIL PIPE MANUAL TRANSMISSION<X9C> (A) L=95	1-82699-085-0	01	1	1511-			●
59	BRACKET; CLIP,OIL PIPE MANUAL TRANSMISSION<X9C> (D)	1-47471-051-0	01	1	1511-			●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1511-	●	●
61	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> (C) ID=16 L=20	0-95235-536-0	02	1	1511-			●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1511-	●	●
61	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1511-			●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1511-	●	●
61	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1511-			●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
68	NUT; CLIP,OIL PIPE MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	01	1	1511-			●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	1511-	●	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-041-0	01	1	1511-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE MANUAL TRANSMISSION<X9C> (B)	8-98154-046-0	01	1	1511-			●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	1511-	●	●
277	BOLT; HOSE CLIP MANUAL TRANSMISSION<X9C> M8X16 FLANGE	0-28050-816-0	01	1	1511-			●
280	HOSE; P/S OIL PUMP,INL	8-98094-167-0	01	1	1511-	●	●
280	HOSE; P/S OIL PUMP,INL MANUAL TRANSMISSION<X9C>	8-98094-167-0	01	1	1511-			●

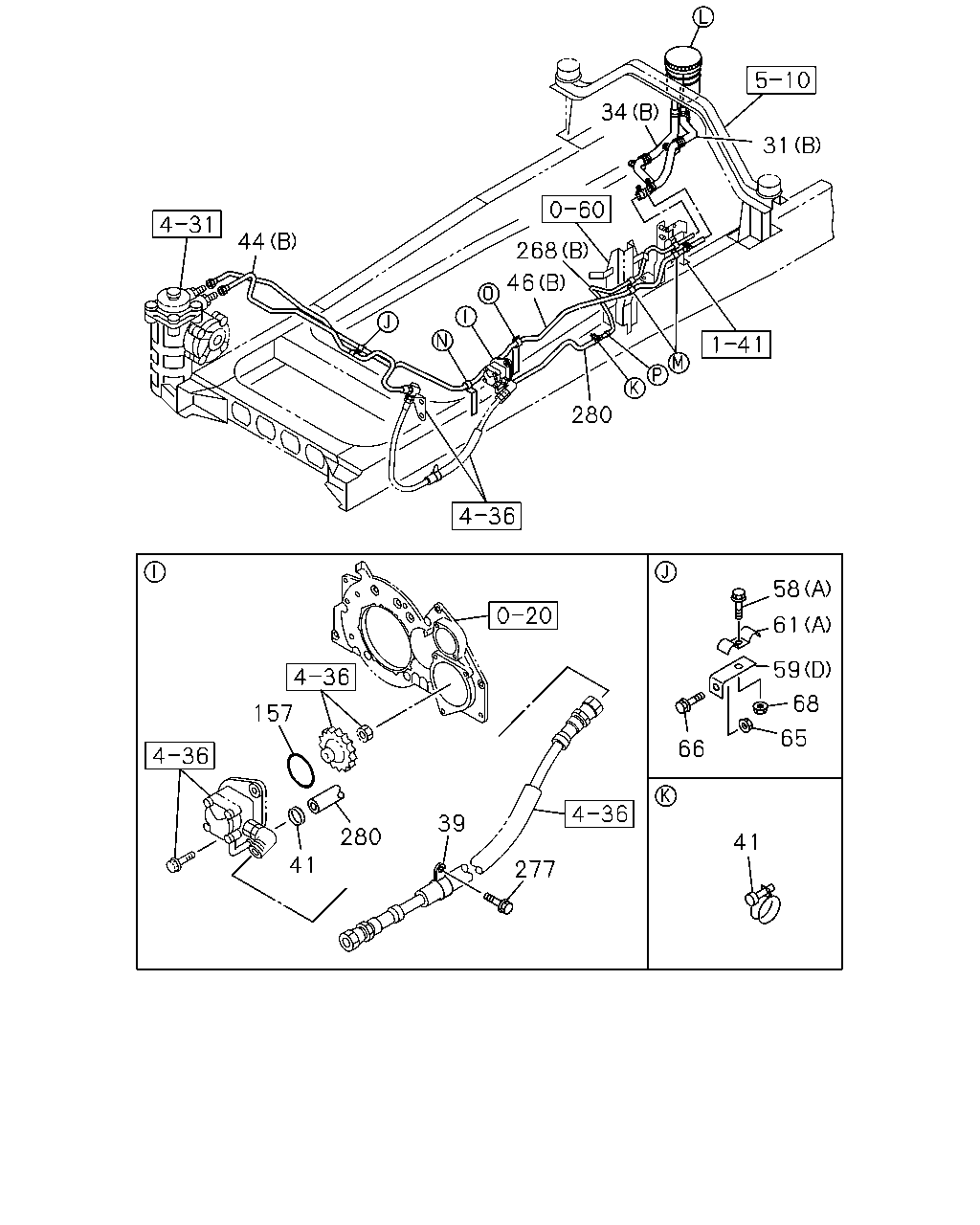

44 34 31 268 46 280 157 280 41 39 277 58 61 59 68 65 66 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1511-	●	●
31	HOSE; P/S OIL TANK,INL MANUAL TRANSMISSION<X9C> (B)	8-98101-814-0	01	1	1511-			●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1511-	●	●
34	HOSE; P/S OIL TANK,OUTLET MANUAL TRANSMISSION<X9C> (B)	8-98101-815-0	01	1	1511-			●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	1511-	●	●
39	CLIP; FLEX HOSE MANUAL TRANSMISSION<X9C> ID=40	8-94226-553-0	01	1	1511-			●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1511-	●	●
41	CLIP; HOSE,P/S MANUAL TRANSMISSION<X9C> ID=32	1-09704-085-0	02	1	1511-			●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98099-150-0	01	1	1511-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE MANUAL TRANSMISSION<X9C> (B)	8-98114-406-0	01	1	1511-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2729	8-98327-480-0	01	1	1511-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK MANUAL TRANSMISSION<X9C> (B) L=2794	8-98327-479-0	01	1	1511-			●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
58	BOLT; CLIP MANUAL TRANSMISSION<X9C> (A) M8X16 FLANGE	0-28050-816-0	02	1	1511-			●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
58	BOLT; CLIP MANUAL TRANSMISSION<X9C> (A) M8X20 FLANGE	0-28650-820-0	02	1	1511-			●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1511-	●	●
58	BOLT; CLIP MANUAL TRANSMISSION<X9C> (A) M8X20 FLANGE	0-28650-820-0	03	1	1511-			●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1511-	●	●
59	BRACKET; CLIP,OIL PIPE MANUAL TRANSMISSION<X9C> (C)	1-21464-481-0	01	1	1511-			●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1511-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1511-	●	●
59	BRACKET; CLIP,OIL PIPE MANUAL TRANSMISSION<X9C> (A) L=95	1-82699-085-0	01	1	1511-			●
59	BRACKET; CLIP,OIL PIPE MANUAL TRANSMISSION<X9C> (D)	1-47471-051-0	01	1	1511-			●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1511-	●	●
61	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> (C) ID=16 L=20	0-95235-536-0	02	1	1511-			●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1511-	●	●
61	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1511-			●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1511-	●	●
61	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1511-			●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
65	NUT; BRKT MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	02	1	1511-			●
65	NUT; BRKT MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	01	1	1511-			●
66	BOLT; BRKT,OIL PIPE MANUAL TRANSMISSION<X9C> M8X20 FLANGE	0-28650-820-0	01	1	1511-			●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
68	NUT; CLIP,OIL PIPE MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	01	1	1511-			●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	1511-	●	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-041-0	01	1	1511-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE MANUAL TRANSMISSION<X9C> (B)	8-98154-046-0	01	1	1511-			●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	1511-	●	●
277	BOLT; HOSE CLIP MANUAL TRANSMISSION<X9C> M8X16 FLANGE	0-28050-816-0	01	1	1511-			●
280	HOSE; P/S OIL PUMP,INL	8-98094-167-0	01	1	1511-	●	●
280	HOSE; P/S OIL PUMP,INL MANUAL TRANSMISSION<X9C>	8-98094-167-0	01	1	1511-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
